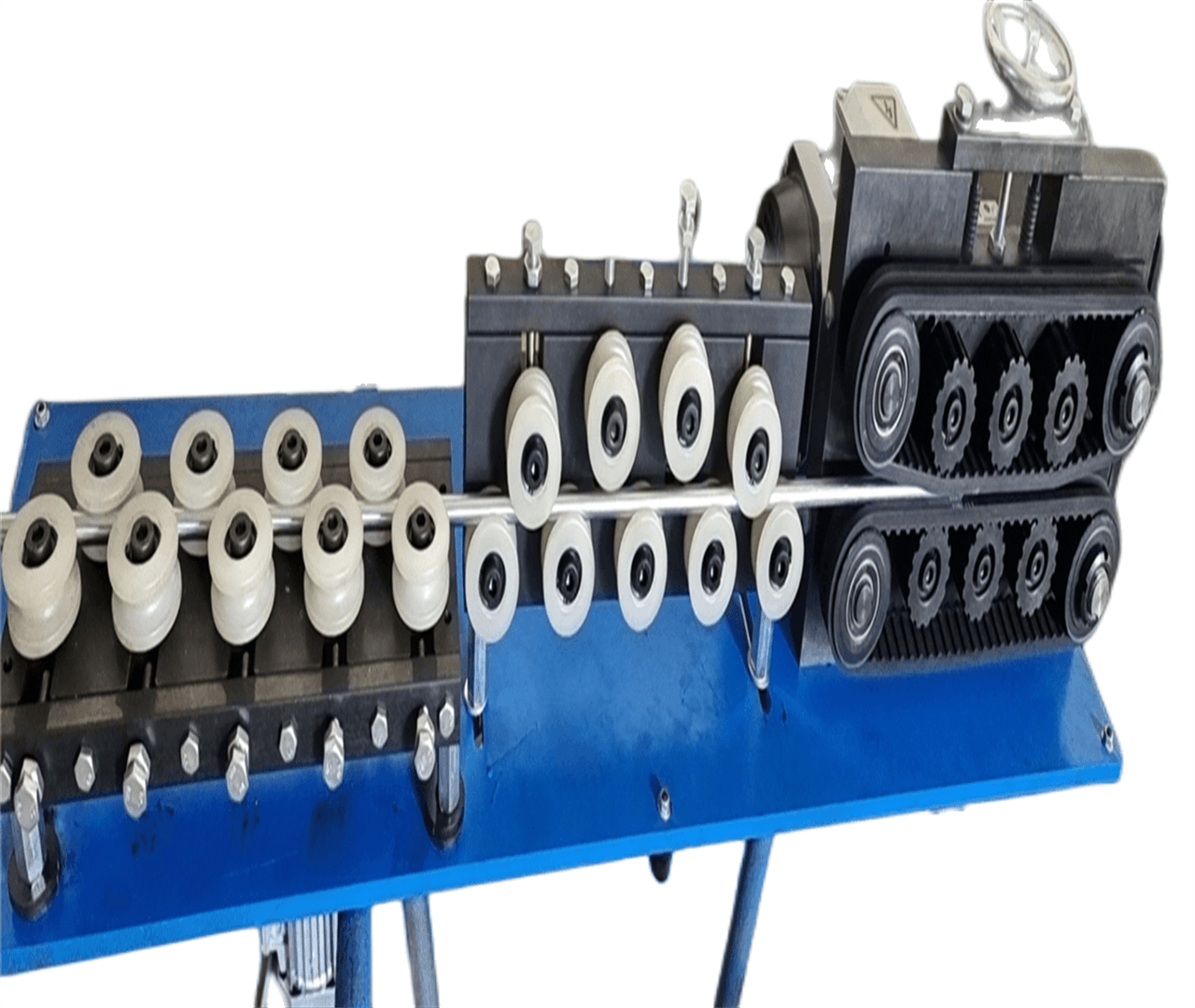

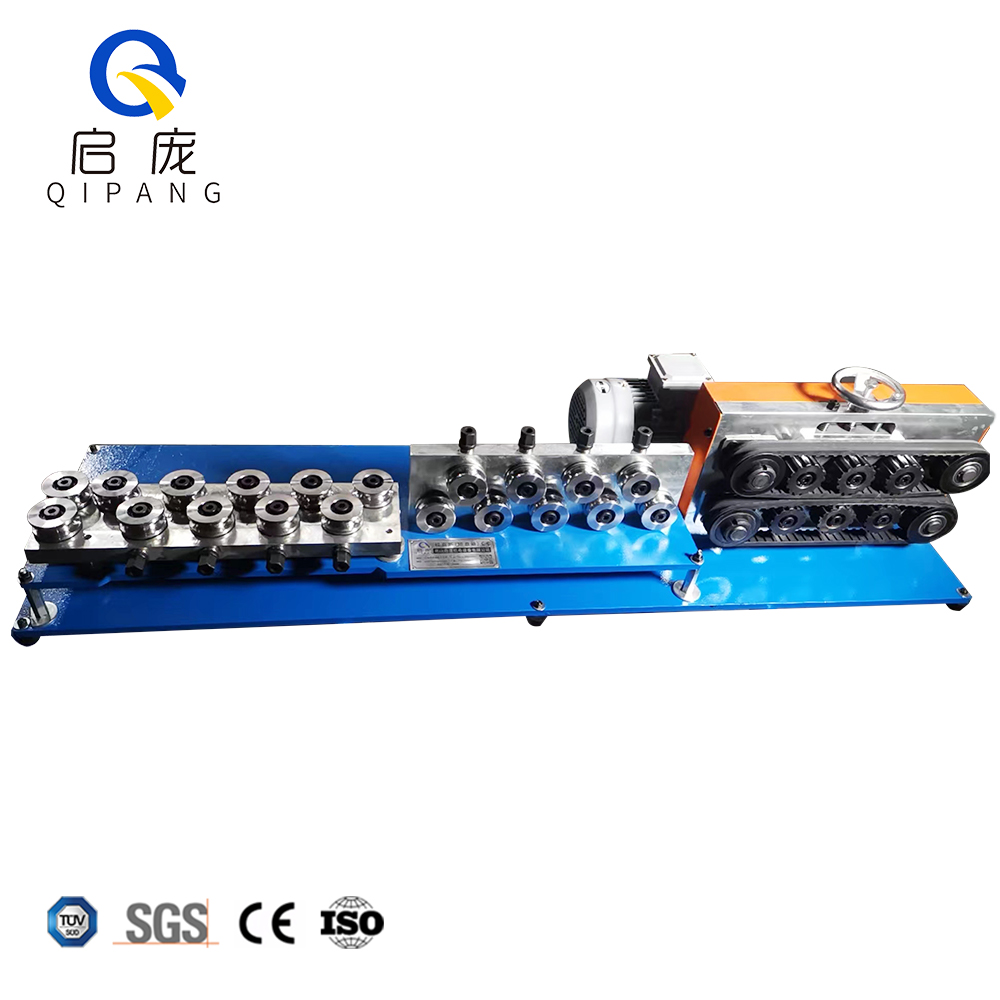

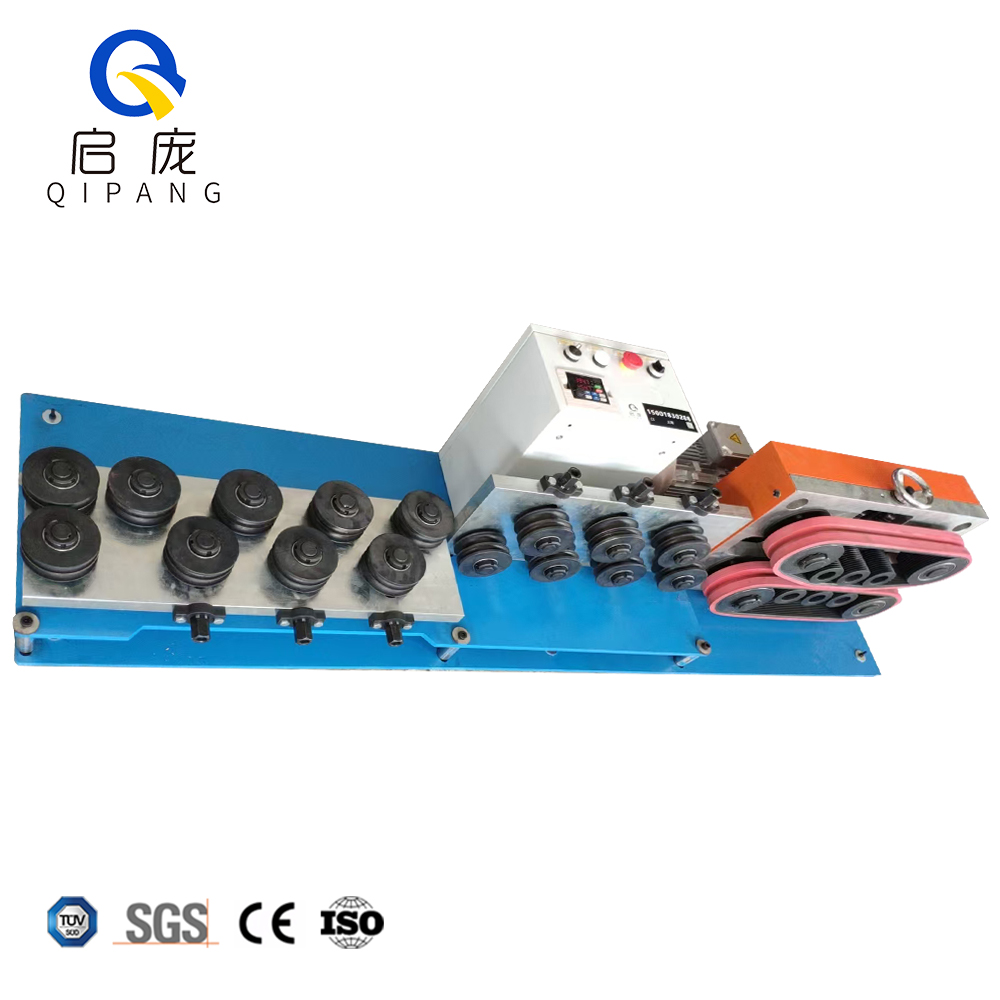

4-9mm Steel Copper Pipe Automatic Tube Straightening Equipment With Belt Traction
φ42-18 wheels +Belt Traction Drawing.pdf
φ54-18 wheels+Belt Traction Drawing.pdf
Shanghai Qi Pang mainly focuses on the production of : electric straighteners, manual straighteners, CNC straightening and cutting machines, and traction feeding systems.

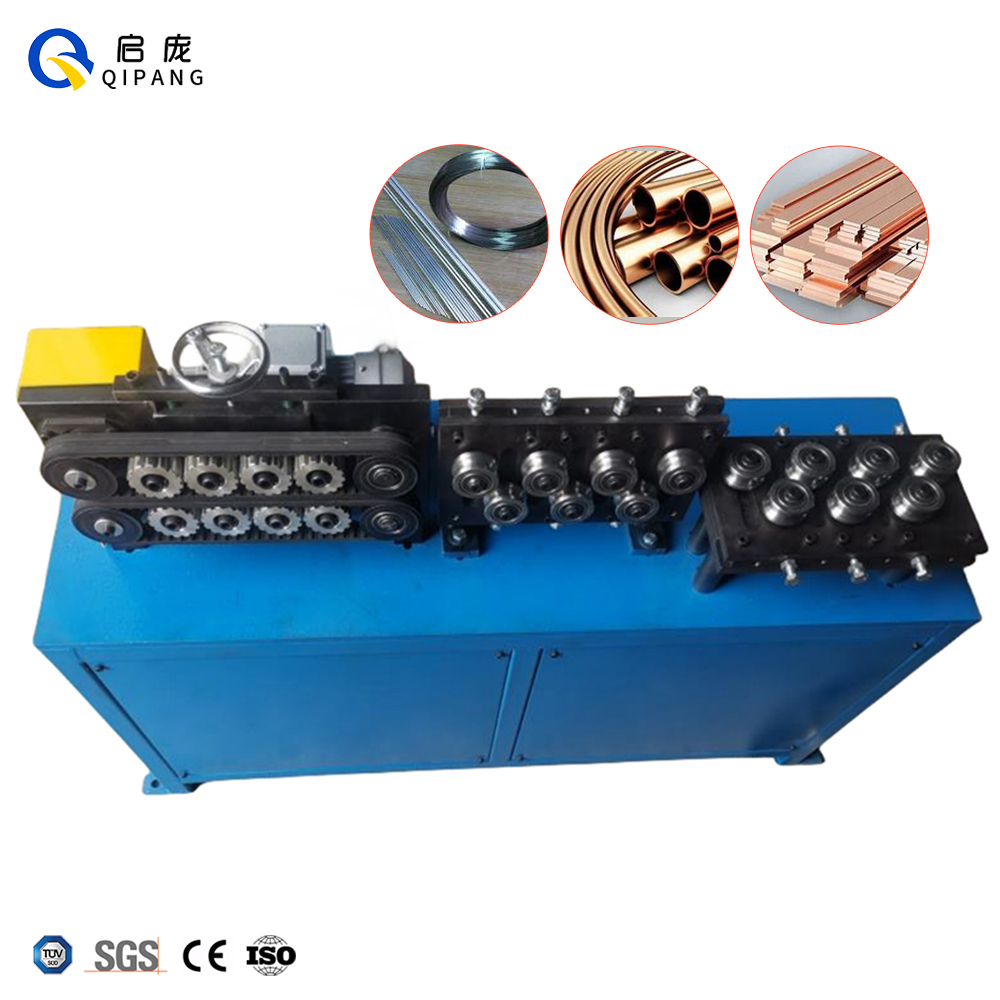

Automatic Tube Straightening Equipment are suitable for various materials, such as: copper/aluminum/stainless steel/iron pipes, and are applicable to both round and square materials.
Our Automatic Tube Straightening Equipment is widely used in bending machines, metal pipe tube processing industry, construction sites, refrigeration equipment and rewinding equipment, etc., and can efficiently straighten metal pipes, thereby improving production efficiency.
Automatic Tube Straightening Equipment is specialized equipment designed to straighten metal tubing, primarily used to eliminate bending deformations caused during processing or heat treatment. By applying external force, it restores the workpiece to its ideal straightness or precision, ensuring the materiall achieves the desired straightness.
The Automatic Tube Straightening Equipment features diverse models and functions, offering high cost-effectiveness and easy adjustability. Since the rollers can be controlled via an adjustment mechanism, minimal maintenance is required. Additionally, you may opt to install digital position indicators on the straightening machine, facilitating roller adjustments by operators. These indicators record the specific adjustment positions of each roller, enabling reuse when processing wire of the same diameter in the future.
I. Automatic Tube Straightening Equipment Parameters:
1.Style: ① Single-direction: All rollers are mounted on the same plane, arranged in two rows, top and bottom.
② Single-direction: Composed of horizontal and vertical straightening modules, offering a wider range of straightening surfaces and superior straightness.
2. Fixed with a base plate, and each wheel on top is adjustable.
3. Number of rollers: standard: Single direction 7 rollers or Horizontal + vertical direction 7 + 7 rollers
Customization available: ① Single direction: 5, 7, 9, 11, 13 rollers;
② Horizontal + vertical direction: 5+5, 7+7, 9+9, 11+11, 13+13 rollers
4. Roller outer diameter: 42mm/54mm/70mm
5. Traction: Belt traction
6. Upper row rollers are individually adjustable
7. Motor power: 0.55KW/0.75KW/1.1KW/1.5KW/3KW selectable
8. Power supply: 380V, three-phase, 50Hz
9. The frequency converter can be installed to adjust the machine speed
10. Speed : 8-10m/min（also can customized faster speed）
11. Rollers can be used for light or heavy-duty applications
12. Single-row ball bearings are suitable for wires with a maximum tensile strength of R = 600 N/mm².
Double-row ball bearings in hardened steel are ideal for wires with higher tensile strength, ranging from R = 600 N/mm² to R = 2200 N/mm²
13. Grooving: Standard "V" groove type. "U"/H groove type can be customized according to customer requirements
II.Automatic Tube Straightening Equipment Diameter Selection Chart:
III. Automatic Tube Straightening Equipment Drawing:

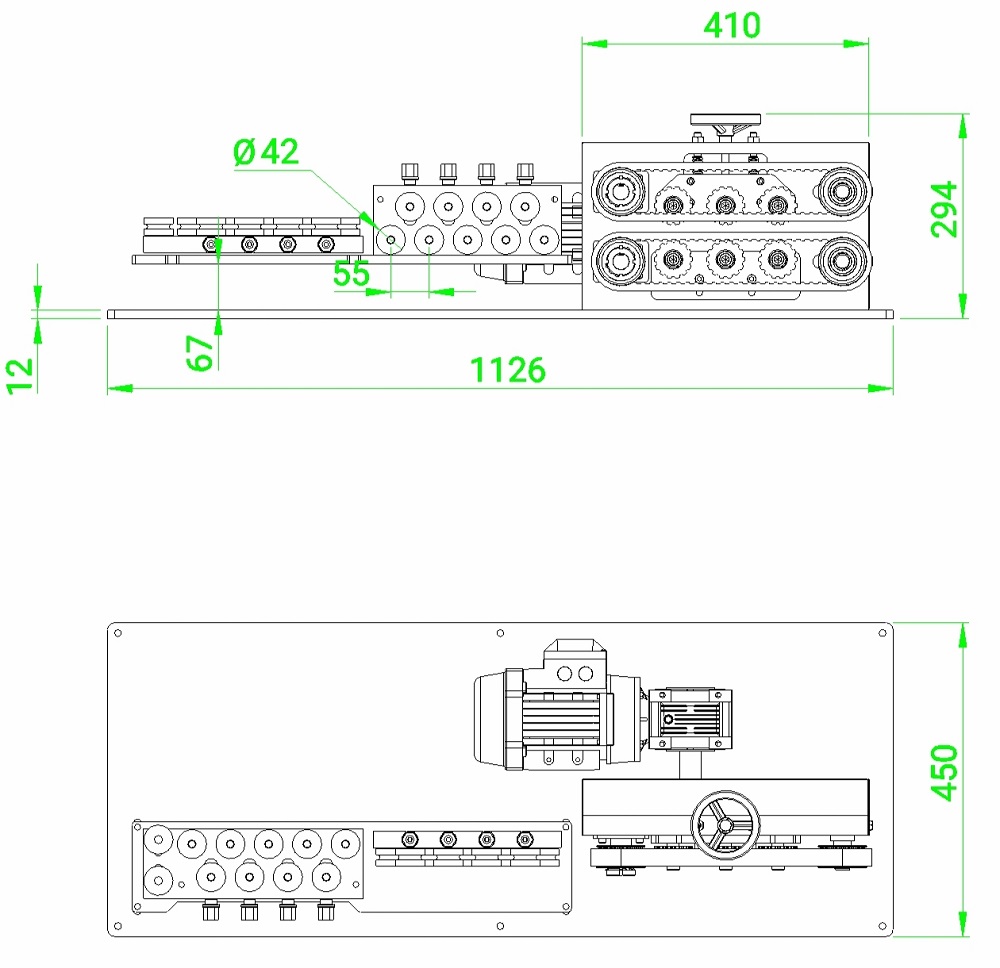

①φ42-18 wheels +Belt Traction

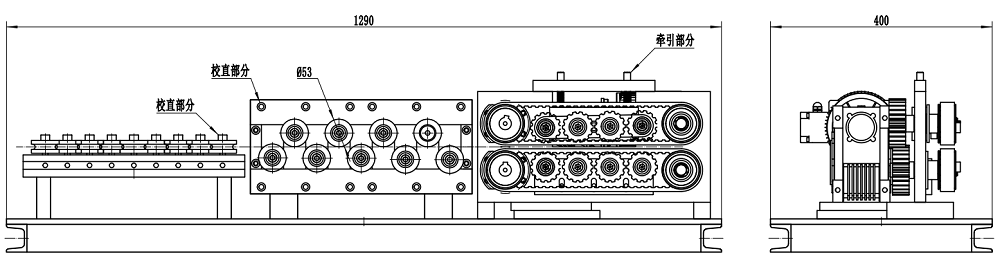

②φ54-18 wheels+Belt Traction
