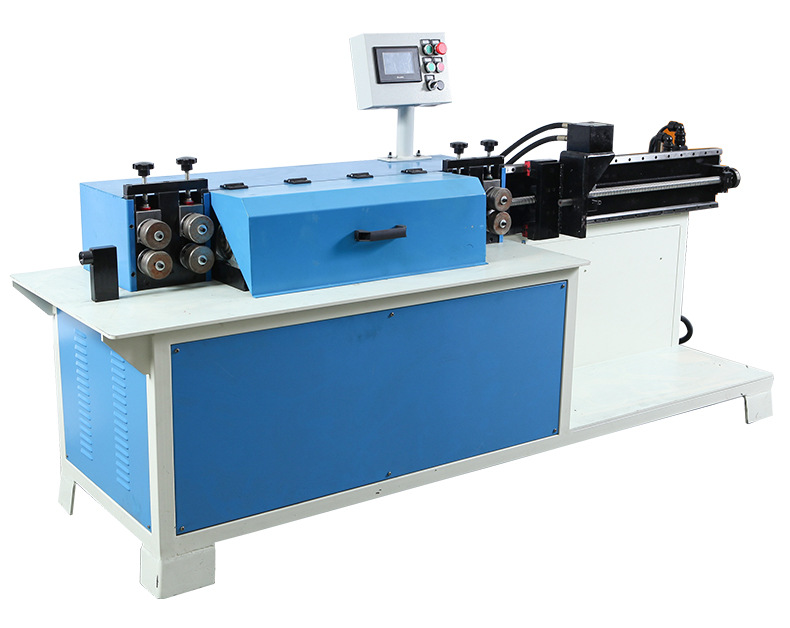

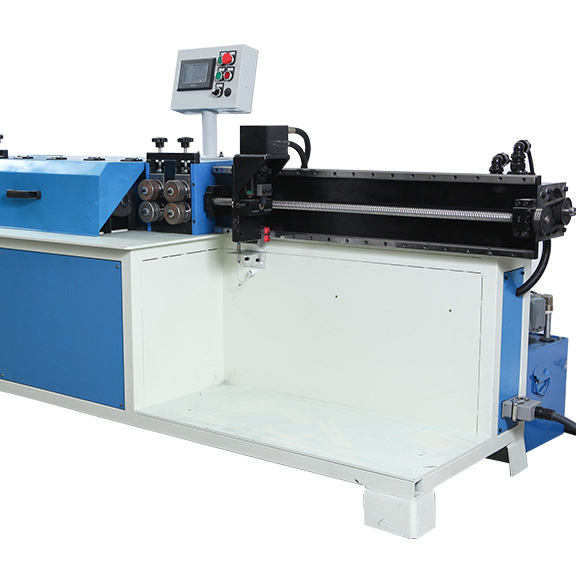

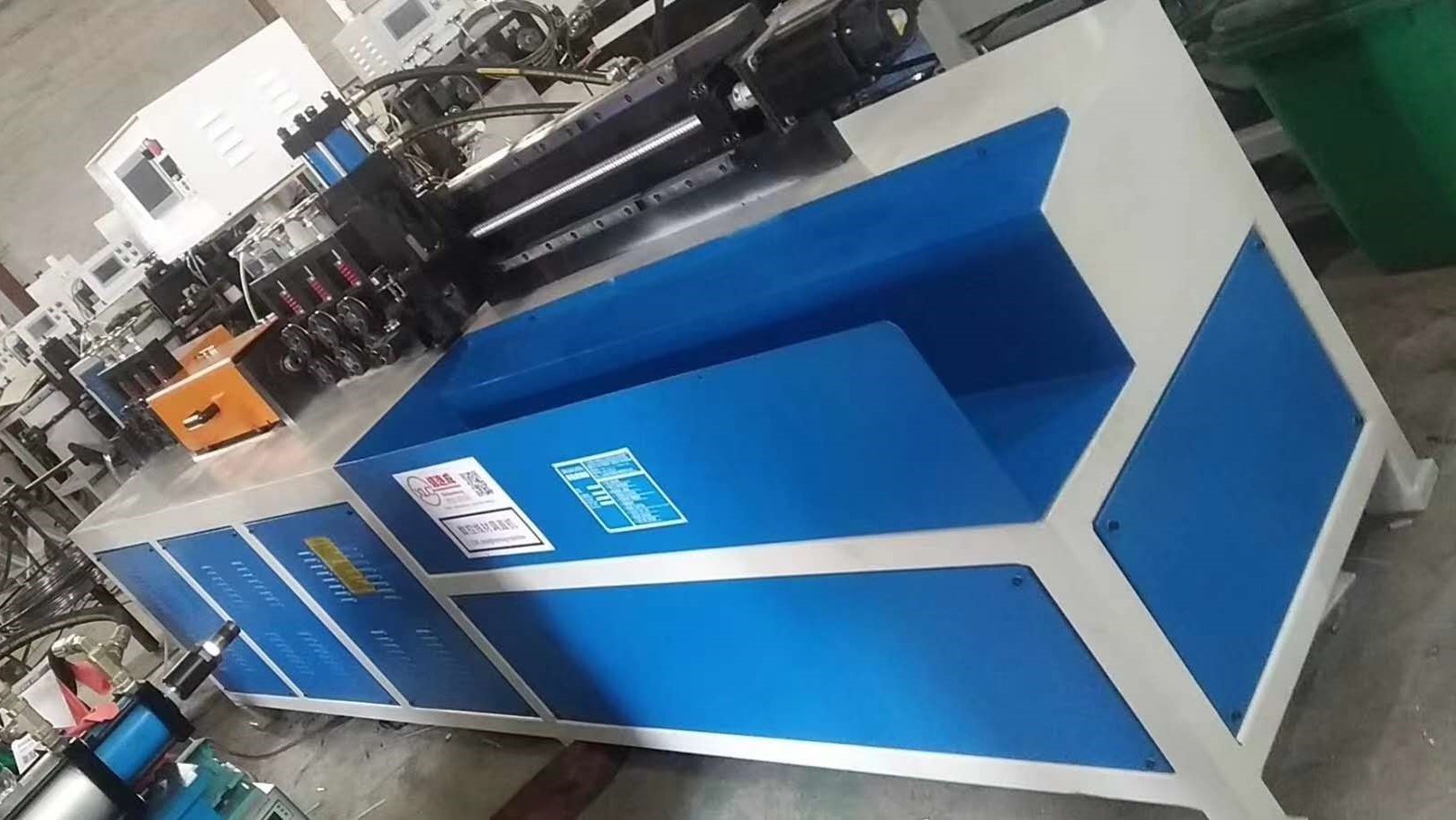

CNC Steel Straightening Machine Cutting Machine Automatic CNC Hydraulic Steel Straightening Cutting Machine

Home > CNC Steel Straightening Machine Cutting Machine Automatic CNC Hydraulic Steel Straightening Cutting Machine

  • CNC Steel Straightening Machine Cutting Machine Automatic CNC Hydraulic Steel Straightening Cutting Machine
  • CNC Steel Straightening Machine Cutting Machine Automatic CNC Hydraulic Steel Straightening Cutting Machine
  • CNC Steel Straightening Machine Cutting Machine Automatic CNC Hydraulic Steel Straightening Cutting Machine

Cutting wire diameter 6-12mm
Cutting length range: more than 30mm
Wire feeding speed: adjustable speed 40-90 m/min (the smaller the wire diameter, the faster the speed)
Length error: ±0.05mm
Straightening material: ordinary carbon steel wire, stainless steel wire, copper wire, nickel-manganese galvanized wire, etc.
Wire feeding motor: ordinary motor 4kw with reducer(can change)
Straightening motor: customized adjustable speed motor
Follow shear servo motor: 5.5 pa hydraulic cutter
Number of wire feeding groups: 3 groups (6 pairs of wheels)
Control screen: touch screen
Number of straightening blocks: 8
Wire range: 4-10mm (ordinary carbon steel), 2-6mm, 3-8mm (pa hydraulic cutter), 4-10mm, 6-12mm
Frame size (length * width * height): 2200*800*1200 (mm)
Weight: 1000KG
