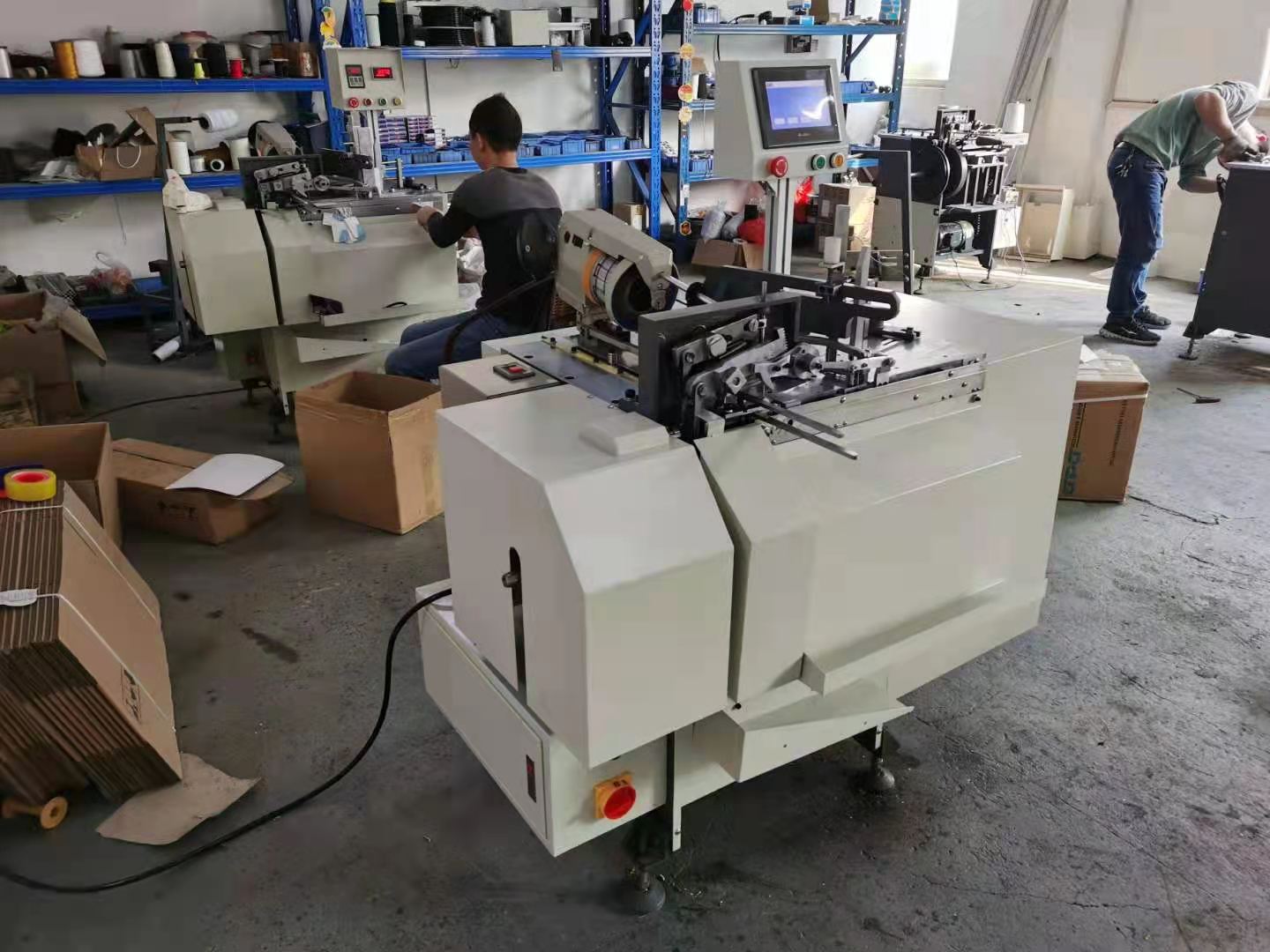

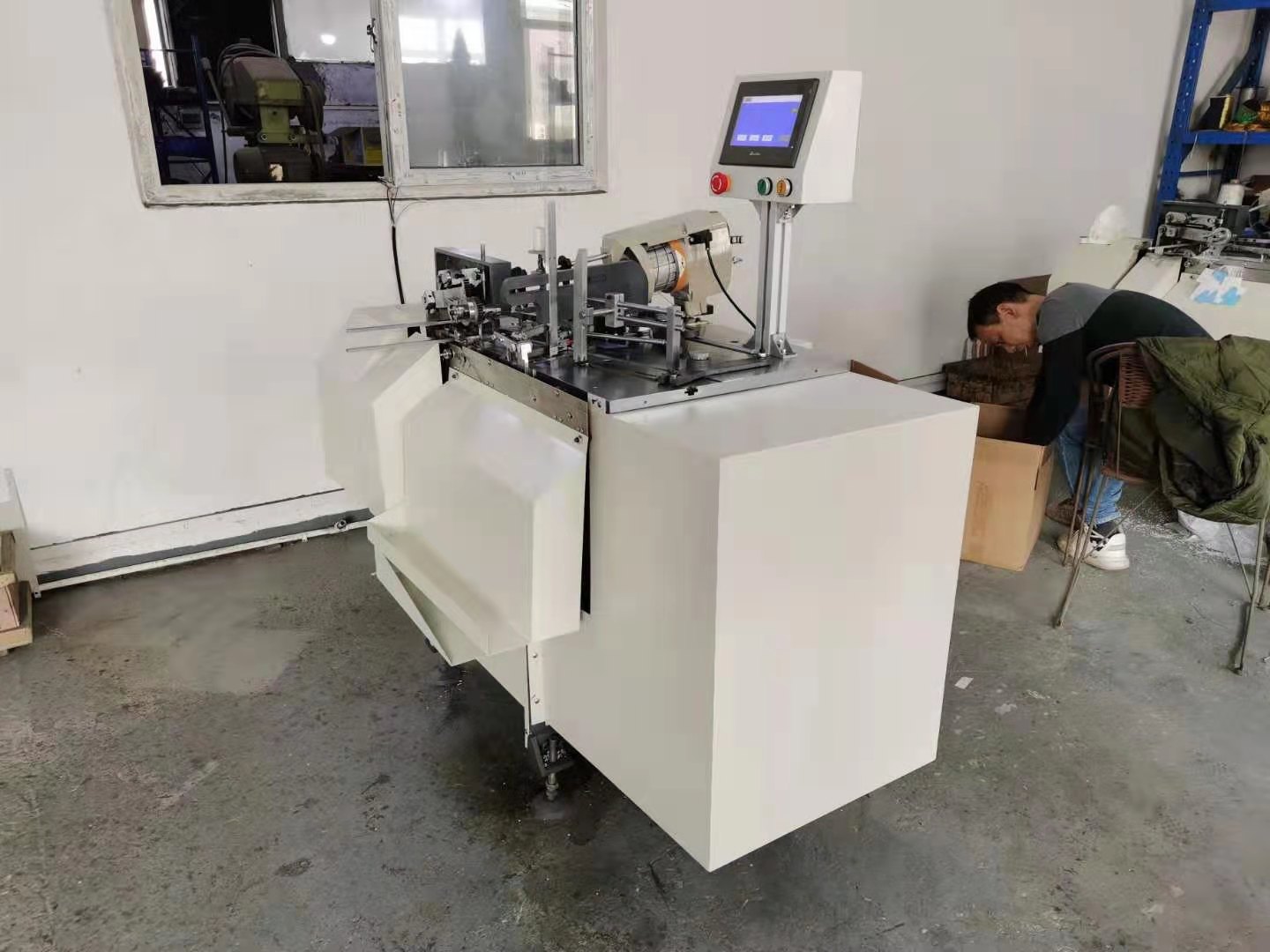

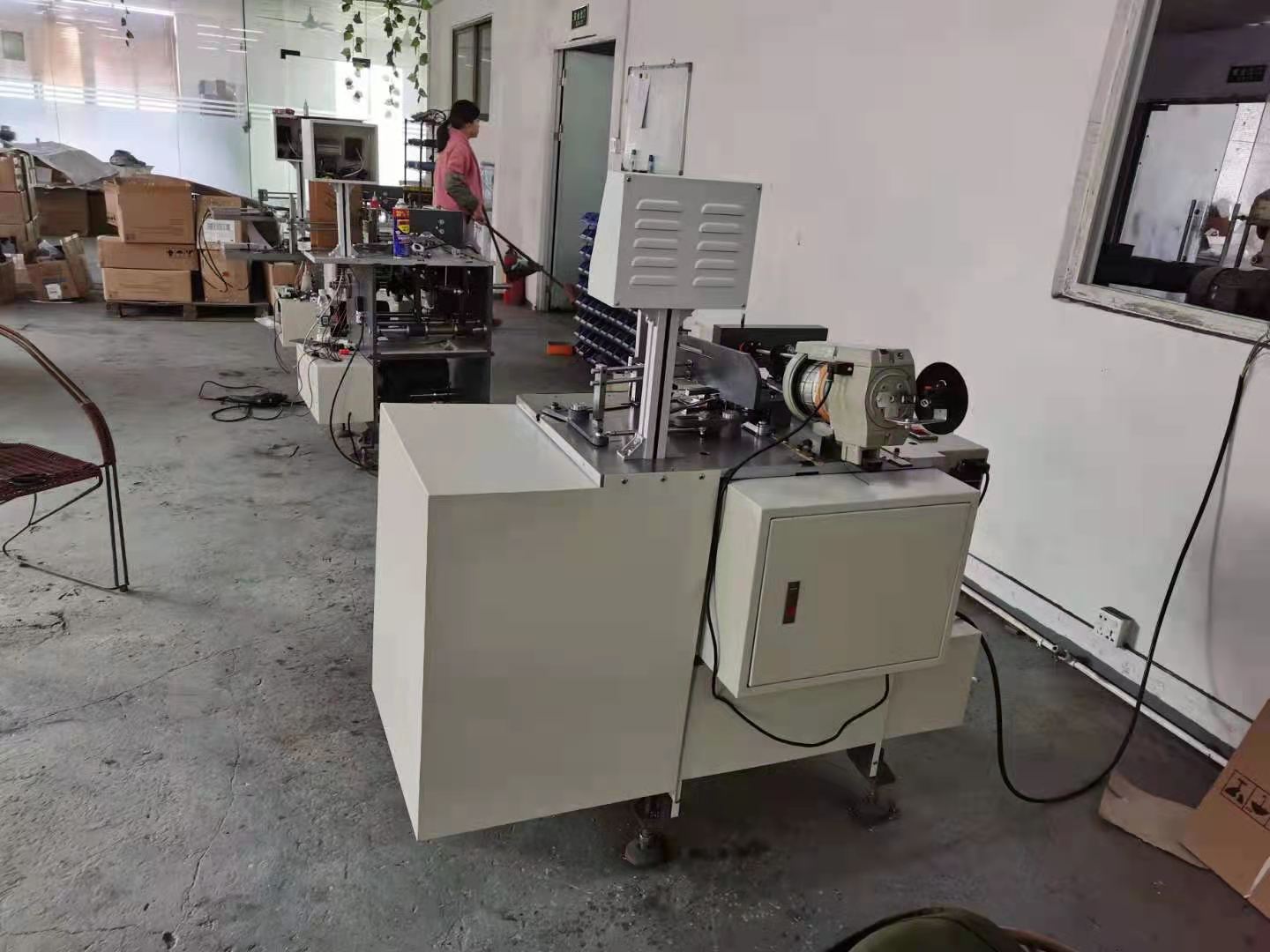

QIPANG Tag stringing machine for Trademark manufacturing

Home > QIPANG Tag stringing machine for Trademark manufacturing

  • QIPANG Tag stringing machine for Trademark manufacturing
  • QIPANG Tag stringing machine for Trademark manufacturing
  • QIPANG Tag stringing machine for Trademark manufacturing

Performance Features:

1. Technical coverage rate of similar machines on the market;

2. The main body adopts steel frame structure, which is firm and perfect to ensure stable operation of the equipment;

3. After the improvement of the machine, it perfectly realizes the smooth marking without falling knots or sticking lines, and greatly improves the stability;

4. Have high security measures to ensure the safety of personnel.

5. The knot tying system independently developed by the company can realize the movement of the whole mechanical structure, which is different from any machine on the market and guarantee the perfect knot tying effect.

Speed; 4000-5000 PCS/h

Label size :30 * 35-95 * 150mm

Hanging paper height; 230 mm

Diameter of hangtag hole; 3mm4mm5mm(mold replaceable)

The length of the knot; 80-200 - mm

Thread diameter; 0.3 2.1 MM

The length of the rope tail is 15-18mm

The label is suitable for 150-700g thickness

Power 750 W.

Electricity supply. 380 V / 220 V

Weight: 550 kg

Machine size :1300 * 1000 * 1300 mm
