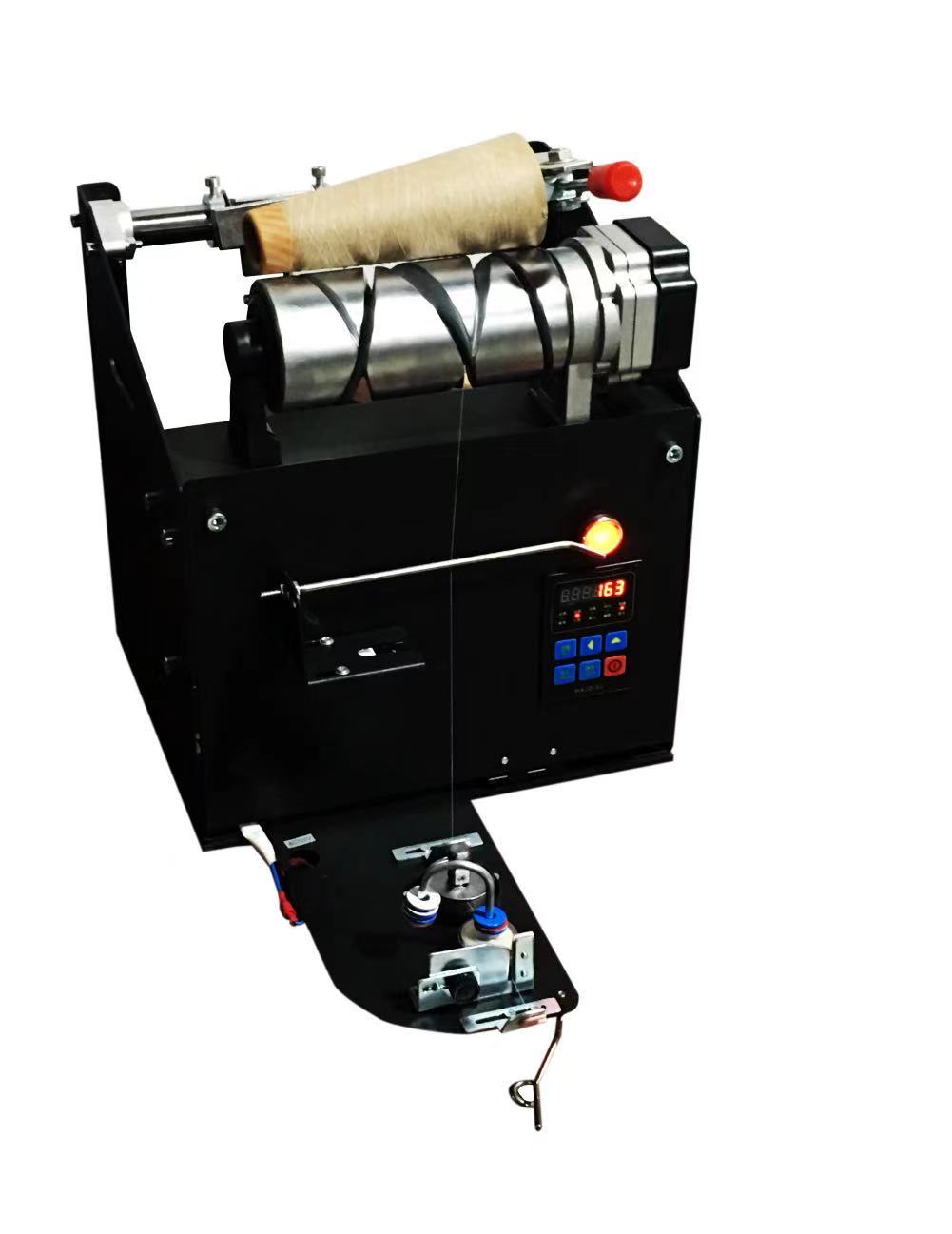

automatic winder cone winding machine with 1 head

  1. Double points tension control system with micro motors, uniform yarn tension. It is appropriate for high speed waxing winding and easy to operate.)


  1. This machine can be set the length of winding; when there is broken yarn it will stop automatically; when yarn is fully filled it will also stop; also it has the function of slow start.)


  1. It is widely used to wind cotton yarn, chemical fiber, filament, low stretch yarn.


  1. High-speed creel with gas spring, which can keep constant winding pressure. The creel is stable and reliable. And it will make the loose bobbin be suitable.


  1. The machine has the device to protect yarn, our adjustable block yarn sheet metal can prevent the yarn be a mass.


  1. This machine assemble with grooved drums(0°,3°30',4°20',5°57',9°15'), this kind of Ni-P alloy grooved drum has optimized groove shape which have the advantages of good wear resistance and static elimination.)


  1. We use brush-less DC motor with longer axis, it is convenient to adjust the speed of single spindle


System Features
  1. Single spindle slow start:Smooth acceleration of the yarn winding , in order to prevent the yarn is broken. Start-up time can be set for each spindle.

  1. Automatic calculation:By using brushless DC position to calculate the length of the winding.

  2. Speed Monitor: Each spindle of the linear speed can be monitored.

  3. Adjustable speed: Each spindle can be set at different speeds.

  4. Auto stop: When the sensor detects broken yarn, the yarn signal will shut off automatically. (With a maximum of six broken yarn sensor)

  5. Set yarn length: Unification or independence can set the length of the wound yarn spindles. Stop the motor when it reaches the set length.

  6. Parking brake: Minimal downtime is 2 seconds. Can less unwanted yarn.

  7. Yarn detection delay time, the response time of the yarn breakage can be set. Slow start to meet hank machine ring.

  8. Electronic anti-stack: Each spindle can be configured with different yarn anti-stack parameters.

  9. Winding speed: speed coefficient is less than 1, the winding speed decrement operation. It can make yarn outside the tight and inside loose (generally used for loose winder).

  10. Auto waxing: waxing motor drive on board, power supply: AC220V.

  11. Parameter Storage: Parameter automatic storage

  12. Automatically suppress power supply ripple when turned on, the motor from overload detection and self-prote
