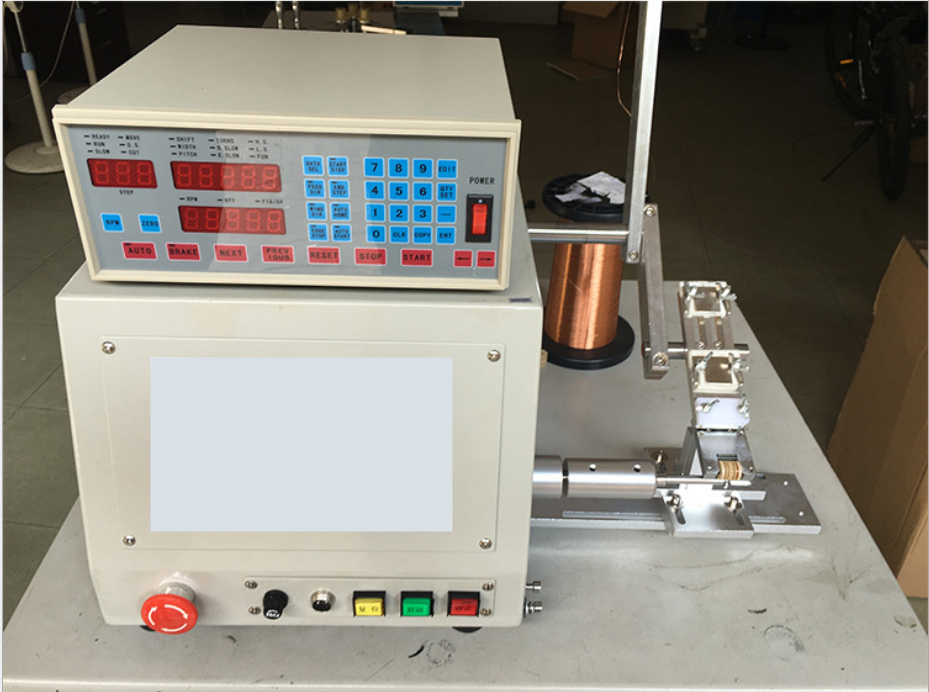

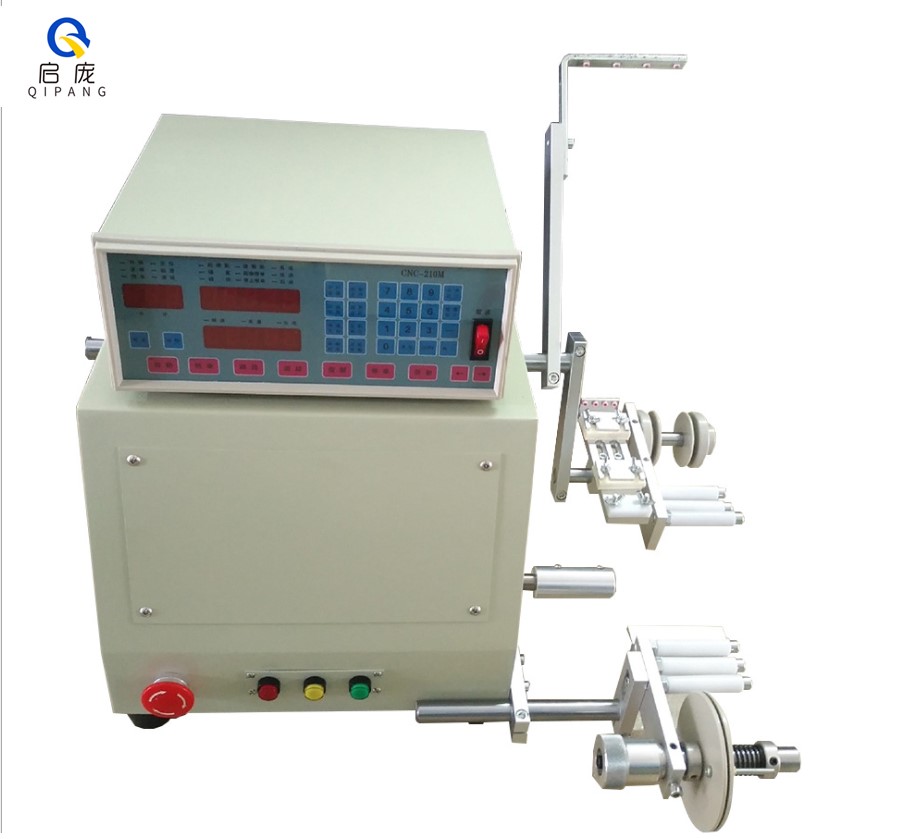

Qipang Automatic Cooling/Ceiling Fan /Toroid Coil Electric Wire/Motor Winding Machine

Home > Qipang Automatic Cooling/Ceiling Fan /Toroid Coil Electric Wire/Motor Winding Machine

  • Qipang Automatic Cooling/Ceiling Fan /Toroid Coil Electric Wire/Motor Winding Machine
  • Qipang Automatic Cooling/Ceiling Fan /Toroid Coil Electric Wire/Motor Winding Machine

1. Collocate belt type winding head,interchangeable roller table with different size shuttle(magazine) for different toroid coil demensions, wire size, turns, so that to reduce the cost. one set standard automatic toroid coil winding machne include one PCS winding shuttle only, other sizes winding shuttles are optional.

2. Hi-tech shuttle for highest efficiency.

3. Separate speed controls for wire loading and winding.

4. Accurately count length of loading wire by length sensor, the wire length sensor be integrated in the winding motor.

5. Accurately count turns of winding by high frequency response photo-electricity sensor.

6. Programmable winding direction, winding returns range (turns or angle) and segment winding angle.

7. Accurately wire spacing by programmable controller.

8. Memory capacity accommodates 999 sequences of parameters with off-power memory retention.
