一,Description:

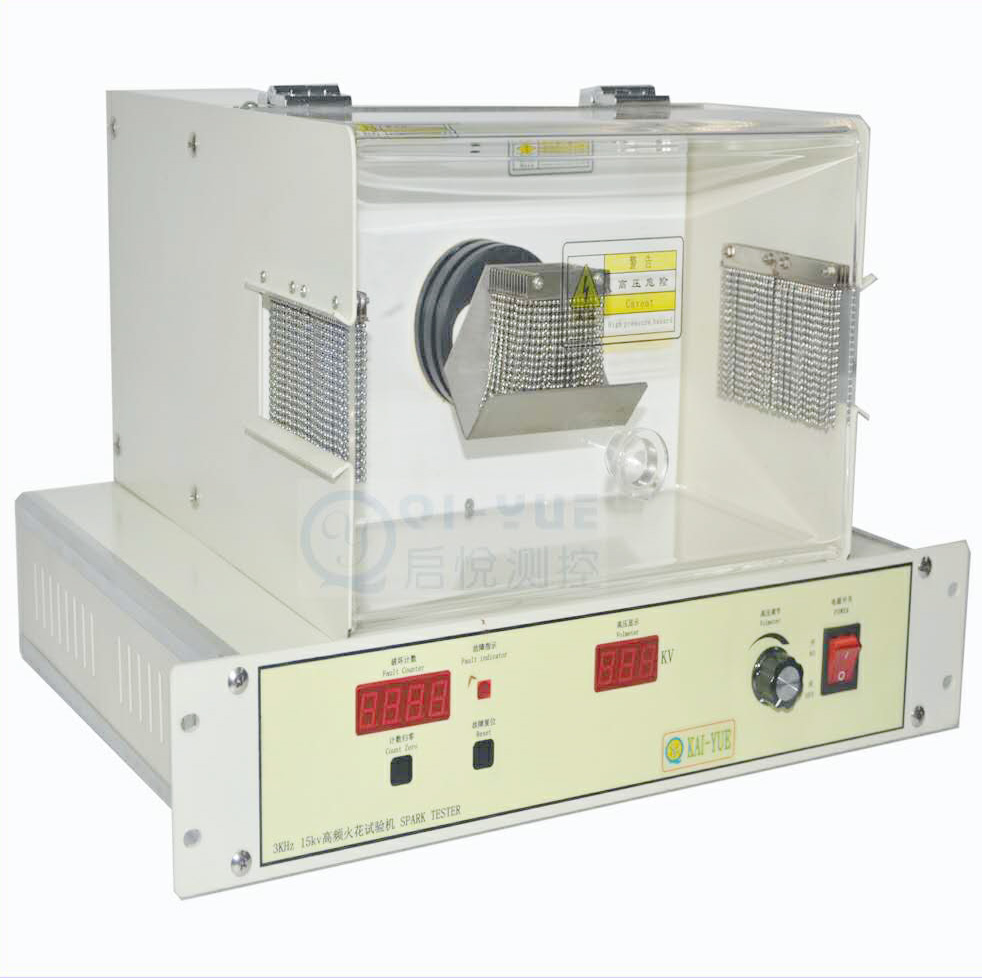

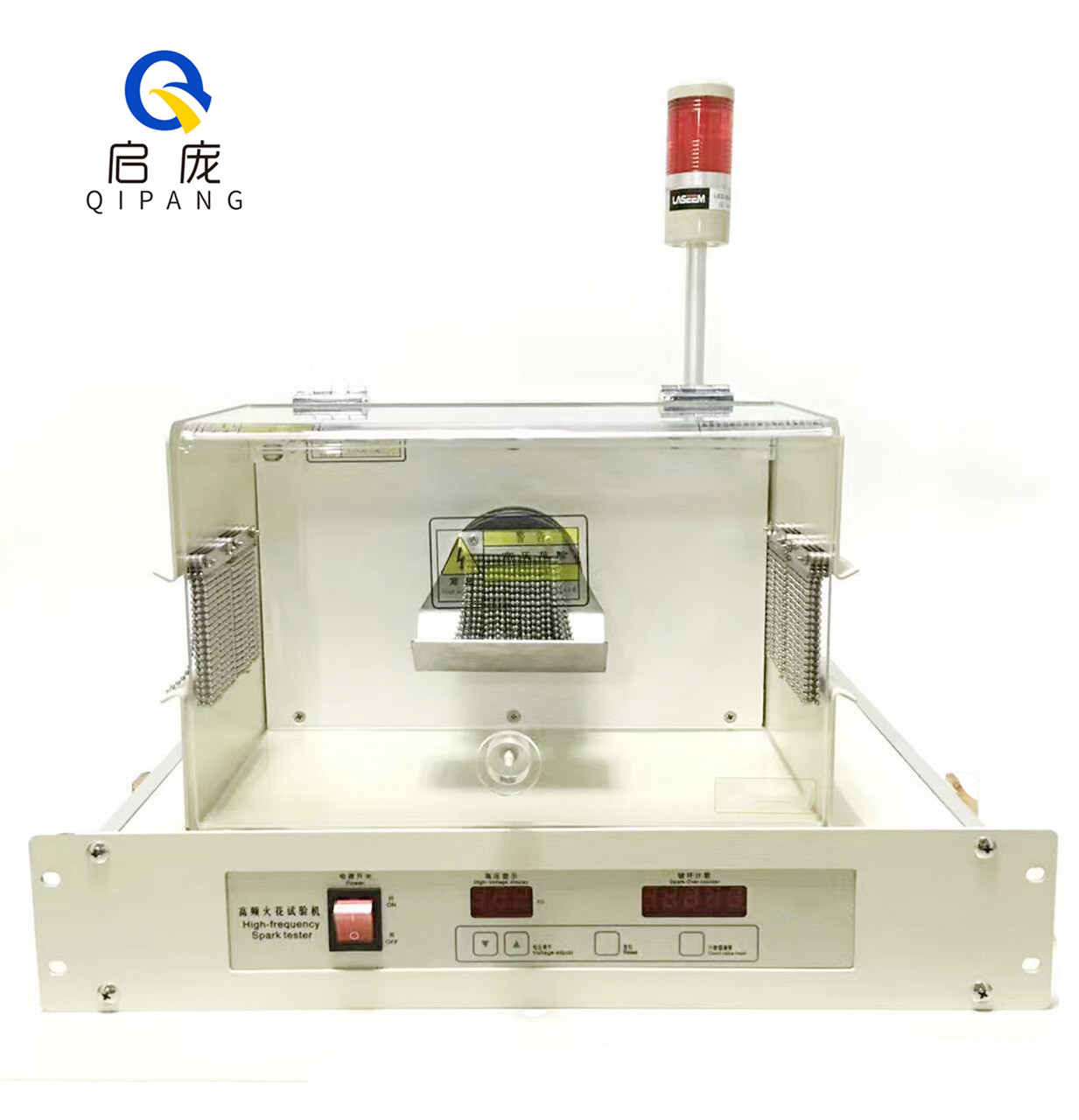

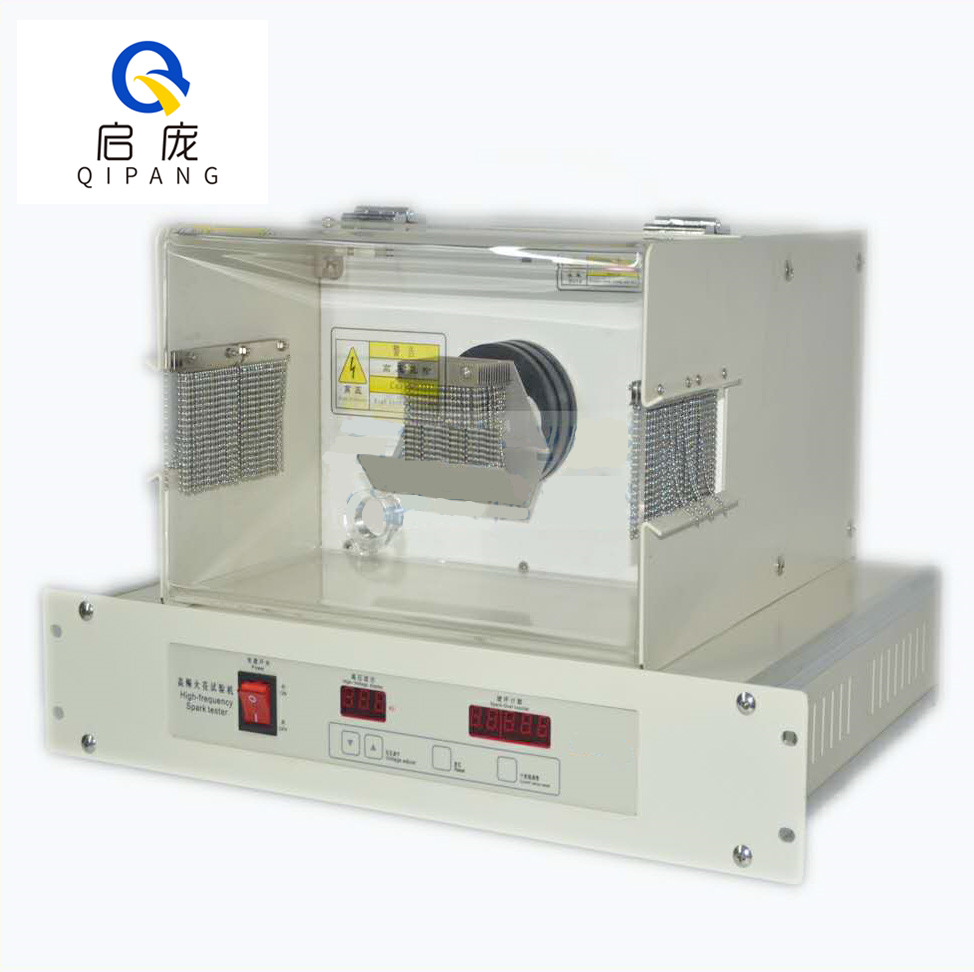

High frequency spark tester is a professional insulation leak testing instrument, suitable for the online insulation testing of wire and cable industry. It can detect the defects such as pinhole, air gap and crack in the insulation layer of wire and cable surface invisible to the naked eye. It has defect record and sound and light alarm system.

When a defect is found, it will automatically record the defect data together and generate a sound and light alarm. It can also trigger the relay to control the external alarm system and send the defect record data to PLC or PC workstation through the rs-232/422/485 full-duplex serial port in time for online control.

1,Working conditions:

Model: GS-15 s

Power supply: AC200-240v 50/60hz

Ambient temperature: -5°C-50°C

Relative humidity: 20%-85%

Power: 150 w or less

Note: the spark should be grounded reliably

2,Technical indicators:

Output voltage: 0-15kv (sine wave with effective value)

Voltage display: 3-bit digital tube display 0.0-15.0kv, voltage regulation step length 100V

Number of defects display: 5-bit digital tube display

Test wire diameter: MAX25mm

Test frequency: 2500-3500hz, varying with the equivalent load capacitance

Electrode form: bead chain, in accordance with UL1581 standard

Electrode length: 50mm

Test mode: manual and automatic

Automatic leak detection recovery time: less than 20ms

Sensitivity: set 3KV, use the breakdown equipment to break down 20 times, not more than not more than remember, the breakdown current is no more than 600 A

Output current: 4mA resistive, 40mA capacitive

Maximum allowable linear speed: 3067m/min, in line with BS5099 and CCC standards

1000m/min, in line with UL1581 and CSA standards

Output contact: 250V 2A

Serial communication: rs-232 rs-422 optional

Maximum communication range: 300m Electrode cover safety interlock switch protection device
