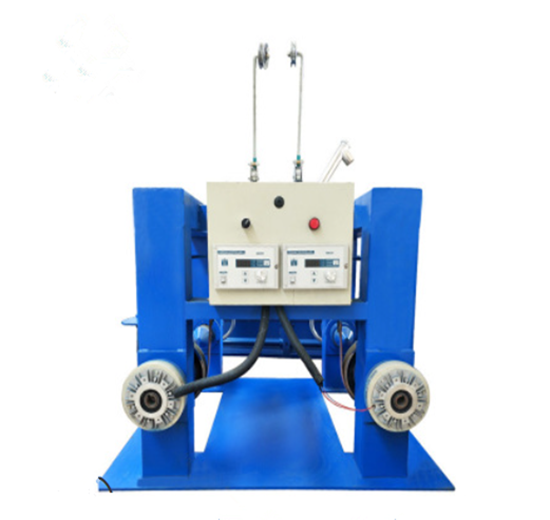

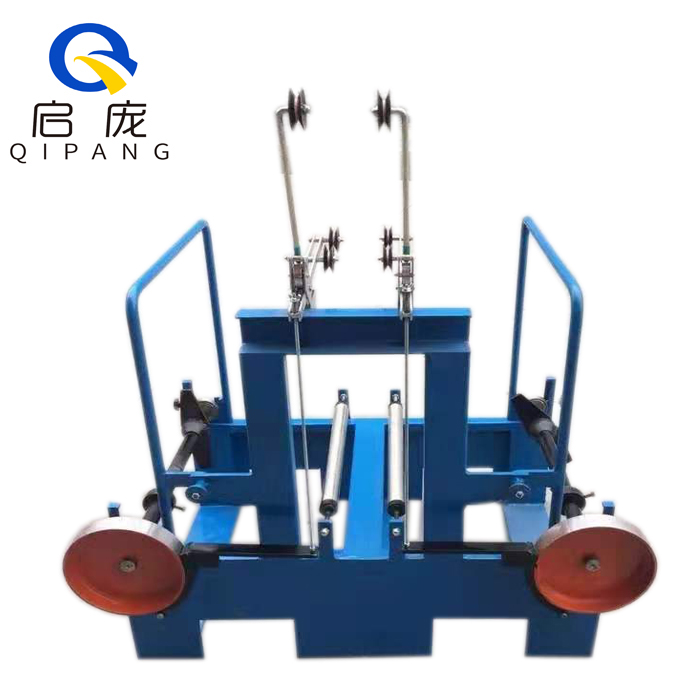

QIPANG 630 Cantilever takeup & payoff Passive Pay Off For Cabling double spool Type payoff machine Dual Spool Takeup

Home > QIPANG 630 Cantilever takeup & payoff Passive Pay Off For Cabling double spool Type payoff machine Dual Spool Takeup

  • QIPANG 630 Cantilever takeup & payoff Passive Pay Off For Cabling double spool Type payoff machine Dual Spool Takeup
  • QIPANG 630 Cantilever takeup & payoff Passive Pay Off For Cabling double spool Type payoff machine Dual Spool Takeup
  • QIPANG 630 Cantilever takeup & payoff Passive Pay Off For Cabling double spool Type payoff machine Dual Spool Takeup

Functions and features

1. Applicable bobbin size: 400 -- 630.Φ at 630-800
2. Tension: adjust the tension of the weight of the slider and interact with the lead.
3, brake: automatic contact detection, automatic brake break.
4, the main body: steel plate welding!
5, guide wheel: three ring two ring compound winding.
6. Size: 1100*900*1150mm

Parameters:

Discharge reel specification

 Φ300/Φ400/Φ630



Wire diameter range

 Φ0.05mm-Φ3mm,wire 0.4-10(MM)



Stranded wire type

* Tinned wire, bare copper wire, wire and cable

tension control

* Adjustable tension, multi - stranded twice

headage

 Single head, double head



braking

* Static induction, broken belt automatic brake
