High Speed Making Plastic Bobbin for Textile Machinery

Home > High Speed Making Plastic Bobbin for Textile Machinery

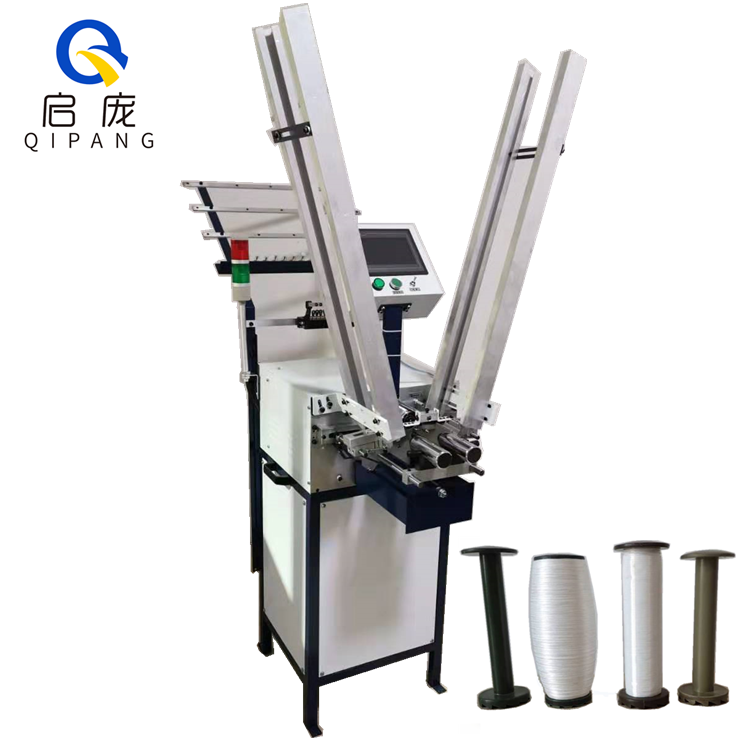

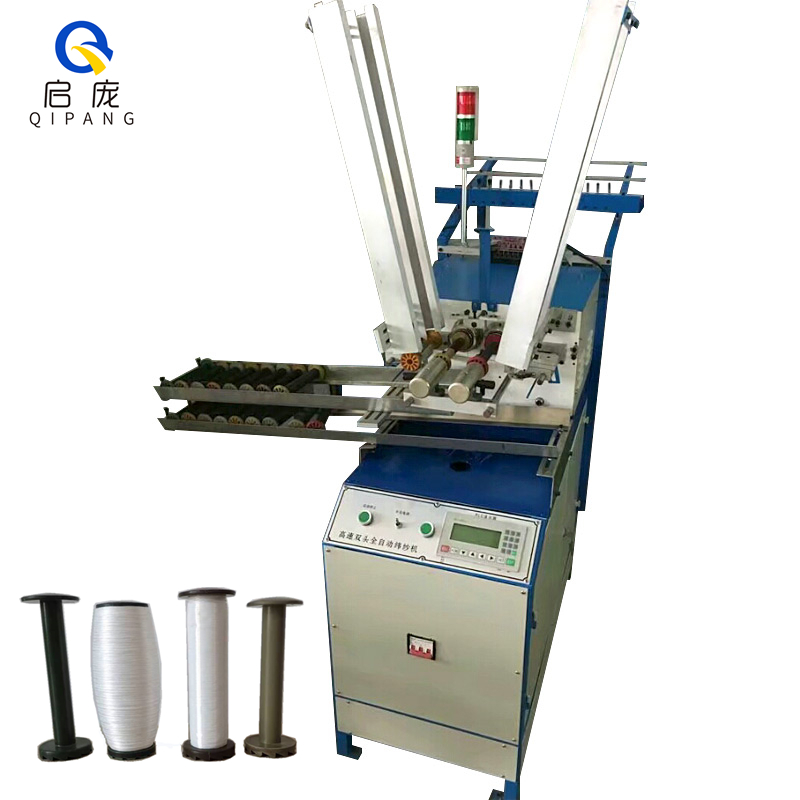

  • High Speed Making Plastic Bobbin for Textile Machinery
  • High Speed Making Plastic Bobbin for Textile Machinery
  • High Speed Making Plastic Bobbin for Textile Machinery
  • High Speed Making Plastic Bobbin for Textile Machinery

Characteristic

  • Model

FunctionHead Qty
Speed
Size (cm)Power (KW)Bobbin size(mm)Weight(kg)Voltage
QP 80/90-1Frequency changer2/ 4800110*80*700.55L30-142 D35-48140220V/380V
QP 80/90-2Frequency changer+ lifting
function
2/ 4800120*90*700.55L30-142  D35-48150220V/380V
QP 110/130-3Frequency changer2/ 4800120*100*800.55L170-215 D55-75155220V/380V
QP 110/130-4Frequency changer+ lifting function2/ 4800130*100*800.55L170-215 D55-75165220V/380V
customisedCustomized according to customer requirements

1 PLC control loop
2 Broken yarn automatic stop ,memory retention
3 Coiling speed can be adjusted , with low speed start switching function.
4 Electronic counting, can control the yarn level, conducive to the unified exchange tube.
5 Shows the number, which is convenient for production management control , improve production efficiency

Major installation

PLC automatic numerical control device. Suitable for different length, outer diameter yarn tube .

Simple structure , small  volume , easy operation and maintenance.

A number of automatic yarn breaking device,  yarn break and automatic stop.

Motor wiring, winding uniform, easy out of yarn and the bottom yarn is not retained, the yarn loss is reduced.
