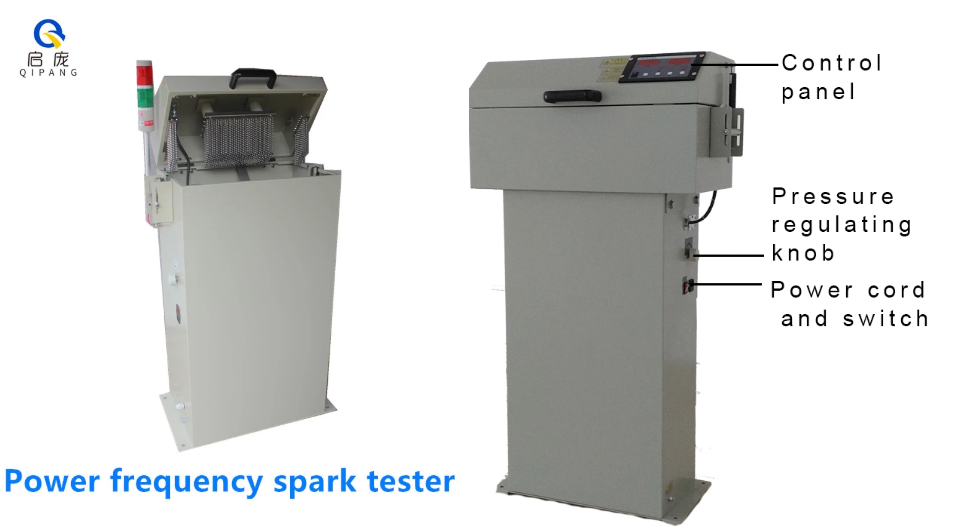

QIPANG GS-15A/25A power frequency spark tester for wire and cable insulation wrapper tester

    QIPANGGS-15A/25A power frequency spark tester for wire and cable insulation wrapper tester

1. 10 years of development,manufacturing, market experience

2. A wide range of tool components

3. highest quality requirements and guarantees

4. Flexible development and customization tools

5. Excellent consulting team covering the world

6. Fast spare parts distribution and sufficient inventor

Share:
  • Description

       QIPANGGS-15A/25A power frequency spark tester for wire and cable insulation wrapper tester


QIPANGGS-15A/25A power frequency spark tester for wire and cable insulation wrapper tester


QIPANGGS-15A/25A power frequency spark tester for wire and cable insulation wrapper tester

Working conditions:

Supply voltage :AC220V±10%
 Power frequency :50+2HZ
 Ambient temperature: 0-40c
 Relative temperature: <85% (no condensate)
 Working style: continuous

Breakdown instructions:

Indication: breakdown times technology and sound and light alarm
 Technical range: 0-9999

Safety interlock:

When the protective cover of the electrode box is opened, the high voltage is automatically cut off, and the high voltage electrode is grounded by an electric needle, so as to ensure the life safety of operators
The test electrode

5MM bead chain electrode with effective length of 300mm(15A)/280mm(25A)
Test standard:
 GB3048.9 < wire and cable insulation wire core power frequency spark test
 JB/T4278.10< rubber plastic wire and cable test instrument
