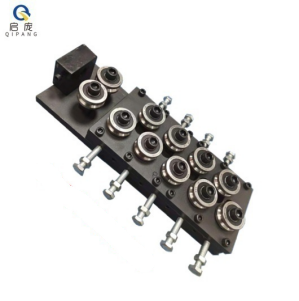

Mainly used on drawing machines ,Plane Precision Wire Straightener for the really tough straightening requirements
1.Single and dual plane straightener models JZQ 4-6/9 BV
2.Independent adjustments for each roll bearing. Standard grade roll straighteners typically have only some that are adjustable.
3.Quantity of roller in stock 7+7 ，From 7 rollers per group (5+5,7+7,9+9,11+11,13+13,15+15,17+17,19+19)
5.Adjustable rollers on the upper row，bearing position locking torque wrench. Two guider rollers, one porcelain eye guide
6.Rollers available for light or heavy duty applications
7.Model AS/AD for wire R = 60 N/mm2 (8400 psi) max. with normal rollers (single or double bearing)
8.Rollers are standard "V" groove profiles but can be provided with "U" grooves 9，according to customer requirements. Low friction 120-degree "V" groove control channel. Standard grade straighteners typically use a harsher 90-degree that can mark round wire.
*Wire Guide included
