3/4/5mm Wire and cable blow-dryer water belower

3/4/5mm Wire and cable blow-dryer water belower

Share:
  • 3/4/5mm Wire and cable blow-dryer water belower
  • Description

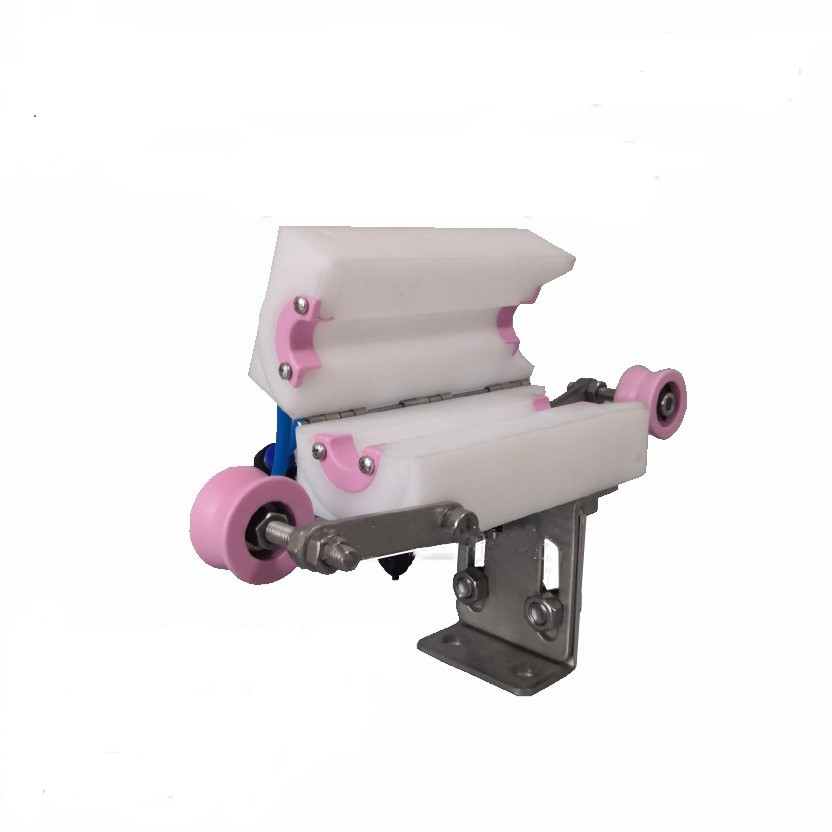

3/4/5mm Wire and cable blow-dryer water belower


Installation

This product is equipped with a mounting bracket (stainless steel material), which is very convenient to install. The bracket can be adjusted in height and angle.

Install the a dry sink. (with cover) or Leading box. First choose a fixed position, use an electric drill to drill two hole with bore diameter 8mm, lock the fixing seat with screws, insert the air pipe (the air inlet pipe of the water blower is 10mm), adjust the height of the front and rear guide wheels and the center position. Ventilation can be used.

Specifications and models

1. A single-stage ordinary water blower with an inner hole of 3mm-200mm

2. Single section with ceramic eye water blower-inner hole 3mm-30mm

3. The inner hole of the two-stage ordinary water blower is 3mm-200mm

4. The inner hole of the double section with ceramic eye water blower is 3mm-30mm

5. Three-stage ordinary water reservoir 3mm-200mm

6. Three sections with ceramic eye water blower 3mm-20mm


3/4/5mm Wire and cable blow-dryer water belower
