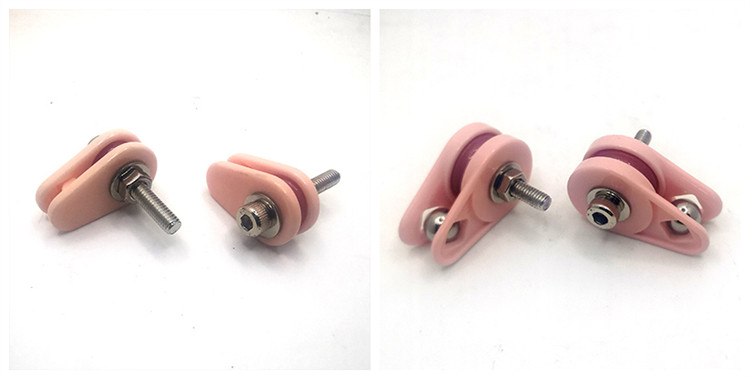

Full ceramic Wire Jump Preventer NT005 Pulley Wire Jump roller
The wire protector is used for enameled wire to change direction greatly and make proper guidance and prevent wire jumping during
winding.In the middle, the enamel ring is made of precision ceramics, which is beyond polishing to Ra. 0.2 porcelain ring is
equipped with high speed bearing, so that the delayed sliding distance between the enameled wire and the porcelain ring is less
than 0.2mm to protect the integrity of the paint film and ensure the runout of the enameled wire within a very small range, and
maintain the stability of tension.

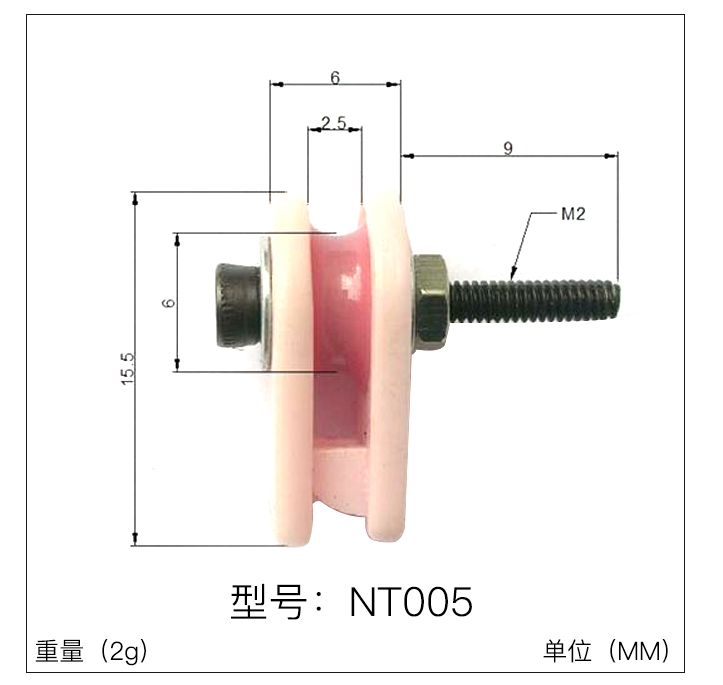

Due to the characteristics of ceramic products, the size on the picture may have a little error, which is a normal phenomenon.
