QIPANG N95 special straightener for nose line wheel-type straightening machine

QIPANG N95 special straightener for nose line wheel-type straightening machine


Straightener Overview:

    Straightening machine is a device for straightening metal bars, pipes, wires, etc. The straightening machine changes the straightness by extruding a bar or the like with a straightening roller. There are generally two rows of straightening rollers, varying in number. There are also two-roll straighteners, which rely on the change in the angle of the two rolls (concave in the middle, hyperbola roll) to straighten materials of different diameters. The main types are pressure straighteners, balance roll straighteners, shoe roll straighteners and so on.





Share:
  • Description

QIPANG N95 special straightener for nose line wheel-type straightening machine


Straightening process of straightener:

     The position of the rollers is at an angle to the direction of the product being straightened. Two or three large ones are active pressure rollers, which are rotated by the motor in the same direction. The other small rollers on the other side are driven pressure rollers. It is rotated by the friction of a rotating round rod or pipe. In order to achieve the compression required by the rollers for these products, these small rollers can be adjusted forward or backward simultaneously or separately. Generally, the larger the number of rollers, the higher the accuracy of the straightened product. After being bitten by the roller, the product continuously performs linear or rotary motion, so that the product can withstand compression, bending, flattening and other deformations in various aspects, and finally achieve the purpose of straightening.

Wire Straightener series:

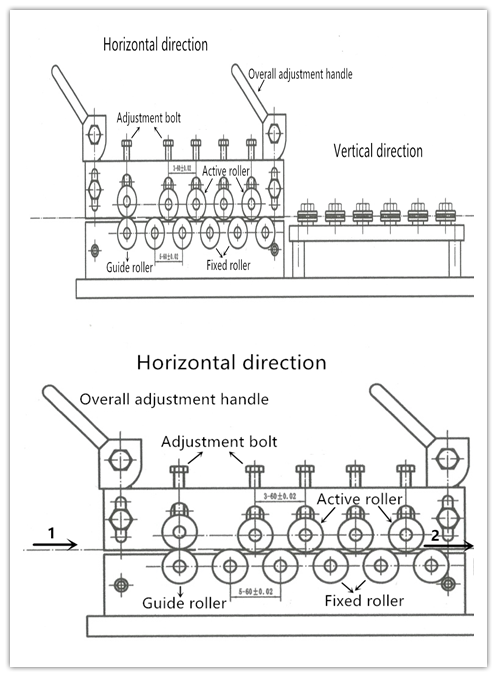

Wire straightener principle:


How to use the straightener:


After-sales service:

    After the sale, the machine is guaranteed for one year under the premise of reasonable use of the customer. Maintain work at home and maintain response time of no more than 24 hours. Free maintenance during the warranty period, and the equipment maintenance service beyond the warranty period is subject to clear charges.


FAQ:

Q:How about your after-sale service?
A:We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
Q: What are your payment terms?
A:100%TT or prepaid 50% , balance 50% before shipping.
Q: How can I get my order? How can I know you sent the goods?
A:We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods, we will give you the tracking number or other relative files for checking.

Q:What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes or wooden cartons.

Q: Will you send the installed machine or machine parts?
A:We will install the machine and test the machine before delivery. And the machine can be used directly after receiving the machine.
Q: Will you provide operation guidance for us?
A:We will send the instruction book with the machine and send you a video about how to operate the machine.
