Qipang new type cam handle straightener14 rollers wire straightening machine steel wire straightening tool

Qipang new type cam handle straightener14 rollers wire straightening machine steel  wire straightening tool

Mainly used on drawing machines

1， Single and dual plane straightener models JZQ 4-7/14/14AV

2， Eccentric roller open/closing device (lever)

3，Quantity of roller in stock 7+7 ，From 5 ~ 19 rollers  per group (5+5,7+7,9+9,11+11,13+13,15+15,17+17,19+19)

4，Roller diameters 37mm (1.457")  ，，Customizable 23-120mm (0.905"-4.724409")

5，Adjustable rollers on the upper row

6,   Rollers available for light or heavy duty applications

7，Model AS/AD for wire R = 60 N/mm2 (8400 psi) max. with normal rollers (single or double bearing)

8，Rollers are standard "V" groove profiles but can be provided with "U" grooves 9，according to customer requirements

*Wire Guide included

Straightener Type

Model	Type	Wire Diameter (Solid)	Roller Diameter (mm/inch)	Roller Qty  (pcs)	structure	groove
JZQ 0.05-0.2/38AV	V-7	φ0.05-0.2mm	7（0.276）	38	quick clamping	V
JZQ 0.2-0.5/34AV	V-12	φ0.2-0.5mm	12（0.472）	34		V
JZQ 0.5-0.8/26AV	V-16	φ0.5-0.8mm	16（0.630）	26		V
JZQ 0.8-1.5/5/18AV	V-23	φ0.8-1.5mm	23（0.906）	5/18		V
JZQ 1.5-3/5/18AV	V-30	φ1.5-3mm	30（1.181）	5/18		V
JZQ 3-4/18AV	V-32	φ3-4mm	32（1.260）	18		V
JZQ 4-7/14/18/22AV	V-42	φ4-7mm	42（1.654）	14/18/22	unclamping	V
JZQ 5-8/14/18/22AV	V-54	φ5-8mm	54（2.126）	14/18/22		V
Model	Type	Tube/Pipe Diameter (Hollow)	Roller Diameter (mm)	Roller Qty                  (pcs)	structure	groove
JZQ 1-3/14/18 BU/R	U-30	1-3mm	30	18/14	quick clamping	U/R
JZQ 4-10/14/18/22 BU/R	U-42	4-10mm	42	14/18/22	unclamping	U/R
JZQ 10-20/14/18/22 BU/R	U-54	10-20mm	54	14/18/22	unclamping	U/R
I.  Different groove types can be customized. II.  Quick clamping is straightener with a handle for easy opening and closing the rollers

Straightener adjustment diagram

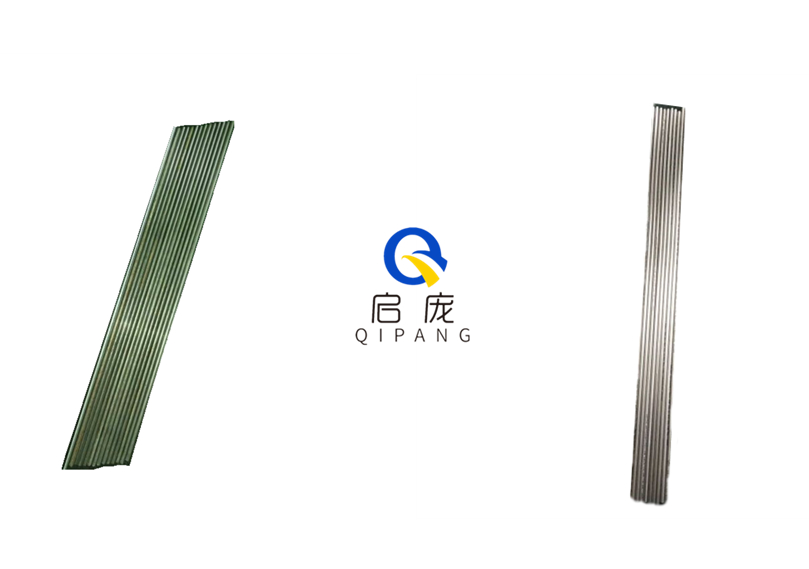

Product effect display

Straightener series

Customer Make  QIPANG Wire Straightener

We can design and produce the wire straightener according to customer requirements.

1. Material ( steel,copper )

2. Diameter of steel wire or steel tube or copper tube

3. Operating speed ( m / min )

4. Single plane or double plane

5. If need qucik lever, if need guide roller, if need solid base

Equipment Reconstruction and Update

Just tell us the maker or brand of used wire straightener, and then we help you to select, optimize the suitable resulatiuons.

Before making an order, had better consult with us.
