QIPANG wire/cable straightening machine metal/stainless wire straightening device for wire stripper

1. CE&SGS certificationISO1990 Quality system certification

2.Fast spare parts distribution and sufficient inventory

3. 10 years of development,manufacturing, market experience

4. Flexible development and customization tools

5. Excellent consulting team covering the world

6. Flexible development and customization OEM ODM


Share:
  • Description

QIPANG  wire/cable straightening machine  metal/stainless wire straightening device for wire stripper

Mainly used for welding wire straightening

1,Straightens cored wire up to 1/8 in (3.2mm) and solid wire up to 3/32 in (2.4mm).

2,5 rollers per group

3,Roller diameters 29 mm (1.142")

4,Adjustable rollers on the upper row

5,Rollers are standard "U" groove profiles

6,   Incoming and outgoing bushings are compatible with existing incoming and gun receiver bushings

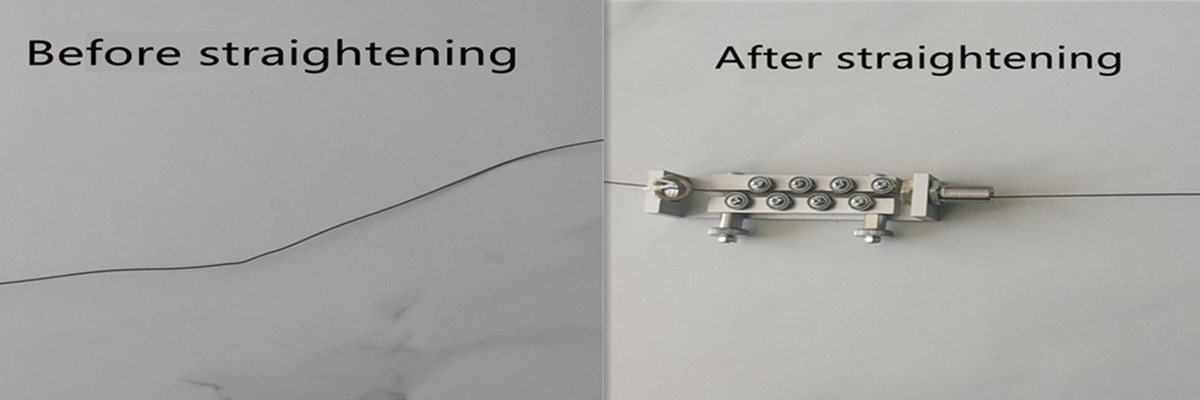

Straightening wheel advantages:

1, straightener roller material surface without scratches.

It is made of bearing steel and nylon.

2, straightening wheels are made of bearings, using alloy roller group, carbide wheels, can be configured according to product specifications and customer requirements.

You can do v-groove, U-groove, h-groove.

3, straightener straightness theoretically: the more the number of roller wheels, the better the straightening effect, the more variations,

4, straightener adjustment structure: with handle structure, can be opened and closed as a whole, save time.


Detailed parameters.jpg


ModelTypeWire Diameter (Solid)Roller Diameter (mm/inch)Roller Qty  (pcs)structuregroove
JZQ 0.05-0.2/38AVV-7φ0.05-0.2mm7(0.276)38quick clamping V
JZQ 0.2-0.5/34AVV-12φ0.2-0.5mm12(0.472)34V
JZQ 0.5-0.8/26AVV-16φ0.5-0.8mm16(0.630)26V
JZQ 0.8-1.5/5/18AVV-23φ0.8-1.5mm23(0.906)5/18V
JZQ 1.5-3/5/18AVV-30φ1.5-3mm30(1.181)5/18V
JZQ 3-4/18AVV-32φ3-4mm32(1.260)18V
JZQ 4-7/14/18/22AVV-42φ4-7mm42(1.654)14/18/22unclampingV
JZQ 5-8/14/18/22AVV-54φ5-8mm54(2.126)14/18/22V
ModelTypeTube/Pipe Diameter (Hollow)Roller Diameter (mm)Roller Qty                  (pcs)structuregroove
JZQ 1-3/14/18 BU/RU-301-3mm3018/14quick clamping U/R
JZQ 4-10/14/18/22 BU/RU-424-10mm4214/18/22unclampingU/R
JZQ 10-20/14/18/22 BU/RU-5410-20mm5414/18/22unclampingU/R
I.  Different groove types can be customized.
II.  Quick clamping is straightener with a handle for easy opening and closing the rollers



6-25mm straightening  10mm copper pipe  Pipe straightening

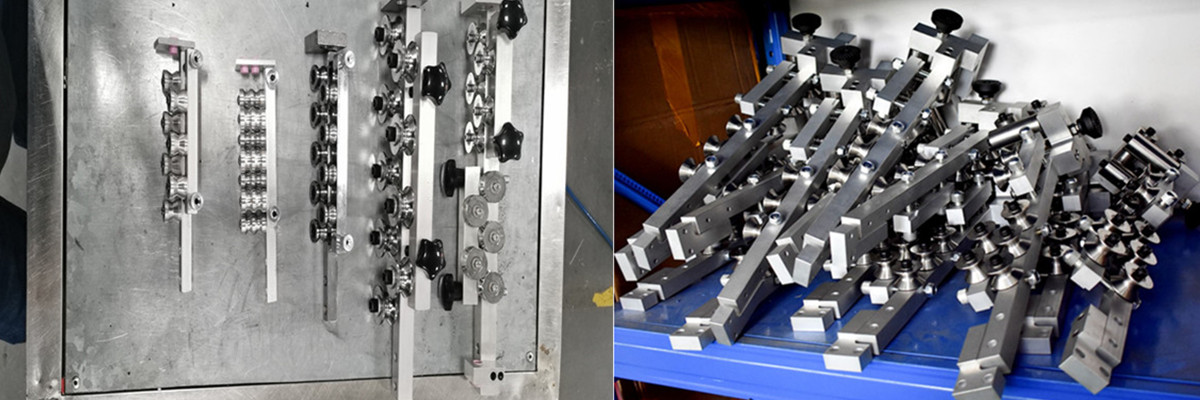

Straightener series

6-25mm straightening  10mm copper pipe  Pipe straightening


Factory & Store

QIPANG  wire/cable straightening machine  metal/stainless wire straightening device for wire stripper





QIPANG JZQ 4-6/9 BV middle


QIPANG  wire/cable straightening machine  metal/stainless wire straightening device for wire stripper

QIPANG JZQ 4-6/9 BV middle

QIPANG JZQ 4-6/9 BV middle


QIPANG JZQ 4-6/9 BV middle

Shanghai Qibang Industrial Co., Ltd.Founded in 2000, with 13 years of experience, is a research and development, production, sales of wire straightening cutting machine, wire forming bending machine, molding machine, copper pipe cutting machine equipment as one of the large machinery manufacturing enterprises.

We believe that quality is survival, so we only provide you the best products.

High quality products, in line with international standards, well received by domestic and foreign customers.

All staff in our company are professionally trained, so we can recommend the most suitable equipment for you.

Every machine has to pass strict inspection before it goes out.

Any questions about the machine will be answered within 24 hours.

Welcome to be our new customer!

Shanghai Qi Pang Industrial Co., LTD. specializes in producing wire straightening machine and rebar and tube cutting machine with advanced production technology, modern production mode, complete varieties and diverse styles. We can provide you with not only the nice quality products but also the great services.

QIPANG JZQ 4-6/9 BV middle

QIPANG JZQ 4-6/9 BV middle


QIPANG JZQ 4-6/9 BV middle


QIPANG JZQ 4-6/9 BV middle

Package and transport

QIPANG JZQ 4-6/9 BV middle


QIPANG JZQ 4-6/9 BV middle

1.Maintenance period: one year

2.Training how to install the machine, training how to use the machine.

3.Engineers available to service machinery overseas.

4.Test the machine before shipment

5.Provide technical guidance relate to use the machine

6.Provide the spare parts at cost price after warranty period

7. Collect the feedback for the machine working

QIPANG JZQ 4-6/9 BV middle

Pls tell me the following questions, so we can send you accurate quotation with additional discount:

1,What's the diameter of your steel wire ? Minimum and maximum range,How to choose the right straightener according to their own material?

2,Does the raw material come in rolls, in bundles, Hollow roll or solid material?

3,Have you used it before? Now do you have any pictures you want to send to us?

4,If you are interested in our products, please contact me as soon as possible, I will offer you some discounts, you can contact me freely :Whatsapp:+8613472630866/ Wechat:+8618916332415

FAQ:

Q:Are you manufacturer?

A:Yes,we are manufacturer of nail making machine.Welcome to visit us!



Q: what's the MNQ, Can you offer the customed service?

A: The MNQ is 1 set, we provide customized service, as long as you provide drawings



Q:What payment terms do you accept?

A:We are flexible on payment terms,please contact us for details!



Q:What should I do to start a new business in nail making machine area?

A:Please contact us immediately,we provide free pre-sales consultant service of nail making machine.



Q:Why choose you?What is the difference between you and other Chinese supplier?

A:We have specialized in this area for over 13 years.Our nail making machine are exported to Russia,India,UAE,South Korea,Canada,Vietnam,Thailand,Mexico,Turkey and etc. You can get higher quality product & better professional service from Hitech with same price.



Q:I`m worried about after-sales service!

A:Warranty is one year.

Any parts damaged during warranty will be replaced for free!

We provide spare parts for life time at cost price.

Electrical parts such as boards and servo drives,we`ll provide them for life time as well at cost price.

Our engineers are available to service overseas!
