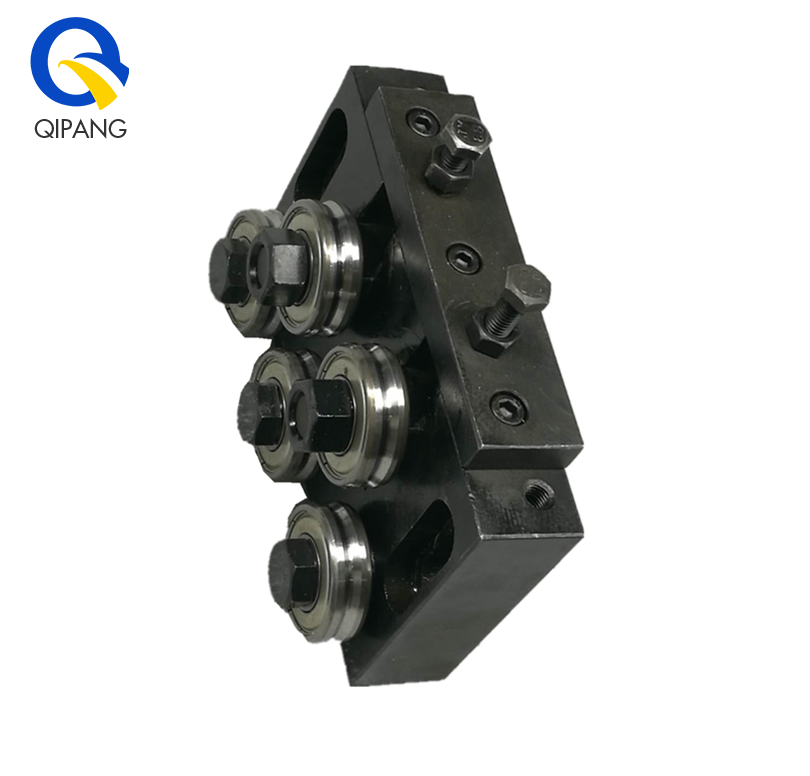

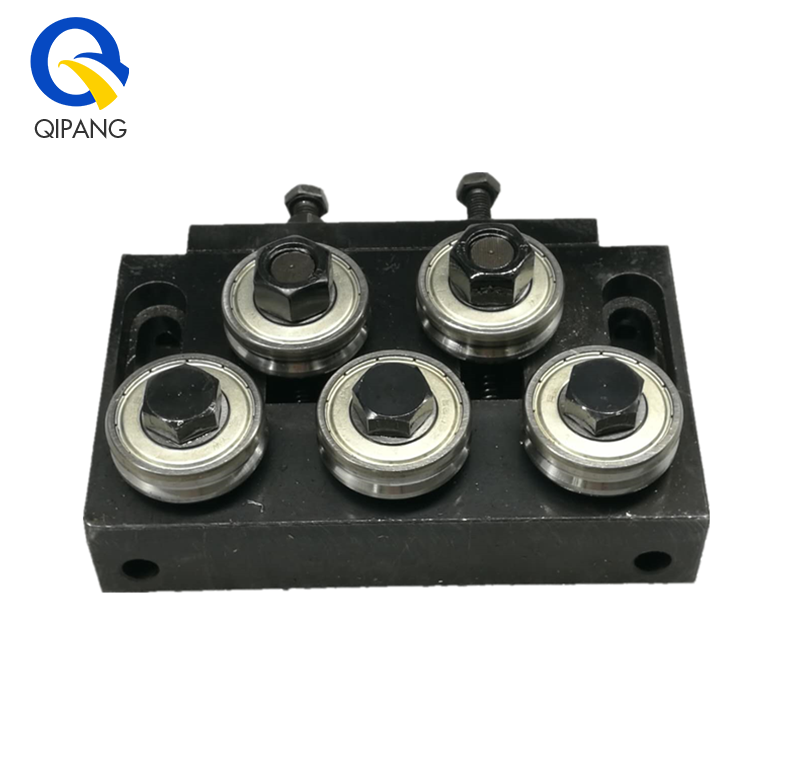

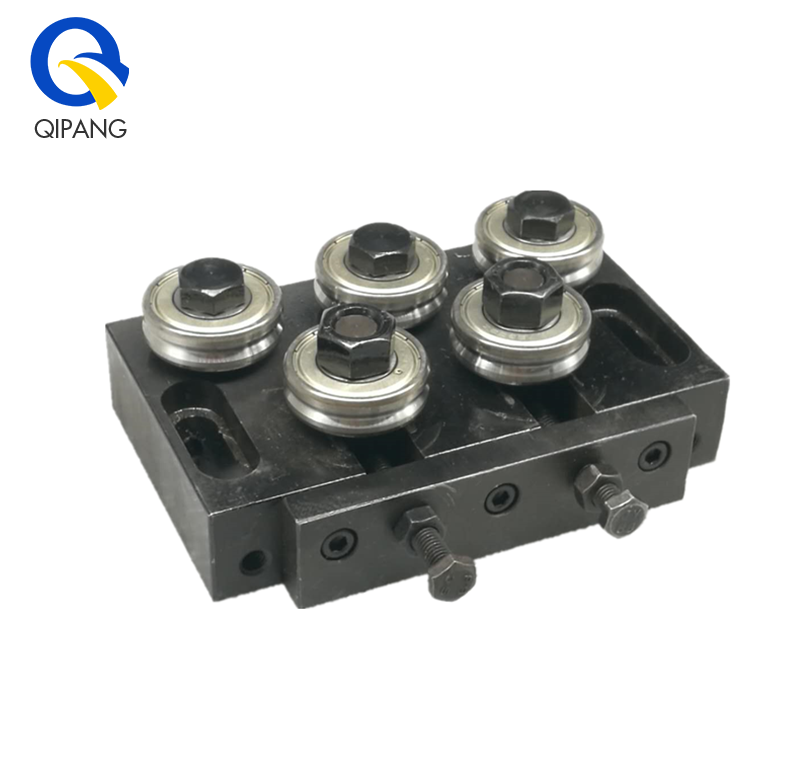

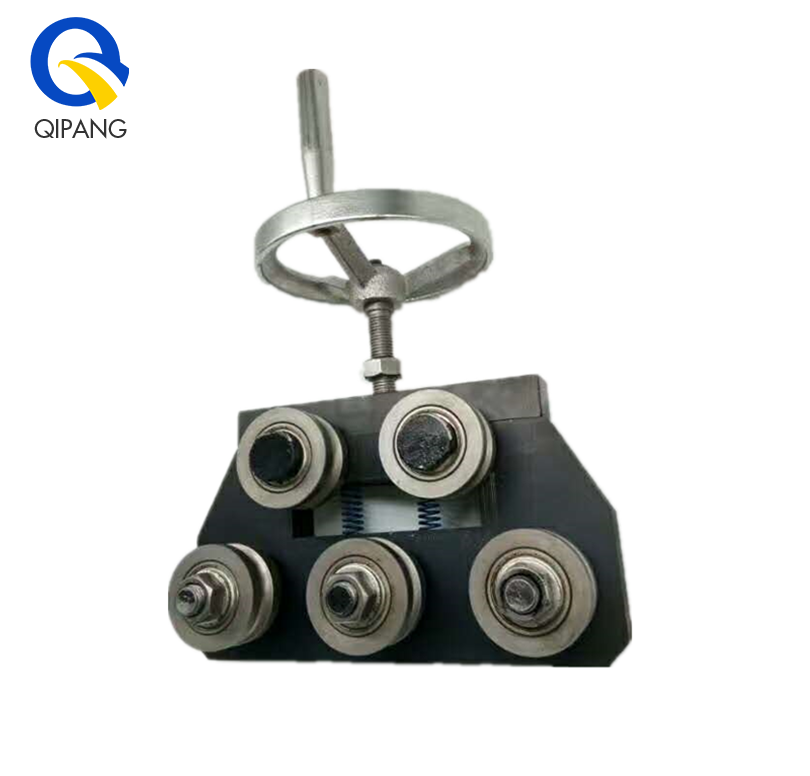

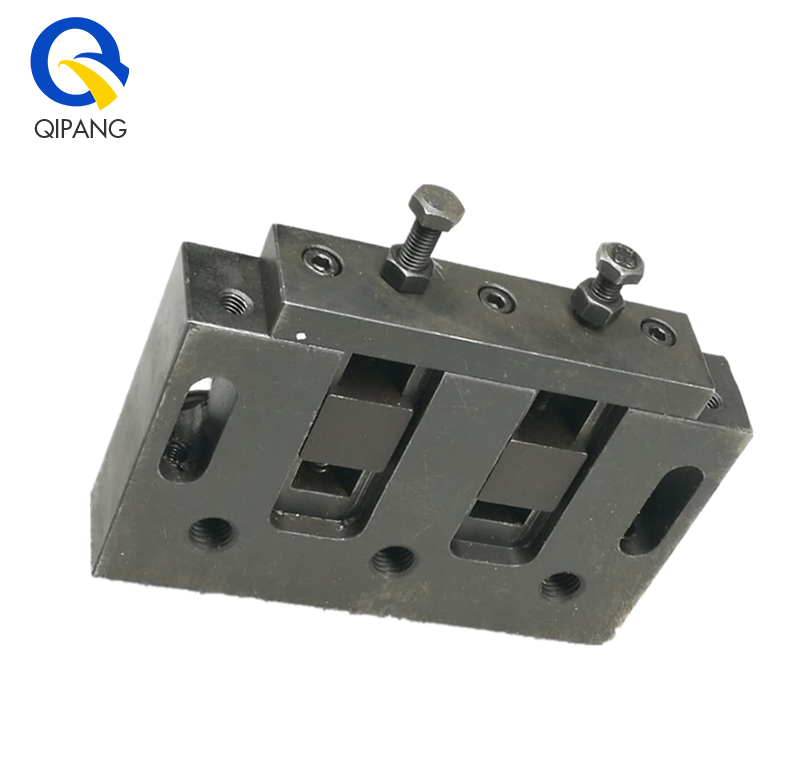

QIPANG RS42 V-5 bearing steel roller straightening machine in stock China factoryQIPANG RS42 V-5 bearing steel roller straightening machine in stock China factoryQIPANG RS42 V-5 bearing steel roller straightening machine in stock China factoryQIPANG RS42 V-5 bearing steel roller straightening machine in stock China factoryQIPANG RS42 V-5 bearing steel roller straightening machine in stock China factoryQIPANG RS42 V-5 bearing steel roller straightening machine in stock China factory

QIPANG RS42 V-5 bearing steel roller straightening machine in stock China factory

QIPANG RS42 V-5 bearing steel roller straightening machine in stock China factory

Mainly used on drawing machines

1, Single and dual plane straightener models JZQ 0.8-1.5/5BV   JZQ1.5-3/5BV

2, Eccentric roller open/closing device

3, Quantity of roller in stock 5rollers ,From 5 ~ 19 rollers  per group (5+5,7+7,9+9,11+11,13+13,15+15,17+17,19+19)

4,Roller diameters 23mm (0.9055") ,30mm(1.1811)Customizable 7-120mm (0.27559"-4.724409")

5,Adjustable rollers on the upper row

6,   Rollers available for light or heavy duty applications

7,Model AS/AD for wire R = 60 N/mm2 (8400 psi) max. with normal rollers (single or double bearing)

8,Rollers are standard "V" groove profiles but can be provided with "U" grooves 9,according to customer requirements

*Wire Guide included


Share:
  • QIPANG RS42 V-5 bearing steel roller straightening machine in stock China factory
  • QIPANG RS42 V-5 bearing steel roller straightening machine in stock China factory
  • QIPANG RS42 V-5 bearing steel roller straightening machine in stock China factory
  • QIPANG RS42 V-5 bearing steel roller straightening machine in stock China factory
  • QIPANG RS42 V-5 bearing steel roller straightening machine in stock China factory
  • QIPANG RS42 V-5 bearing steel roller straightening machine in stock China factory
  • Description

QIPANG RS42 V-5 bearing steel roller straightening machine in stock China factory

Mainly used on drawing machines

1,Single and dual plane straightener models

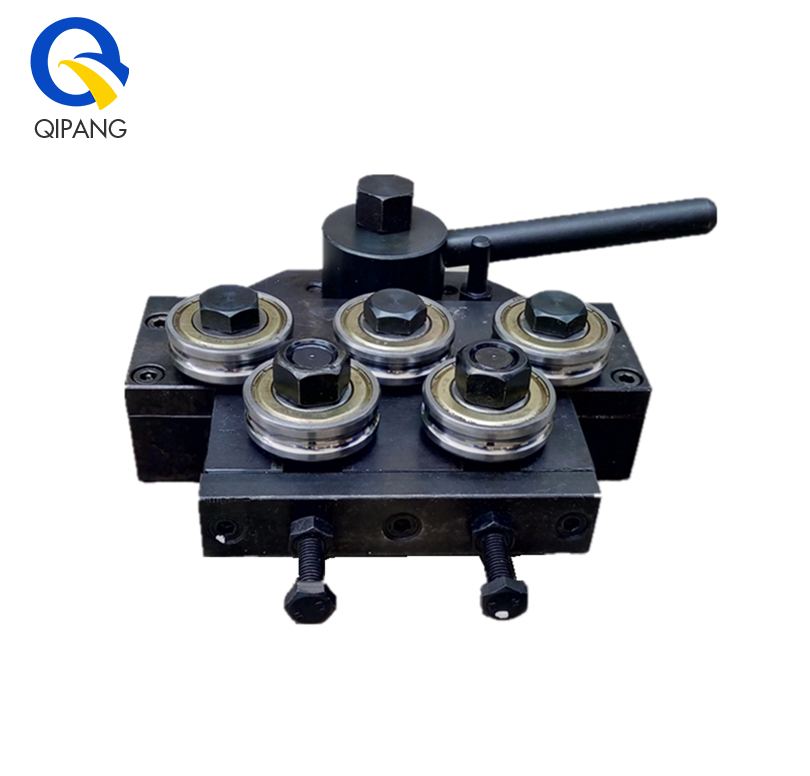

2,Eccentric roller open/closing device (lever)

3,From 5 ~ 13 rollers per group (5, 7, 9, 11, 13) or (5+5, 7+7, 9+9, 11+11,13+13)

4,Roller diameters 13 ~ 80 mm (0.5" ~ 3.15")

5.  Adjustable rollers on the upper row

6,  Rollers available for light or heavy duty applications

7.  Model AS/AD for wire R = 60 N/mm2 (8400 psi) max. with normal rollers (single or double bearing)


8,Rollers are standard "V" groove profiles but can be provided with "U" grooves 9,according to customer requirements

*Wire Guide included


Straightener Type

6-25mm straightening  10mm copper pipe  Pipe straightening

Straightener adjustment diagram

6-25mm straightening  10mm copper pipe  Pipe straightening

QIPANG QR0.3-0.5/AV model wire straightening machine for 0.3-0.5 mm steel wire

Straightener series

6-25mm straightening  10mm copper pipe  Pipe straightening

Customer Make  QIPANG Wire Straightener

We can design and produce the wire straightener according to customer requirements.


1. Material ( steel,copper )

2. Diameter of steel wire or steel tube or copper tube

3. Operating speed ( m / min )

4. Single plane or double plane

5. If need qucik lever, if need guide roller, if need solid base


Equipment Reconstruction and Update

Just tell us the maker or brand of used wire straightener, and then we help you to select, optimize the suitable resulatiuons.


Before making an order, had better consult with us.




Read more:

https://www.wire-straightener.com/wire-straighteners/


FAQ:

Q:How about your after-sale service?
A:We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.

Q:What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes or wooden cartons.


Q: Will you send the installed machine or machine parts?
A:We will install the machine and test the machine before delivery. And the machine can be used directly after receiving the machine.

Q: Will you provide operation guidance for us?
A:We will send the instruction book with the machine and send you a video about how to operate the machine.

Q: How long is the warranty period?
A:12 months warranty, we will send you free spare parts by air within one week if there are any quality problems.
