Qipang Wire Straightener Cutter Machine is a powerful and efficient device designed to straighten and cut wires of various sizes and materials with precision and ease. Whether you're a small-scale manufacturer or a large industrial company, this machine is an ideal solution for improving your wire cutting and straightening processes.

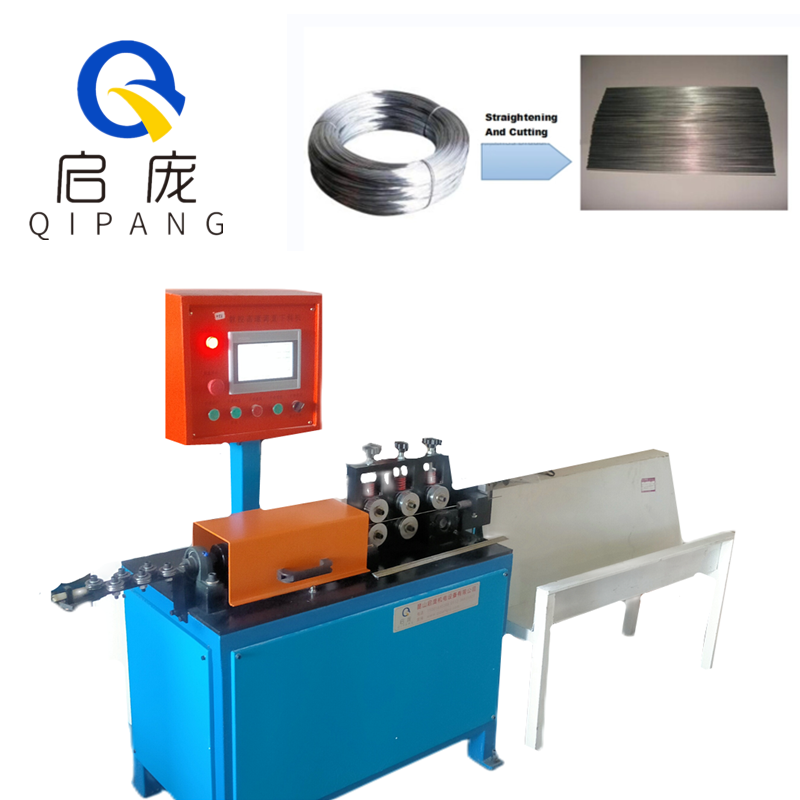

High quality metal wire straightening and cutting machine automatic straightener and cutting machine

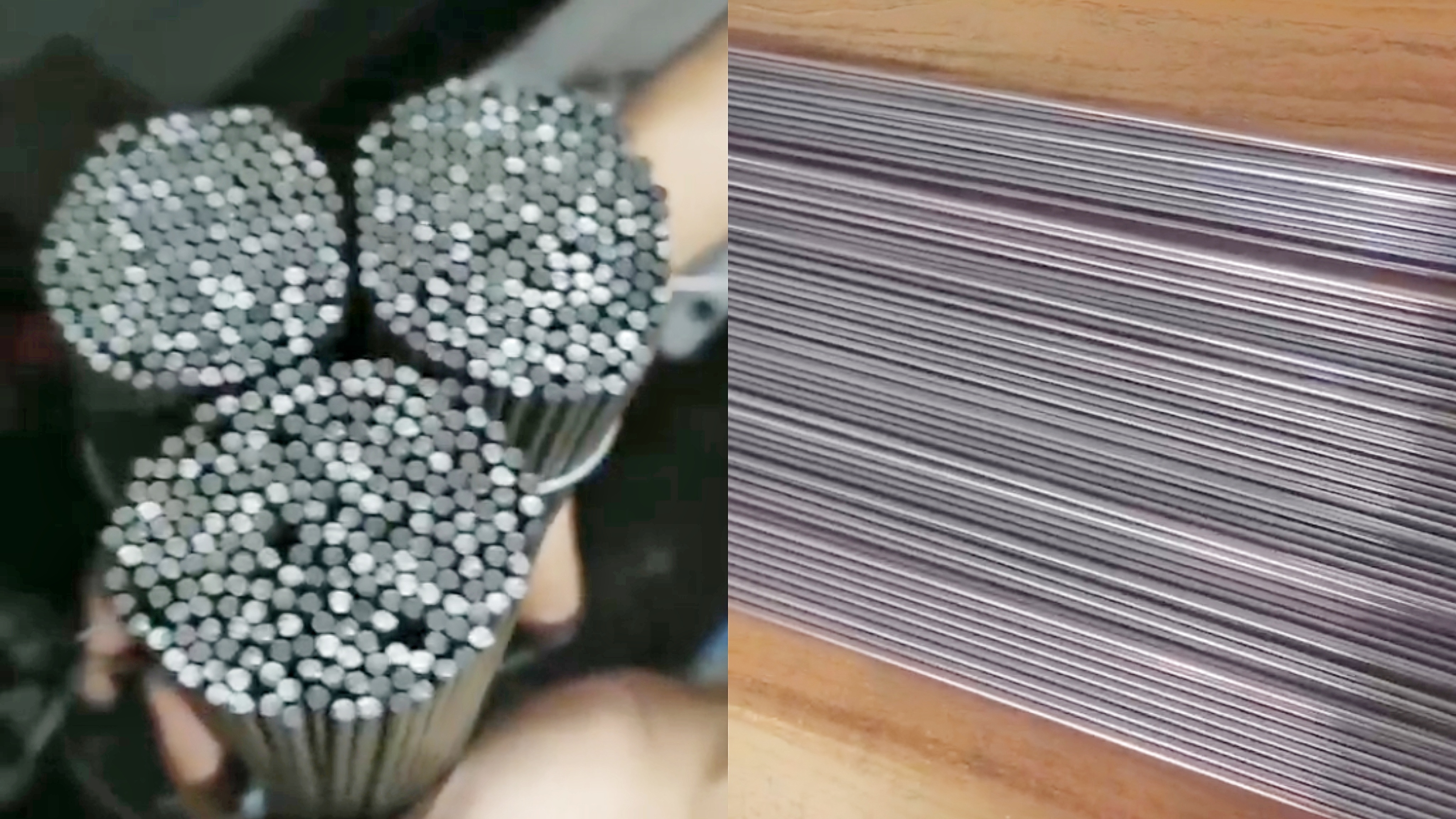

This Wire Straightener Cutter Machine can be suitable for all kinds of metal wire straightening cutting, surface, no scratches, cutting length error of 0.2-0.5 mm, the cutting length range is 80mm to 6000mm. Human-machine incorporate touch screen control system, can save manpower for the customer. Company's main range of wire 1 mm to 5 mm can be customized, fastest of up to 150 meters per minute,available for copper, iron, aluminum, gold, silver, stainless steel, high carbon steel and plastic coated wire, metal wire.If you want faster speed, please contact customer service.If you are concerned about the straightening effect, we can provide free proofing.
Configuration parameters of Wire Straightener Cutter Machine
1 two servo motors, 1.5 kw traction and 1:10 planetary reducer, cut off 1.5 kw,
2 cut off the PLC touch screen electronic CAM system,
3 servo motor brand, servo motor
4 fuselage length 1850mm wide 780mm total height 1300mm.It weighs about 498 kilograms.
5 the total weight of the automatic spreader is 90kg.
6. The control mode includes inverter analog control system,
7. Minimum diameter: 250mm; maximum diameter: 500mm;
8 the weight of the spreader is about 90kg"
Wire Straightener Cutter Machine Technical Parameter
Wire Straightener Cutter Machine Key Features:
Versatile: The Wire Straightener Cutter Machine can handle wires of various sizes, from small to large diameters, and can work with different materials such as copper, aluminum, and steel.
Precision Cutting: The machine's cutting blade is designed to cut wires cleanly and accurately, without damaging the material or leaving sharp edges.
Straightening Function: The machine also features a straightening mechanism that can straighten bent or coiled wires, improving their quality and appearance.
Adjustable Settings: The machine's settings can be easily adjusted to accommodate different wire sizes and materials, allowing for greater flexibility and customization.
User-friendly: The machine is easy to operate and does not require any specialized training, making it ideal for both experienced operators and beginners.
Benefits of Wire Straightener Cutter Machine:
Increased Efficiency: The Wire Straightener Cutter Machine can significantly improve your wire cutting and straightening processes, reducing the time and effort required to complete these tasks.
Improved Quality: The machine's precision cutting and straightening functions can improve the quality and appearance of your wires, making them more consistent and reliable.
Cost-effective: By automating your wire cutting and straightening processes with this machine, you can save money on labor costs and improve your overall production efficiency.
Versatile: The machine's ability to work with different wire sizes and materials makes it a versatile solution for a variety of industries, including construction, automotive, and electronics.
Wire Straightener Cutter Machine Packing:
The Wire Straightener Cutter Machine is a powerful and versatile device that can significantly improve your wire cutting and straightening processes. With its precision cutting and straightening functions, adjustable settings, and user-friendly design, this machine is an ideal solution for any business looking to improve their wire production efficiency and quality.
