QIPANG 70-120mm rollers with motor & reducer short material straightening wire cable straightener
Mainly used for short wire straightening
1，Single and dual plane straightener models JZQ 8-20/5 BV
2，Quantity of roller in stock 5 ，From 5 ~ 19 rollers
3，Roller diameters 70mm-120mm (2.8688"---4.7245")
4，Adjustable rollers on the upper row
5, Rollers available for light or heavy duty applications
6，Model AS/AD for wire R = 60 N/mm2 (8400 psi) max. with normal rollers (single or double bearing)
7，Rollers are standard "V" groove profiles but can be provided with "U" grooves, according to customer requirements
8，Electrical appliances: standard 0.75KW+1:30 reducer, speed 10 m/min, motor reducer can choose different power (machine speed and voltage can be customized.)
9，Power supply: 380V, three-phase electricity, 50HZ or 220V, single-phase electricity, 50HZ

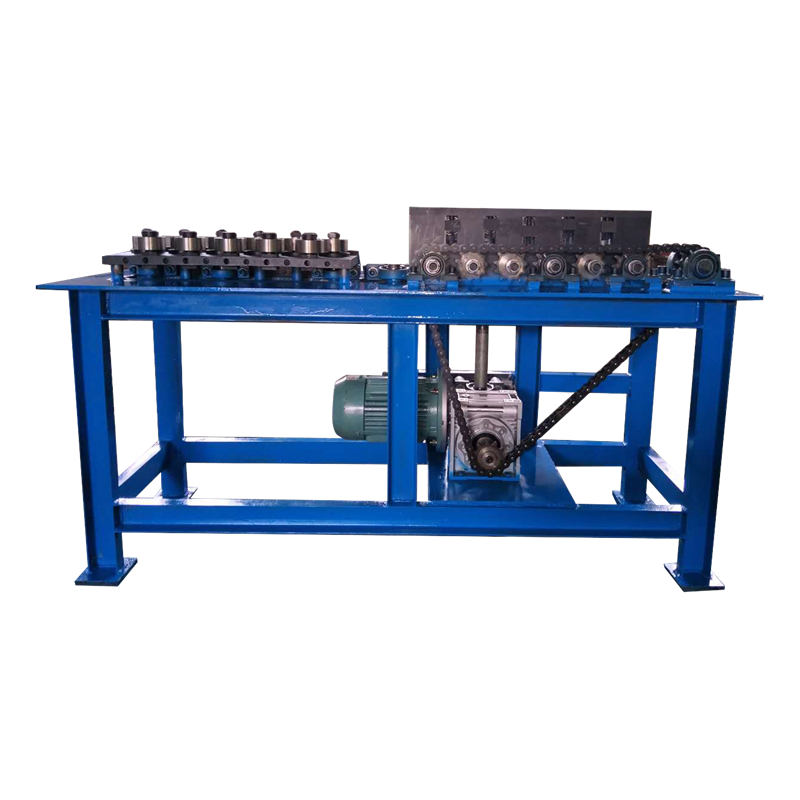

10，All components are installed on a table*Wire Guide included
Wire Straightener and Cutter Machine Advantages ：
1. We have CE&SGS certification ，ISO1990 Quality system certification ,so on...
2, Good quality and professional pre - sales, after - sales service
3, 13 years of development, manufacturing and marketing experience, the main customers are: North America (United States, Canada, Mexico), Europe (Italy, Britain, France, Poland, Greece), Southeast Asia, etc.
4. Flexible development and customization OEM ODM
5. Excellent consulting team covering the world
6. Fast spare parts distribution and sufficient inventory
Straightener Type
Model Type Wire Diameter (Solid) Roller Diameter (mm/inch) Roller Qty (pcs) structure groove JZQ 0.05-0.2/38AV V-7 φ0.05-0.2mm 7（0.276） 38 quick clamping V JZQ 0.2-0.5/34AV V-12 φ0.2-0.5mm 12（0.472） 34 V JZQ 0.5-0.8/26AV V-16 φ0.5-0.8mm 16（0.630） 26 V JZQ 0.8-1.5/5/18AV V-23 φ0.8-1.5mm 23（0.906） 5/18 V JZQ 1.5-3/5/18AV V-30 φ1.5-3mm 30（1.181） 5/18 V JZQ 3-4/18AV V-32 φ3-4mm 32（1.260） 18 V JZQ 4-7/14/18/22AV V-42 φ4-7mm 42（1.654） 14/18/22 unclamping V JZQ 5-8/14/18/22AV V-54 φ5-8mm 54（2.126） 14/18/22 V Model Type Tube/Pipe Diameter (Hollow) Roller Diameter (mm) Roller Qty (pcs) structure groove JZQ 1-3/14/18 BU/R U-30 1-3mm 30 18/14 quick clamping U/R JZQ 4-10/14/18/22 BU/R U-42 4-10mm 42 14/18/22 unclamping U/R JZQ 10-20/14/18/22 BU/R U-54 10-20mm 54 14/18/22 unclamping U/R I. Different groove types can be customized.
II. Quick clamping is straightener with a handle for easy opening and closing the rollers
Straightener adjustment diagram

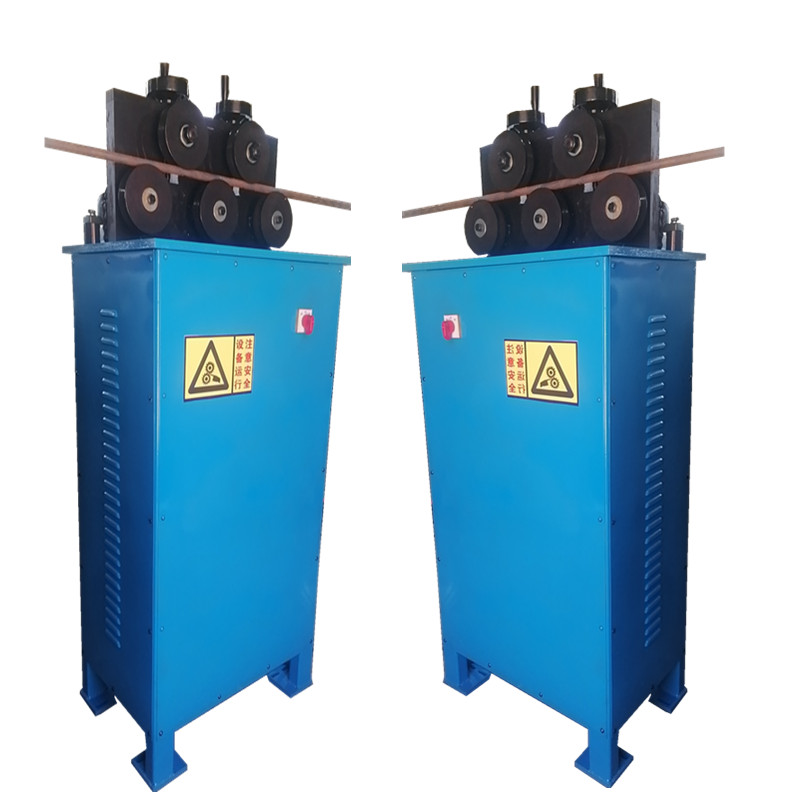

Product Display
Straightener Type
| Model | Type | Wire Diameter (Solid) | Roller Diameter (mm/inch) | Roller Qty (pcs) | structure | groove |
| JZQ 0.05-0.2/38AV | V-7 | φ0.05-0.2mm | 7（0.276） | 38 | quick clamping | V |
| JZQ 0.2-0.5/34AV | V-12 | φ0.2-0.5mm | 12（0.472） | 34 | V | |
| JZQ 0.5-0.8/26AV | V-16 | φ0.5-0.8mm | 16（0.630） | 26 | V | |
| JZQ 0.8-1.5/5/18AV | V-23 | φ0.8-1.5mm | 23（0.906） | 5/18 | V | |
| JZQ 1.5-3/5/18AV | V-30 | φ1.5-3mm | 30（1.181） | 5/18 | V | |
| JZQ 3-4/18AV | V-32 | φ3-4mm | 32（1.260） | 18 | V | |
| JZQ 4-7/14/18/22AV | V-42 | φ4-7mm | 42（1.654） | 14/18/22 | unclamping | V |
| JZQ 5-8/14/18/22AV | V-54 | φ5-8mm | 54（2.126） | 14/18/22 | V | |
| Model | Type | Tube/Pipe Diameter (Hollow) | Roller Diameter (mm) | Roller Qty (pcs) | structure | groove |
| JZQ 1-3/14/18 BU/R | U-30 | 1-3mm | 30 | 18/14 | quick clamping | U/R |
| JZQ 4-10/14/18/22 BU/R | U-42 | 4-10mm | 42 | 14/18/22 | unclamping | U/R |
| JZQ 10-20/14/18/22 BU/R | U-54 | 10-20mm | 54 | 14/18/22 | unclamping | U/R |
| I. Different groove types can be customized. II. Quick clamping is straightener with a handle for easy opening and closing the rollers | ||||||
Straightener adjustment diagram
Product Display
