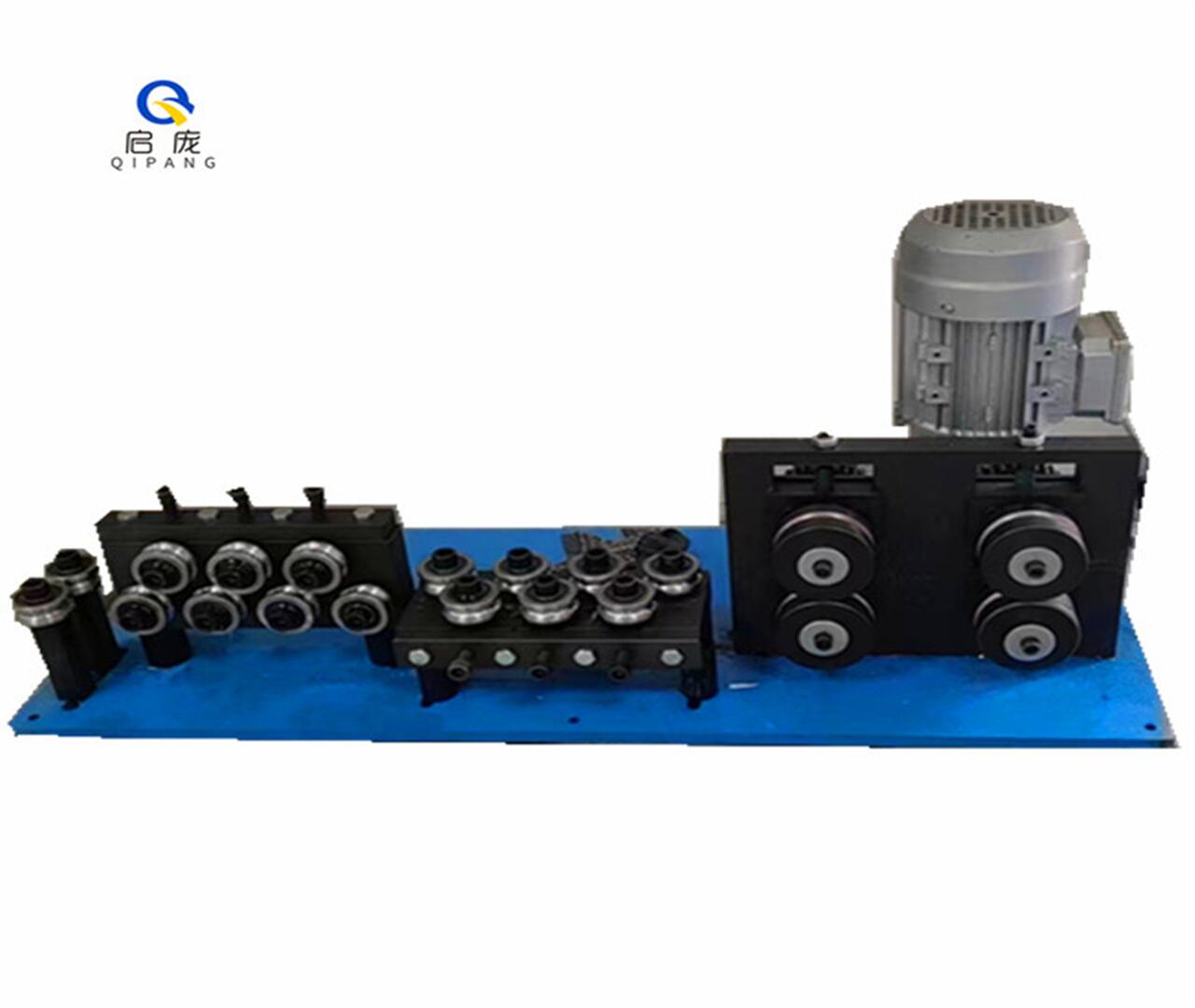

QIPANG PR30/42/53 BV 3-10mm double drive roller traction cable straightening machine electric straightener
Mainly used on drawing machines
1, Single and dual plane straightener models JZQ 3-10mm/10AV
2, Quantity of roller in stock 10 rollers ，From 5 ~ 19 rollers per group (5+5,7+7,9+9,11+11,13+13,15+15,17+17,19+19)
3, Roller diameters Customizable 7-120mm (0.27559"-4.724409")
4, Adjustable rollers on the upper row
5, Rollers available for light or heavy duty applications
6, Model AS/AD for wire R = 60 N/mm2 (8400 psi) max. with normal rollers (single or double bearing)
7, Rollers are standard "V" groove profiles but can be provided with "U" grooves, according to customer requirements*Wire Guide
8, 4 rollers feeder, steel rollers, dia in 70mm
9, Motor 550W power, three-phase 380V 50HZ, or single-phase 220V 50HZ
10, With frequency control function
11, Speed : 8-10m/min, also can customized faster speed.
12, With a fixed plate
Wire Straightener and Cutter Machine Advantages ：
1. We have CE&SGS certification ，ISO1990 Quality system certification ,so on...
2, Good quality and professional pre - sales, after - sales service
3, 13 years of development, manufacturing and marketing experience, the main customers are: North America (United States, Canada, Mexico), Europe (Italy, Britain, France, Poland, Greece), Southeast Asia, etc.
4. Flexible development and customization OEM ODM
5. Excellent consulting team covering the world
6. Fast spare parts distribution and sufficient inventory

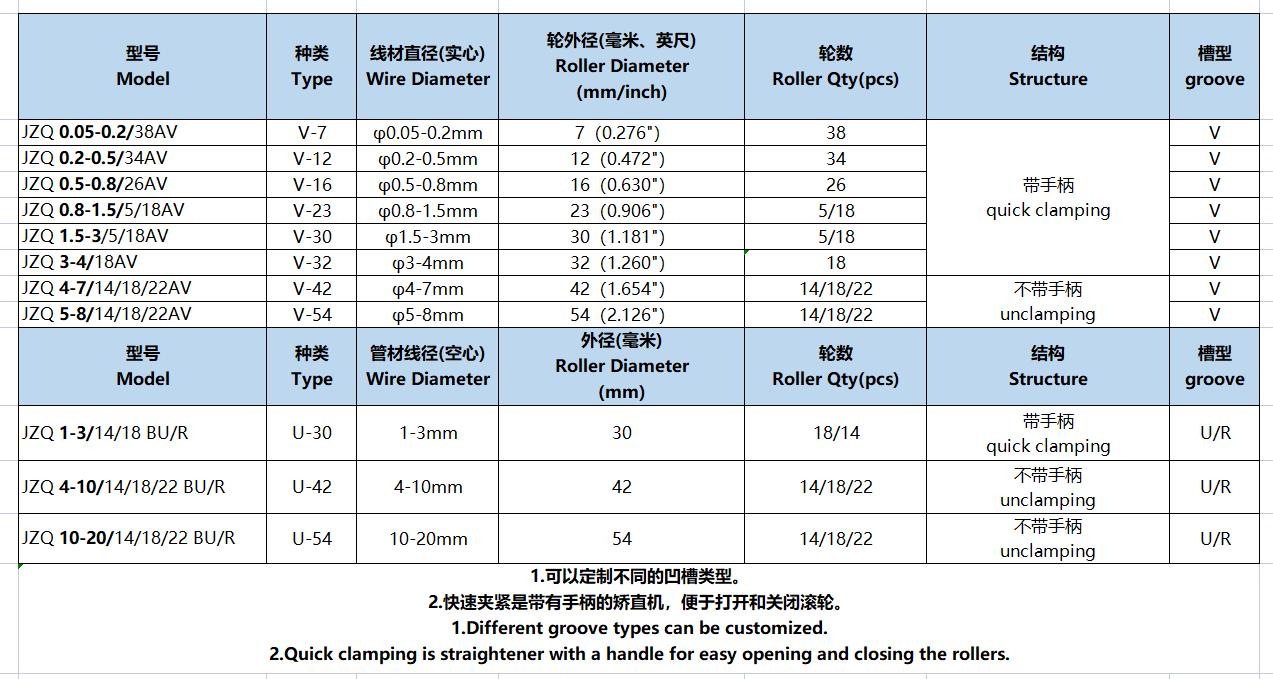

Straightener Type
Straightener adjustment diagram

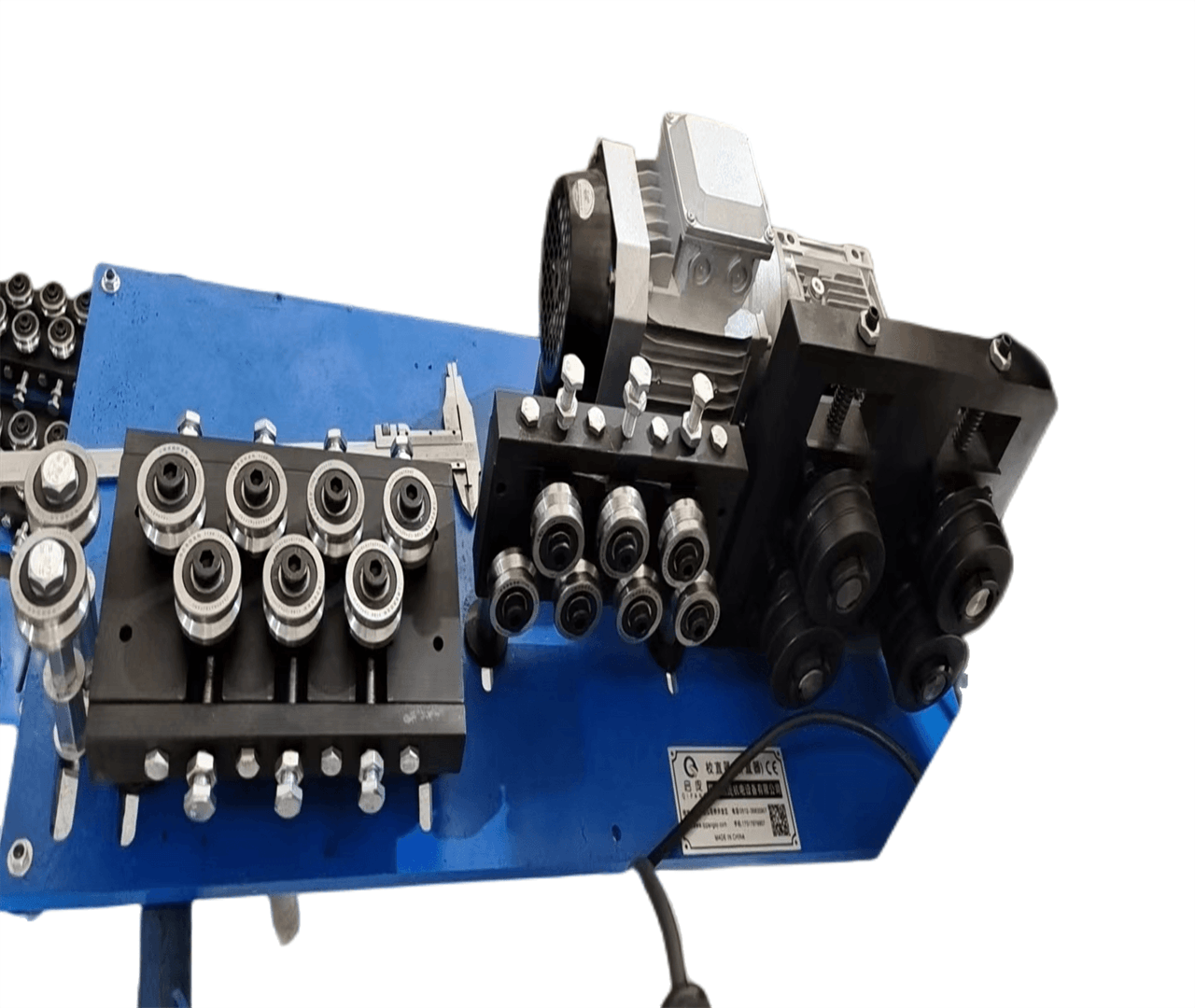

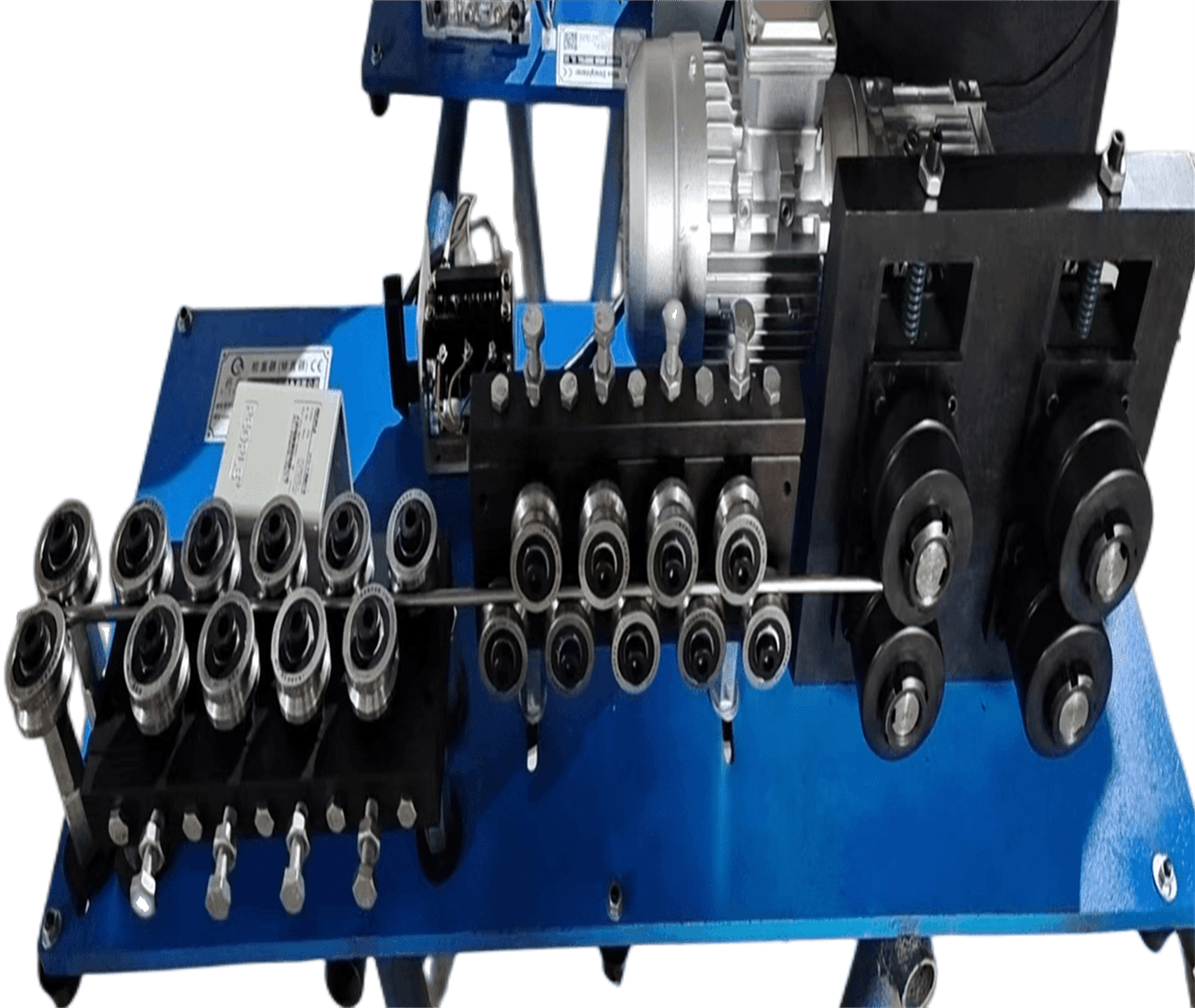

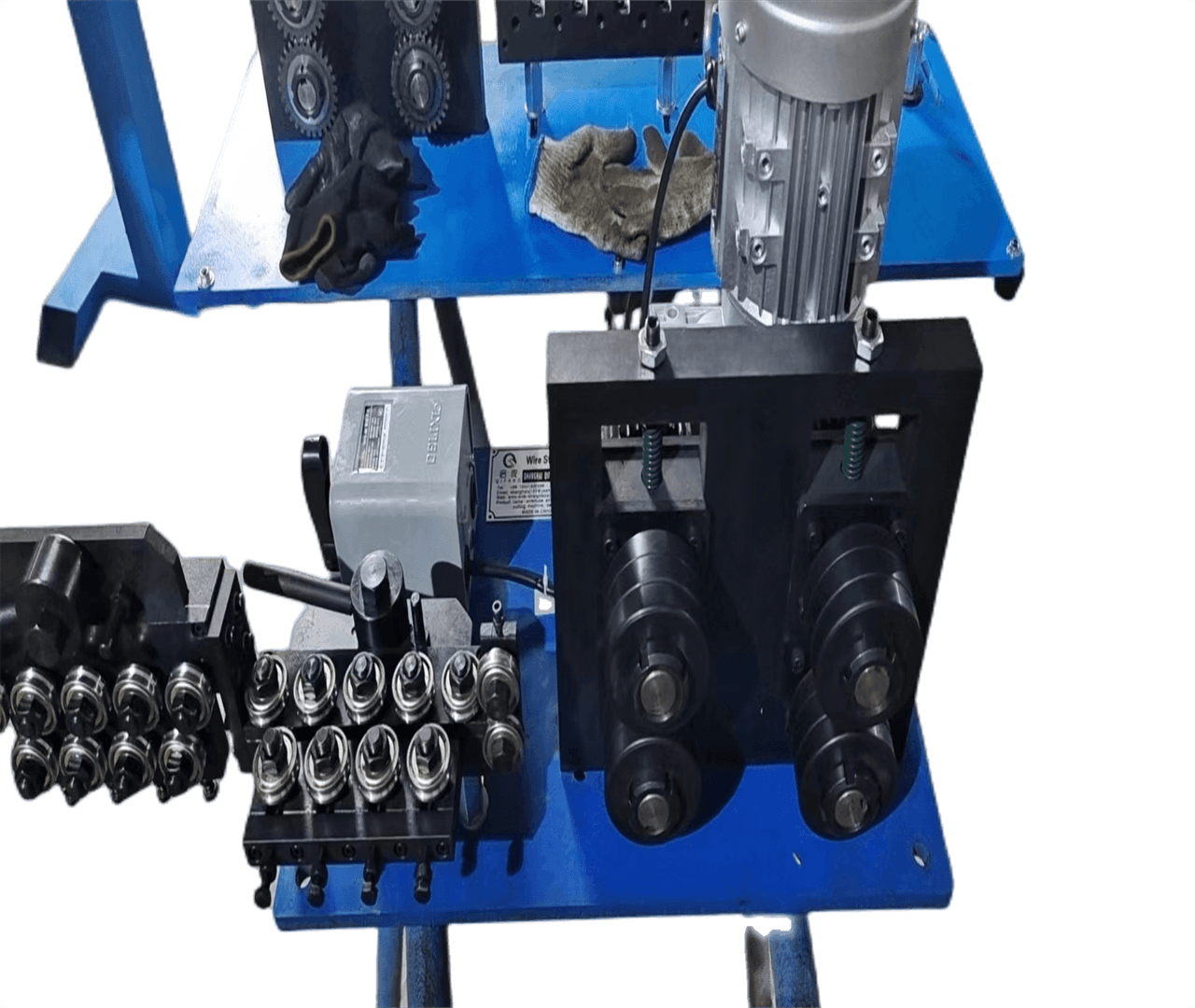

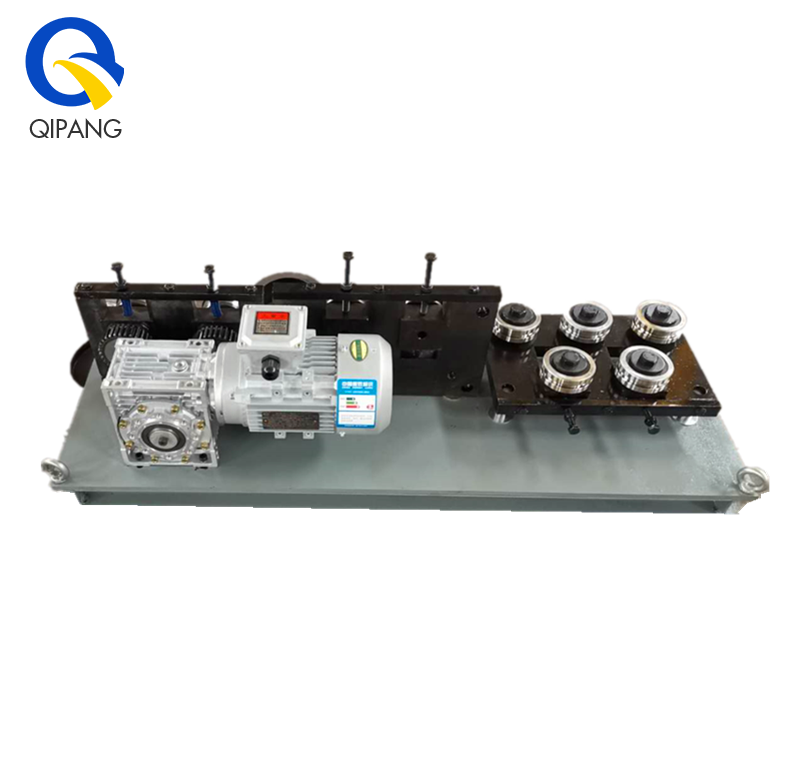

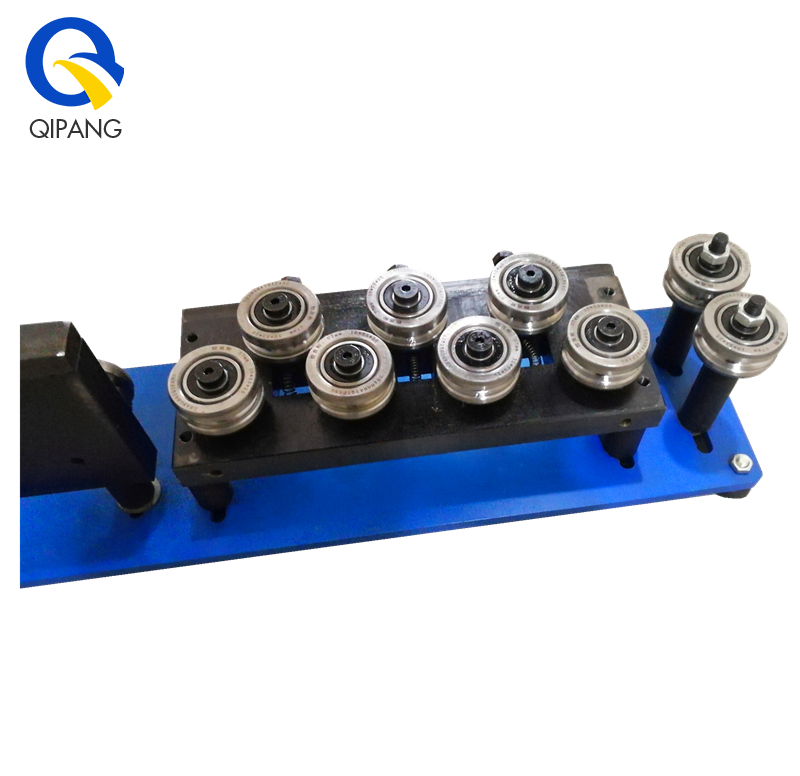

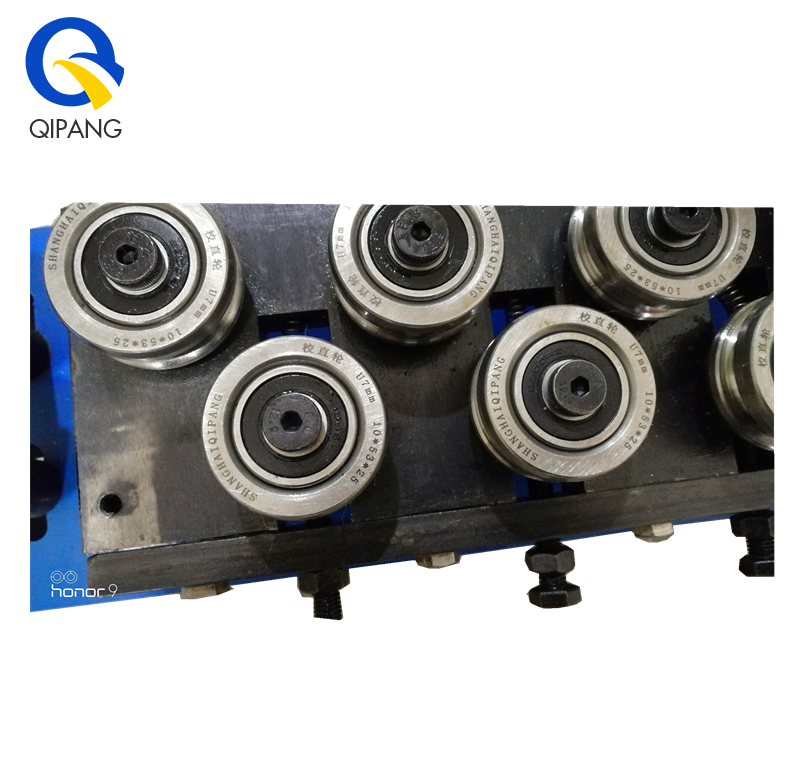

Product Display
