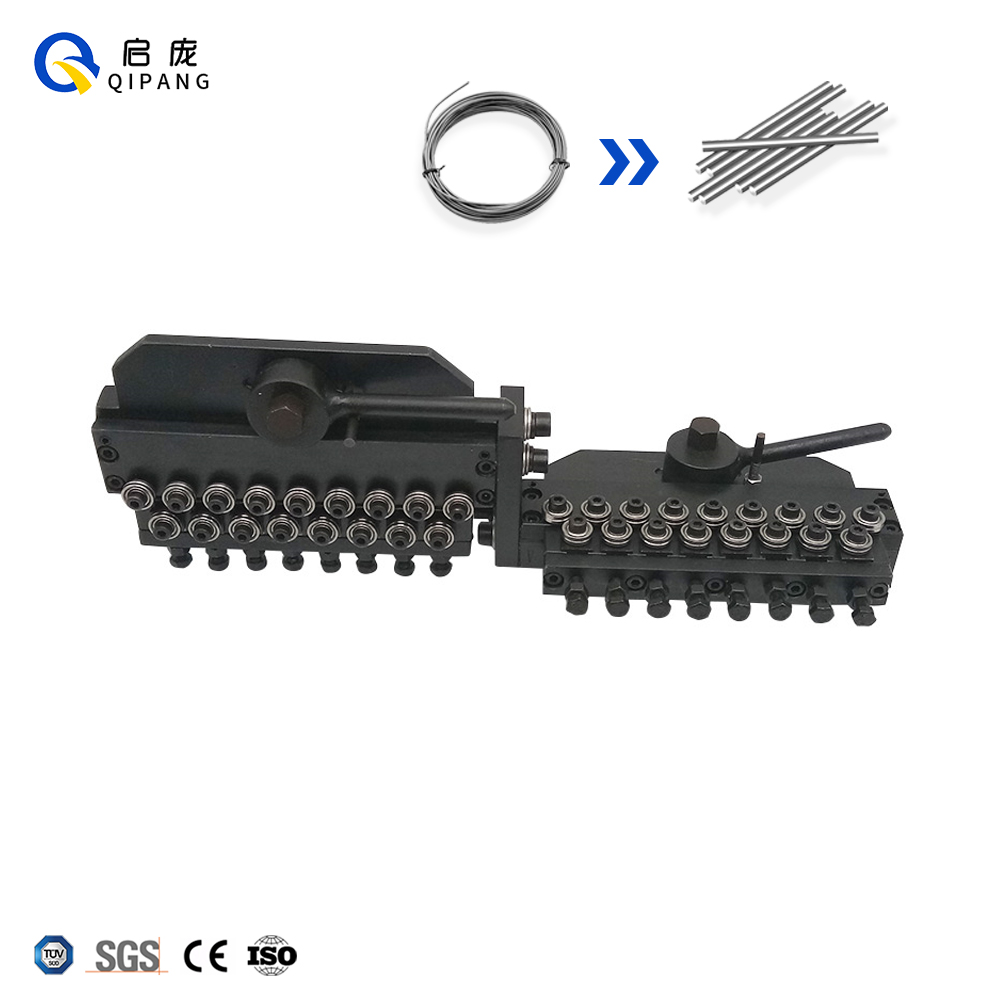

QIPANG 0.3-0.5mm Aluminum Alloy Wire φ12-34 Rollers Wire Straightening Tool
Shanghai Qi Pang mainly focuses on the production of : manual straighteners, electric straighteners, CNC straightening and cutting machines, and traction feeding systems.
Wire Straightening Tools are suitable for various materials, such as: copper/aluminum/stainless steel/iron wire and pipes, and are applicable to both round and square materials.
Our Wire Straightening Tool is widely used in wire drawing machines, metal wire processing industry, polishing machine,construction sites, refrigeration equipment and rewinding equipment, etc., and can efficiently straighten metal wires and pipes, thereby improving production efficiency.
Wire Straightening Tool is specialized equipment designed to straighten metal wire and tubing, primarily used to eliminate bending deformations caused during processing or heat treatment. By applying external force, it restores the workpiece to its ideal straightness or precision, ensuring the wire achieves the desired straightness.
The Wire Straightening Tool features diverse models and functions, offering high cost-effectiveness and easy adjustability. Since the rollers can be controlled via an adjustment mechanism, minimal maintenance is required. Additionally, you may opt to install digital position indicators on the straightening machine, facilitating roller adjustments by operators. These indicators record the specific adjustment positions of each roller, enabling reuse when processing wire of the same diameter in the future.
I. Wire Straightening Tool Parameters:
1.Style: ① Single-direction: All rollers are mounted on the same plane, arranged in two rows, top and bottom.
② Single-direction: Composed of horizontal and vertical straightening modules, offering a wider range of straightening surfaces and superior straightness.
2. Quick-opening and closing handle device
3. Number of rollers: standard: Single direction 17rollers or Horizontal + vertical direction 17 + 17rollers
Customization available: ① Single direction: 5, 7, 9, 11, 13 rollers;
② Horizontal + vertical direction: 5+5, 7+7, 9+9, 11+11, 13+13 rollers
4. Roller outer diameter: 12mm (0.472 ")
5. Upper row rollers are individually adjustable
6. Rollers can be used for light or heavy-duty applications
7.Single-row ball bearings are suitable for wires with a maximum tensile strength of R = 600 N/mm².
Double-row ball bearings in hardened steel are ideal for wires with higher tensile strength, ranging from R = 600 N/mm² to R = 2200 N/mm².
8. Grooving: Standard "V" groove type. "U"/H groove type can be customized according to customer requirements.

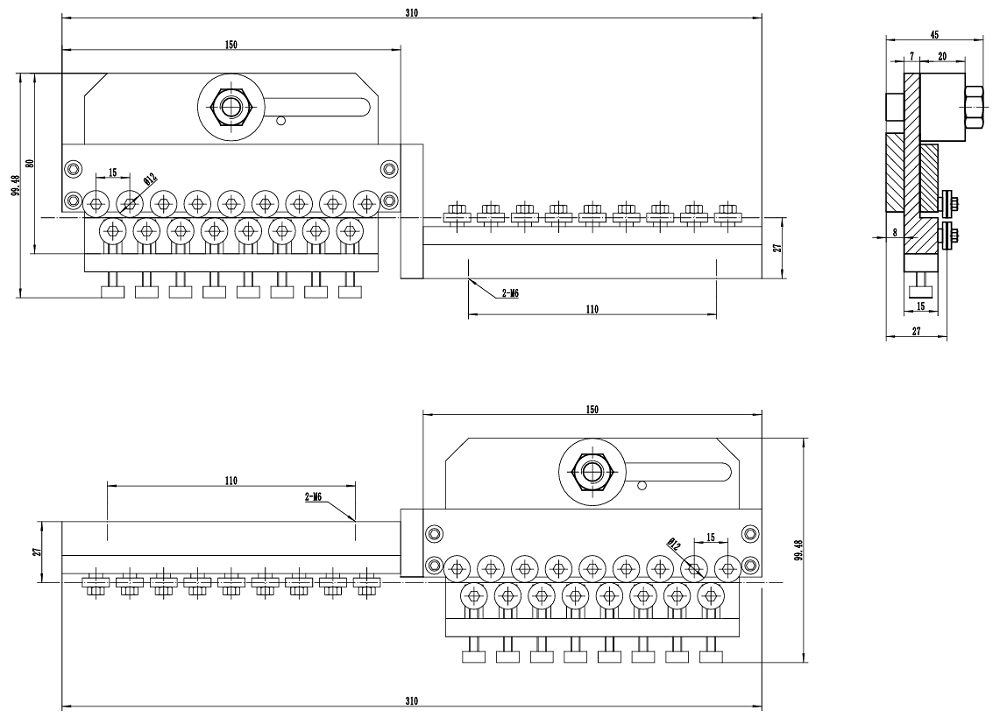

II. ⌀12-34 Wheels Wire Straightening Tool Drawing:
III. Wire Straightening Tool Diameter Selection Chart:
