Home > Qipang Product > Automatic Wire Straightener System

Hand shrank wire straightenerHand shrank wire straightenerHand shrank wire straightenerHand shrank wire straightenerHand shrank wire straightenerHand shrank wire straightener

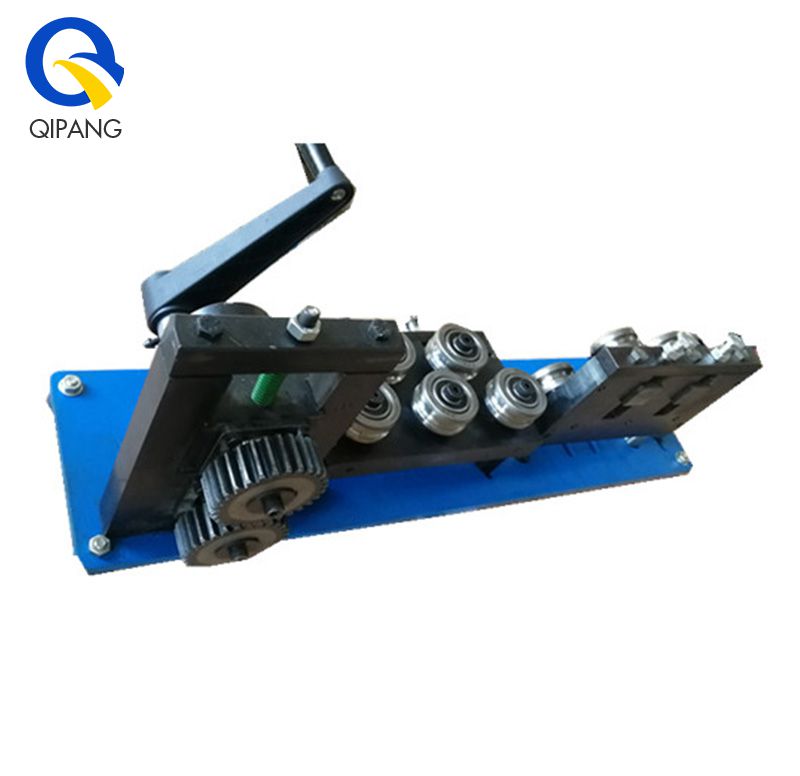

QIPANG 4-7mm copper wire straightener machine wire straightening pipe hand shrank straightener

1. CE&SGS certification

2. Good quality and professional service

3. 10 years of development,manufacturing, market experience

4. Flexible development and customization tools

5. Excellent consulting team covering the world

6. Fast spare parts distribution and sufficient inventory

Share:
  • Hand shrank wire straightener
  • Hand shrank wire straightener
  • Hand shrank wire straightener
  • Hand shrank wire straightener
  • Hand shrank wire straightener
  • Hand shrank wire straightener
  • Description

QIPANG 4-7mm copper wire straightener machine wire straightening pipe hand shrank straightener


1,Single and dual plane straightener models JZQ 4-7/10BV

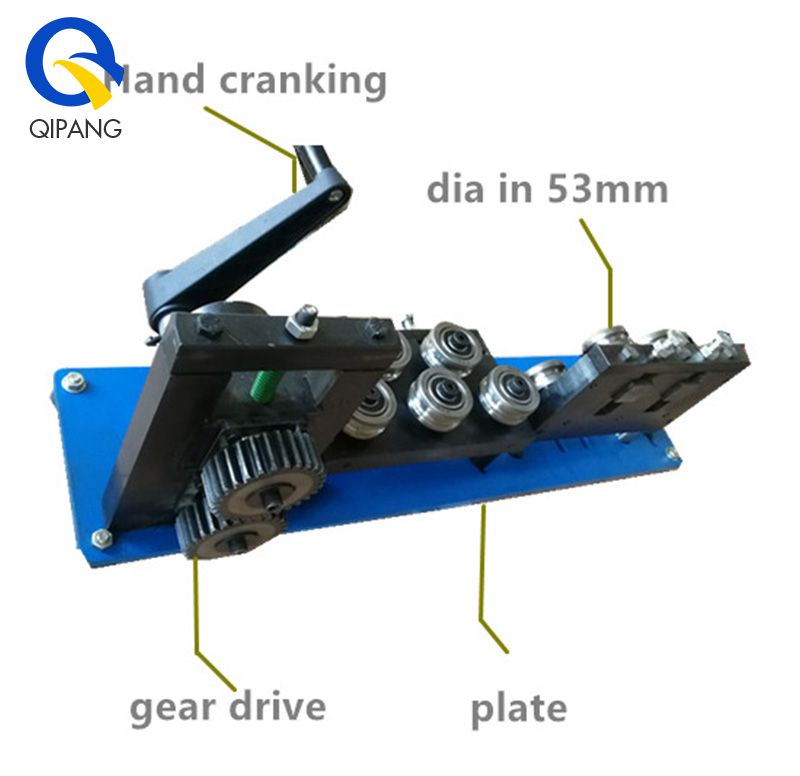

2,   With hand crank, 2rollers feeder(Bearing steel material, durable),  dia of roller on 70mm.

3,Quantity of roller in stock 7rollers ,From 5 ~ 19 rollers  per group (5+5,7+7,9+9,11+11,13+13,15+15,17+17,19+19)

4,Roller diameters 42mm (1.654") ,53mm(2.087)Customizable 7-120mm (0.27559"-4.724409")

5,Adjustable rollers on the upper row

6,   Rollers available for light or heavy duty applications

7,Model AS/AD for wire R = 60 N/mm2 (8400 psi) max. with normal rollers (single or double bearing)

8,Rollers are standard "V" groove profiles but can be provided with "U" grooves
9,according to customer requirements*Wire Guide included


Wire Straightener and Cutter Machine Advantages

1.  We have CE&SGS certification ,ISO1990 Quality system certification ,so on...

2,  Good quality and professional pre - sales, after - sales service

3,  13 years of development, manufacturing and marketing experience, the main customers are: North America (United States, Canada, Mexico), Europe (Italy, Britain, France, Poland, Greece), Southeast Asia, etc.

4. Flexible development and customization OEM ODM

5. Excellent consulting team covering the world

6. Fast spare parts distribution and sufficient inventory

Straightener Type

QIPANG 4-7mm  hand shrank copper wire thin line straightener machine

ModelTypeWire Diameter (Solid)Roller Diameter (mm/inch)Roller Qty  (pcs)structuregroove
JZQ 0.05-0.2/38AVV-7φ0.05-0.2mm7(0.276)38quick clamping V
JZQ 0.2-0.5/34AVV-12φ0.2-0.5mm12(0.472)34V
JZQ 0.5-0.8/26AVV-16φ0.5-0.8mm16(0.630)26V
JZQ 0.8-1.5/5/18AVV-23φ0.8-1.5mm23(0.906)5/18V
JZQ 1.5-3/5/18AVV-30φ1.5-3mm30(1.181)5/18V
JZQ 3-4/18AVV-32φ3-4mm32(1.260)18V
JZQ 4-7/14/18/22AVV-42φ4-7mm42(1.654)14/18/22unclampingV
JZQ 5-8/14/18/22AVV-54φ5-8mm54(2.126)14/18/22V
ModelTypeTube/Pipe Diameter (Hollow)Roller Diameter (mm)Roller Qty                  (pcs)structuregroove
JZQ 1-3/14/18 BU/RU-301-3mm3018/14quick clamping U/R
JZQ 4-10/14/18/22 BU/RU-424-10mm4214/18/22unclampingU/R
JZQ 10-20/14/18/22 BU/RU-5410-20mm5414/18/22unclampingU/R
I.  Different groove types can be customized.
II.  Quick clamping is straightener with a handle for easy opening and closing the rollers


Straightener adjustment diagram

6-25mm straightening  10mm copper pipe  Pipe straightening

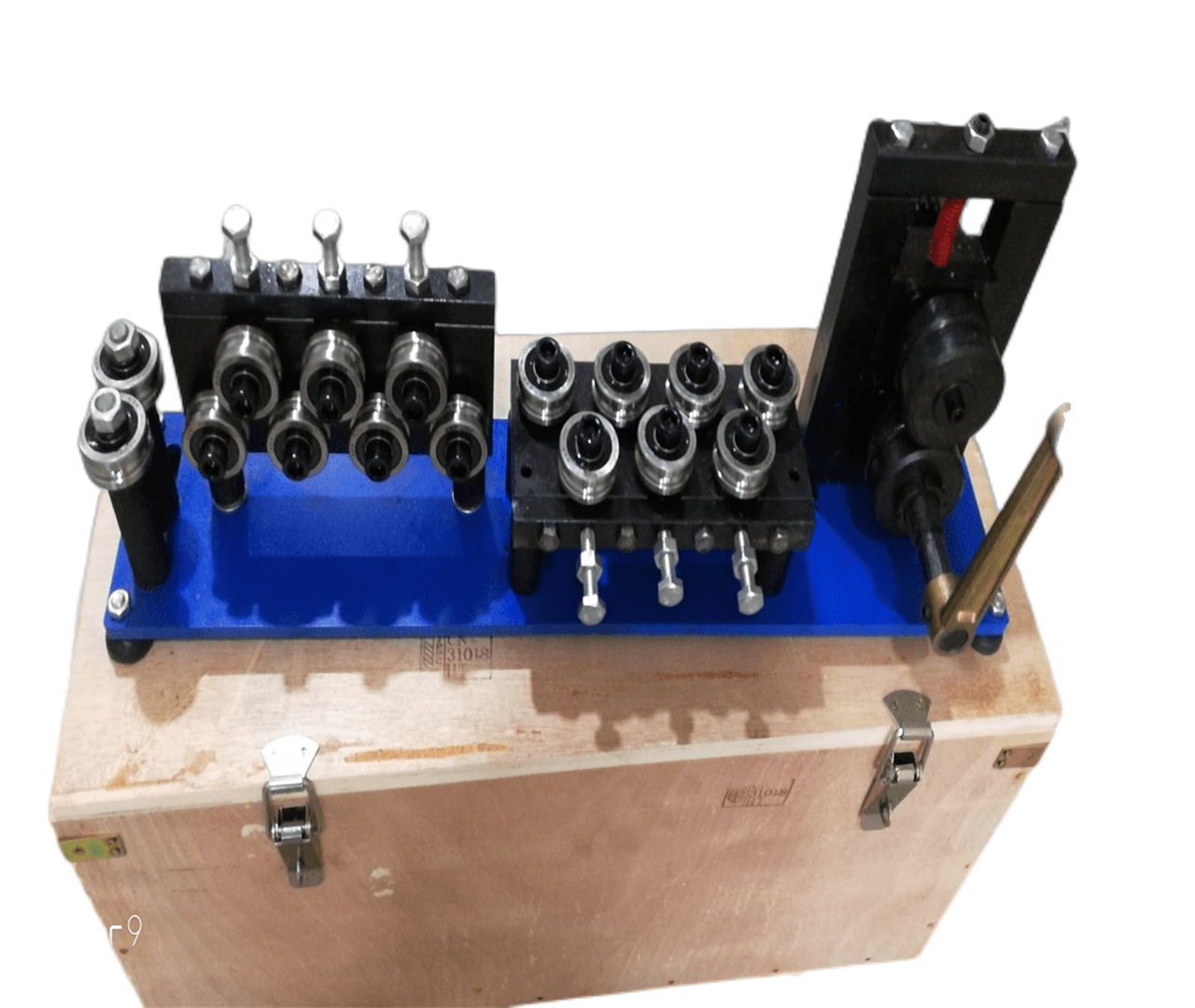

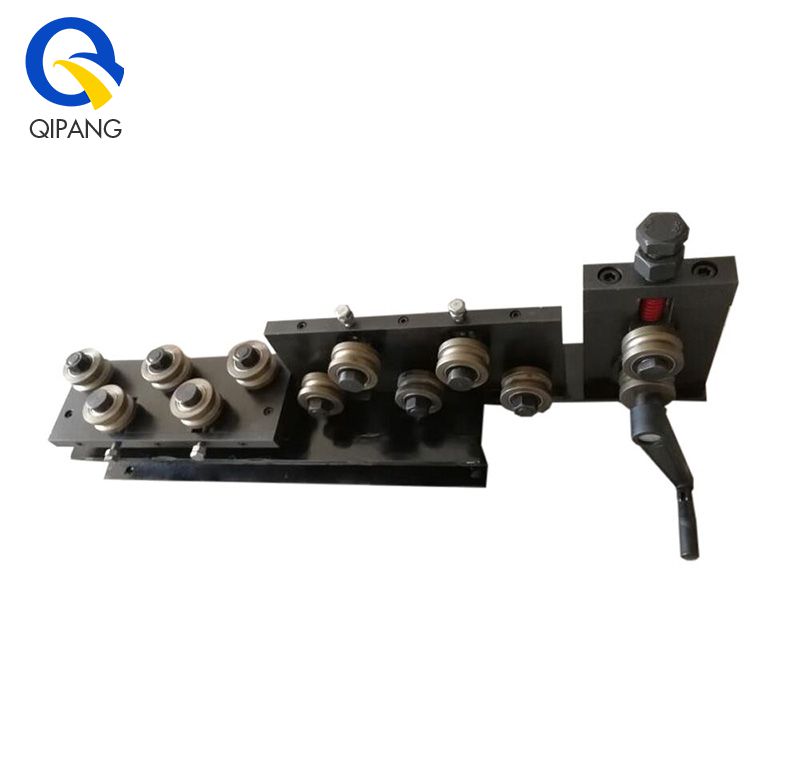

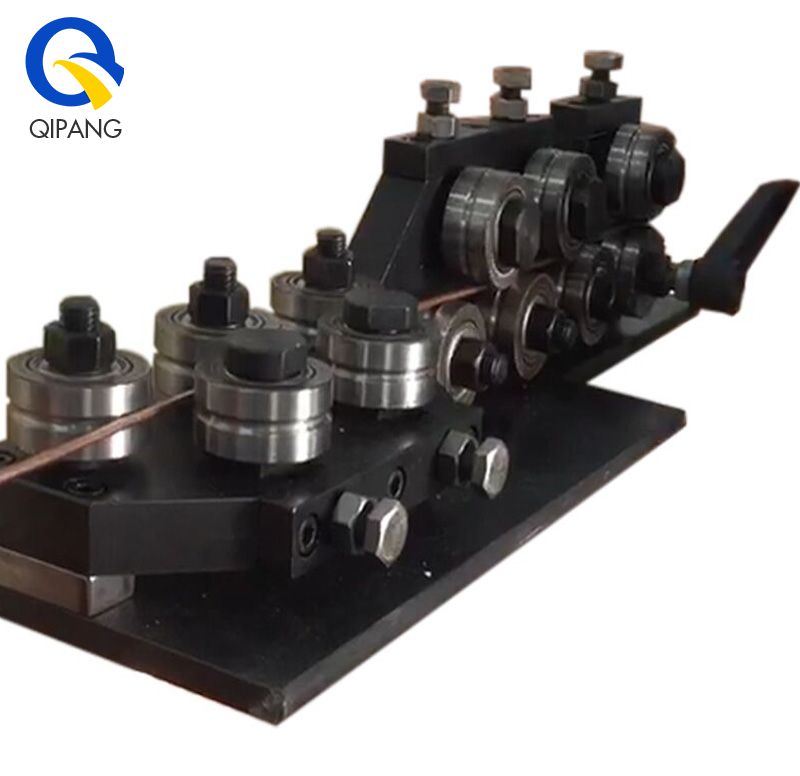

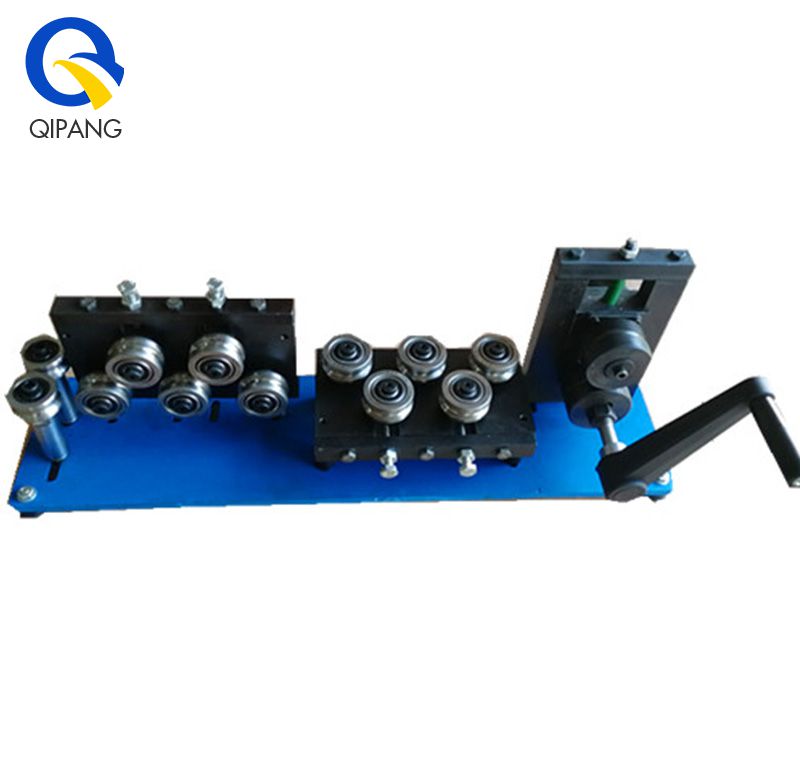

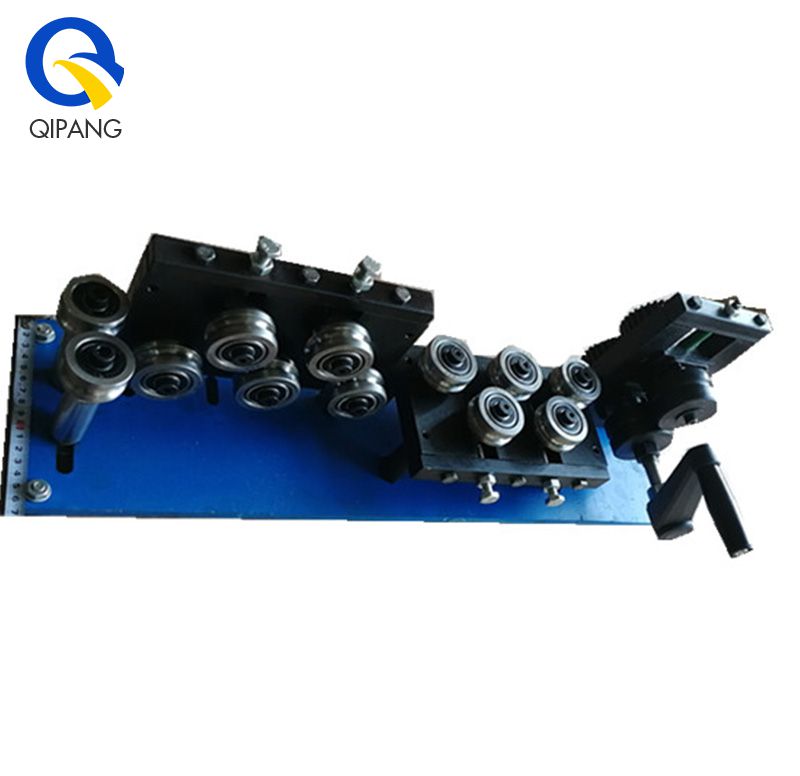

Product display

QIPANG 4-7mm copper wire straightener machine wire straightening pipe hand shrank straightener

QIPANG 4-7mm copper wire straightener machine wire straightening pipe hand shrank straightener

QIPANG 4-7mm copper wire straightener machine wire straightening pipe hand shrank straightener

QIPANG 4-7mm copper wire straightener machine wire straightening pipe hand shrank straightener


QIPANG 4-7mm copper wire straightener machine wire straightening pipe hand shrank straightener

QIPANG 4-7mm  hand shrank copper wire thin line straightener machine

QIPANG 4-7mm  hand shrank copper wire thin line straightener machine
