Pipes Chipless Straightening and Cutting for Copper and Aluminum

Home > Qipang Product > Pipes Chipless Straightening and Cutting for Copper and Aluminum

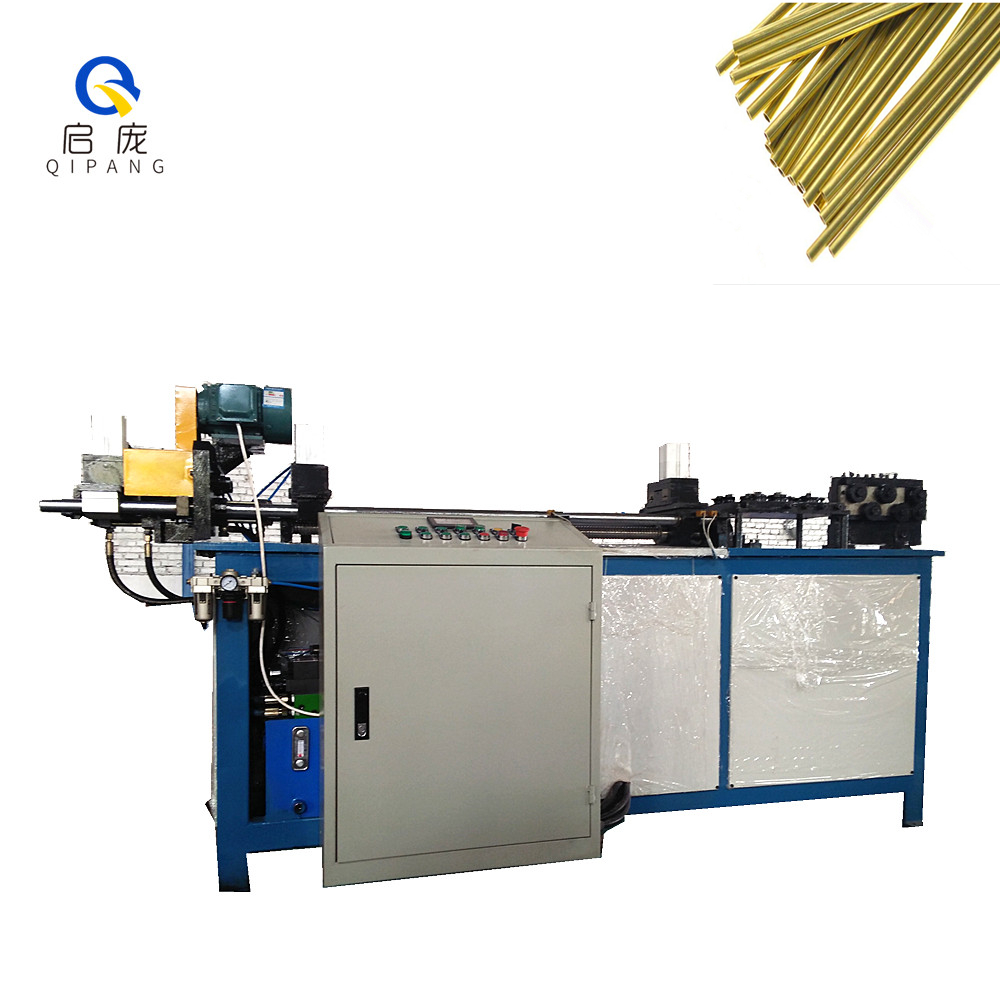

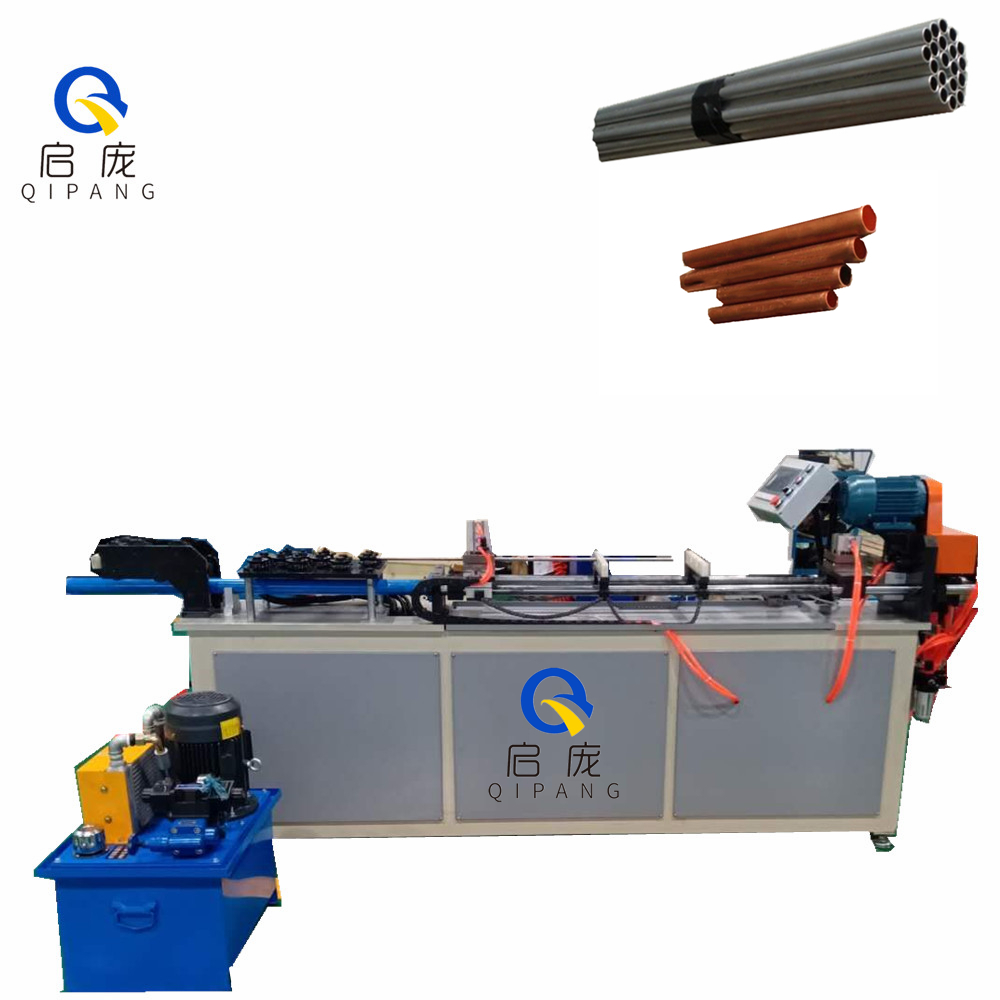

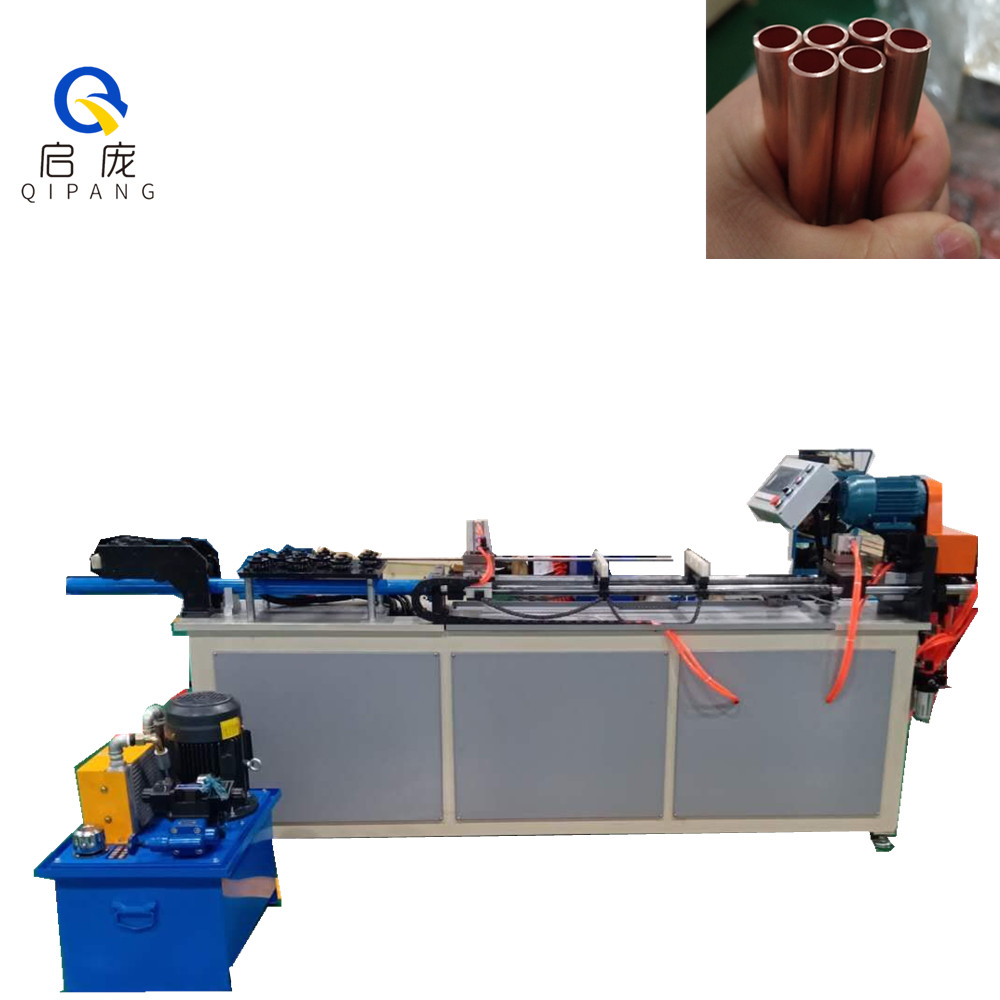

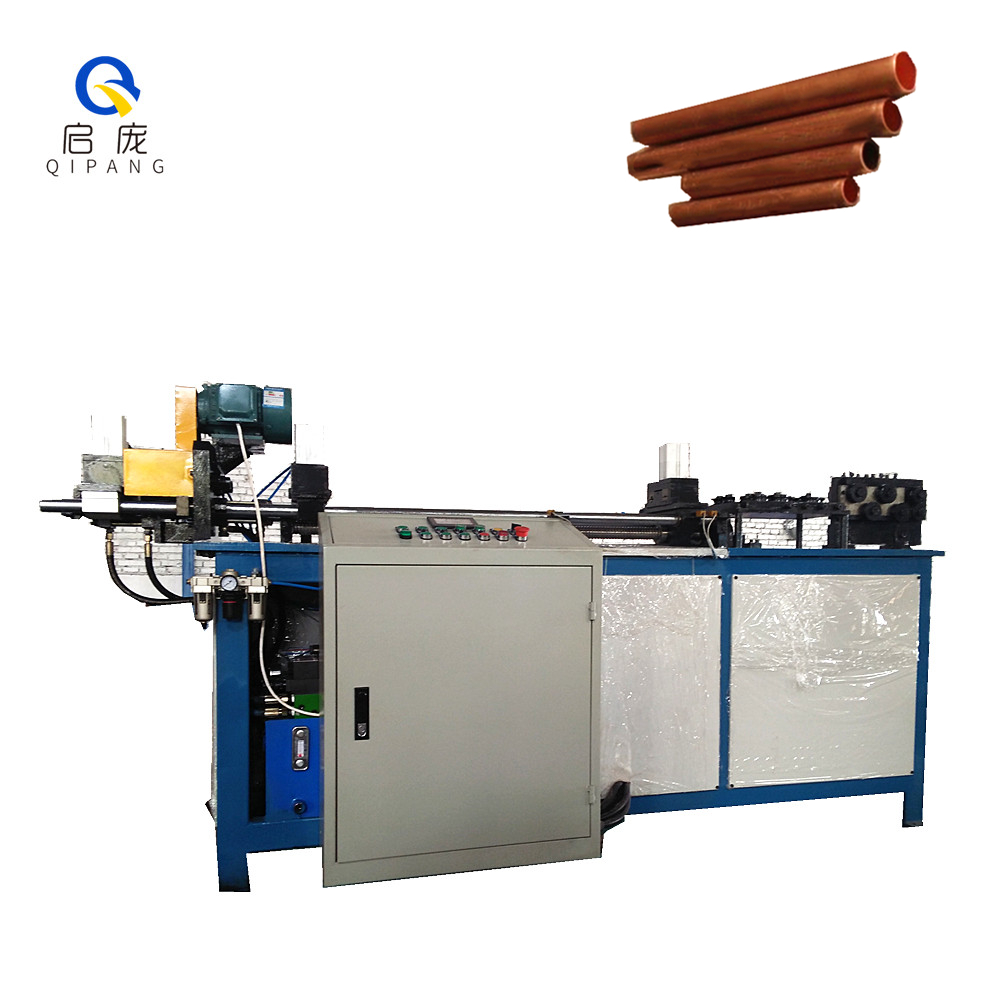

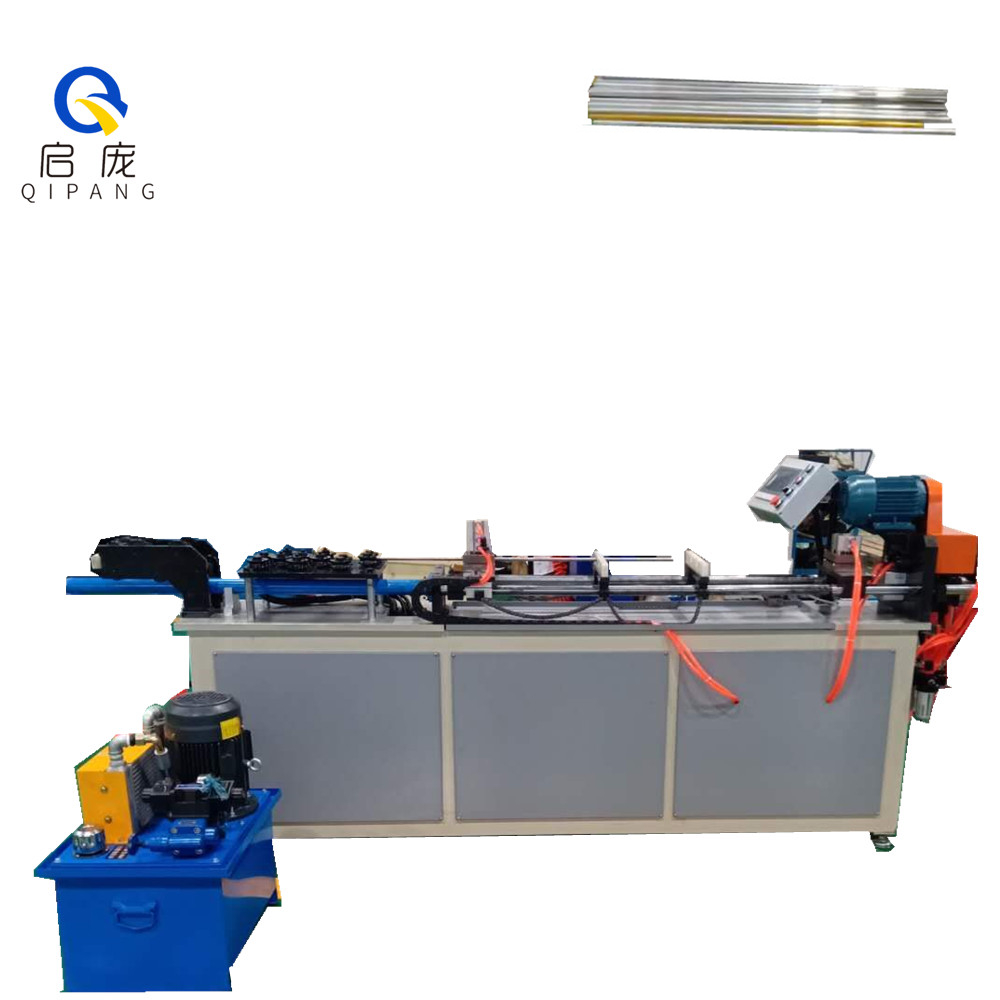

High Precision copper pipe and aluminum tubes straightener copper pipe straightening and cutting Alumina tube tube straightener and cuttingHigh Precision copper pipe and aluminum tubes straightener copper pipe straightening and cutting Alumina tube tube straightener and cuttingHigh Precision copper pipe and aluminum tubes straightener copper pipe straightening and cutting Alumina tube tube straightener and cuttingHigh Precision copper pipe and aluminum tubes straightener copper pipe straightening and cutting Alumina tube tube straightener and cuttingHigh Precision copper pipe and aluminum tubes straightener copper pipe straightening and cutting Alumina tube tube straightener and cutting

High Precision copper pipe and aluminum tubes straightener copper pipe straightening and cutting Alumina tube tube straightener and cutting

1. We have CE&SGS certification ,ISO1990 Quality system certification ,so on...2. Good quality and professional pre - sales, after - sales service 3. 13 years of development, manufacturing and marketing experience, the main customers are: North America (United States, Canada, Mexico), Europe (Italy, Britain, France, Poland, Netherlands), Southeast Asia, etc. 4. Flexible development and customization CEM COM 5. Excellent consulting team covering the world

Share:
  • High Precision copper pipe and aluminum tubes straightener copper pipe straightening and cutting Alumina tube tube straightener and cutting
  • High Precision copper pipe and aluminum tubes straightener copper pipe straightening and cutting Alumina tube tube straightener and cutting
  • High Precision copper pipe and aluminum tubes straightener copper pipe straightening and cutting Alumina tube tube straightener and cutting
  • High Precision copper pipe and aluminum tubes straightener copper pipe straightening and cutting Alumina tube tube straightener and cutting
  • High Precision copper pipe and aluminum tubes straightener copper pipe straightening and cutting Alumina tube tube straightener and cutting
  • Description

High Precision copper pipe and aluminum tubes straightener copper pipe straightening and cutting Alumina tube tube straightener and cutting

Advantages:3/8 tube straightening chipless cutting machine has high cutting efficiency and convenient operation. Equipped with servo motor, PLC touch screen, chipless cutting, can cut TWO copper pipes of different diameter, same length at one time. Structure: Copper tube uncoiler *1+feeding rack *1 (optional) + receiving rack *1 (optional) The main technical parameters: Copper tube specifications: soft copper tube (normal φ5--φ19.05) Cutting length: one feeding stroke 1000mm (longer than 1000mm multiple feeding) Cutting method: chipless cutting Feeding method: servo motor + ball screw feeding

Alumina tube 1/2 5/8 tube straightening chipless cutting machine pipe straightener coil copper tube straightening cutting machine


Pipe Straightening Cutting Machine Model Meaning:
QP-2 means the copper decoiler can straight and cut off two copper pipes of  different diameter, same length at one time.QP-4 means the copper decoiler can straight and cut off four copper pipes of  different diameter, same length at one time
QP-2
Straightening material
coiled copper tube
Suitable diameter
5-19.05 mm
Feeding speed
30m/min
Cut off speed
5-6times/min
Straightening accuracy
3mm≤1000mm
Possiblity of shorten port
usually ≤10%
Cutting length
1000mm
(longer than 1000mm multiple feeding)
Cutting quantity
cut off 2 different lenfth tubes at one times
Voltage
380V 50HZ
Motor
servo
Motor power
≤3KW
Control method
PLC


QP-4
Straightening material
coiled copper tube
Suitable diameter
5-19.05
Cut off speed
5-6times/min
Cutting length accuracy
0.5mm≤1000mm
Straightening accuracy
3mm≤1000mm
Possiblity of shorten port
usually ≤10%
Cutting length
1000mm
(longer than 1000mm multiple feeding)
Cutting quantity
cut off 4 different lenfth tubes at one times
Voltage
380V 50HZ
Motor
servo
Motor power
≤3KW
Control method
PLC



Inch convert mm
1inch
25.4mm
1/4inch
6.35mm
1/2inch
12.7mm
3/8inch
9.52mm
5/8inch
15.88mm
3/4inch
19.05mm
Purchase confirmation.jpg


Pls tell me the following questions, so we can send you accurate quotation with additional discount:1,What's the diameter and material of your  copper tube ?  Minimum and maximum range. 2,Does the raw material come in rolls, in bundles? 3,What's the wall thickness of copper? 4.Can you tell me the Cutting length error  requirements

5. If you are interested in our products, please contact me as soon as possible, I will offer you some discounts, you can contact me freely Tell/Wechat:+8618916332415,Whatsapp:+8613472630866

Show details.jpg


Alumina tube 1/2 5/8 tube straightening chipless cutting machine pipe straightener coil copper tube straightening cutting machine

The finished product to show.jpg




Who are we.jpg

Shanghai Qi Pang Industrial Co., Ltd.Founded in 2008, with 13 years of experience, is a research and development, production, sales of nail making machine,as one of the large machinery manufacturing enterprises.

We believe that quality is survival, so we only provide you the best products.

High quality products, in line with international standards, well received by domestic and foreign customers.

All staff in our company are professionally trained, so we can recommend the most suitable equipment for you.

Every machine has to pass strict inspection before it goes out.

Any questions about the machine will be answered within 24 hours.

Welcome to be our new customer!

Shanghai Qi Pang Industrial Co., LTD. specializes in producing rivet nail making machine, wire forming machine, buckle handle  bending machine with advanced production technology, modern production mode, complete varieties and diverse styles. We can provide you with not only the nice quality products but also the great services.


Who trust us.jpg



Package and transport



包装图 拼图.jpg

Other products





FAQ
Q1: Are you a factory or trading company?

We are a factory . We can promise you a short lead time and best price if you purchase our machine. We also have our own trading department.

Q2: How does the factory ensure products quality?

With Nearly 16 years experience in manufacturing winding machine, we have our own technology develop department and testing department.

Quality is the first priority. We have strict purchasing system to ensure the quality of spare parts. We have experienced workers to assemble and test machine.

Q3:How about your after-sale service?

We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.

Q4: What are your payment terms?

100%TT or prepaid 50% , balance 50% before shipping.

Q5: How can I get my order? How can I know you sent the goods?

We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods, we will give you the tracking number or other relative files for checking.

Q6 : Will you send the installed machine or machine parts?

We will install the machine and test the machine before delivery. And the machine can be used directly after receiving the
machine.

Q7: Will you provide operation guidance for us?

We will send the instruction book with the machine and send you a video about how to operate the machine.

Q8 : How long is the warranty period?

12 months warranty, we will send you free spare parts by air within one week if there are any quality problems
