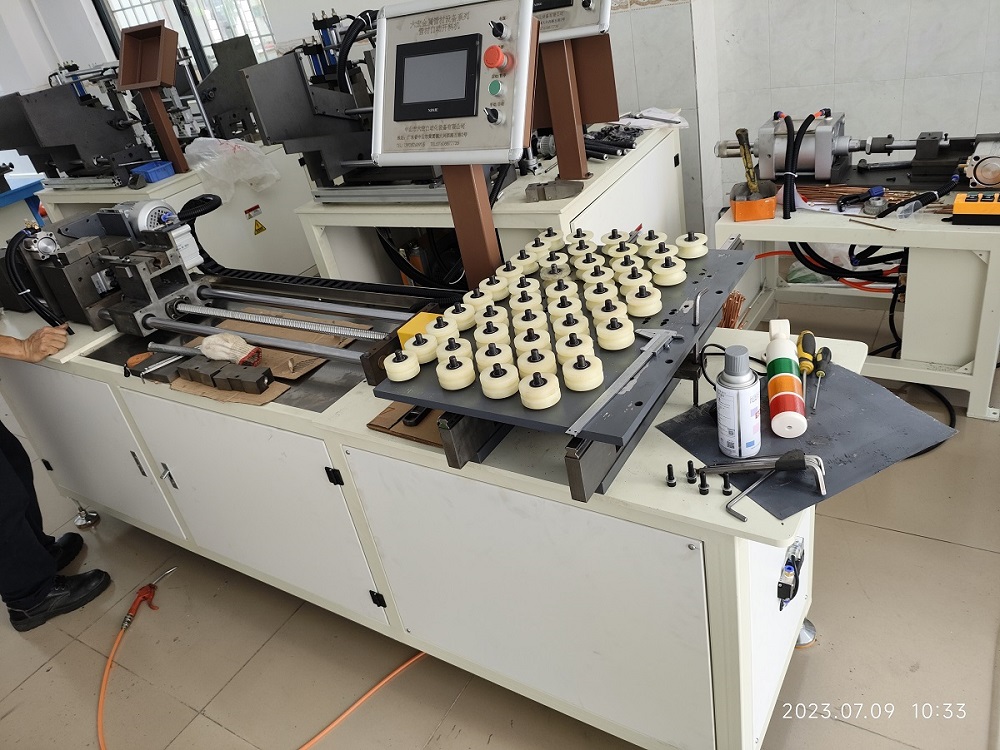

Servo Screw Feeding Steel Pipe CNC Straightener and Cutter Machine with Multiple Straighteners
Shanghai Qipang mainly focuses on the production of : CNC Straightener and Cutter Machine, electric straighteners, manual straighteners, and traction feeding systems.
Steel Pipe CNC Straightener and Cutter Machines are suitable for various pipe materials, such as copper pipes, aluminum pipes, stainless steel pipes, Bondi pipes, and iron pipes, and are applicable to both round and square pipes.
Steel Pipe CNC Straightener and Cutter Machines are suitable for pipe outer diameters of : 4 mm, 6.35 mm, 8 mm, 9.52 mm, 12.7 mm, 15.88 mm（ 5/32",1/4",5/16",3/8",1/2",5/8").
Equipment Name and Process: Single-Outlet CNC Straightener and Cutter Machine for Soft Stainless Steel Pipes
The machine uses a quick-change straightening mechanism and mechanical positioning for cutting pipes of different diameters;This Steel Pipe CNC Straightener and Cutter Machine employs servo and ball screw feeding to ensure accurate material length; Pipe cutting methods: saw blade cutting, resulting in no shrinkage or deformation at the end face; or ring cutter cutting, resulting in no burrs at the end face. High speed and efficiency.
The complete set Steel Pipe CNC Straightener and Cutter Machine includes:
1. Pay-off rack (multiple styles available)--Optional
2. CNC straightening and cutting machine (main unit)
3. Pneumatic tilting receiving rack (standard 1.2-meter length selectable)--Optional
Note: Unless otherwise stated, the quote usually only includes the main unit.
Technical Parameter | |||||
| Device model | Servo screw feeding + 5 sets of straightening device | ||||
| Applicable pipes | copper,aluminum,stainless steel,bondi pipes | ||||
| Pipe processing range | Φ4-Φ16 (Φ5/32''- 5/8'') | ||||
| Minimum cutting length | 30mm(Saw blade cutting); or 60mm（Chipless ring cutting） | ||||
| Cutting accuracy | ±0.5mm | ||||
| Wall thickness range | 0.5-1.2MM | ||||
| Cut off motor power | 1.1KW (Saw blade cutting); or 0.55kw（Chipless ring cutting） | ||||
| Feed servo motor power | 1.5KW | ||||
| Operating system | touch screen + PLC control | ||||
| Operation mode | Automatic | ||||
| Straightening part | 7+5 wheels (horizontal + vertical) nylon wheels/steel wheels optional | ||||
| Input voltage | 380 volts, three-phase, 50 Hz | ||||
| Air source pressure | 0.4-0.6Mpa | ||||

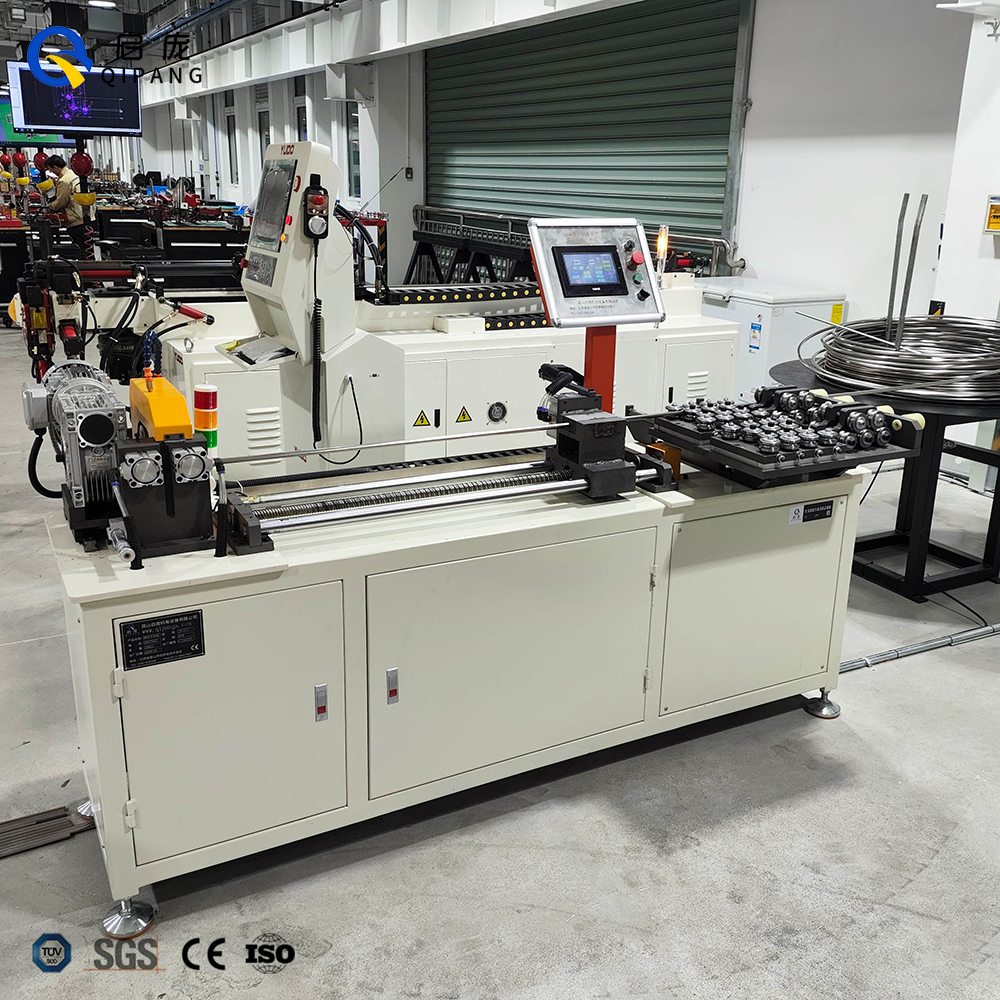

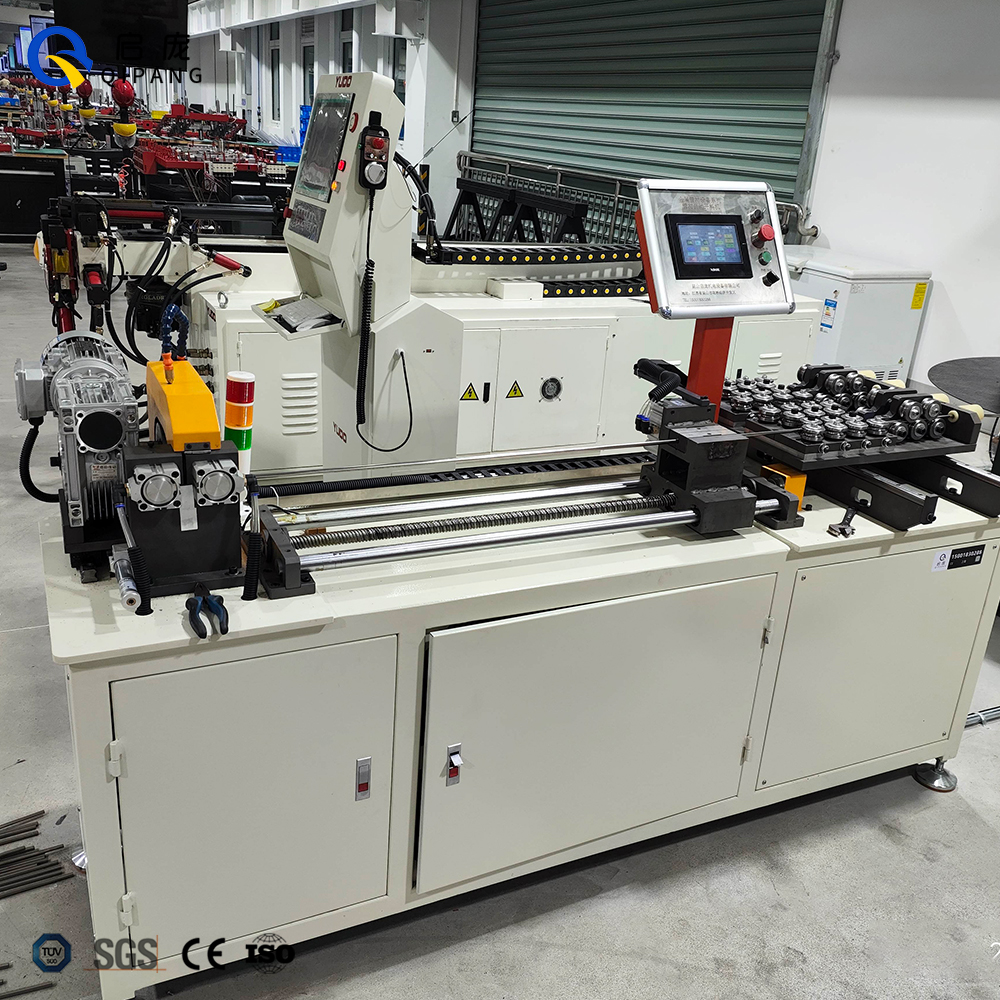

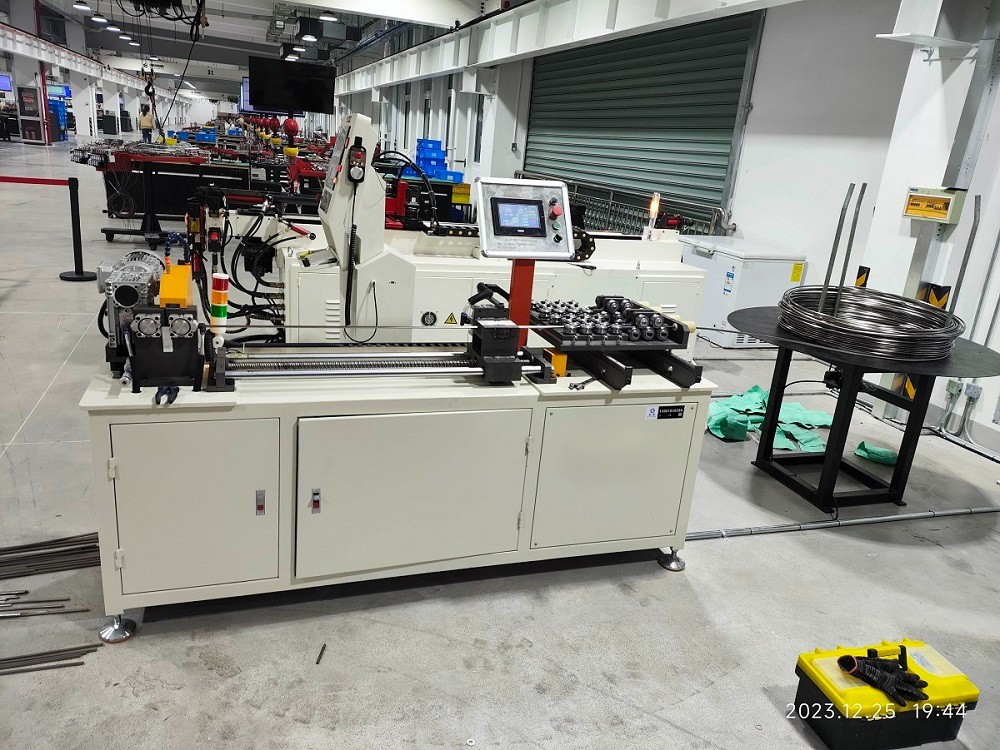

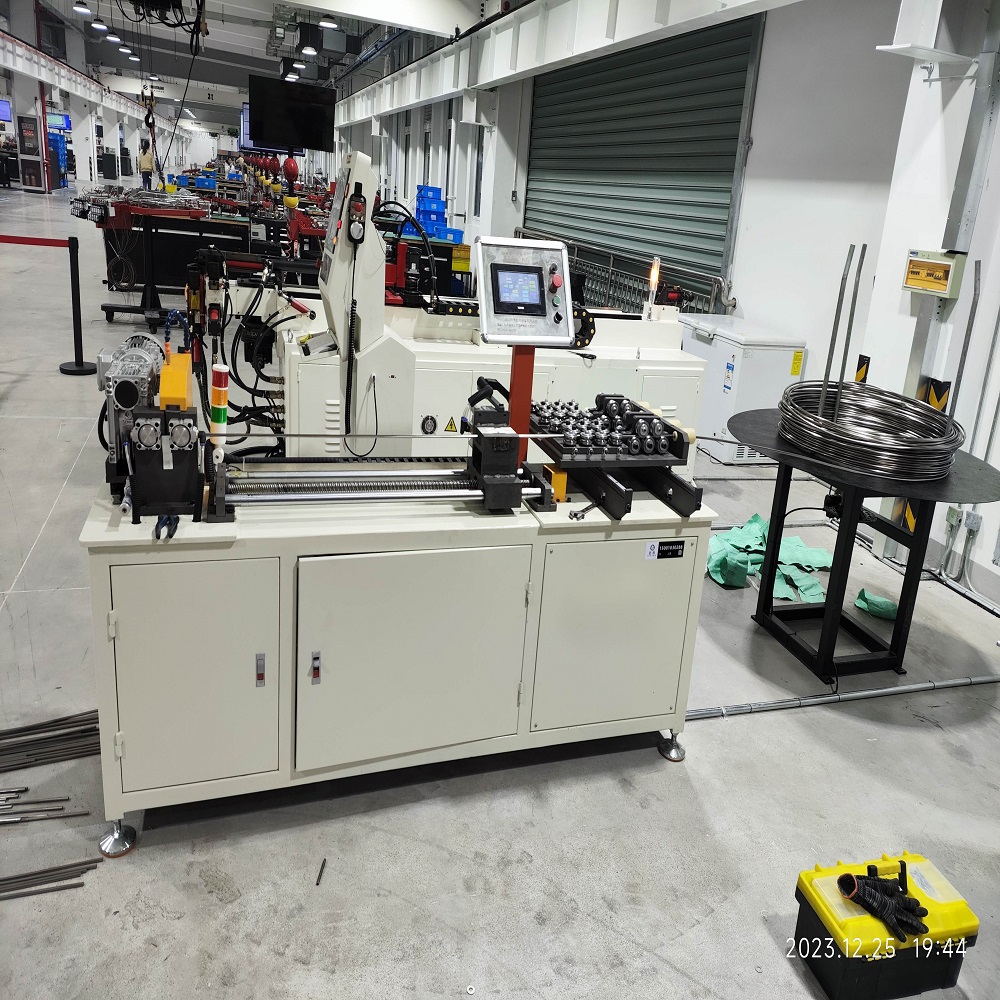

Steel Pipe CNC Straightener and Cutter Machine Images：

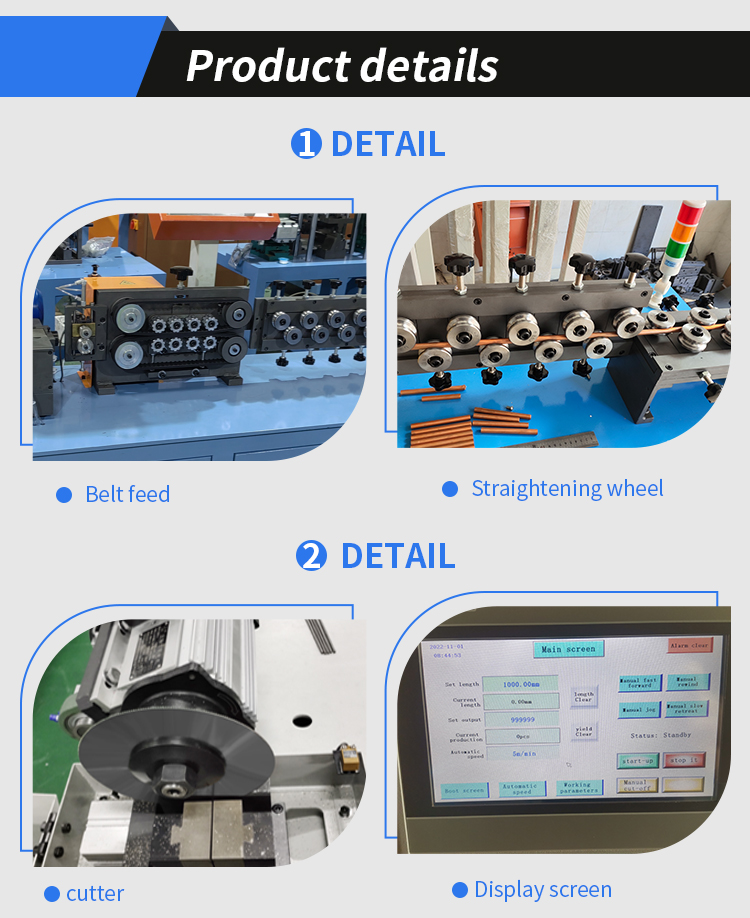

Steel Pipe CNC Straightener and Cutter Machine Detail Images:

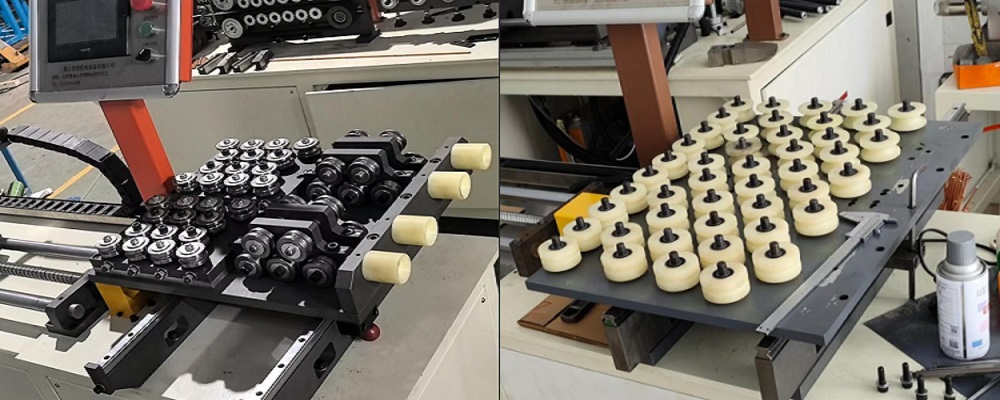

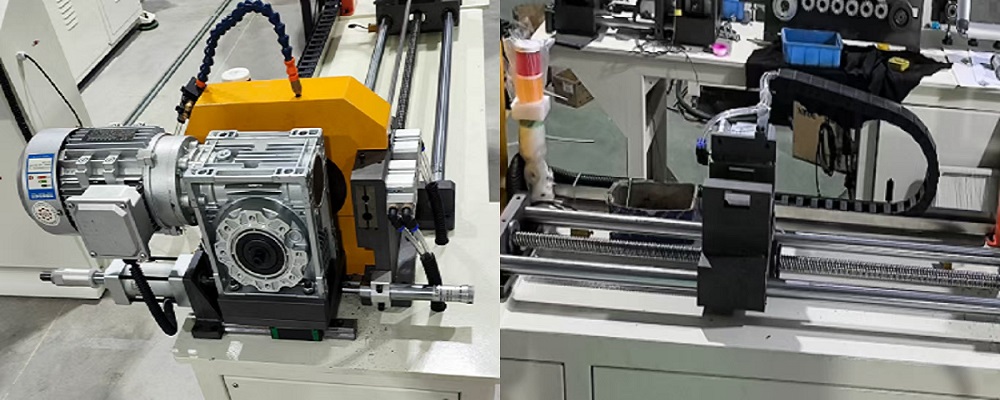

① Cutter + Clamping Die ② Lead Screw Feeder

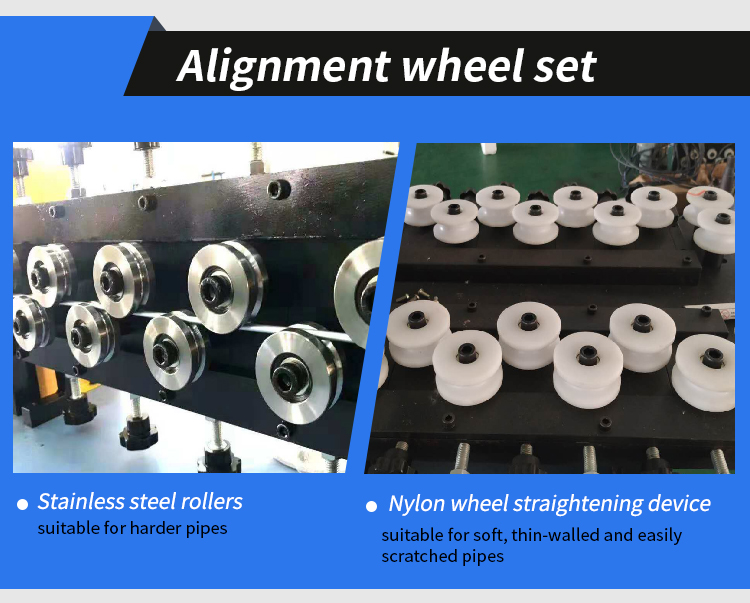

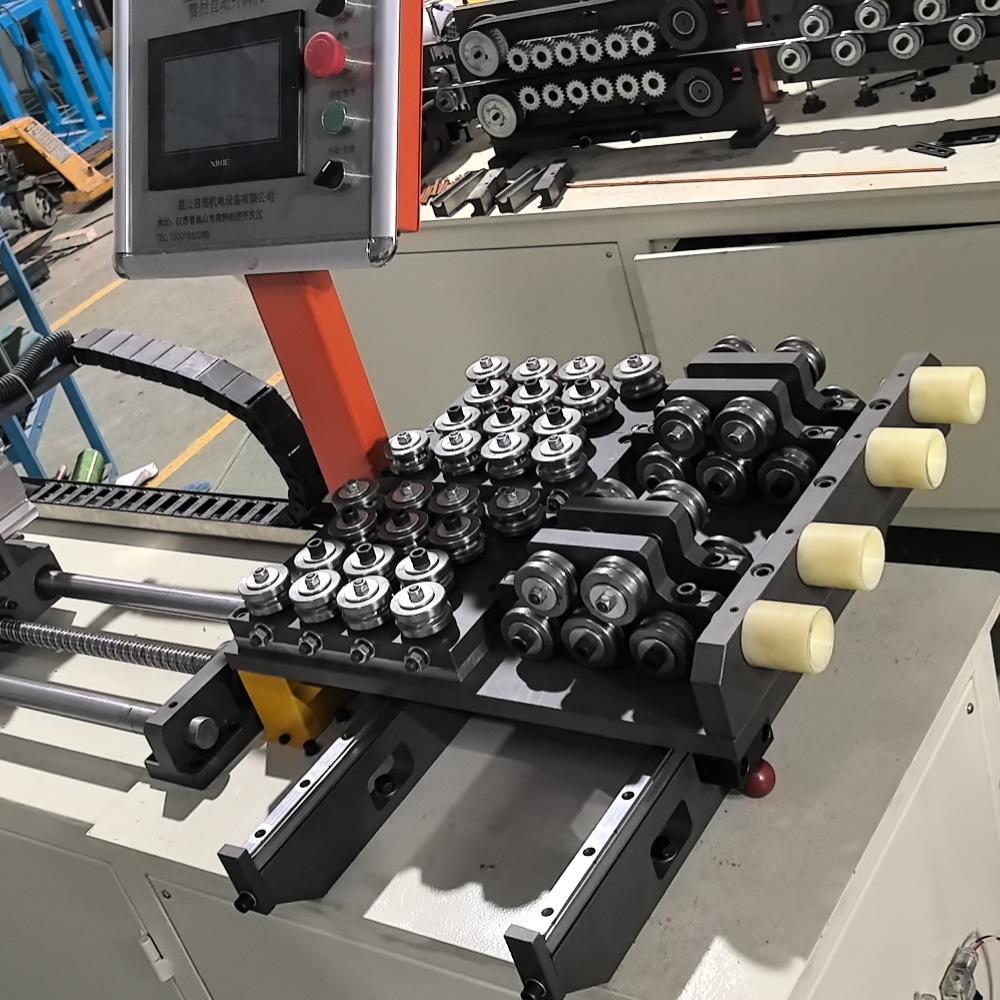

③ Multiple Stainless Steel Straighteners ④ Nylon Straighteners

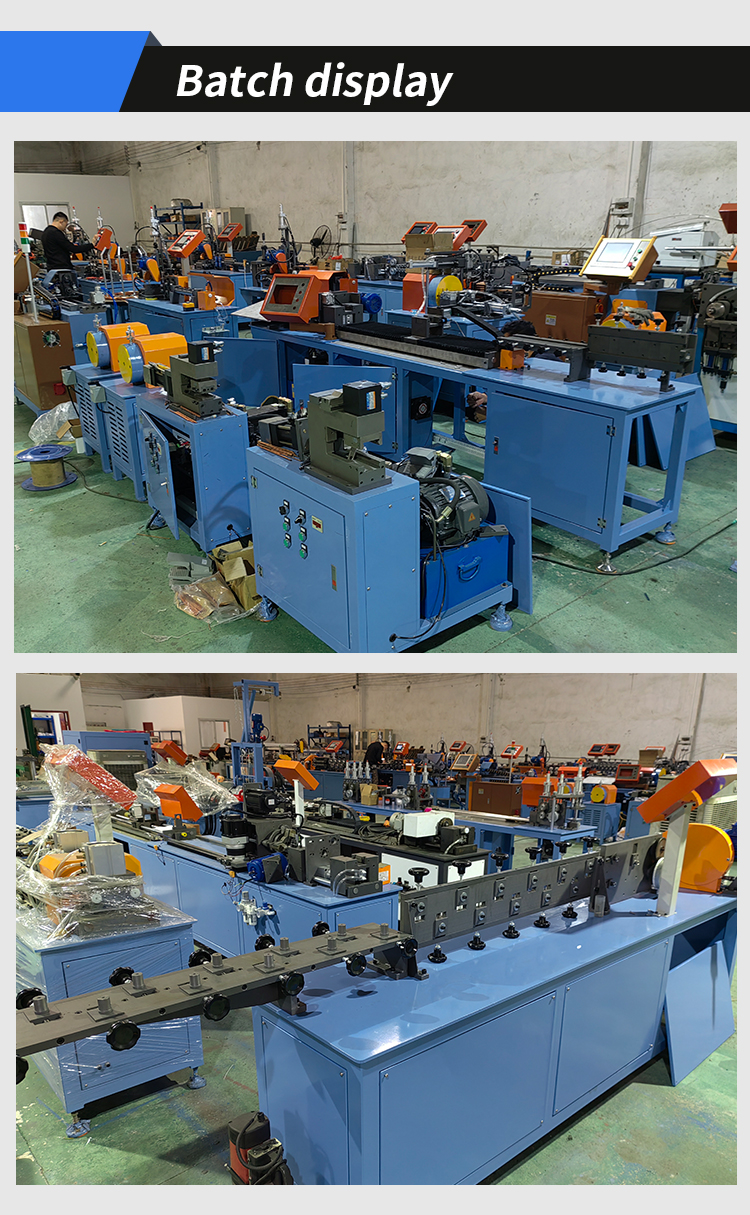

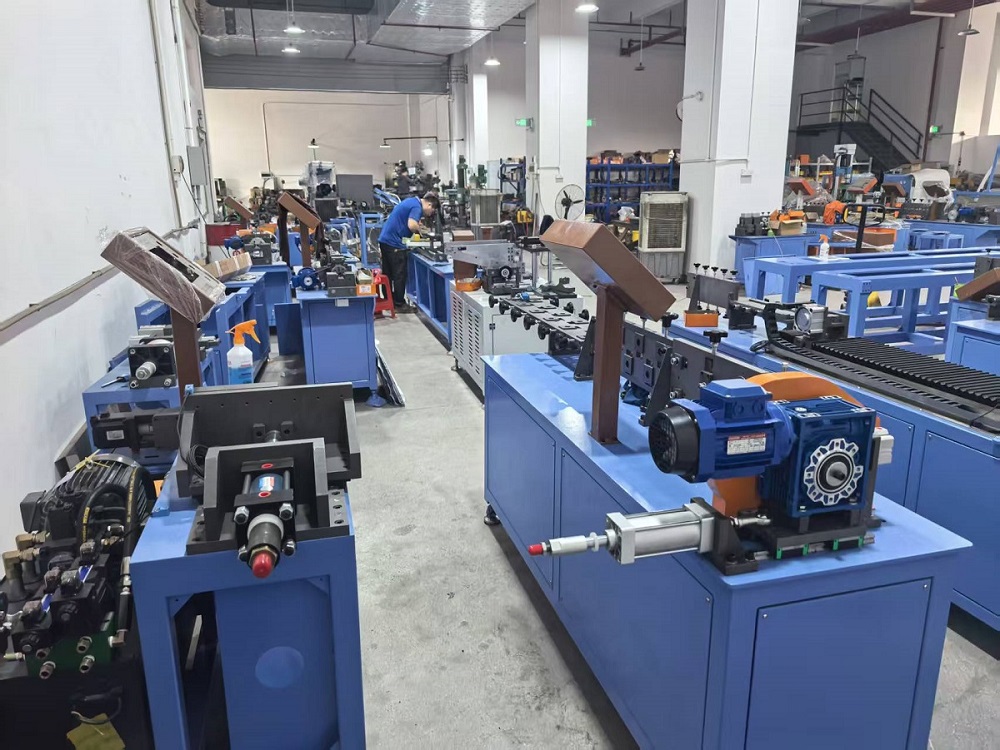

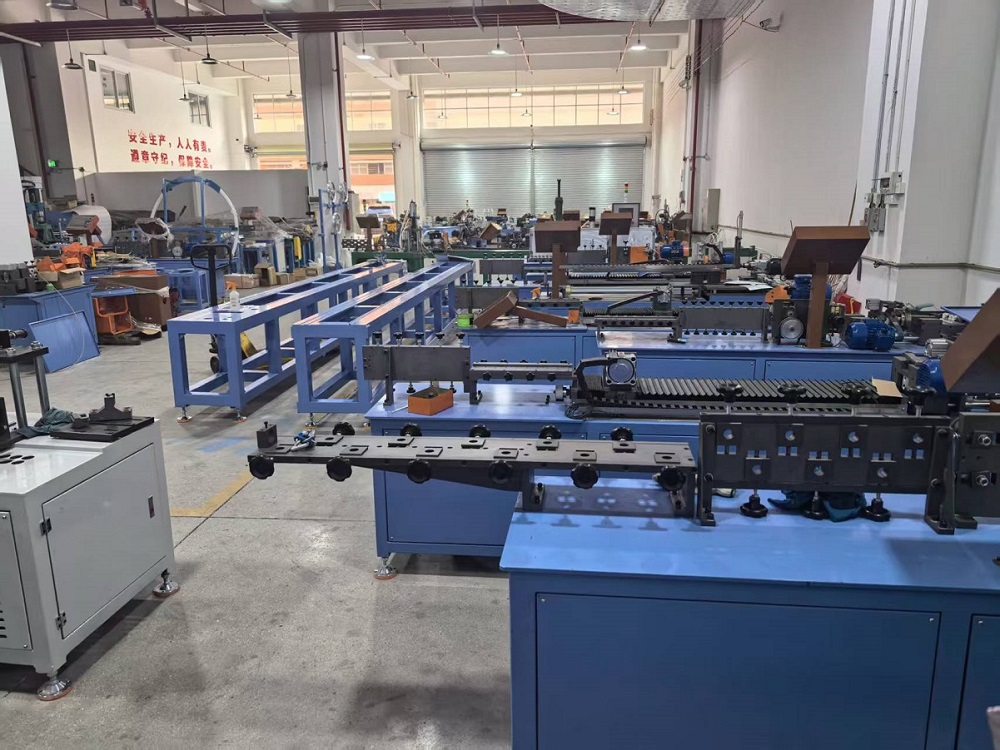

Factory workshop photos：
