Shanghai Qipang mainly focuses on the production of : CNC straightening and cutting machines, electric straighteners, manual straighteners, and traction feeding systems.

Rotary Straightener Cutter Machine are suitable for various pipe materials, such as copper pipes, aluminum pipes, stainless steel pipes, Bondi pipes, and iron pipes, and are applicable to both round and square pipes.

Automatic Straightening and Cutting Machines are suitable for pipe outer diameters of : Φ1.8-Φ4mm (Φ1/16" -5/32").

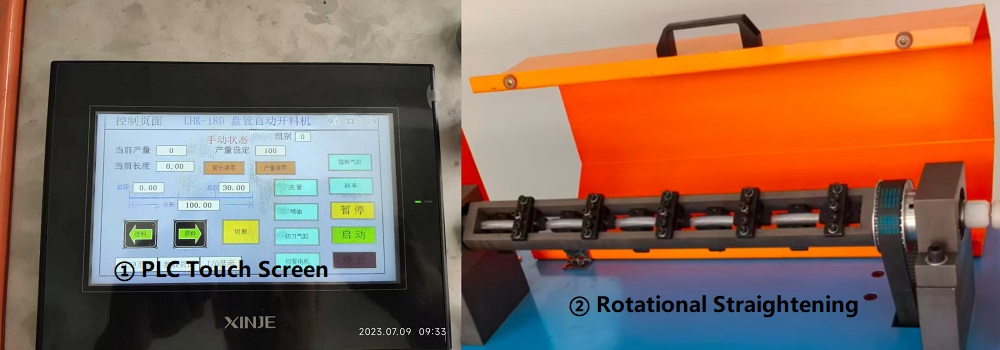

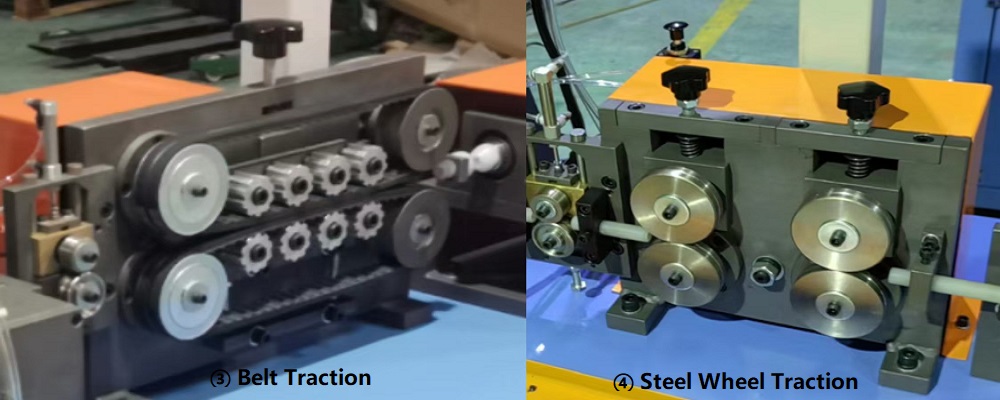

The Rotary Straightener Cutter Machine adopts a pneumatic PLC servo control system; the material is manually fed to the feeding rack, passing through the 360-degree rotation straightening device, and the servo rotates four feeding wheels to automatically cut the material when it reaches the required length; the straightening method is use 4-6 straightening blocks to perform 360-degree rotation straightening; the feeding power group uses a servo motor to drive the rotating wheels to feed the material, and a rotary encoder counts the length.

The complete set Rotary Straightener Cutter Machine includes:

1. Pay-off rack (multiple styles available)--Optional

2. CNC straightening and cutting machine (main unit)

3. Pneumatic tilting receiving rack (standard 1.2-meter length selectable)--Optional
Note: Unless otherwise stated, the quote usually only includes the main unit.

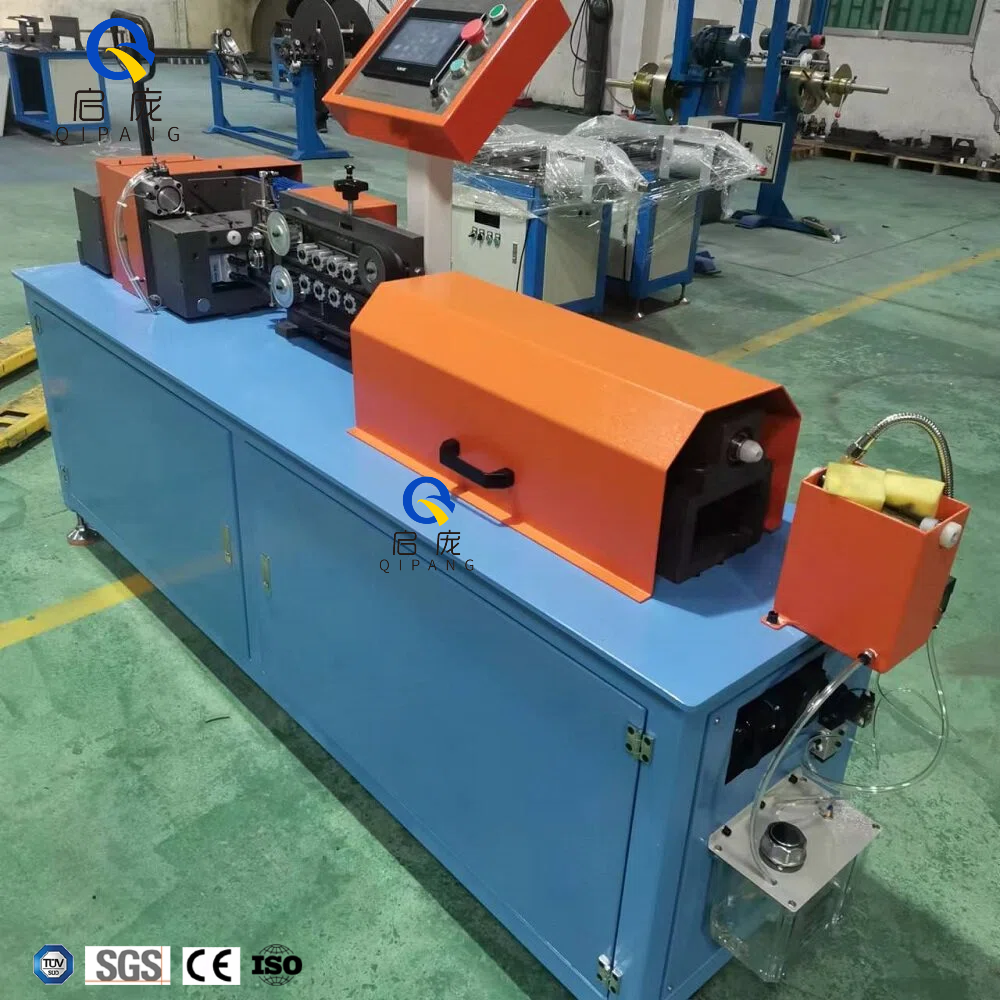

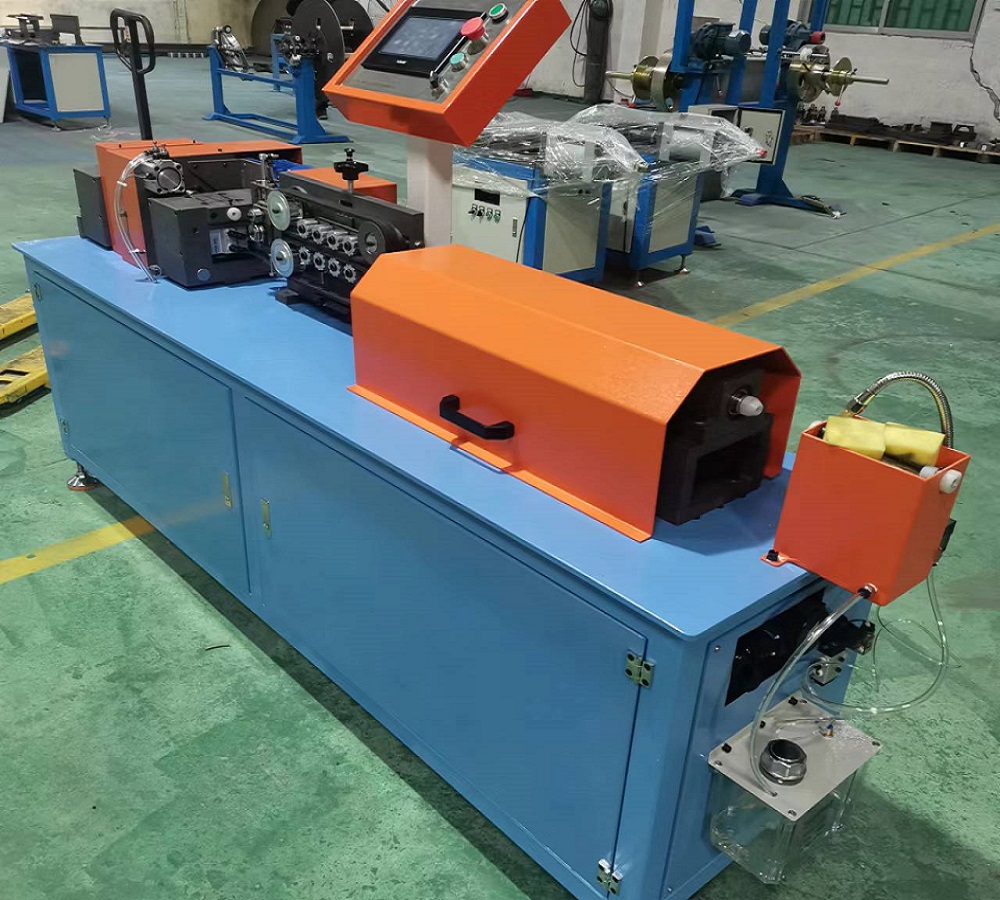

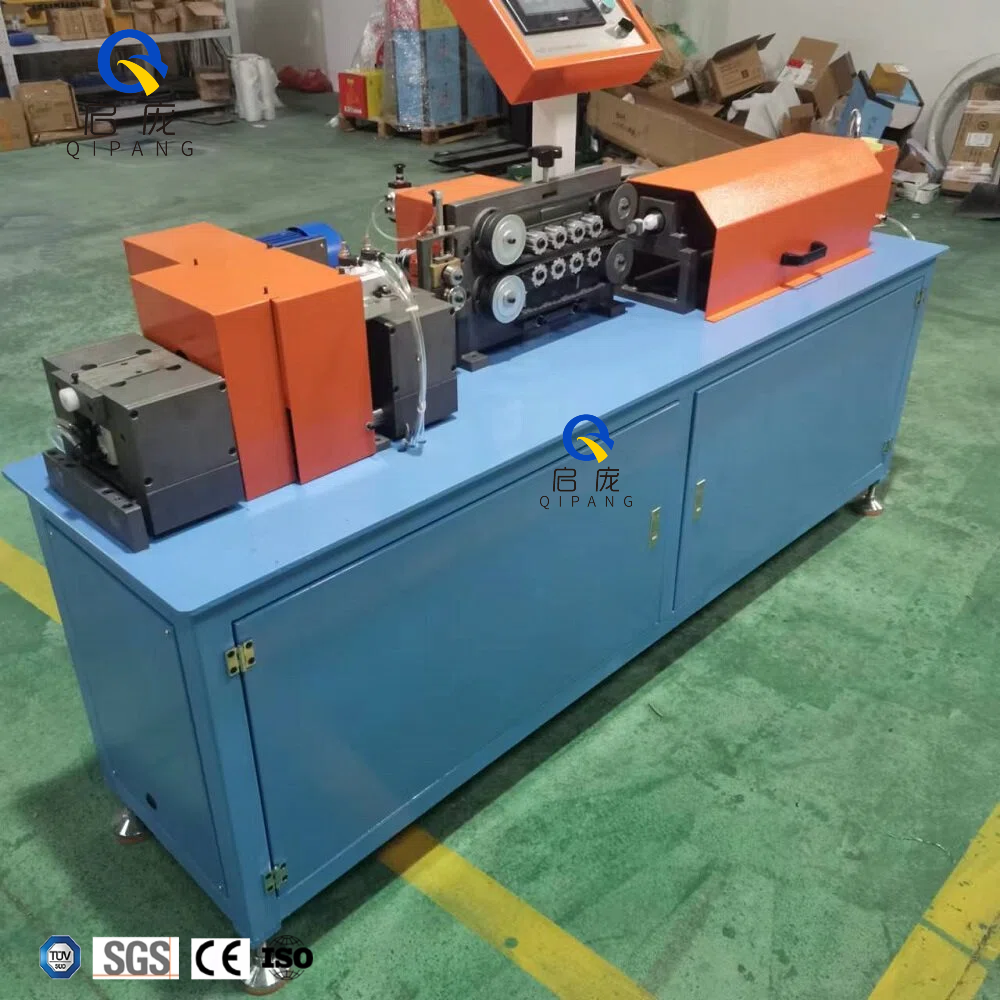

           Rotary Straightener Cutter Machine Images：

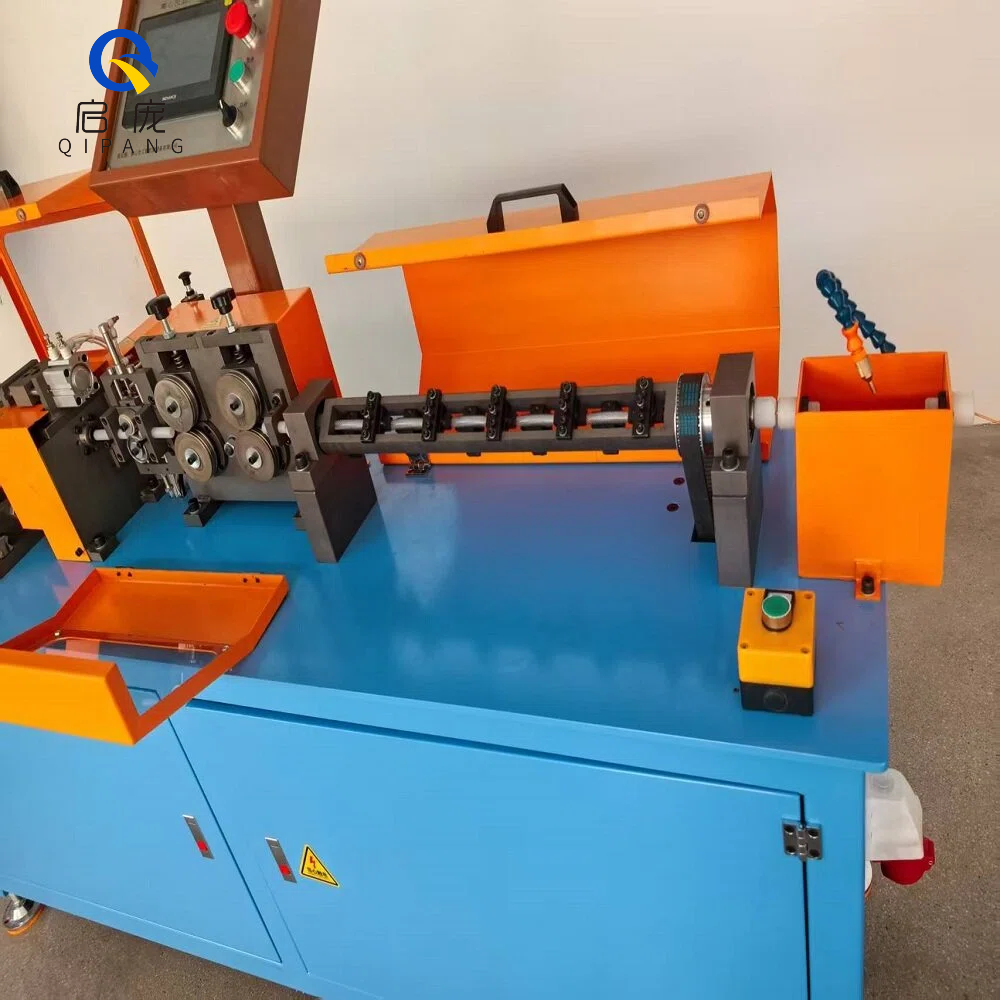

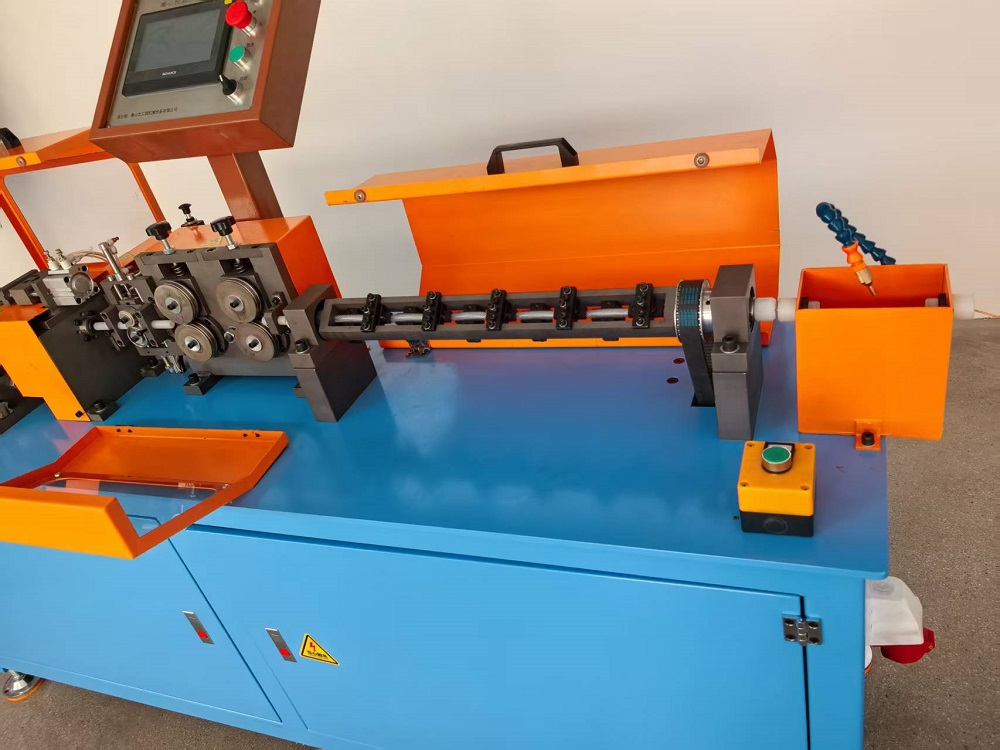

          Rotary Straightener Cutter Machine Detail Images:

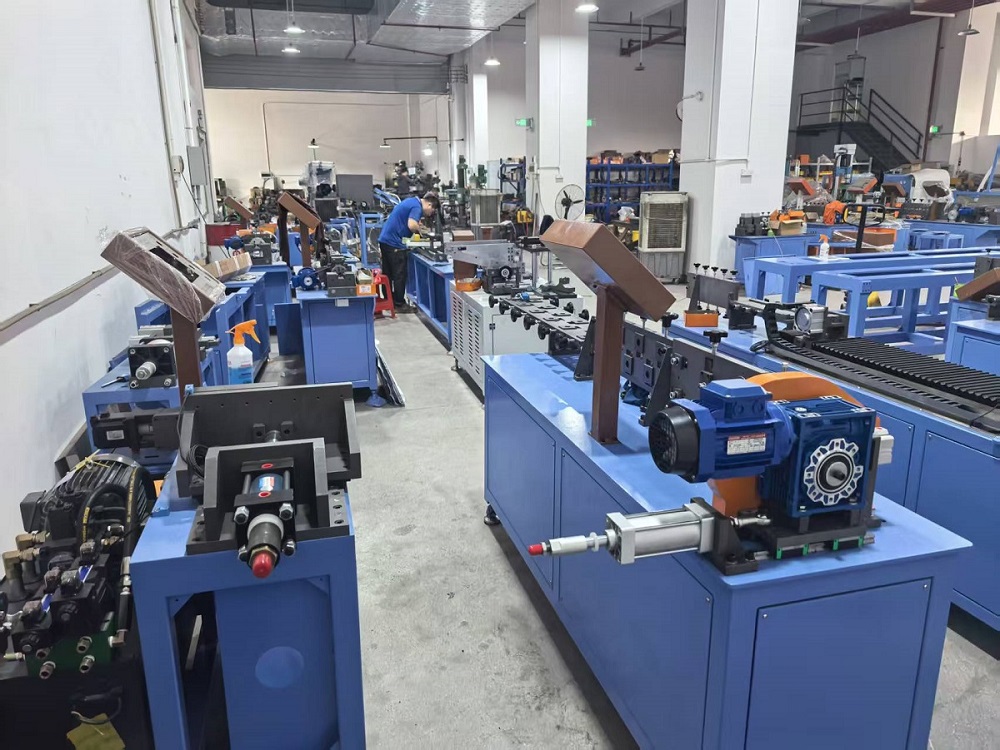

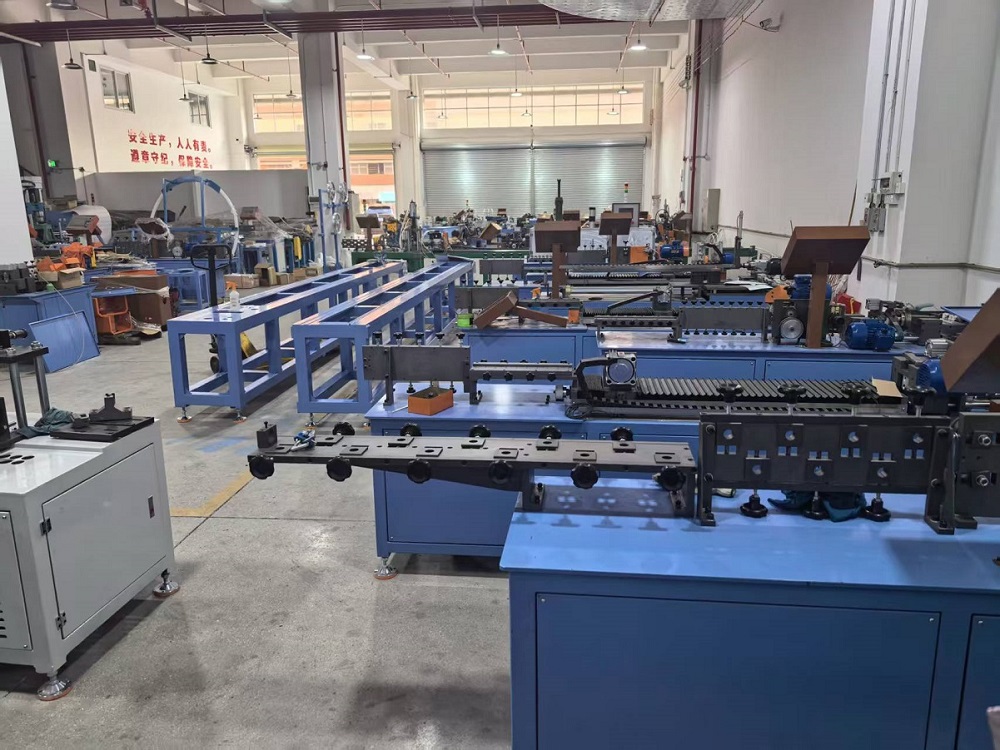

          Factory workshop photos：
