QIPANG Two Spoke Control Hand Wheel With Foldaway Revolving Handle
Descriptions:

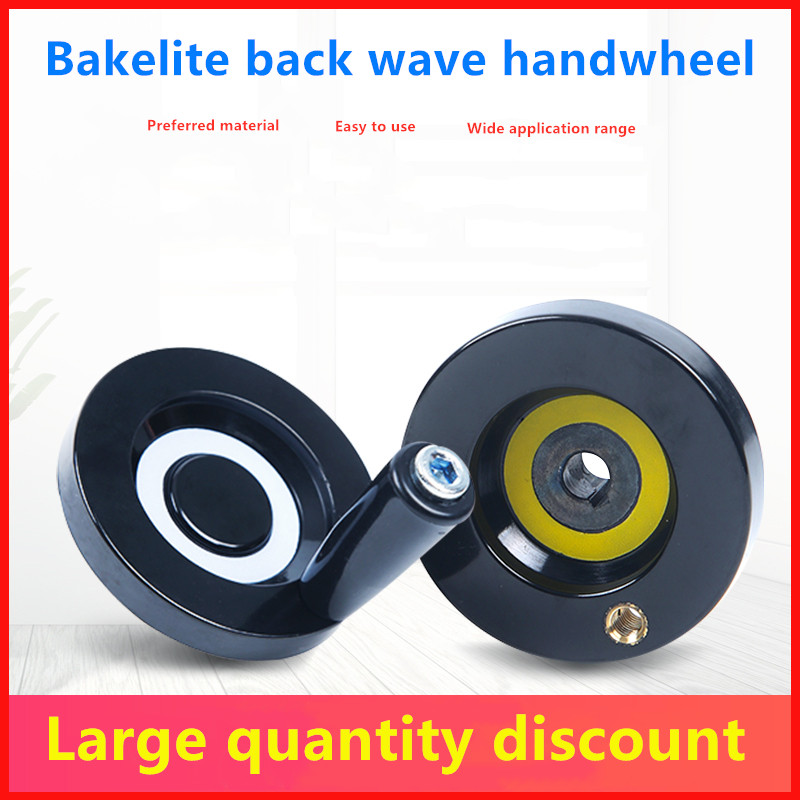

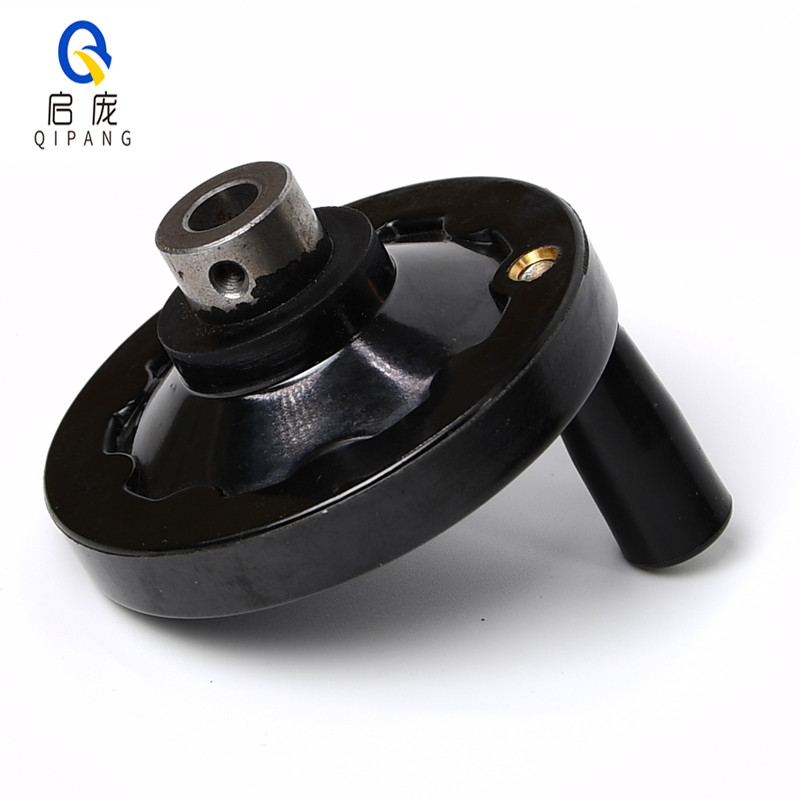

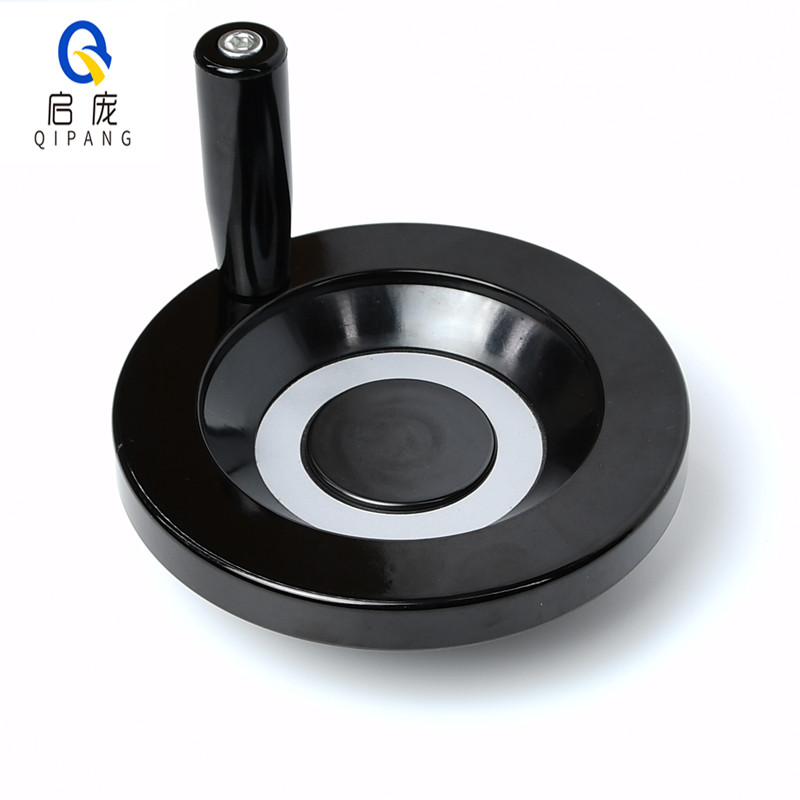

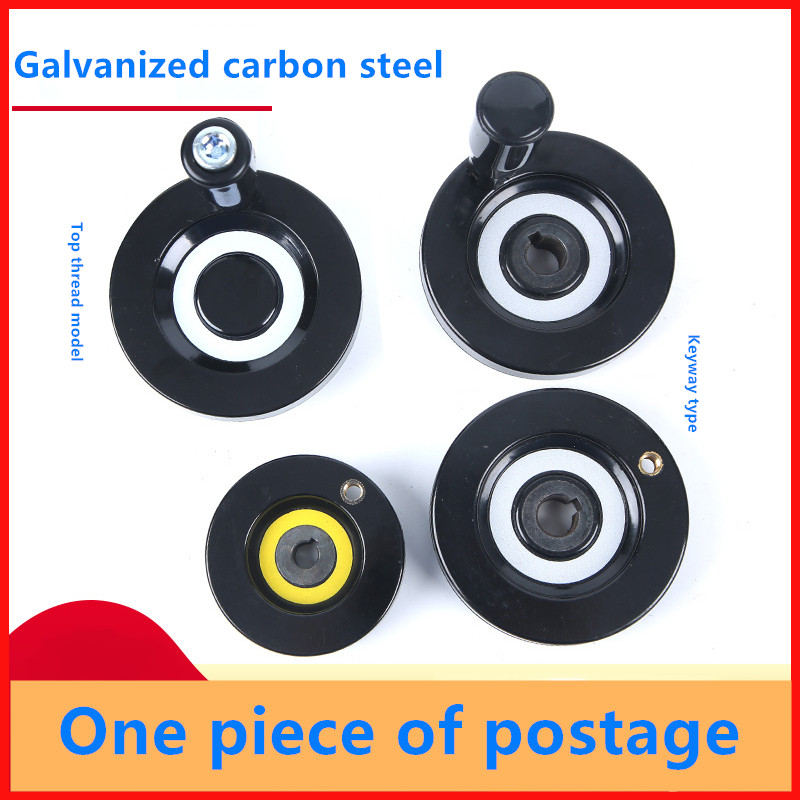

This hand wheel is rear ripple hand wheel designed, with removable revolving handle, hand wheel has screw hole for easy handle assembly. Widely used in industrial machine tools, such as milling machine, lathes, grinders etc.
Features:
Lathe milling hand wheel is made of high quality , strong insulation and durable in use.

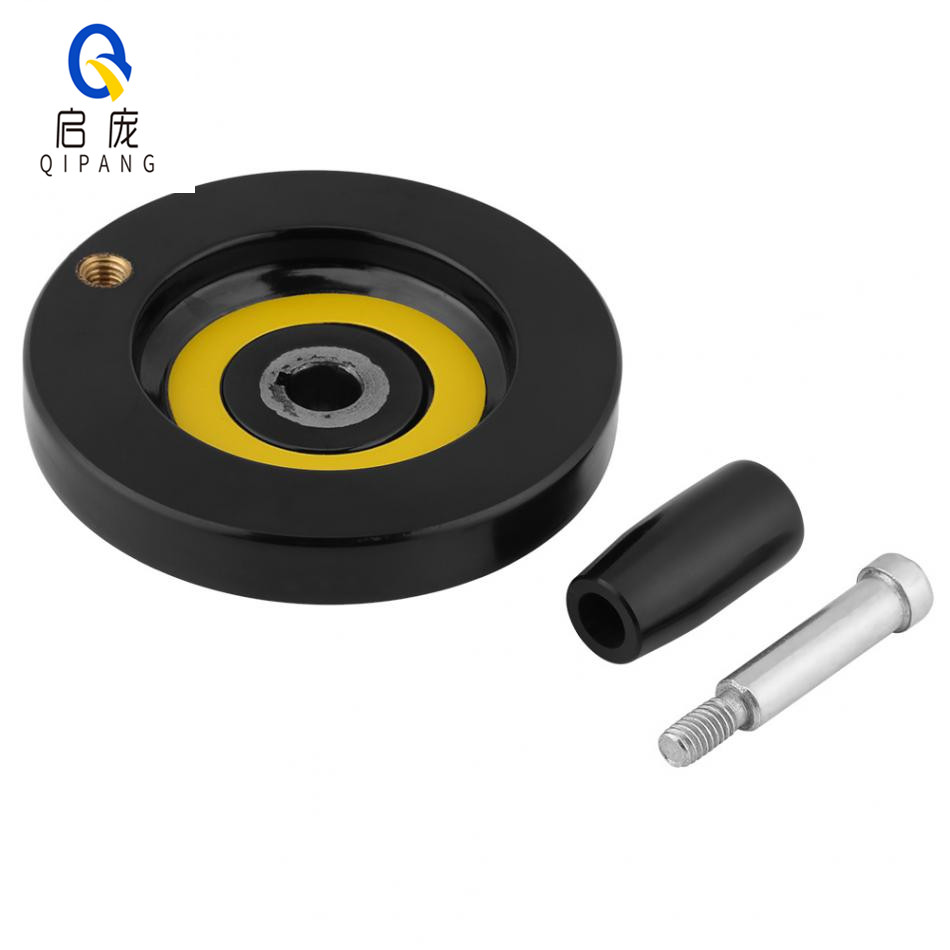

Hand wheel come with removable revolving handle, hand wheel has screw hole for easy handle assembly.
Widely used in industrial machine tools, such as milling machine, lathes, grinders etc.
Novel model, easy to move, with strong carrying capacity.
This hand wheel is rear ripple hand wheel designed, convenient to replace the broken one of the lathe.

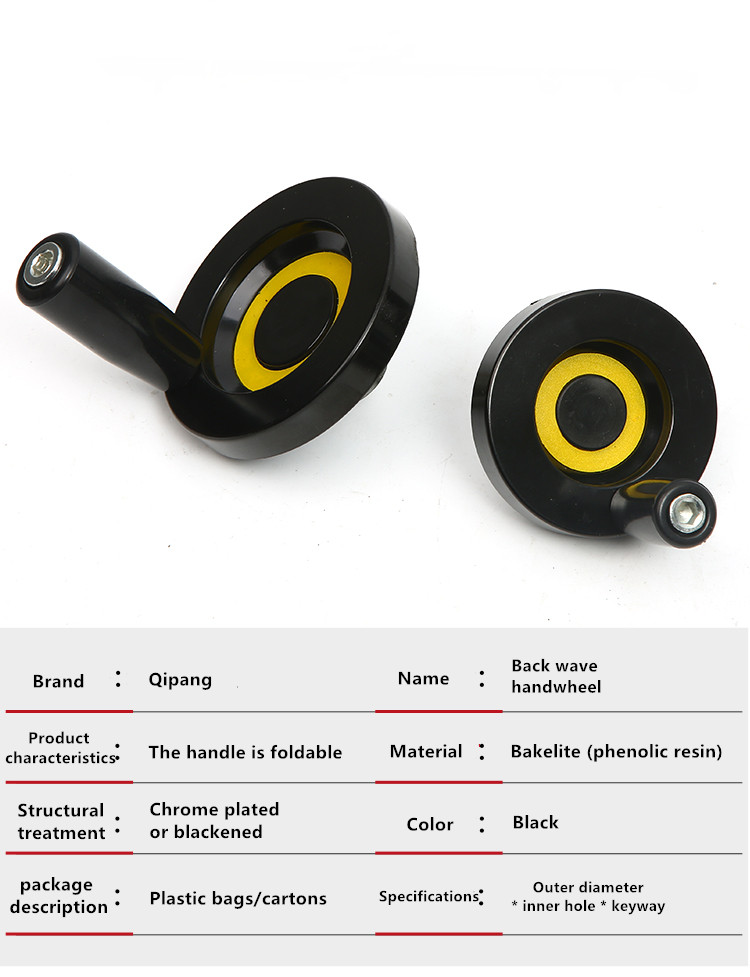

Specifications:
Type: hand wheel
Material:
Handle height: 50-80 (mm)/1.97 -3.15inch
Hand wheel height: 25-50 (mm)/0.98 - 1.97inch

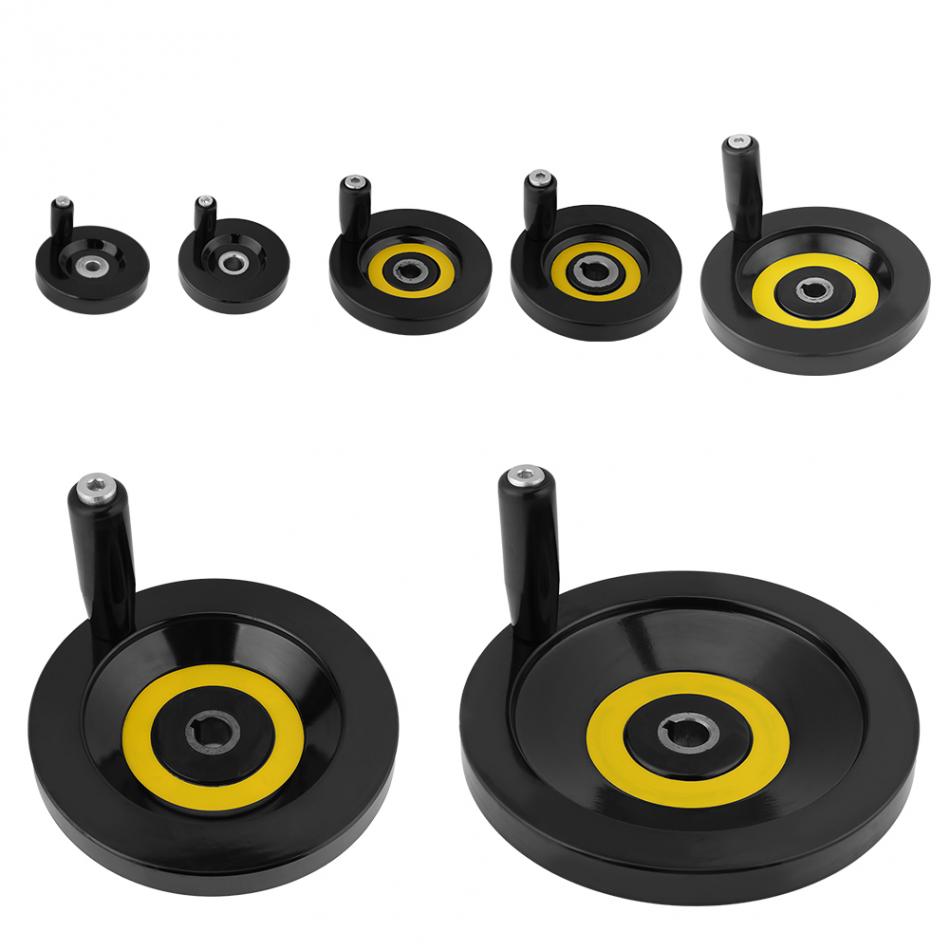

Type(Optional):8 x 63mm/0.31 x 2.48inch, 10 x63mm/0.39 x 2.48inch, 10x 80mm/0.39 x 3.15inch, 12 x 80mm/0.47 x 3.15inch, 12 x 125mm/0.47 x 4.92inch, 16 x 160mm/0.63 x 6.30, 18 x 200mm/0.71 x 7.87inch
Weight:93g,100g,108g,121g, 332g, 499g,,851g
