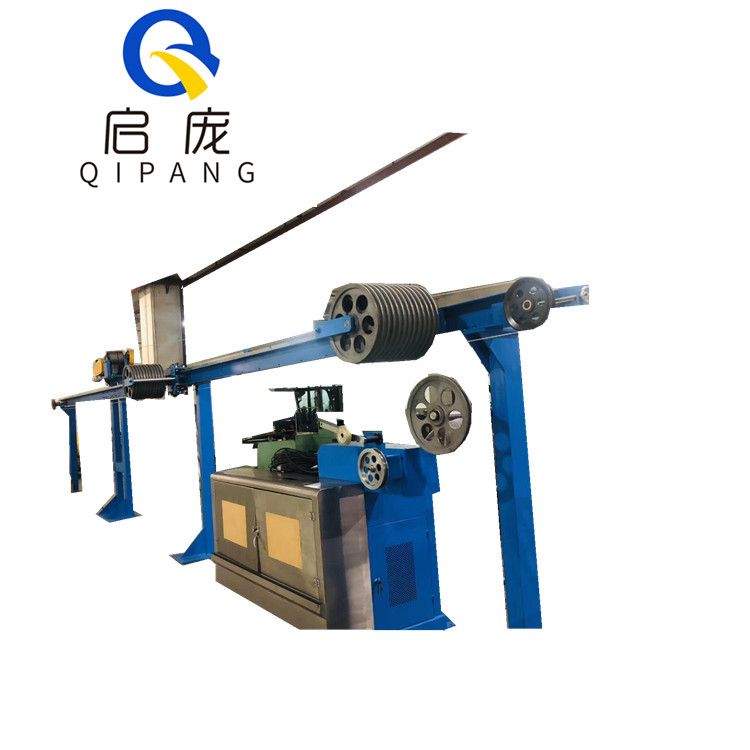

QIPANG horizontal type cable accumulator used for wire and cable

QIPANG horizontal type cable accumulator used for wire and cable


Product description :

   Qipang manufactures both vertical and horizontal accumulators with accumulation up to 300 meters (1000 feet) or more. The accumulators are typically multiple sheave designs and can be produced for low-tension or high-tension accumulation depending on the application.

   On some horizontal accumulators, swing arms are included that swing out to support any sagging cables. Tension is applied using a torque motor and belt system that is attached to the moving carriage. The tension can be varied depending on the cable requirements and weight and the tension can also be programmed into the line to automatically adjust based on the carriage position. For some applications, a belt wrap capstan is used to feed the accumulator and an additional belt wrap capstan is used to pull cable off the accumulator. This ensures that a low cable tension can be achieved on the take-up by isolating the tension on the accumulator.



Share:
  • Description

QIPANG horizontal type cable accumulator used for wire and cable


Product parameter :

   1) type: horizontal 12 m;

   2) applicable line diameter: Max 12.0mm;

   3) tension form: 2HP motor with 10kg magnetic powder clutch;Tension range: ≤350N;

   4) tension range: ≤350N;

   5) transmission: multi-core steel cable;

   6) length of storage line: 200m;

   7) regulating wheel: diameter 300mm, the material is alloy aluminum, the number of wheels is 9 +10;

   8) anti-collision: compression spring;

   9) double detection device: linear detection of contactless displacement sensor;

 10) safety device: limit switches are set at the front and rear ends to synchronize the emergency stop control of disconnection;

 11) control box: the control box is located at the incoming steering wheel of the cable rack. Control: dc-24v power supply, reversible control of the motor and on-off             tension adjustment VR, tension control Battery indicator, power indicator;

 12) overall size :(length) 12000* (width) 800* (height) 2550;

 13) weight: 800kg.


Application field:

    1. Suitable for all kinds of take-up machine.

 2. Suitable for all models of basket down coiler.

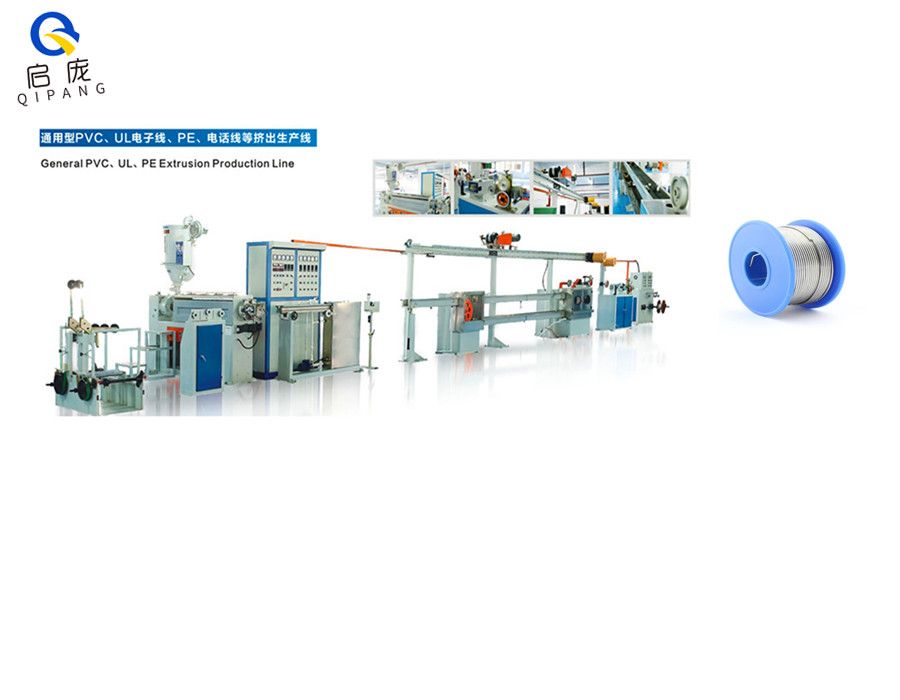

      3. Suitable for PVC/ PE Extrusion line.

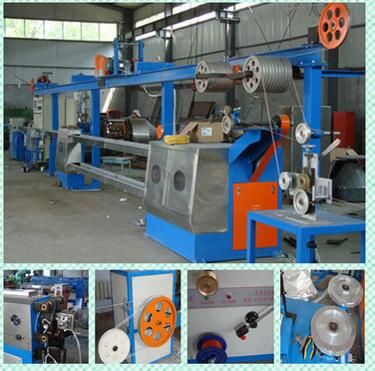

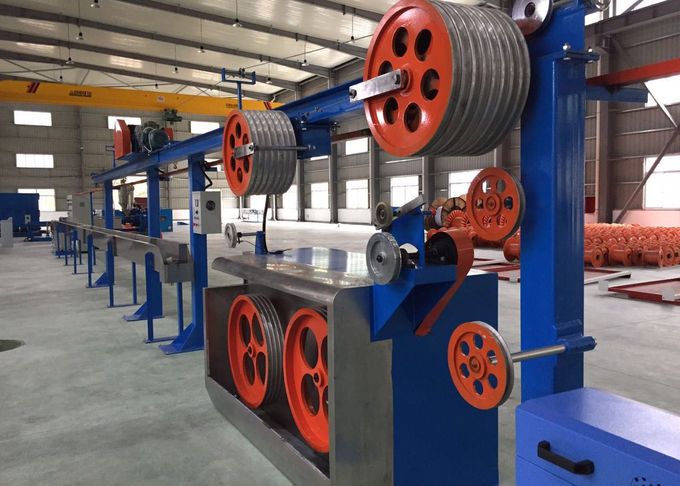

Product picture :
