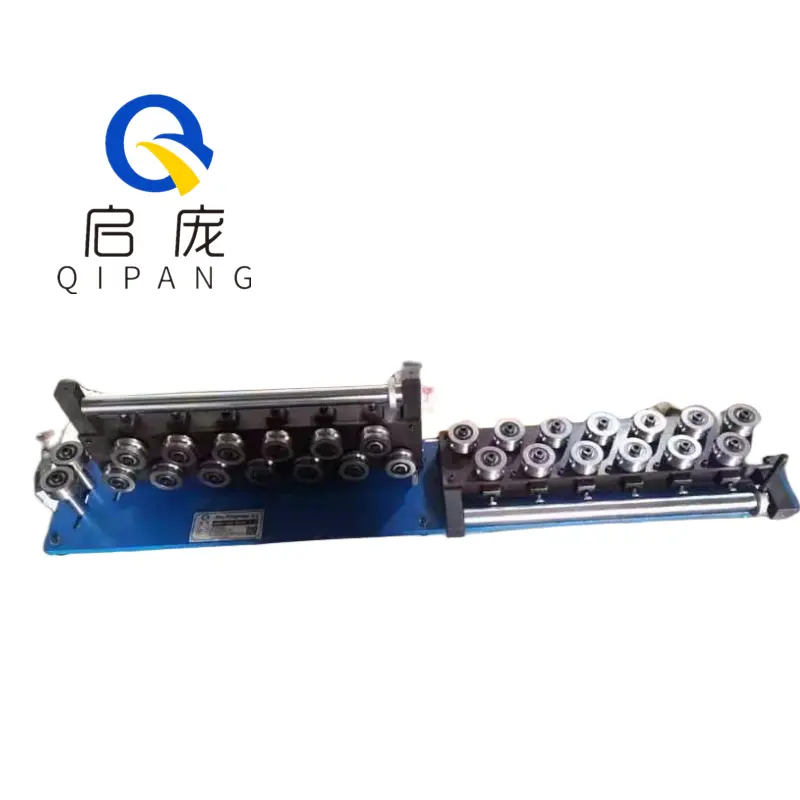

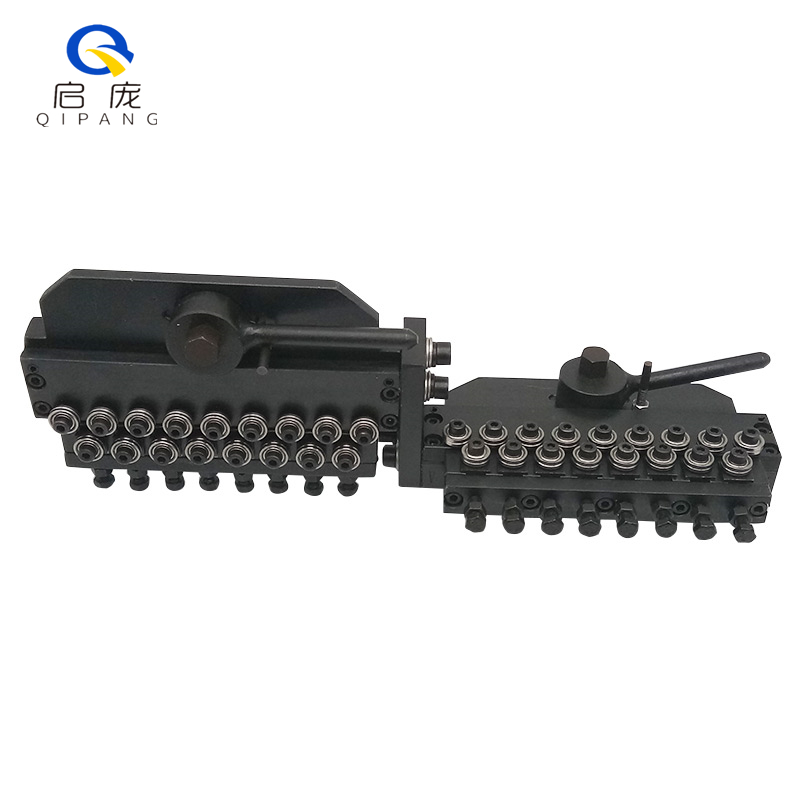

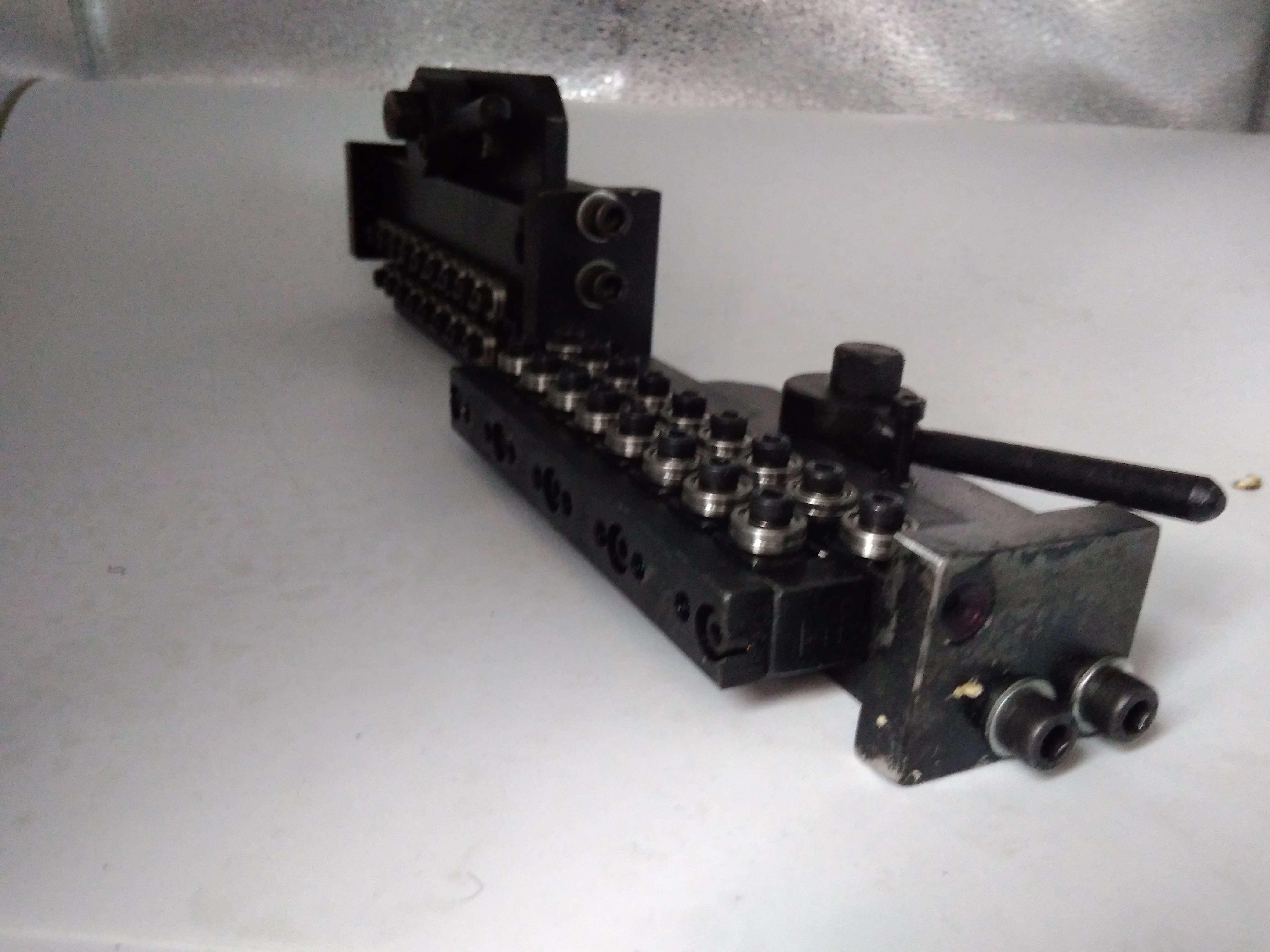

QIPANG 0.2-0.5mm wire /cable straightener machine metal/ stainless wire straightening mechanism
Mainly used on drawing machines

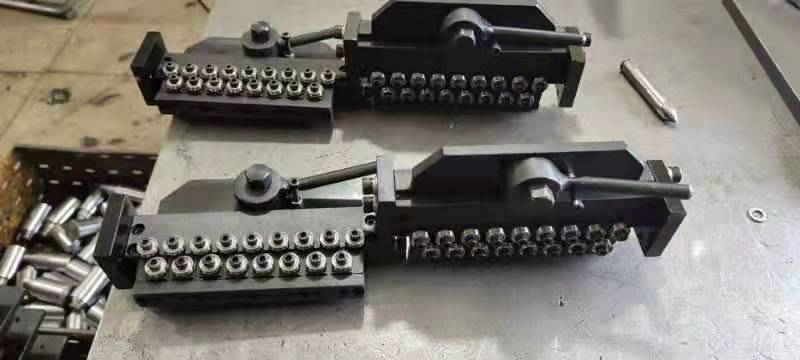

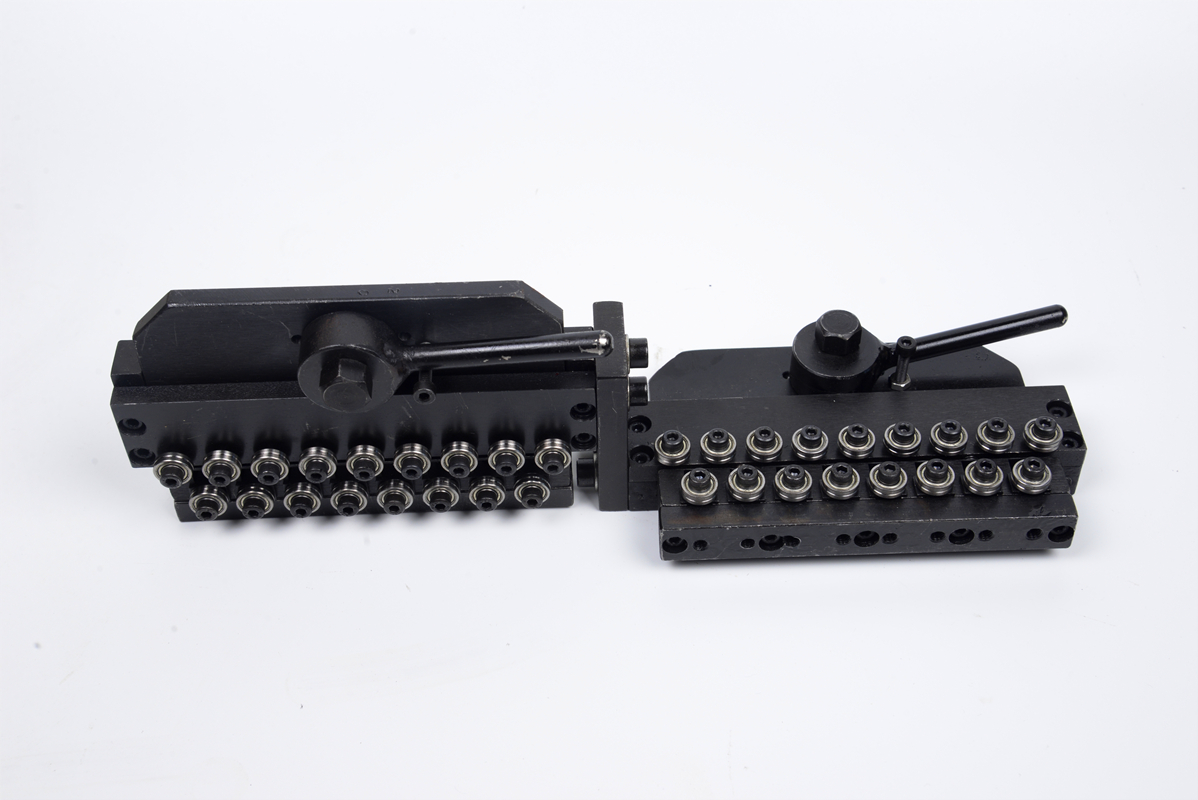

1， Single and dual plane straightener models JZQ 0.2-0.5/34 AV
2， Eccentric roller open/closing device (lever)
3，From 5 ~ 17 rollers per group (17) or (17+17)
4，Roller diameters 12 mm (0.4724")
5，Adjustable rollers on the upper row
6, Rollers available for light or heavy duty applications
7，Model AS/AD for wire R = 60 N/mm2 (8400 psi) max. with normal rollers (single or double bearing)
8，Rollers are standard "V" groove profiles but can be provided with "U" grooves 9，according to customer requirements
*Wire Guide included

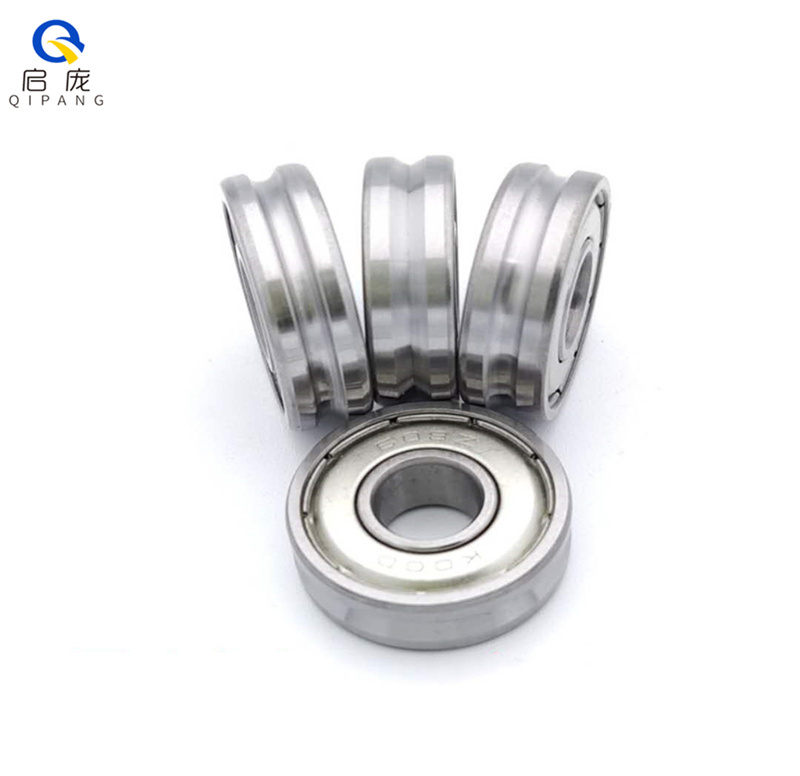

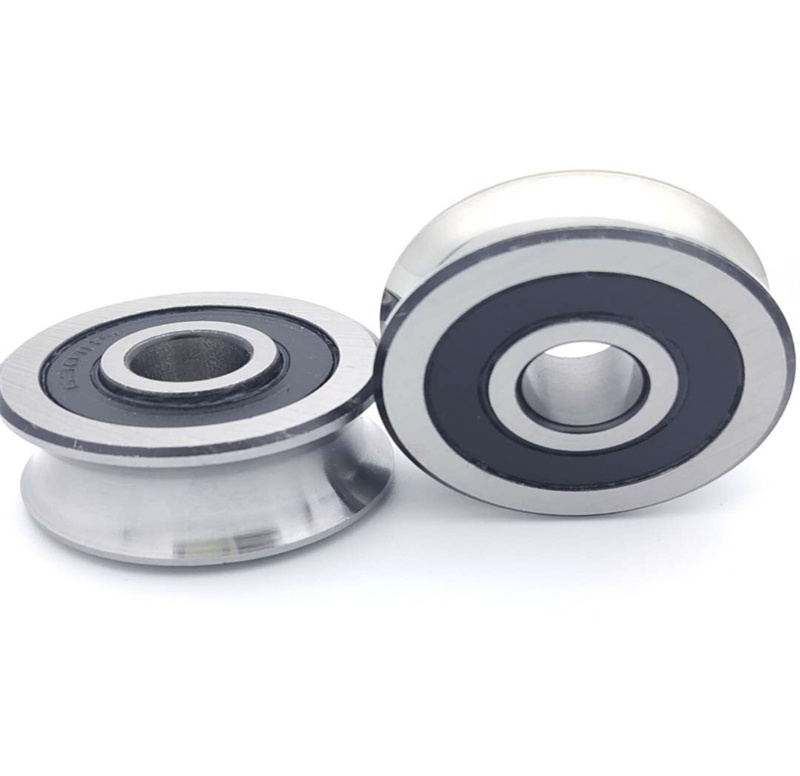

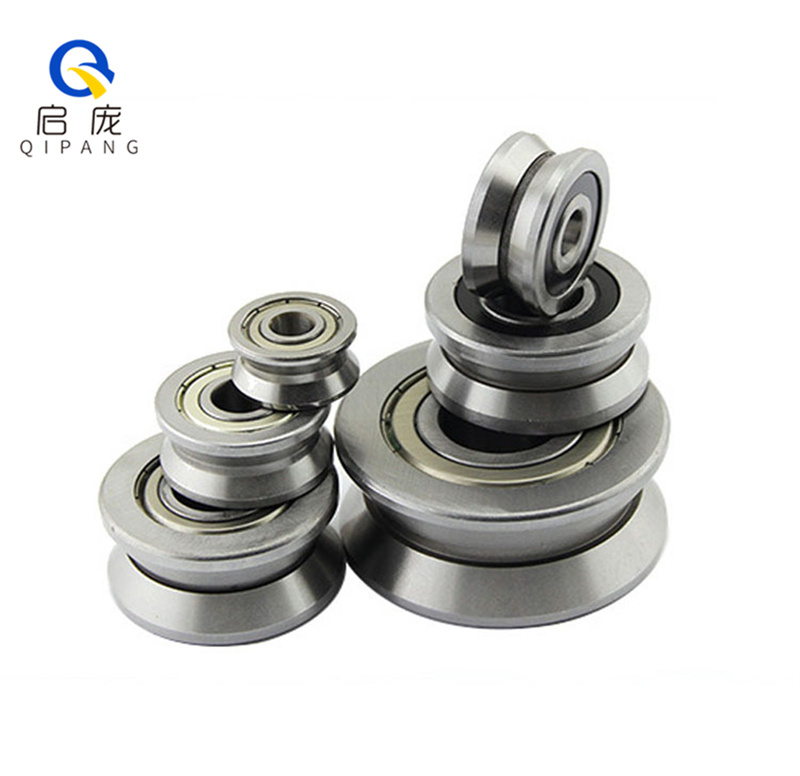

Straightening wheel advantages:
1, straightener roller material surface without scratches.
It is made of bearing steel and nylon.
2, straightening wheels are made of bearings, using alloy roller group, carbide wheels, can be configured according to product specifications and customer requirements.
You can do v-groove, U-groove, h-groove.
3, straightener straightness theoretically: the more the number of roller wheels, the better the straightening effect, the more variations,
4, straightener adjustment structure: with handle structure, can be opened and closed as a whole, save time.
|Model||Type||Wire Diameter (Solid)||Roller Diameter (mm/inch)||Roller Qty (pcs)||structure||groove|
|JZQ 0.05-0.2/38AV||V-7||φ0.05-0.2mm||7（0.276）||38||quick clamping||V|
|Model||Type||Tube/Pipe Diameter (Hollow)||Roller Diameter (mm)||Roller Qty (pcs)||structure||groove|

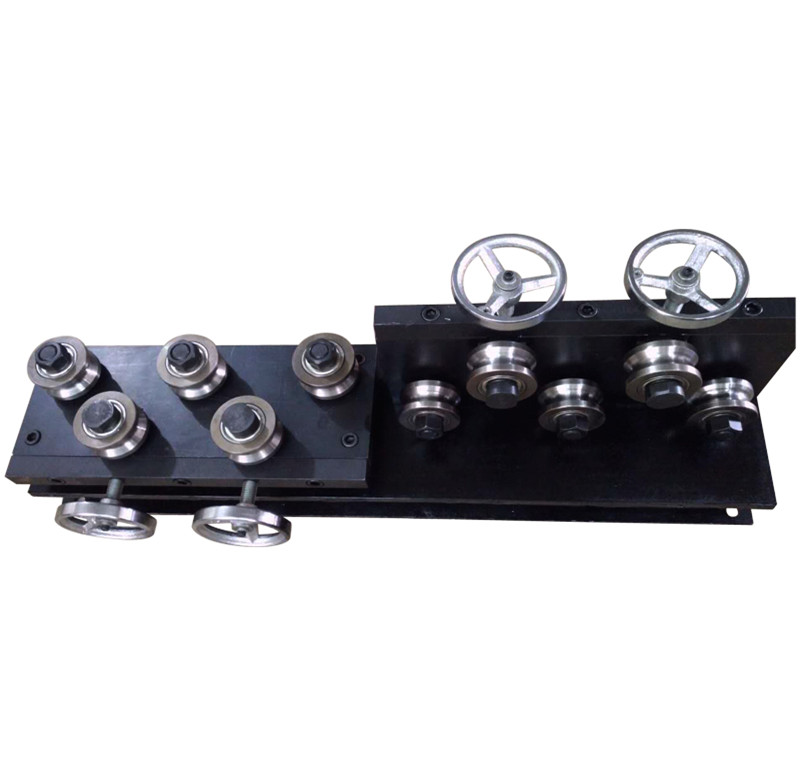

|JZQ 1-3/14/18 BU/R||U-30||1-3mm||30||18/14||quick clamping||U/R|
|JZQ 4-10/14/18/22 BU/R||U-42||4-10mm||42||14/18/22||unclamping||U/R|
|JZQ 10-20/14/18/22 BU/R||U-54||10-20mm||54||14/18/22||unclamping||U/R|
|I. Different groove types can be customized.|
II. Quick clamping is straightener with a handle for easy opening and closing the rollers
Factory & Store

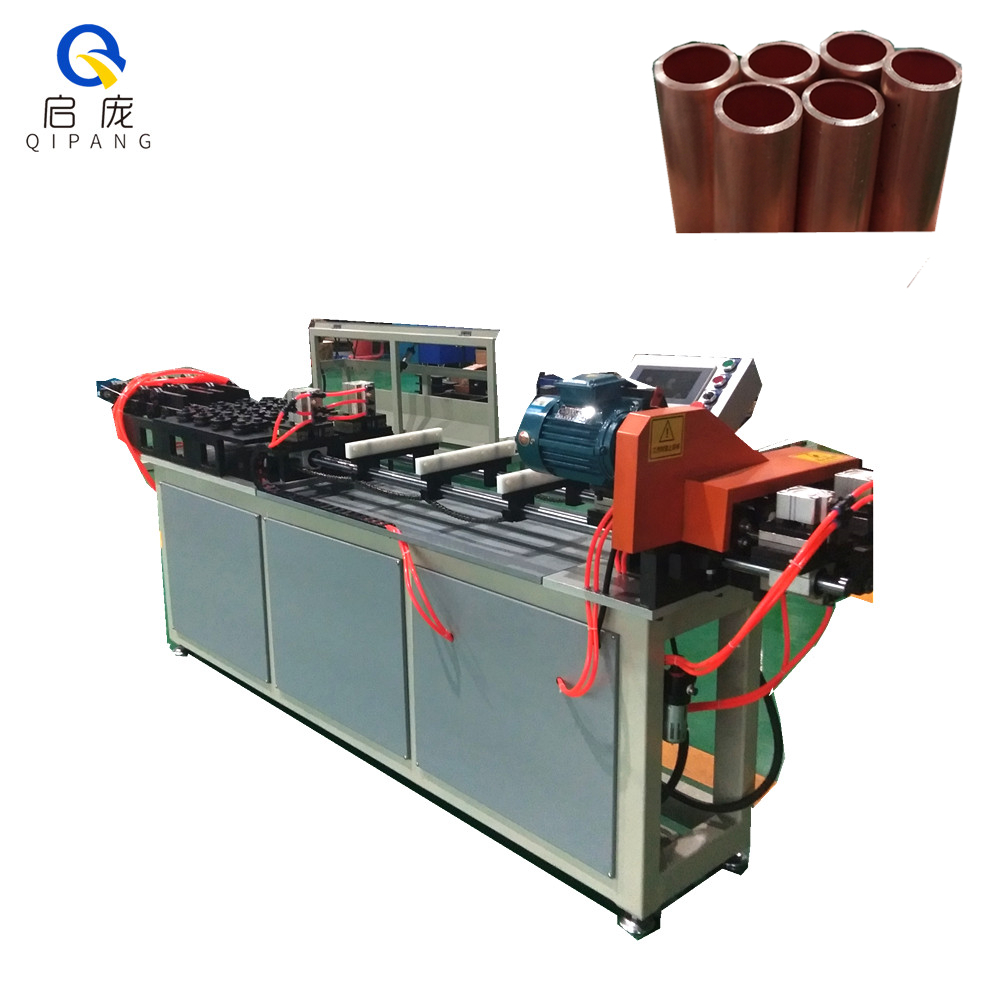

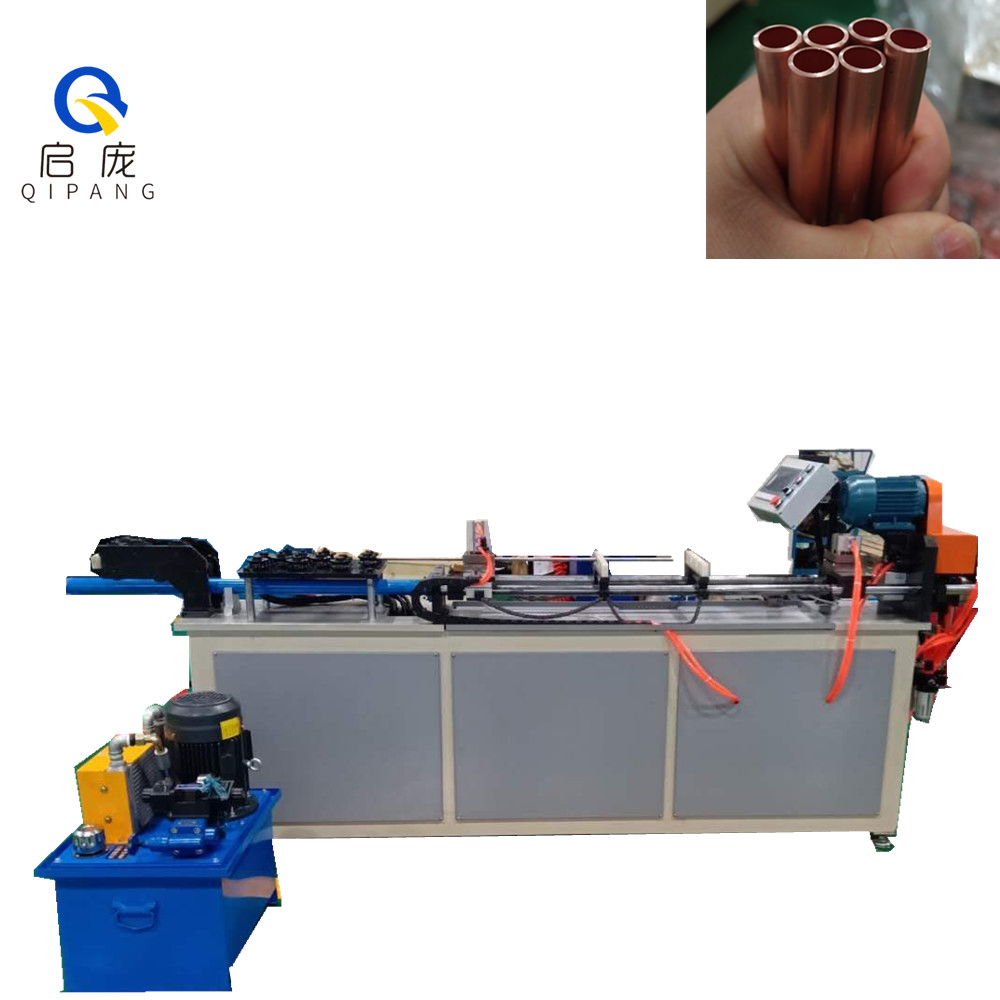

Shanghai Qibang Industrial Co., Ltd.Founded in 2000, with 13 years of experience, is a research and development, production, sales of wire straightening cutting machine, wire forming bending machine, molding machine, copper pipe cutting machine equipment as one of the large machinery manufacturing enterprises.
