QIPANG QR 0.5-0.8A/V aluminium wire steel wire metal cable straighteners with scratch straightening toolQIPANG QR 0.5-0.8A/V aluminium wire steel wire metal cable straighteners with scratch straightening toolQIPANG QR 0.5-0.8A/V aluminium wire steel wire metal cable straighteners with scratch straightening toolQIPANG QR 0.5-0.8A/V aluminium wire steel wire metal cable straighteners with scratch straightening tool

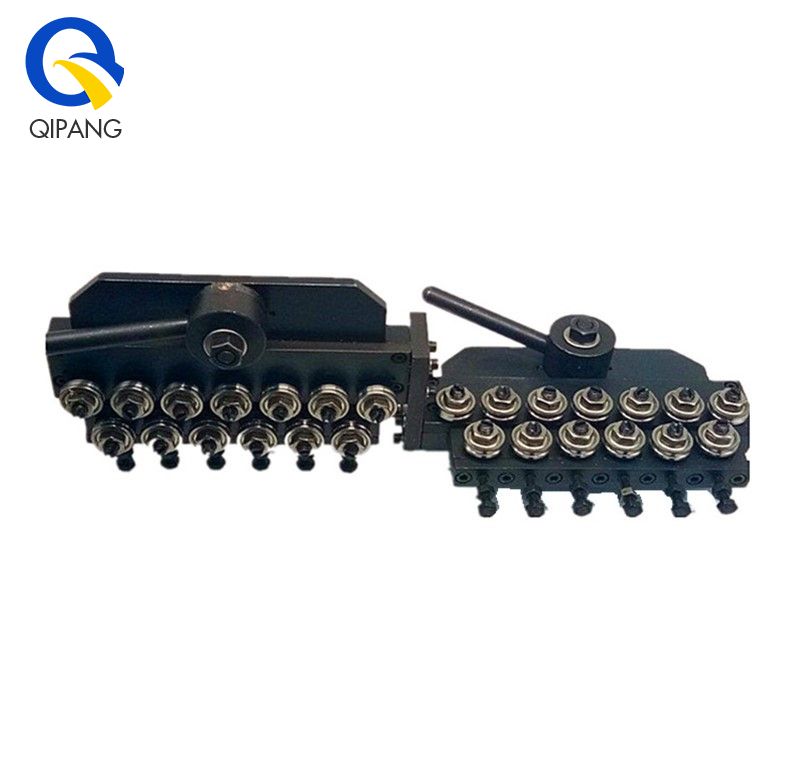

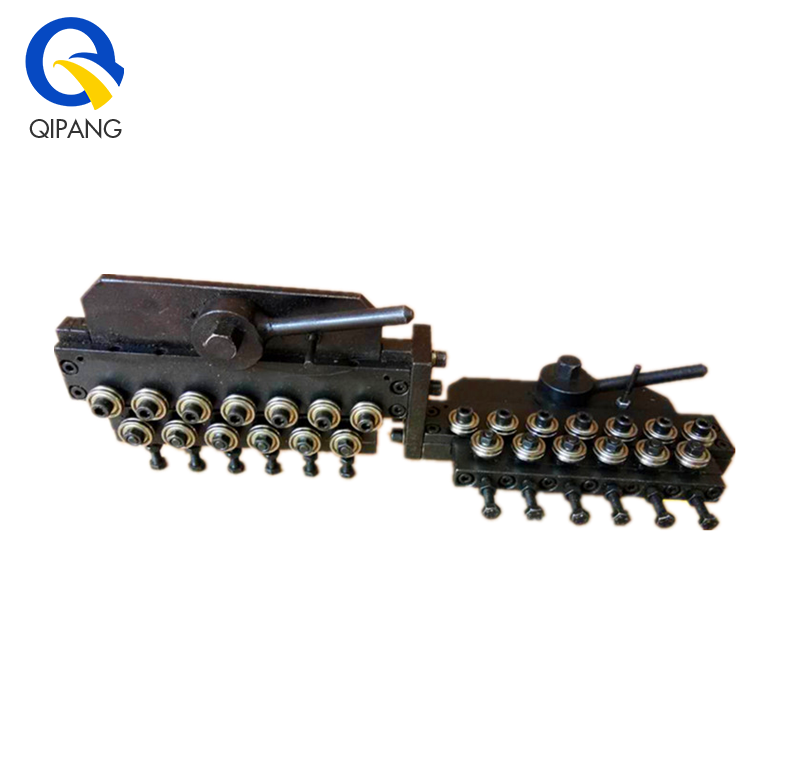

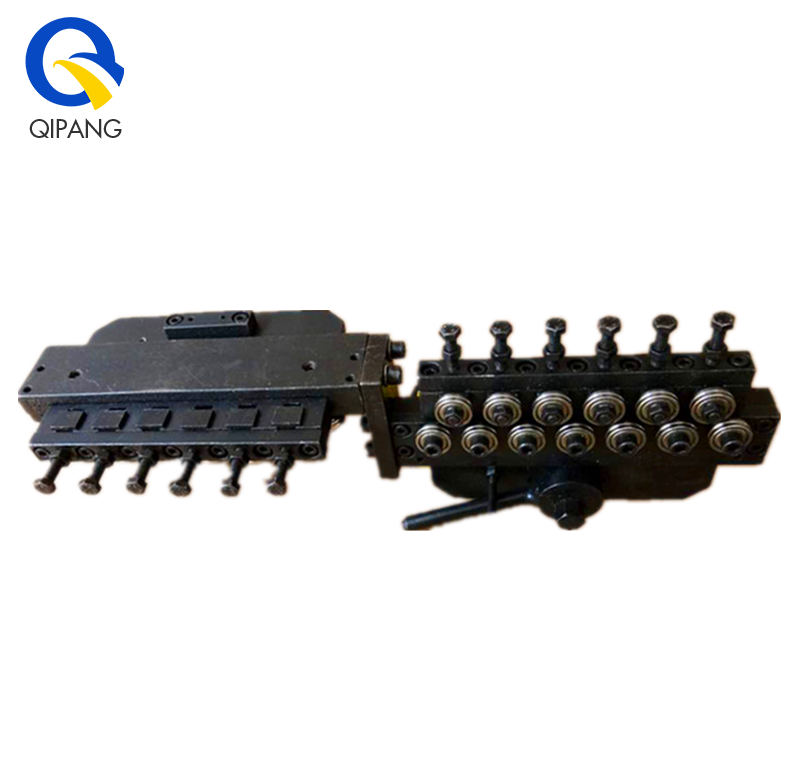

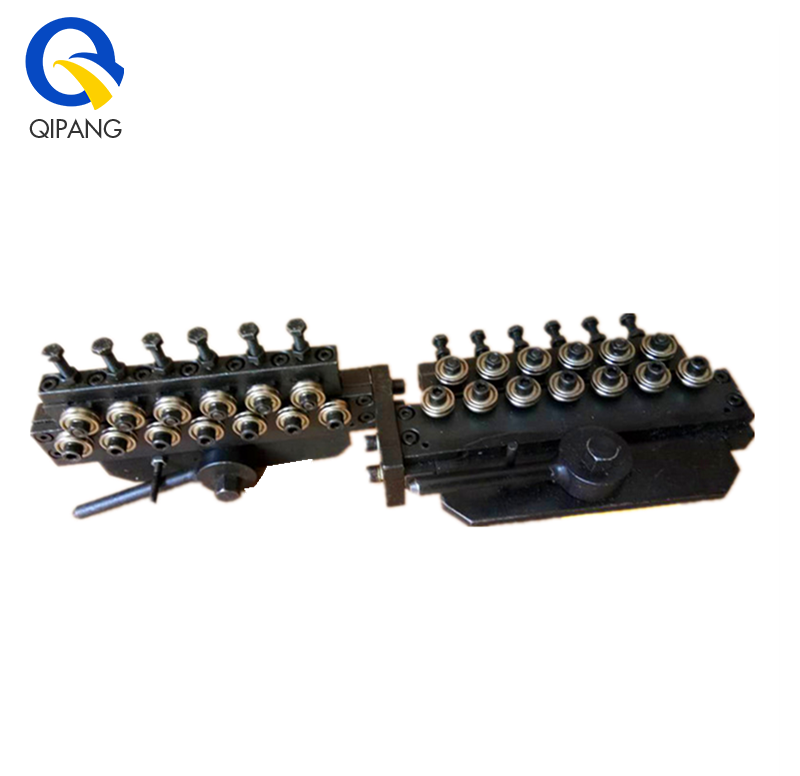

QIPANG QR 0.5-0.8A/V aluminium wire steel wire metal cable straighteners with scratch straightening tool

1. Flexible development and customization OEM ODM

2. 10 years of development,manufacturing, market experience

3. 6. Fast spare parts distribution and sufficient inventory

4. Good quality and professional pre - sales, after - sales service

5. Excellent consulting team covering the world

Share:
  • QIPANG QR 0.5-0.8A/V aluminium wire steel wire metal cable straighteners with scratch straightening tool
  • QIPANG QR 0.5-0.8A/V aluminium wire steel wire metal cable straighteners with scratch straightening tool
  • QIPANG QR 0.5-0.8A/V aluminium wire steel wire metal cable straighteners with scratch straightening tool
  • QIPANG QR 0.5-0.8A/V aluminium wire steel wire metal cable straighteners with scratch straightening tool
  • Description

QIPANG QR 0.5-0.8A/V aluminium wire steel wire metal cable straighteners with scratch straightening tool

Mainly used on drawing machines

1, Single and dual plane straightener models JZQ 0.5-0.8/26 AV

2, Eccentric roller open/closing device (lever)

3,Quantity of roller in stock13+13 ,From 5 ~ 19 rollers  per group (5+5,7+7,9+9,11+11,13+13,15+15,17+17,19+19)

4,Roller diameters 16mm (0.630")  ,,Customizable 7-120mm (0.27559"-4.724409")

5,Adjustable rollers on the upper row

6,   Rollers available for light or heavy duty applications

7,Model AS/AD for wire R = 60 N/mm2 (8400 psi) max. with normal rollers (single or double bearing)

8,Rollers are standard "V" groove profiles but can be provided with "U" grooves 9,according to customer requirements

9,Weight:5kg

10,Price:438

*Wire Guide included



Straightener Type


ModelTypeWire Diameter (Solid)Roller Diameter (mm/inch)Roller Qty  (pcs)structuregroove
JZQ 0.05-0.2/38AVV-7φ0.05-0.2mm7(0.276)38quick clamping V
JZQ 0.2-0.5/34AVV-12φ0.2-0.5mm12(0.472)34V
JZQ 0.5-0.8/26AVV-16φ0.5-0.8mm16(0.630)26V
JZQ 0.8-1.5/5/18AVV-23φ0.8-1.5mm23(0.906)5/18V
JZQ 1.5-3/5/18AVV-30φ1.5-3mm30(1.181)5/18V
JZQ 3-4/18AVV-32φ3-4mm32(1.260)18V
JZQ 4-7/14/18/22AVV-42φ4-7mm42(1.654)14/18/22unclampingV
JZQ 5-8/14/18/22AVV-54φ5-8mm54(2.126)14/18/22V
ModelTypeTube/Pipe Diameter (Hollow)Roller Diameter (mm)Roller Qty                  (pcs)structuregroove
JZQ 1-3/14/18 BU/RU-301-3mm3018/14quick clamping U/R
JZQ 4-10/14/18/22 BU/RU-424-10mm4214/18/22unclampingU/R
JZQ 10-20/14/18/22 BU/RU-5410-20mm5414/18/22unclampingU/R
I.  Different groove types can be customized.
II.  Quick clamping is straightener with a handle for easy opening and closing the rollers



Straightener adjustment diagram

6-25mm straightening  10mm copper pipe  Pipe straightening

Straightener series

6-25mm straightening  10mm copper pipe  Pipe straightening

Product effect display


QIPANG JZQ 4-6/9 BV middle

QIPANG JZQ 4-6/9 BV middle


Customer Make  QIPANG Wire Straightener

We can design and produce the wire straightener according to customer requirements.


1. Material ( steel,copper )

2. Diameter of steel wire or steel tube or copper tube

3. Operating speed ( m / min )

4. Single plane or double plane

5. If need qucik lever, if need guide roller, if need solid base


Equipment Reconstruction and Update

Just tell us the maker or brand of used wire straightener, and then we help you to select, optimize the suitable resulatiuons.


Before making an order, had better consult with us.


Hydraulic bending machine After-sales service

1.Maintenance period: one year

2.Training how to install the machine, training how to use the machine.

3.Engineers available to service machinery overseas.

4.Test the machine before shipment

5.Provide technical guidance relate to use the machine

6.Provide the spare parts at cost price after warranty period

7. Collect the feedback for the machine working

QIPANGN 1-6 MM high speed steel wire metal cable  straightening pliers  metal straightening and cutting machine

QIPANGN 1-6 MM high speed steel wire metal cable  straightening pliers  metal straightening and cutting machine

QIPANG 1-20mm China made automatic coil pipe straightener and cutter for spring machine

QIPANG 1-20mm China made automatic coil pipe straightener and cutter for spring machine








In addition, QIPANG is located at Zhaofeng Road Subway Station, No. 11 Jiading Anting, Shanghai.

Since 2009, the metal products series machine has been provided.



Read more:

https://www.wire-straightener.com/wire-straighteners/







FAQ:

Q:How about your after-sale service?
A:We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.

Q: What are your payment terms?
A:100%TT or prepaid 50% , balance 50% before shipping.


Q: Will you provide operation guidance for us?
A:We will send the instruction book with the machine and send you a video about how to operate the machine.

Q: How long is the warranty period?
A:12 months warranty, we will send you free spare parts by air within one week if there are any quality problems.



Q:What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q:How about your delivery time?
A: Generally, it will send this product within three or five days after receiving your payment. The specific delivery time dependson the items and the quantity of your order.
