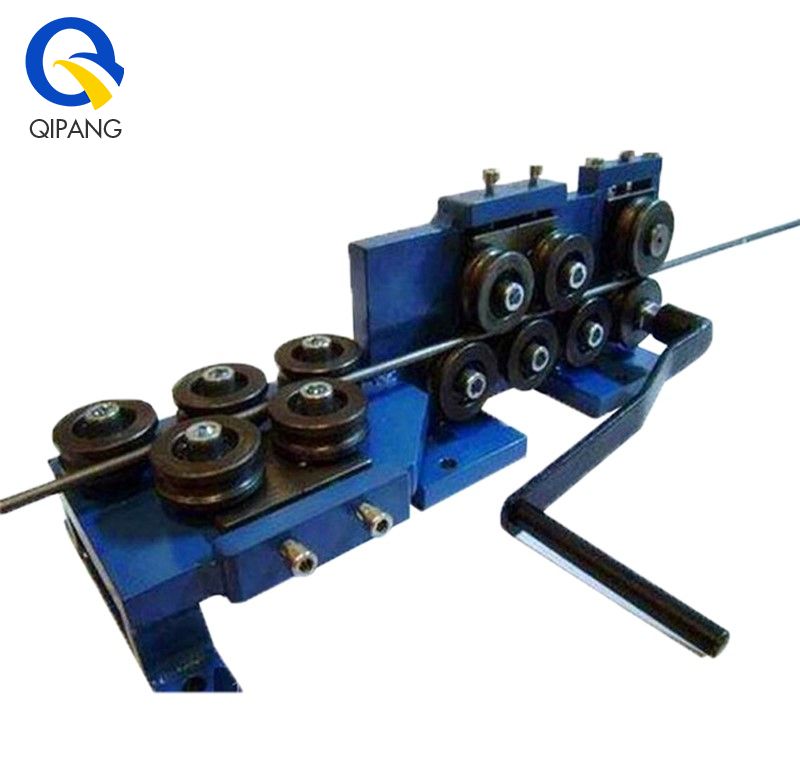

QIPANG 42/53 straightener rollers 4-10 mm iron wire and tube manual straightener roller machine tool
Mainly used on drawing machines
1, Single and dual plane straightener models JZQ 4-10mm
2, With hand crank, 2rollers feeder（Bearing steel material, durable）, dia of roller on 70mm.
3, Quantity of roller in stock 7rollers ，From 5 ~ 19 rollers per group (5+5,7+7,9+9,11+11,13+13,15+15,17+17,19+19)
4，Roller diameters 42mm (1.654") ，53mm（2.087）Customizable 7-120mm (0.27559"-4.724409")
5，Adjustable rollers on the upper row
6, Rollers available for light or heavy duty applications
7，Model AS/AD for wire R = 60 N/mm2 (8400 psi) max. with normal rollers (single or double bearing)
8，Rollers are standard "V" groove profiles but can be provided with "U" grooves, according to customer requirements*Wire Guide included

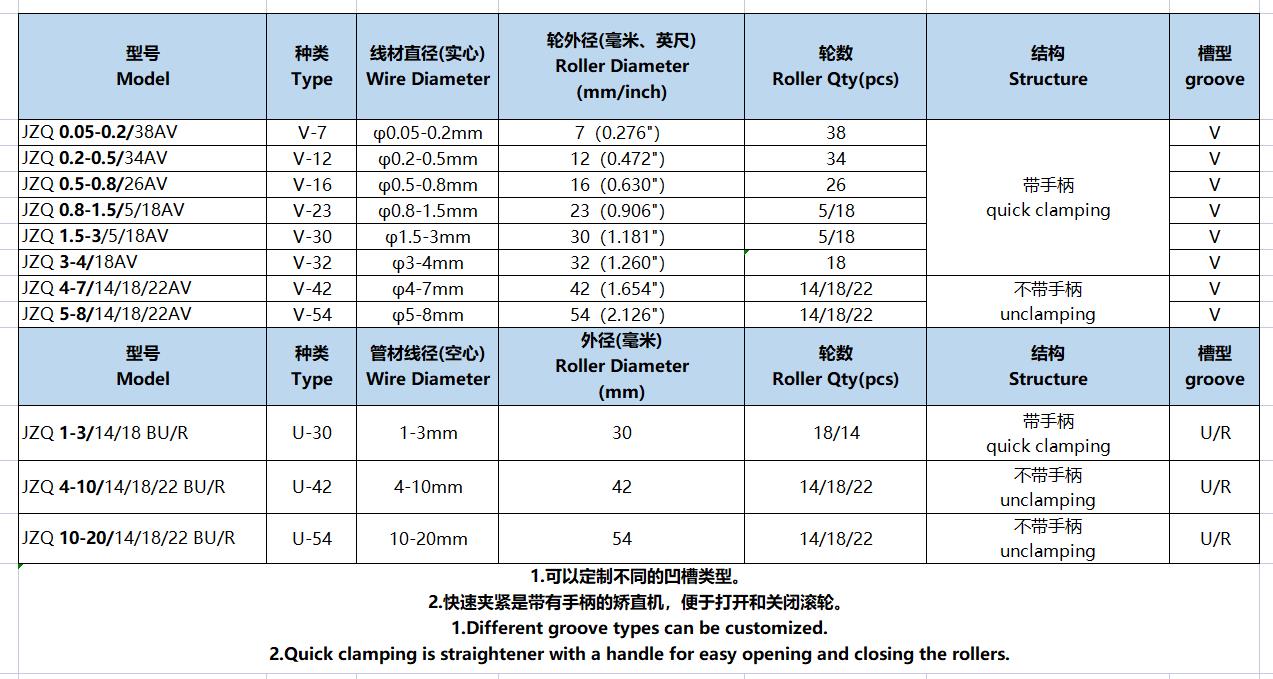

Straightener Type

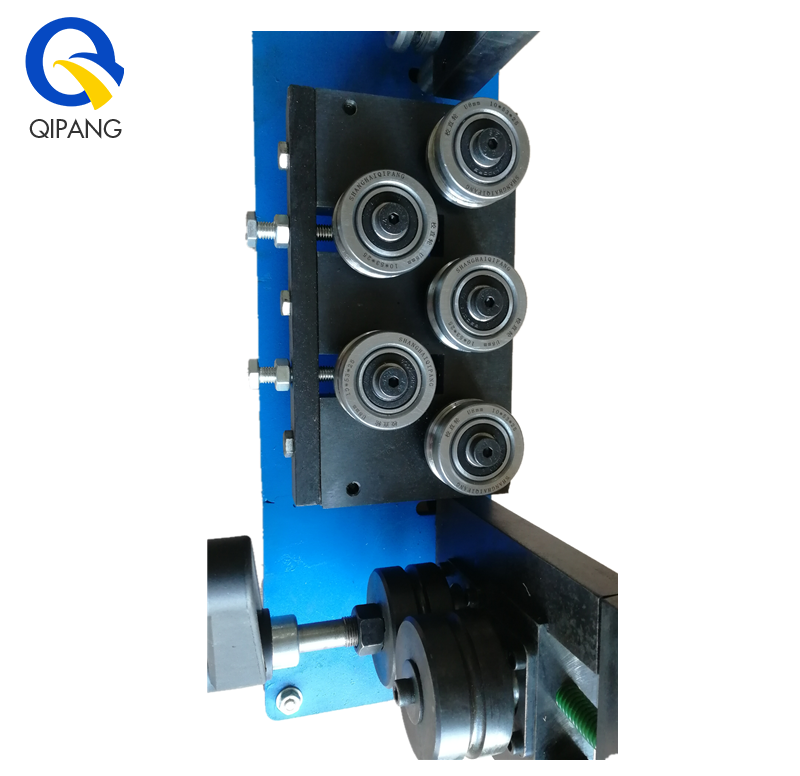

Straightener adjustment diagram

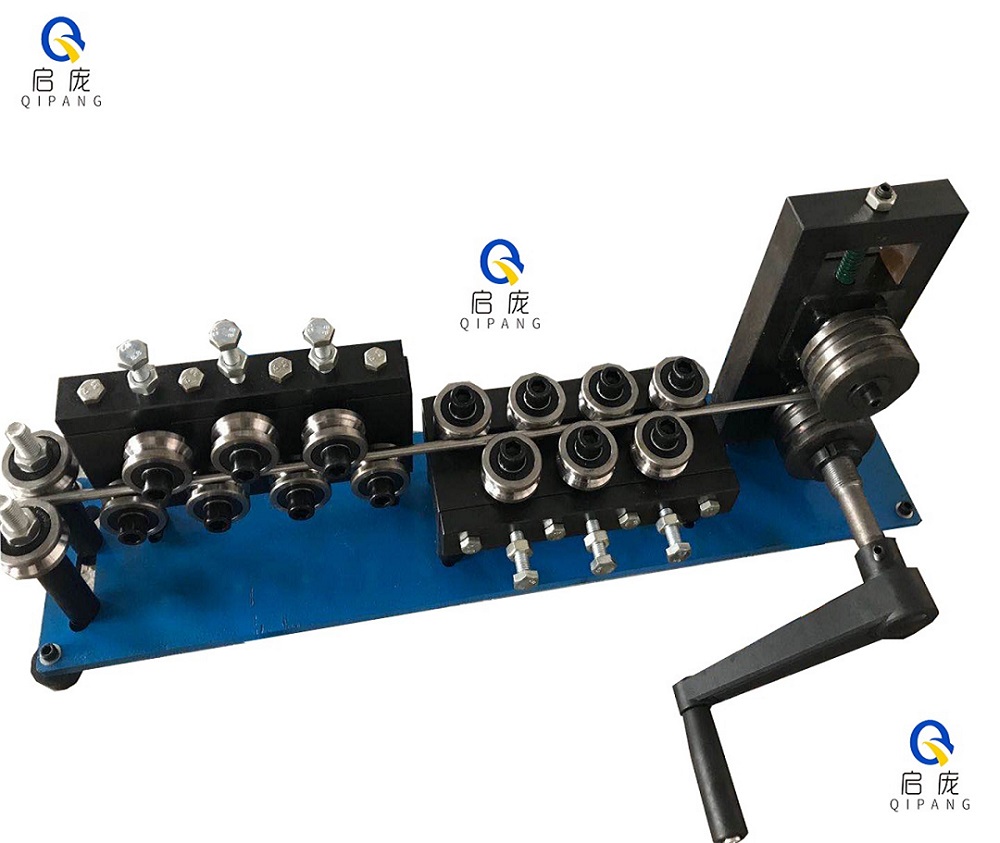

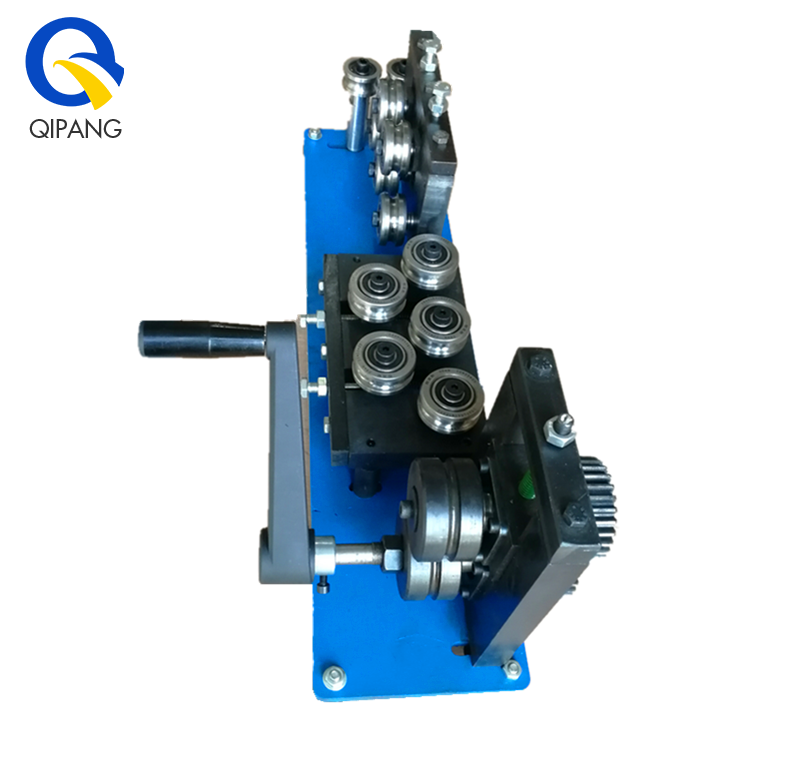

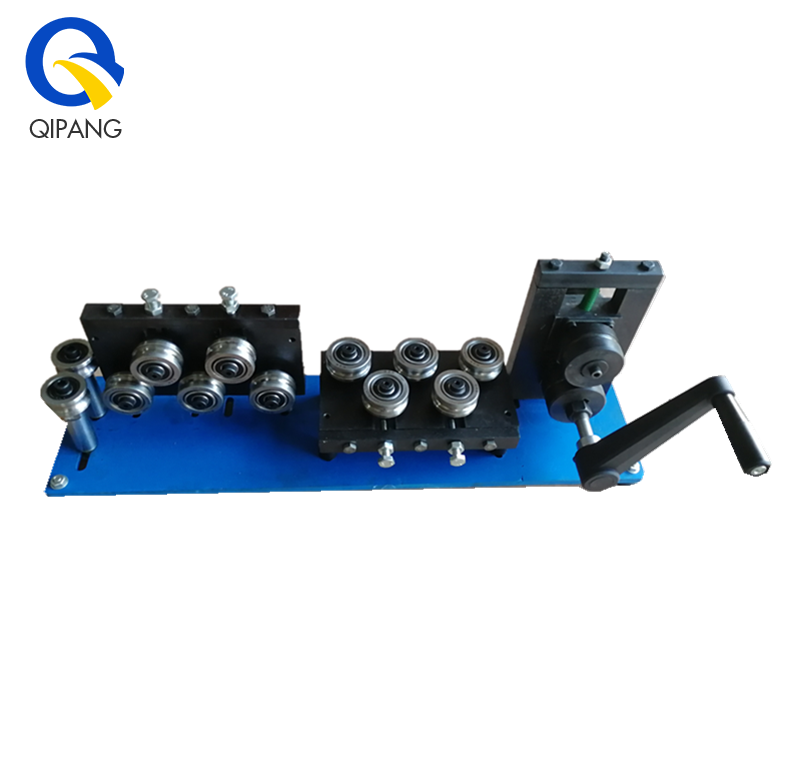

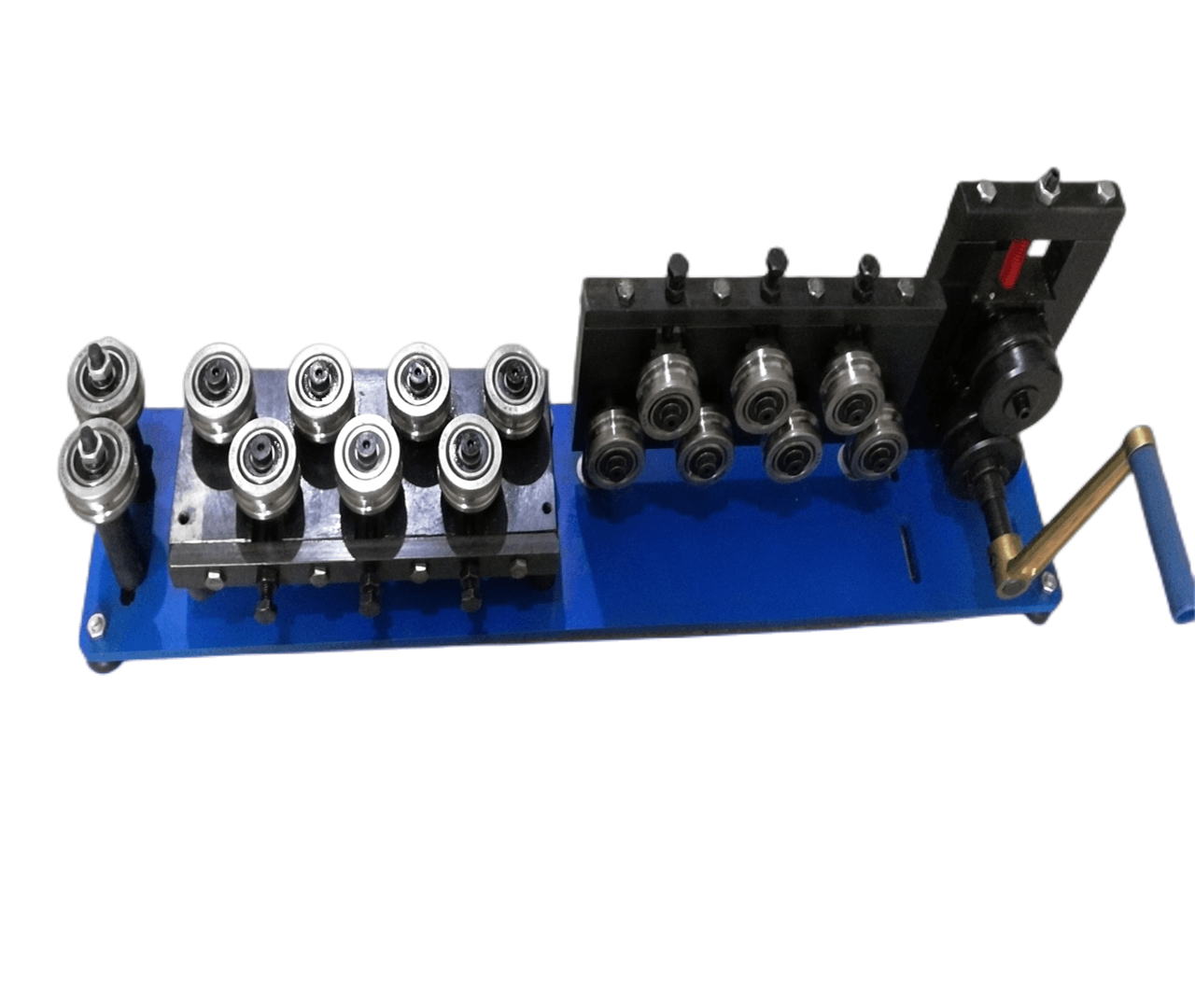

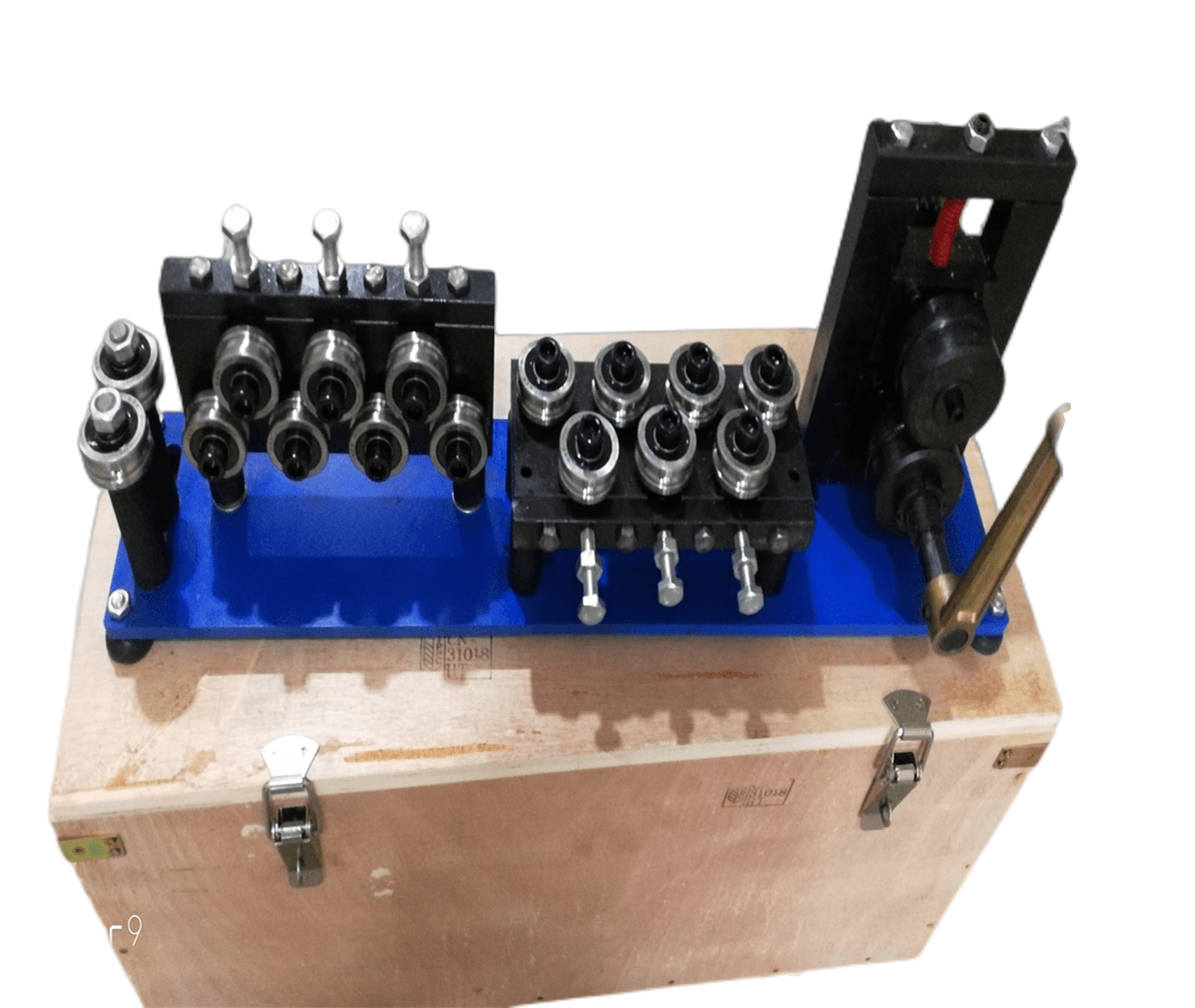

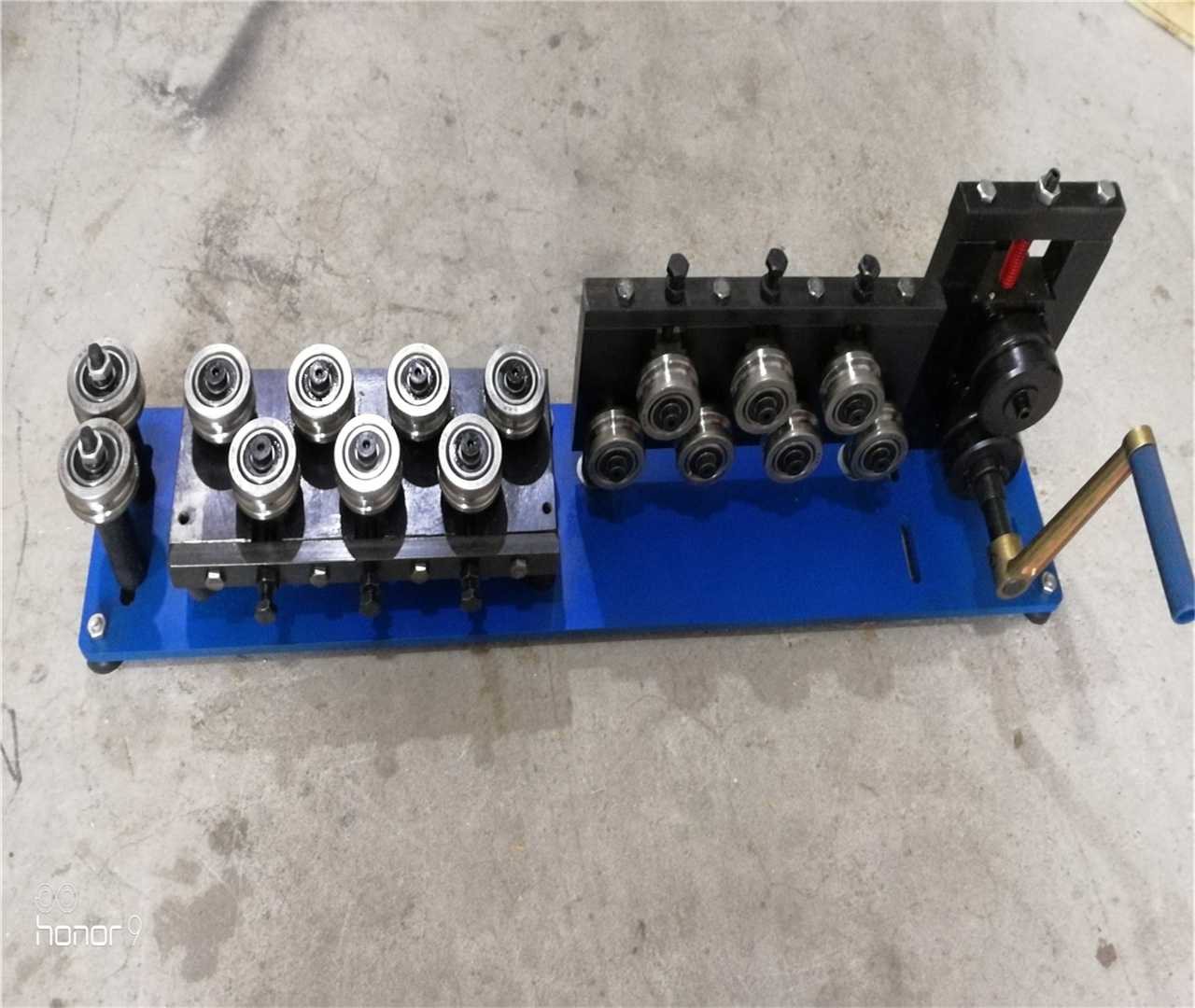

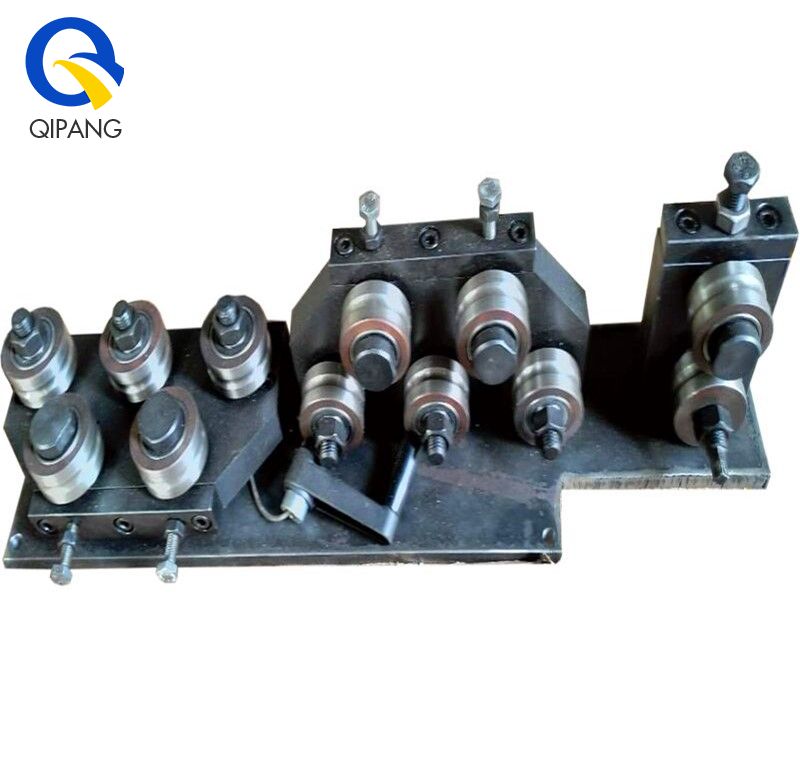

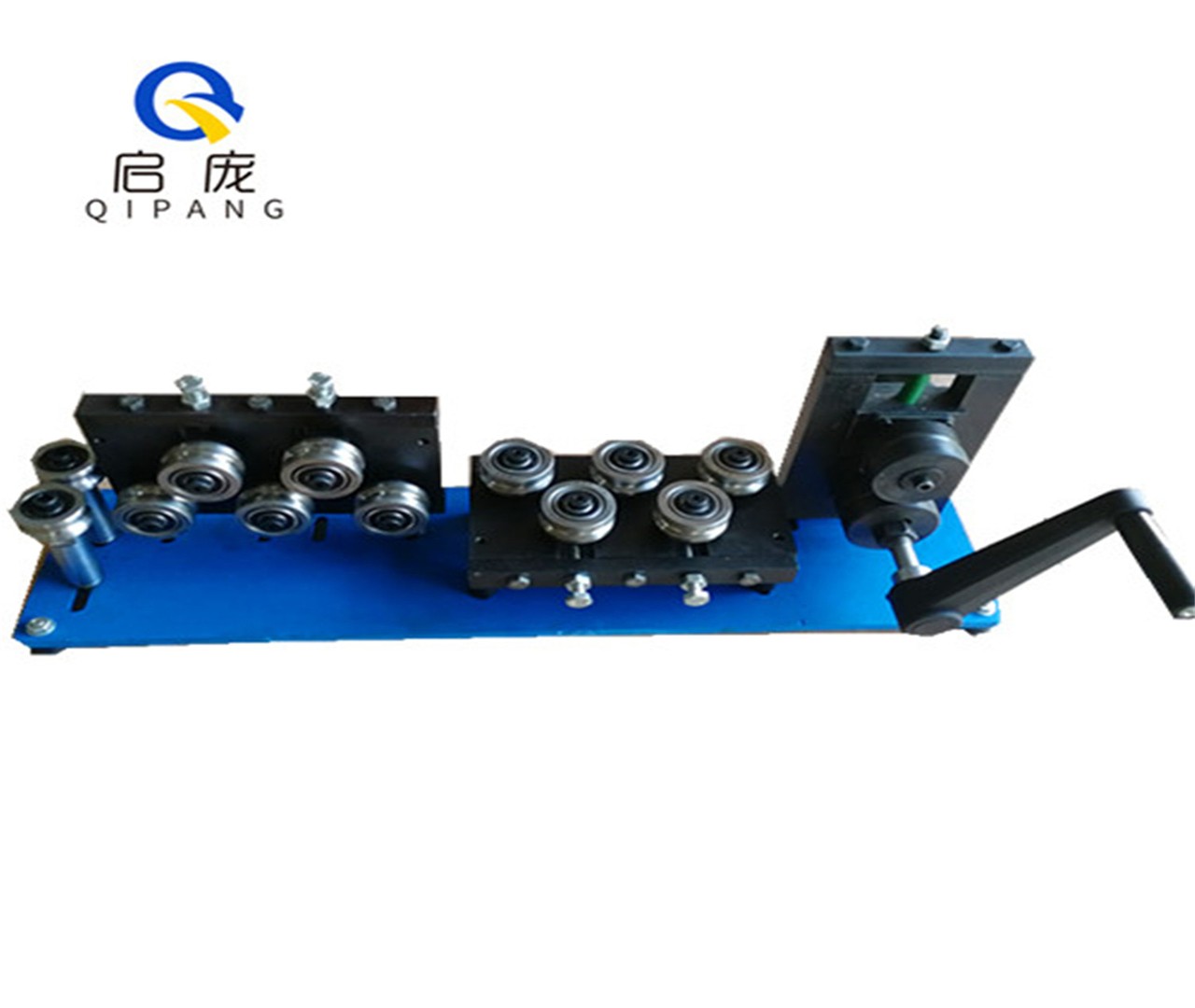

Product display
