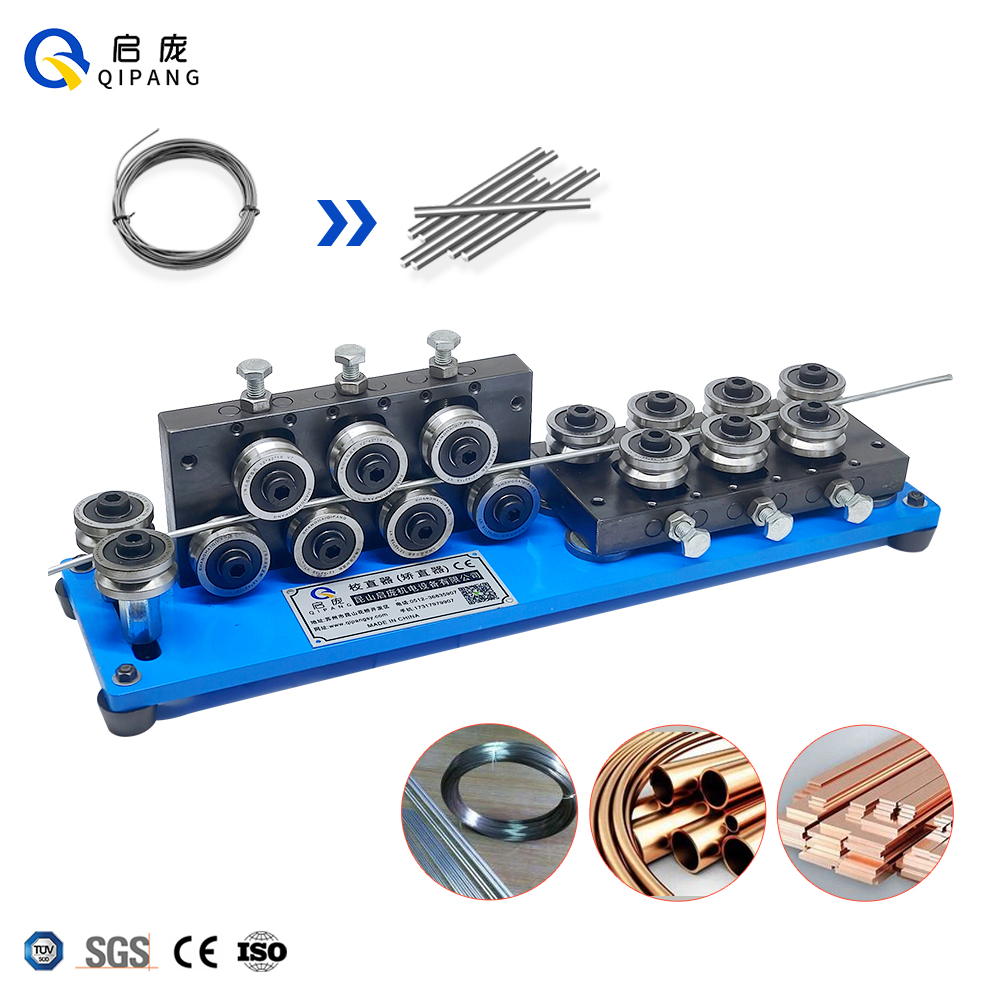

OD 4-7/5-9mm Wire φ42/54-14 Wheels Pipe Straightening Machine for Wire Tube Bending Machines
φ42-14 Wheels Drawing of Pipe Straightening Machine.pdf
φ54 14 Wheels Drawing of Pipe Straightening Machine.pdf
Shanghai Qi Pang mainly focuses on the production of : manual straighteners, electric straighteners, CNC straightening and cutting machines, and traction feeding systems.
Pipe Straightening Machine are suitable for various materials, such as: copper/aluminum/stainless steel/iron wire and pipes, and are applicable to both round and square materials.
Our Pipe Straightening Machine is widely used in wire drawing machines, metal wire processing industry, polishing machine,construction sites, refrigeration equipment and rewinding equipment, etc., and can efficiently straighten metal wires and pipes, thereby improving production efficiency.
Pipe Straightening Machine is specialized equipment designed to straighten metal wire and tubing, primarily used to eliminate bending deformations caused during processing or heat treatment. By applying external force, it restores the workpiece to its ideal straightness or precision, ensuring the wire achieves the desired straightness.
The Pipe Straightening Machine features diverse models and functions, offering high cost-effectiveness and easy adjustability. Since the rollers can be controlled via an adjustment mechanism, minimal maintenance is required. Additionally, you may opt to install digital position indicators on the straightening machine, facilitating roller adjustments by operators. These indicators record the specific adjustment positions of each roller, enabling reuse when processing wire of the same diameter in the future.
I. Pipe Straightening Machine Parameters:

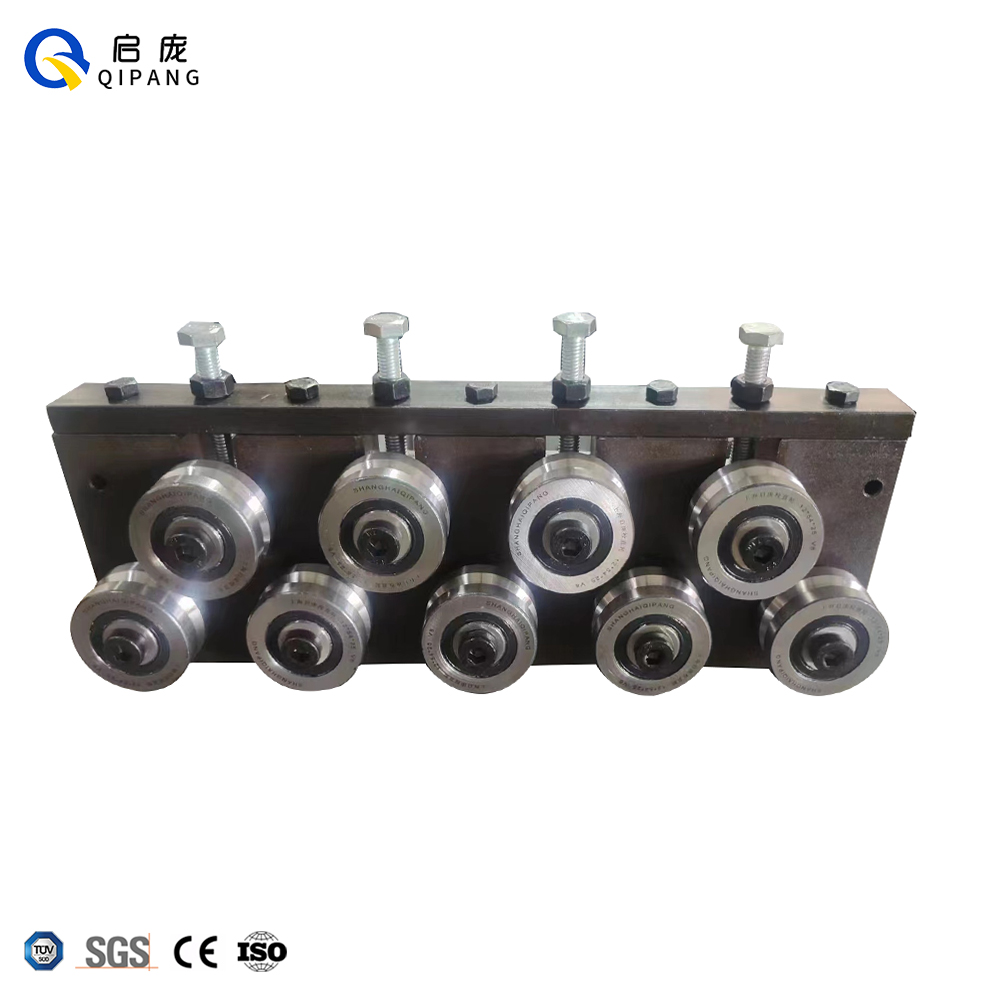

1.Style: ① Single-direction: All rollers are mounted on the same plane, arranged in two rows, top and bottom.
② Single-direction: Composed of horizontal and vertical straightening modules, offering a wider range of straightening surfaces and superior straightness.
2. Fixed with a base plate, and each wheel on top is adjustable.
3. Number of rollers: standard: Single direction 7 rollers or Horizontal + vertical direction 7 + 7 rollers
Customization available: ① Single direction: 5, 7, 9, 11, 13 rollers;
② Horizontal + vertical direction: 5+5, 7+7, 9+9, 11+11, 13+13 rollers
4. Roller outer diameter: 42/54mm
5. Upper row rollers are individually adjustable
6. Rollers can be used for light or heavy-duty applications
7.Single-row ball bearings are suitable for wires with a maximum tensile strength of R = 600 N/mm².
Double-row ball bearings in hardened steel are ideal for wires with higher tensile strength, ranging from R = 600 N/mm² to R = 2200 N/mm².
8. Grooving: Standard "V" groove type. "U"/H groove type can be customized according to customer requirements.
II.Pipe Straightening Machine Diameter Selection Chart:
III.Pipe Straightening Machine Drawing:

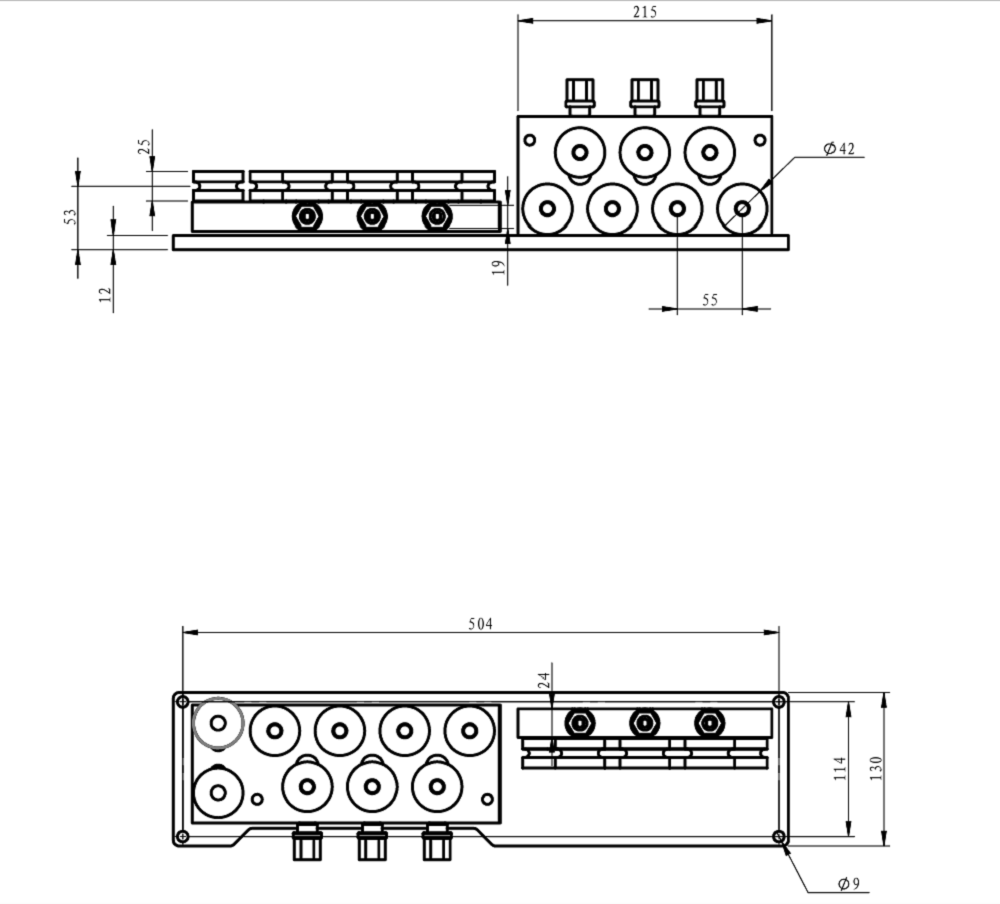

φ42-14 Wheels：

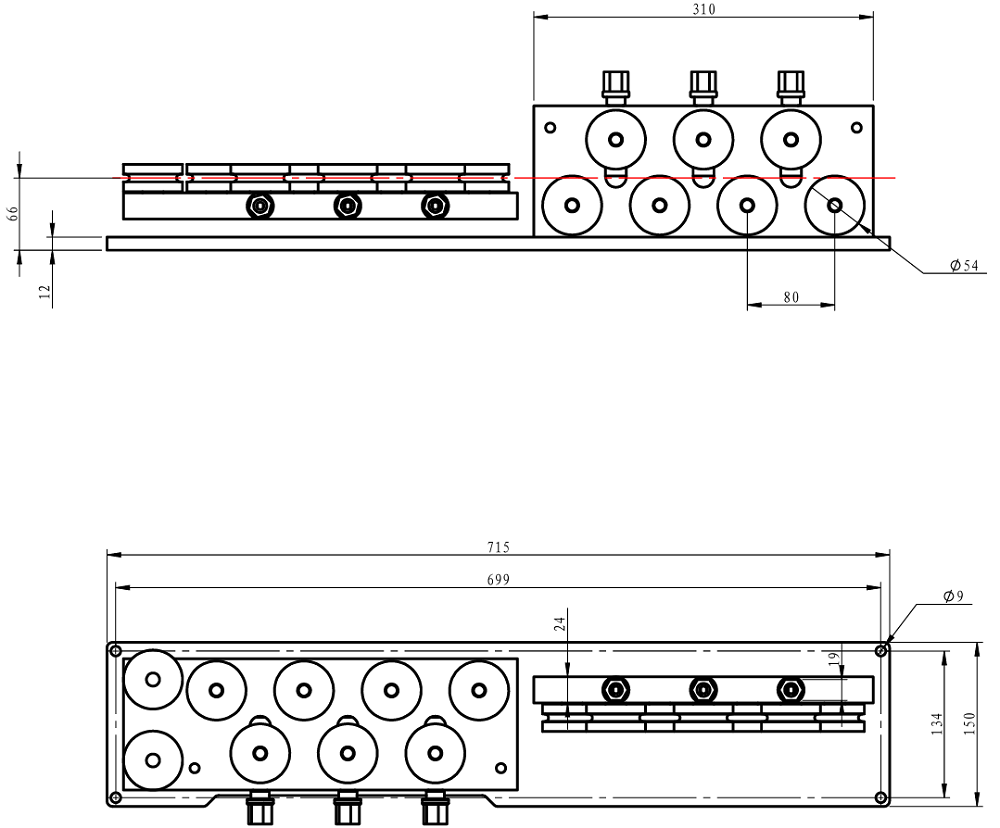

φ54-14 Wheels：
