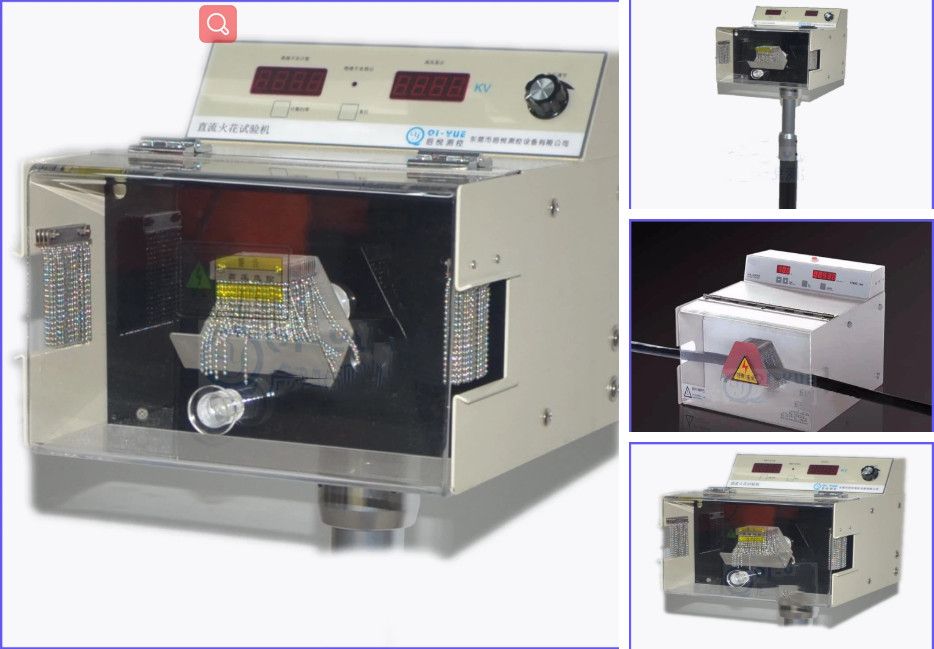

QIPANG GS-15S high frequency spark tester for wire and cable insulation wrapper tester
Working conditions:
Model: GS-15 s
Power supply: AC200-240v 50/60hz
Ambient temperature: -5°C-50°C
Relative humidity: 20%-85%
Power: 150 w or less
Note: the spark should be grounded reliably
Technical indicators:
Output voltage: 0-15kv (sine wave with effective value)
Voltage display: 3-bit digital tube display 0.0-15.0kv, voltage regulation step length 100V
Number of defects display: 5-bit digital tube display

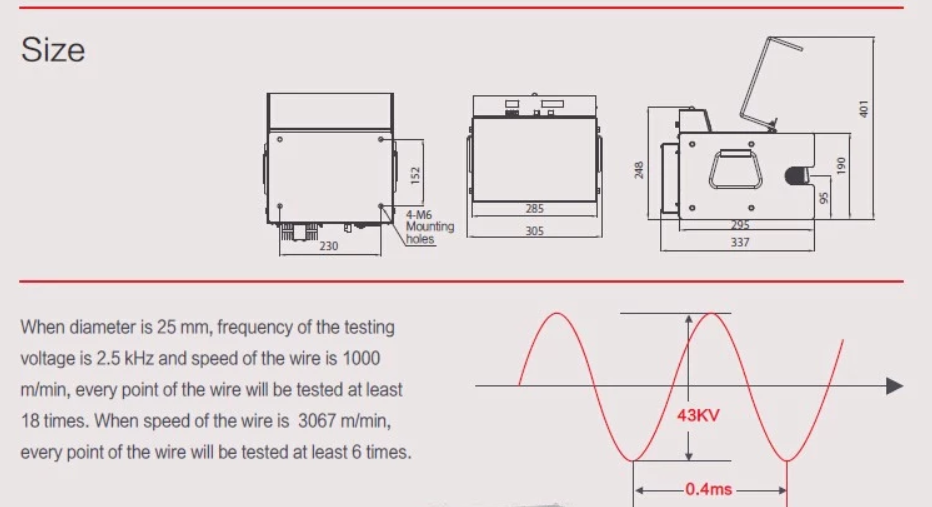

Test wire diameter: MAX25mm
Test frequency: 2500-3500hz, varying with the equivalent load capacitance
Electrode form: bead chain, in accordance with UL1581 standard
Electrode length: 50mm
Test mode: manual and automatic
Automatic leak detection recovery time: less than 20ms
Sensitivity: set 3KV, use the breakdown equipment to break down 20 times, not more than not more than remember, the breakdown current is no more than 600 A
Output current: 4mA resistive, 40mA capacitive
Maximum allowable linear speed: 3067m/min, in line with BS5099 and CCC standards1000m/min, in line with UL1581 and CSA standards
Output contact: 250V 2A
Serial communication: rs-232 rs-422 optional
Maximum communication range: 300m
Electrode cover safety interlock switch protection device
