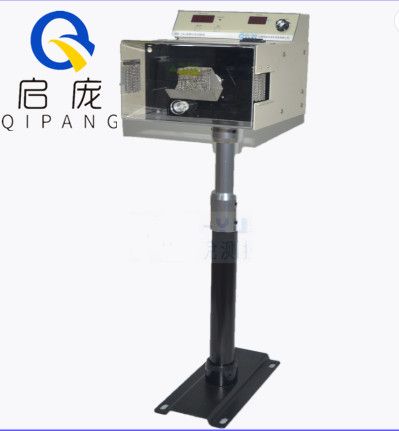

QIPANG GS-15DC spark tester for wire and cable insulation wrapper tester

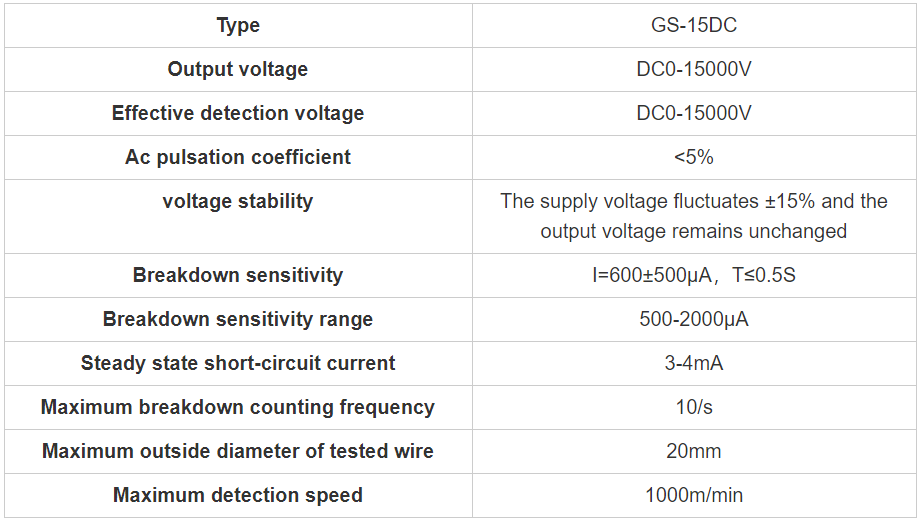

Parameter :
Working conditions:
Supply voltage: AC220V±15%
Voltage frequency: 50±2HZ
Input power: 50VA
Ambient temperature: -10-40°C
Relative temperature: <85%
Working style: continuous
Breakdown instructions:
Automatic mode: breakdown times count and sound and light alarm
Manual mode: breakdown count, sound and light alarm and output control signal
Safety chain:
When the protective cover of the electrode box is opened, the high voltage is automatically cut off, and the electrode is grounded by an electric needle to ensure the personal safety of the operator.
