Home > Qipang Product > Wire Guide Rollers

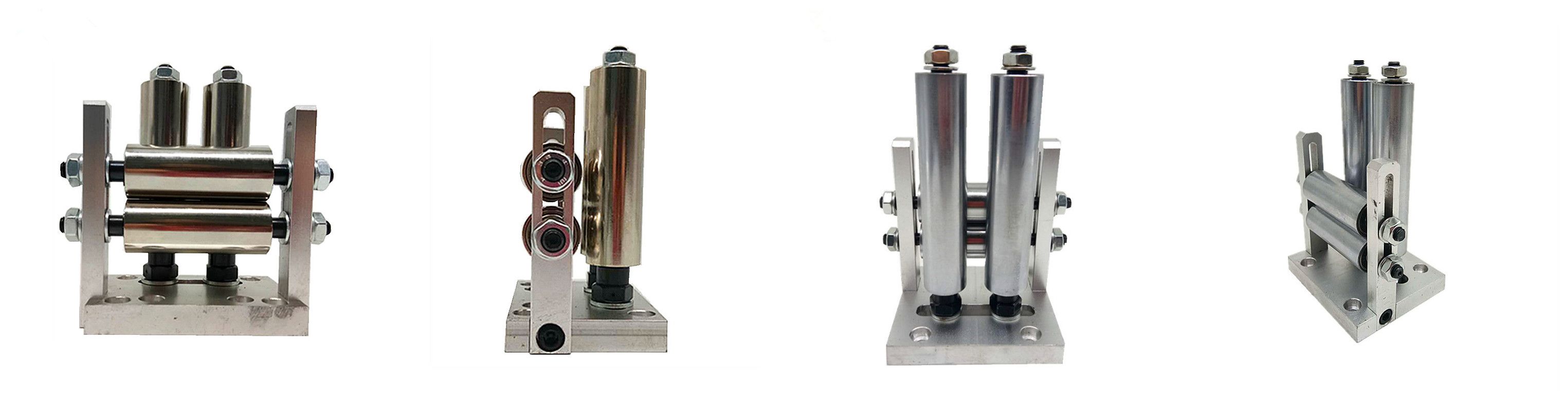

QIPANG cheap four-roller adjustable wire guide roller deviceQIPANG cheap four-roller adjustable wire guide roller deviceQIPANG cheap four-roller adjustable wire guide roller deviceQIPANG cheap four-roller adjustable wire guide roller deviceQIPANG cheap four-roller adjustable wire guide roller device

QIPANG cheap four-roller adjustable wire guide roller device

In more than 10 years of activities, QIPANG has been able to continue to grow and develop, gaining a world-leading position in the production of equipment for the metal wire, cable and pipe industries.

QIPANG has long-term cooperation with important customers, and believes that important customers are reliable partners for those who need high-quality wire straighteners, wire guides,  cutting devices and Forming and bending machine, suitable for solid wire 6-14mm, pipe diameter less than 20mm.

Share:
  • QIPANG cheap four-roller adjustable wire guide roller device
  • QIPANG cheap four-roller adjustable wire guide roller device
  • QIPANG cheap four-roller adjustable wire guide roller device
  • QIPANG cheap four-roller adjustable wire guide roller device
  • QIPANG cheap four-roller adjustable wire guide roller device
  • Description

QIPANG cheap four-roller adjustable wire guide roller device





Product description:

The four-roller adjustable wire guide passing device allows for easy guiding of many types of materials such as wire, cable, tubes, and steel strips. Equipment is placed in line with machinery for a controlled manufacturing process, which protects and guides material during the manufacturing processes.



Wire guide passing device parameters:

Model

Adjustable range

Fixing screw distance

Bottom size

Level wire guide roller length

Vertical Wire guide roller

Material

QP20

11

70*40

90*65

φ25 length 76

φ25 length 86

aluminum

QP30

36

70*60

120*80

φ25 length 67

φ25 length 100

aluminum

QP40

36

72*72

120*90

Φ31 length100

Φ31 length 100

aluminum

QP50

50

104*90

178*132

Φ41 length130

Φ41 length 250

cast iron

XD20

22

70*46

95*65

φ25 length 80

φ25 length 80

aluminum

XD30

15

60*62

96*80

φ25 length 67

φ25 length 118

aluminum

XD40

35

70*80

125*110

Φ31 length100

Φ31 length 100

aluminum

XD50

50

102*110

160*130

Φ41 length130

Φ41 length 250

cast iron

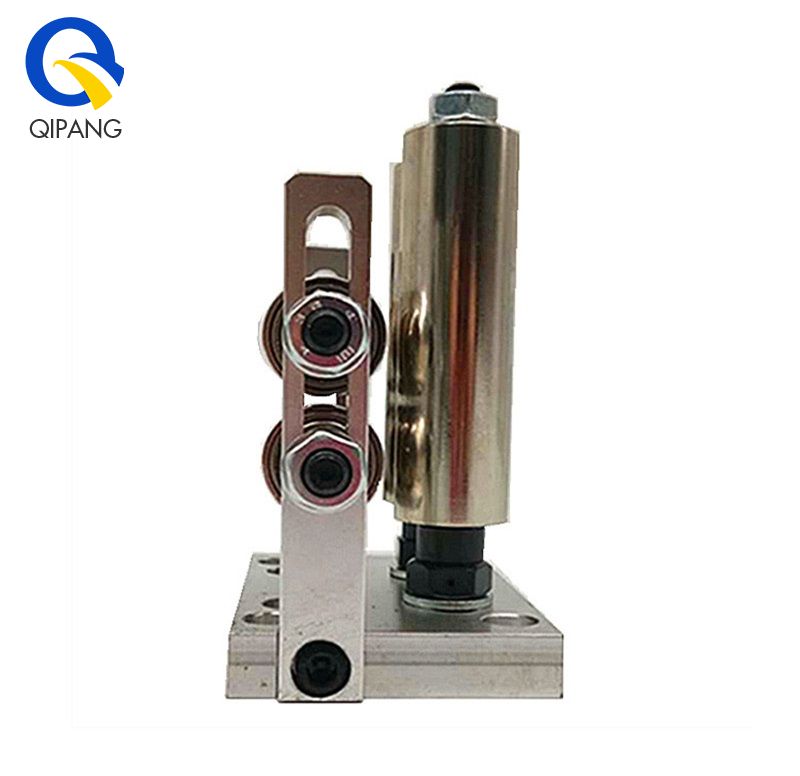

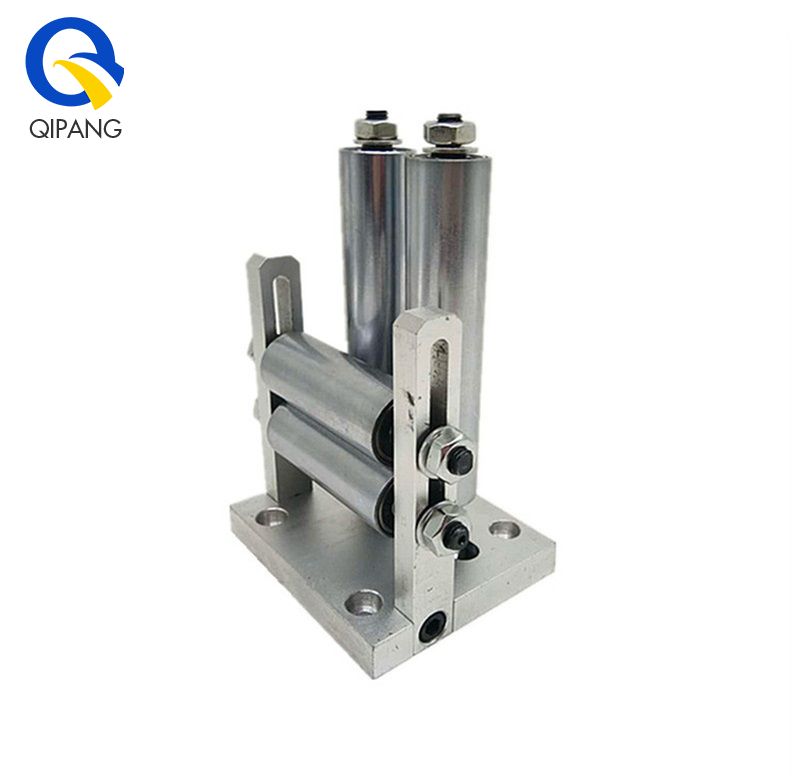

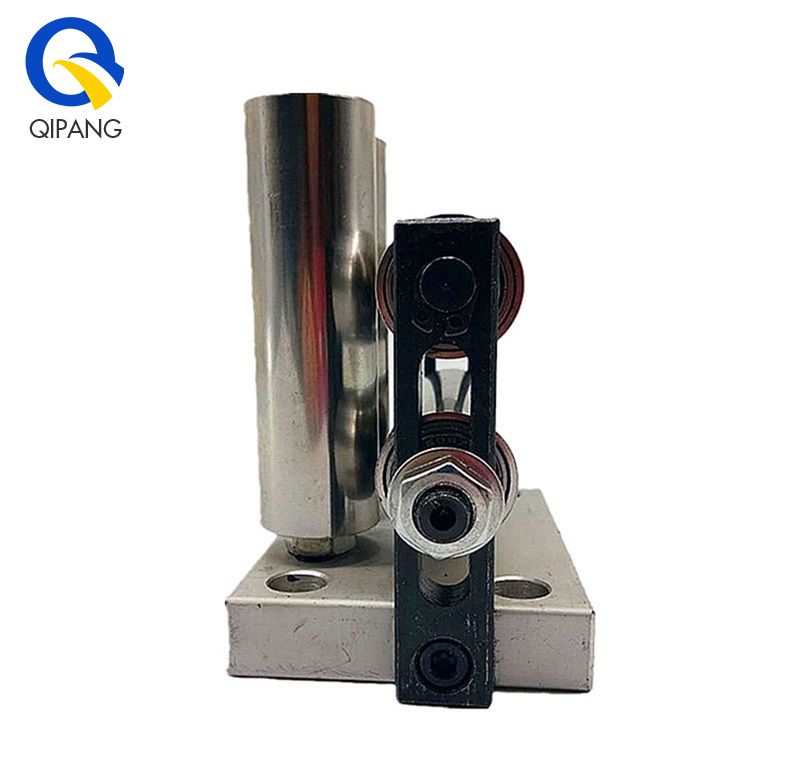

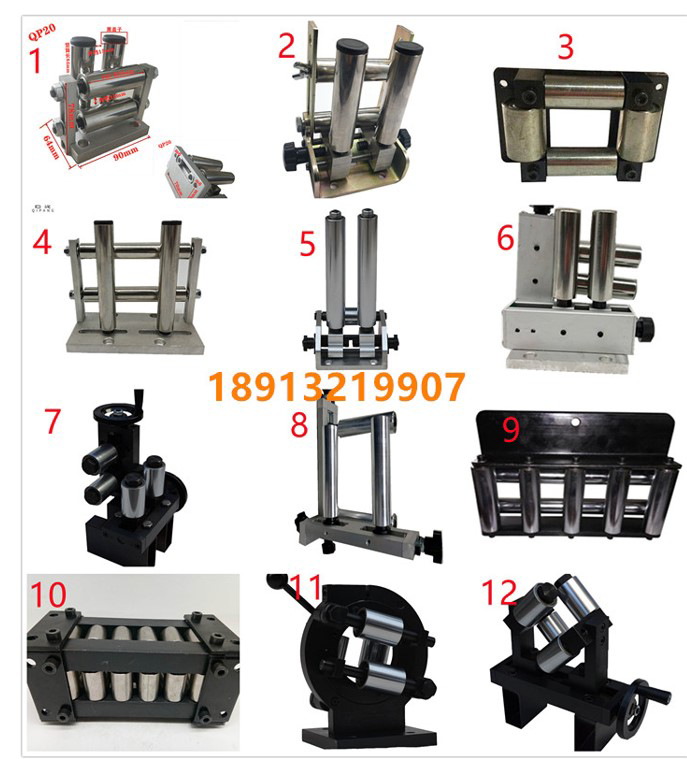

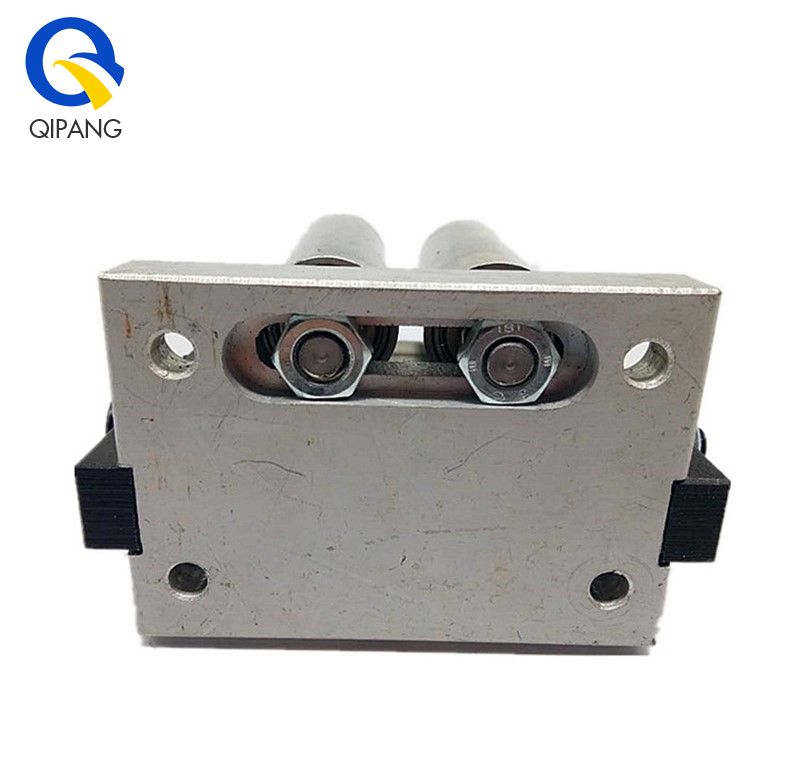

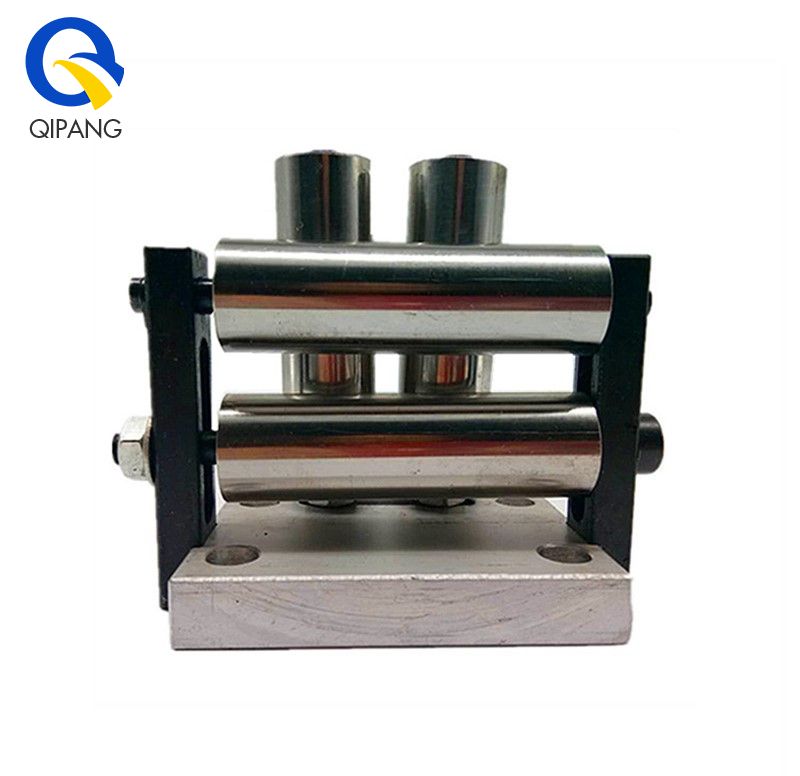

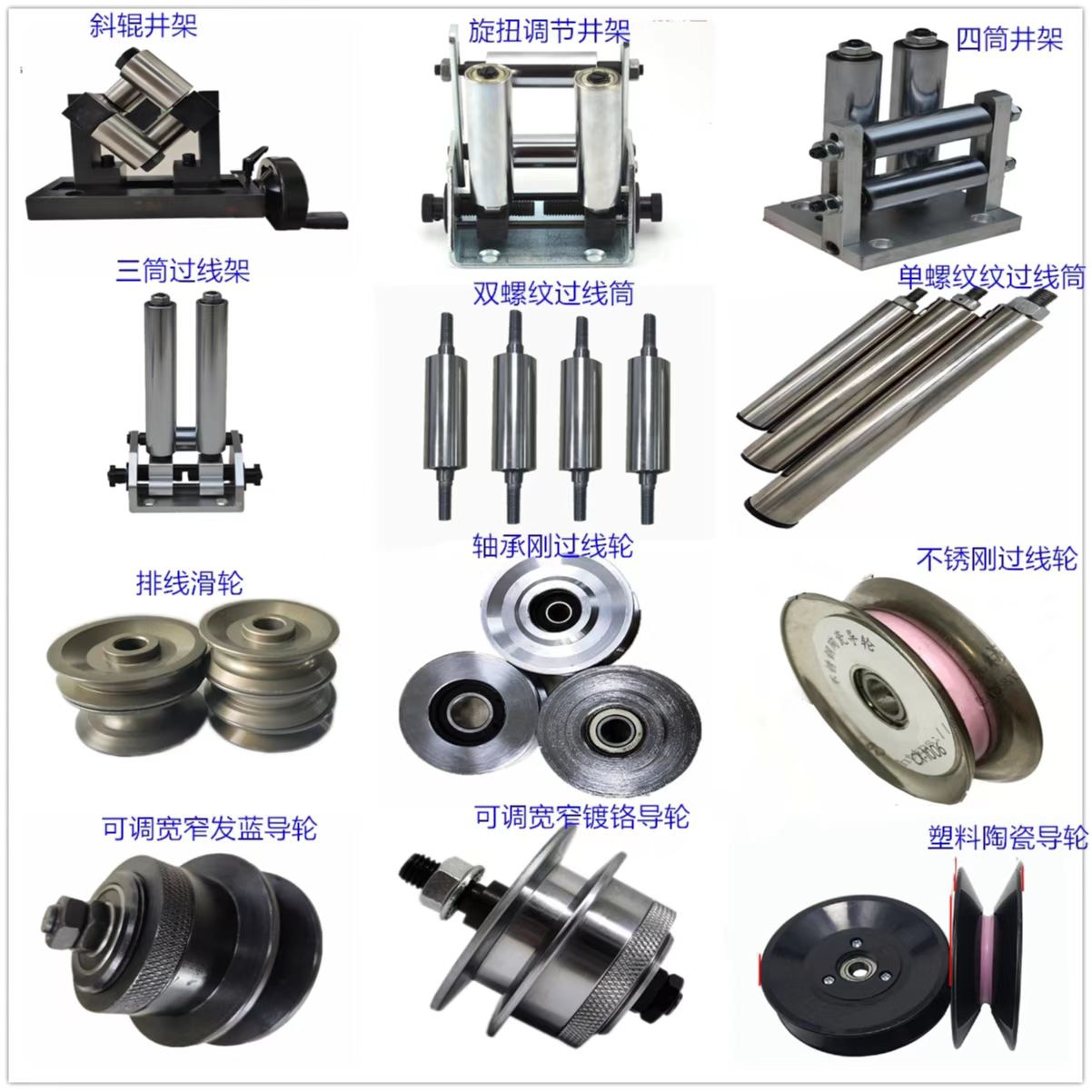

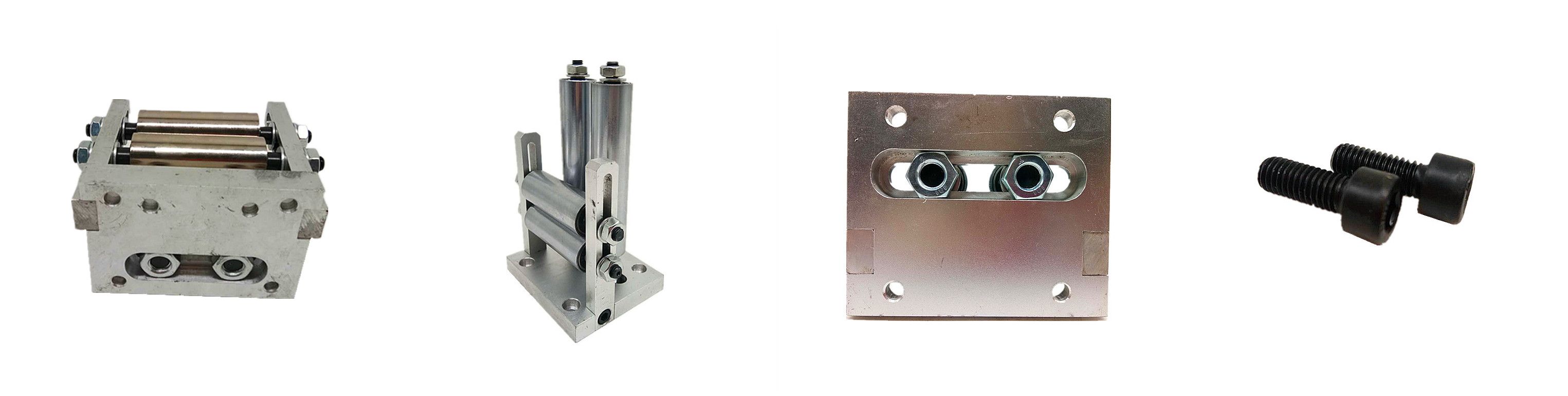

Wire guide passing device picture shows:

QIPANG cheap four-roller adjustable wire guide passing device bulk purchase factory direct sales

QIPANG cheap four-roller adjustable wire guide passing device bulk purchase factory direct sales

QIPANG cheap four-roller adjustable wire guide roller deviceQIPANG cheap four-roller adjustable wire guide roller device

QIPANG cheap four-roller adjustable wire guide roller device

Shanghai Qipang Industrial Co., LTD

In more than 10 years of activities, QIPANG has been able to continue to grow and develop, gaining a world-leading position in the production of equipment for the metal wire, cable and pipe industries.

Since 2011, in addition to the equipment used to process wires, cables and pipes, which has been a feature of the QIPANG product range, QIPANG has put its capabilities and expertise into practice in the manufacture of thread cutting machines equipped with unwinders. A major achievement and international honor in the company's history, the production of machines serving the thread industry is destined to be more and more, providing customers around the world with customized solutions designed according to specific needs to provide products designed for each production Designed for reality.

The high quality of QIPANG products, efficient after-sales service, and an extensive network of agents and distributors ensure that the customer's attention is always received from the moment of purchase to the product life cycle.

The company's consistent principles are quality, timely delivery, reasonable prices and after-sales service.


Business Scope:

QIPANG has long-term cooperation with important customers, and believes that important customers are reliable partners for those who need high-quality wire straighteners, wire guides, automatic wire straightener, wire straightening and cutting machine, cutting devices and Forming and bending machine, suitable for solid wire 6-14mm, pipe diameter less than 20mm.


After-sales service:

After the sale, the machine is guaranteed for one year under the premise of reasonable use of the customer. Maintain work at home and maintain response time of no more than 24 hours. Free maintenance during the warranty period, and the equipment maintenance service beyond the warranty period is subject to clear charges.

QIPANG cheap four-roller adjustable wire guide passing device bulk purchase factory direct sales

FAQ:

Q:How about your after-sale service?
A:We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.

Q: What are your payment terms?
A:100%TT or prepaid 50% , balance 50% before shipping.

Q: How can I get my order? How can I know you sent the goods?
A:We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods, we will give you the tracking number or other relative files for checking.



Q:What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes or wooden cartons.


Q: Will you send the installed machine or machine parts?
A:We will install the machine and test the machine before delivery. And the machine can be used directly after receiving the machine.

Q: Will you provide operation guidance for us?
A:We will send the instruction book with the machine and send you a video about how to operate the machine.
