Qipang wire straightener rollers straightening wireQipang wire straightener rollers straightening wireQipang wire straightener rollers straightening wireQipang wire straightener rollers straightening wireQipang wire straightener rollers straightening wire

Qipang wire straightener rollers straightening wire

Straightener Overview:

Straightening machine is a device for straightening metal bars, pipes, wires, etc. The straightening machine changes the straightness by extruding a bar or the like with a straightening roller. There are generally two rows of straightening rollers, varying in number. There are also two-roll straighteners, which rely on the change in the angle of the two rolls (concave in the middle, hyperbola roll) to straighten materials of different diameters. The main types are pressure straighteners, balance roll straighteners, shoe roll straighteners and so on.

Share:
  • Qipang wire straightener rollers straightening wire
  • Qipang wire straightener rollers straightening wire
  • Qipang wire straightener rollers straightening wire
  • Qipang wire straightener rollers straightening wire
  • Qipang wire straightener rollers straightening wire
  • Description

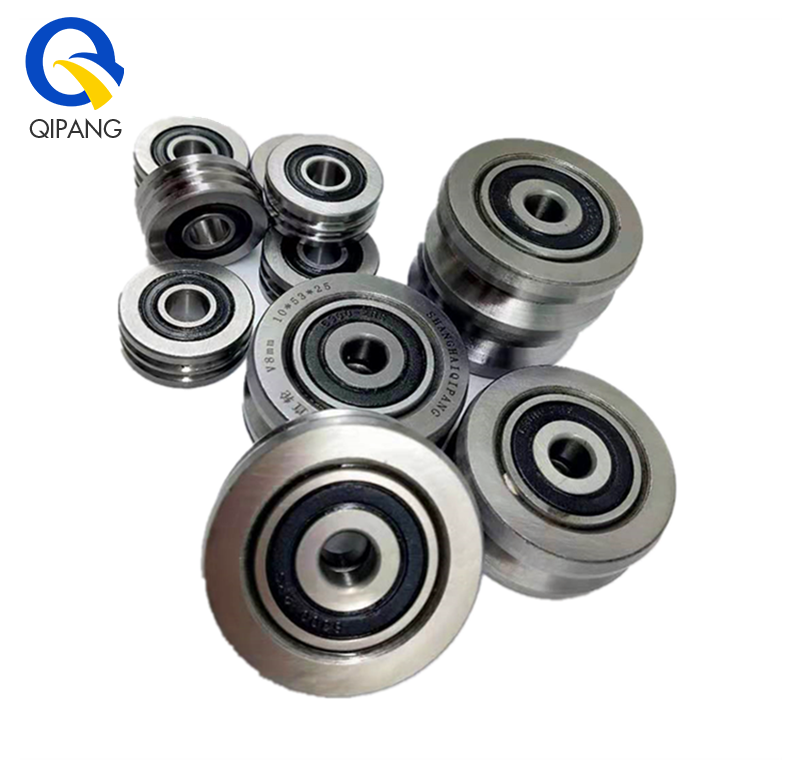

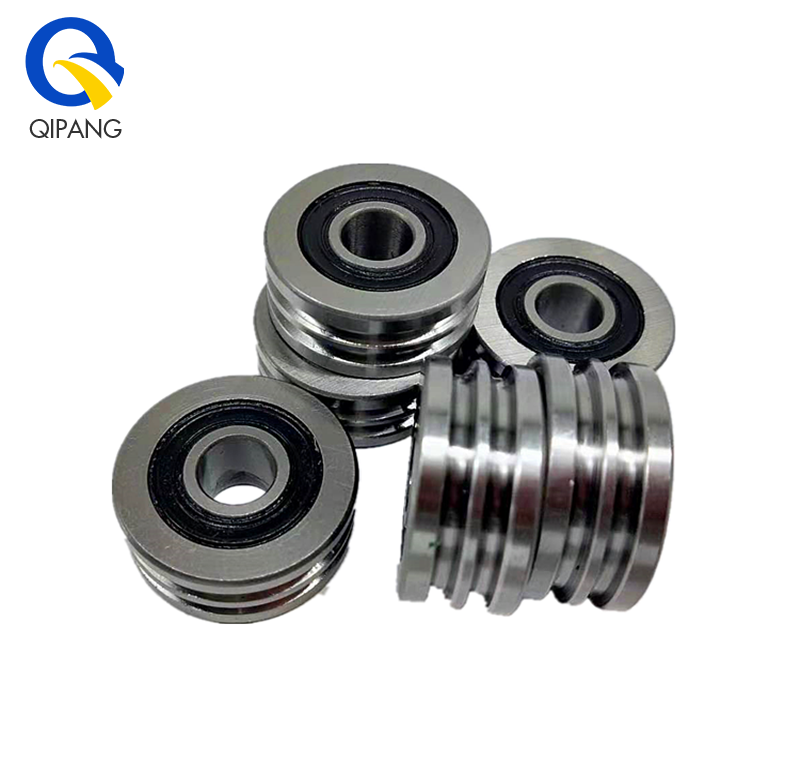

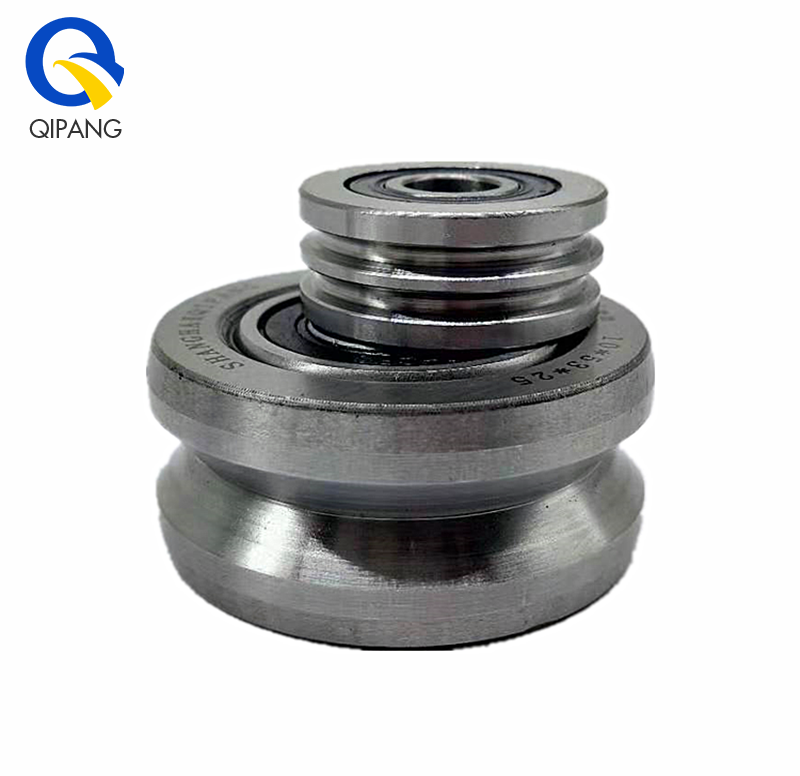

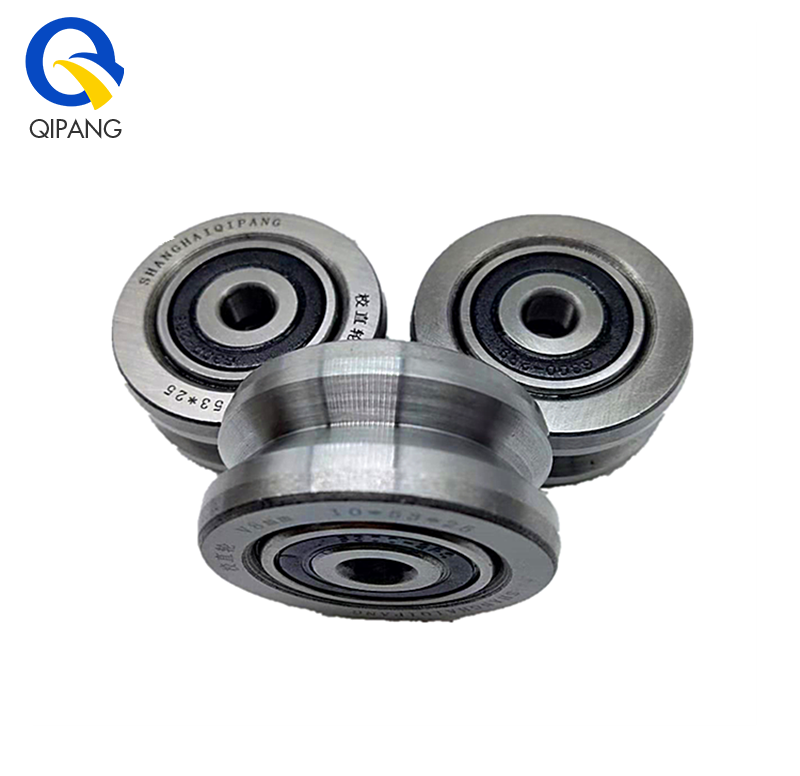

Qipang wire straightener rollers straightening wire

V-guide straightening roller (straightening roller) - A and AT series applications:V-guide straightening roller (straightening roller) - A and AT series applications:

Cables, steel bars and steel wires are subjected to progressively straightening and straightening to obtain the final product, with reasonable operation of different steps for coils or stocks and unnatural materials. Therefore, for each step of production must be completed by its material support part of the flipping process, at this time the straightening and shaping operation begins, specifically in three steps:

1. Straightening: The material is returned to the original, this step is completed by the first few guiding straightening wheels (straightening wheels).

2. Removal of the residue due to the reel formed by the reel: This step is performed by a guide straightening wheel located in the middle of the straightener.

3. The last few guiding straightening rollers complete the forming of the steel wire: generally these guiding straightening rollers are placed at an angle of 90 degrees to the first few guiding straightening rollers. Usually these three steps should be combined, on the grounds that the straightener uses 5.7.1.11 or 13 guiding straightening rollers on the two planes. The manufacturing accuracy of the guide straightening roller has a major influence on the quality of the final product (steel wire) and the service life of the guiding straightening roller.

Therefore, the V-shaped straightening groove on the outer circle should have the same geometric characteristics and precision as the other parts of the guiding straightening roller. For this purpose, the V-grooves leading to the straightening rollers have been precision machined prior to assembly of the alignment straightening rollers.
V-slot model
(90 degrees)
Inner diameter * outer diameter * thickness
Slot width (about)
Groove depth (about)
V623ZZ
3*12*4mm
2.5mm
1mm
V624ZZ
4*13*6 mm
4.8mm
2.1mm
V625ZZ(small V)
5*16*5 mm
1.3mm
0.3mm
V625ZZ(big V)
5*16*5 mm
2.8mm
0.5mm
A603zz
6*21*6 mm
1.8mm
1.2mm
V608zz
8*22*7 mm
2mm
0.75mm
V608zz
8*23*7 mm


A806zz
8*26*7 mm
3mm
1.8mm
V6000zz
10*30*8 mm
3.3mm
1.8mm
V6200zz
10*35*9 mm
4.2mm
2.1mm
V6202zz
15*47*11 mm
6mm
3mm
U-groove bearing
Inner diameter * outer diameter * thickness
Slot width (about)
Groove depth (about)
U624zz
4*13*7 mm
4.5mm
1.8mm
V1804RS
4*18*8/7mm
4mm
2.5mm
U6202zz
15*47*11 mm
6mm
3mm
U6001zz
12*28*8 mm
2.2mm
0.7mm
U638zz
8*28*8 mm
3mm
0.7mm
U628zz
9*26*8 mm
1.5mm
0.25mm

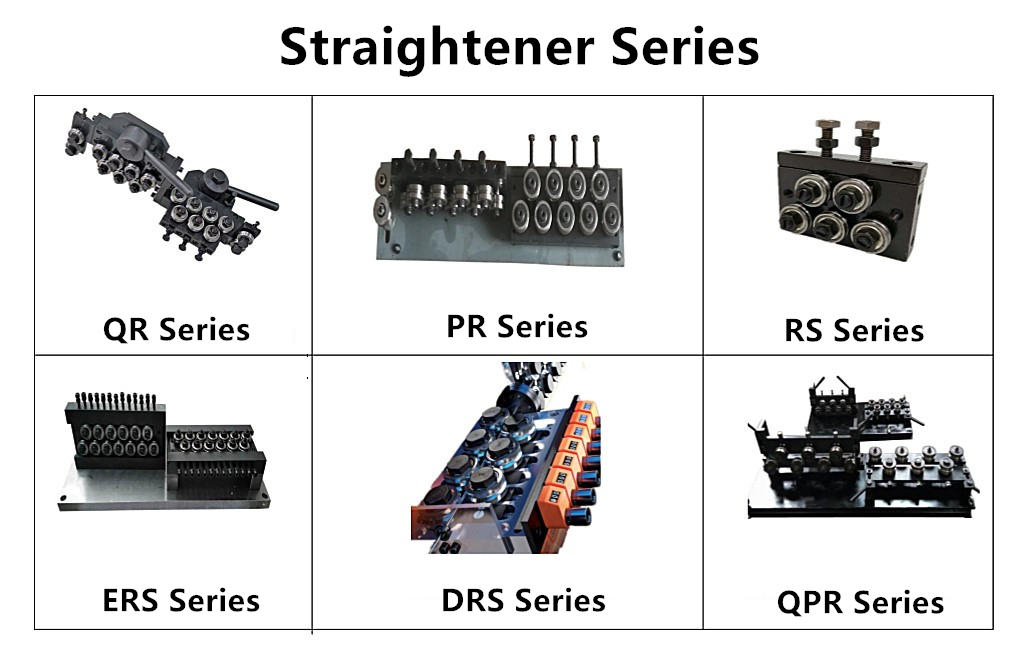

Wire Straightener series:

QIPANG discount high precision straightening roller sample wholesale

Straightener type introduction:

QR series:

1. With quick opening and closing handle, the whole opening and closing, easy to enter and exit the line

2. With guide to prevent the wire from drifting

3. Light weight

PR series:

1. With bottom plate, easy to fix

2. More stable during straightening

3. High positioning accuracy

RS series:

1. Can be used for wire positioning, increase certain resistance

2. Affordable price, easy installation

3. Easy to carry

ERS series:

The center can be adjusted freely, each straightening wheel can be adjusted according to the actual situation

DRS series:

1. Each time the amount of depression is displayed, it is convenient for subsequent operations

2. High accuracy

QPR series:

1. Easy to fix with large bottom plate

2. Easy to adjust wire entry and exit with handle

3. Larger wheel spacing, better straightening effect.



After-sales service:

After the sale, the machine is guaranteed for one year under the premise of reasonable use of the customer. Maintain work at home and maintain response time of no more than 24 hours. Free maintenance during the warranty period, and the equipment maintenance service beyond the warranty period is subject to clear charges.

QIPANG discount high precision straightening roller sample wholesaleQIPANG discount high precision straightening roller sample wholesale

FAQ:

Q:How about your after-sale service?
A:We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.

Q: What are your payment terms?
A:100%TT or prepaid 50% , balance 50% before shipping.

Q: How can I get my order? How can I know you sent the goods?
A:We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods, we will give you the tracking number or other relative files for checking.



Q:What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes or wooden cartons.


Q: Will you send the installed machine or machine parts?
A:We will install the machine and test the machine before delivery. And the machine can be used directly after receiving the machine.

Q: Will you provide operation guidance for us?
A:We will send the instruction book with the machine and send you a video about how to operate the machine.
