QIPANG OD50 double unit high quality metal coil wire straightening machineQIPANG OD50 double unit high quality metal coil wire straightening machineQIPANG OD50 double unit high quality metal coil wire straightening machineQIPANG OD50 double unit high quality metal coil wire straightening machine

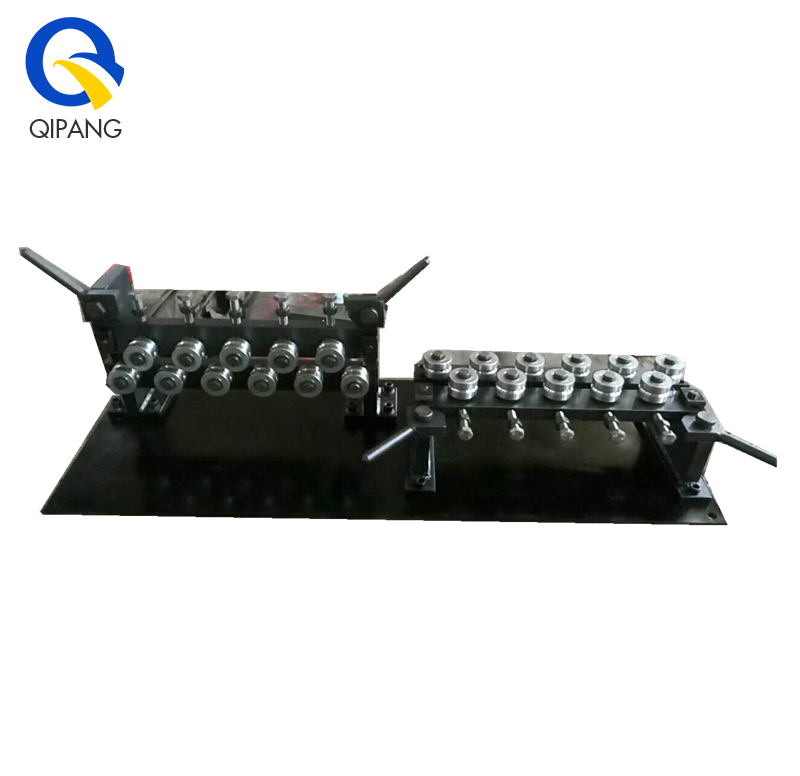

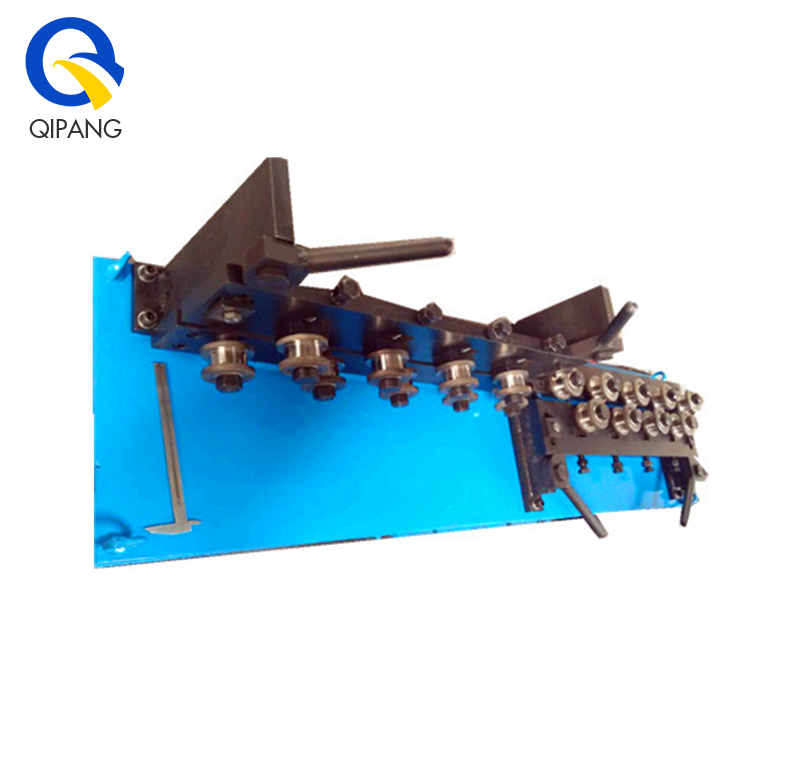

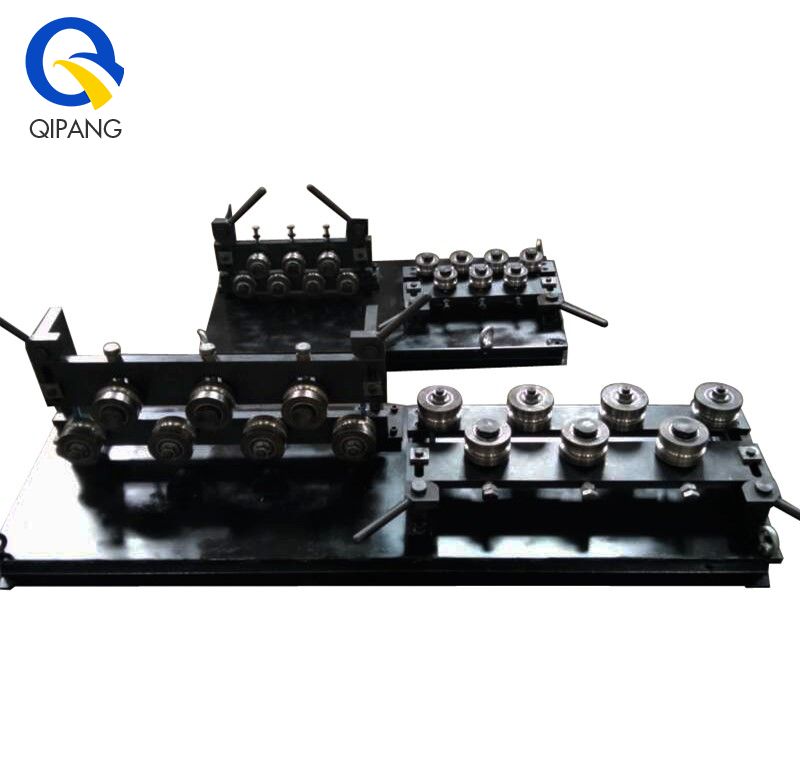

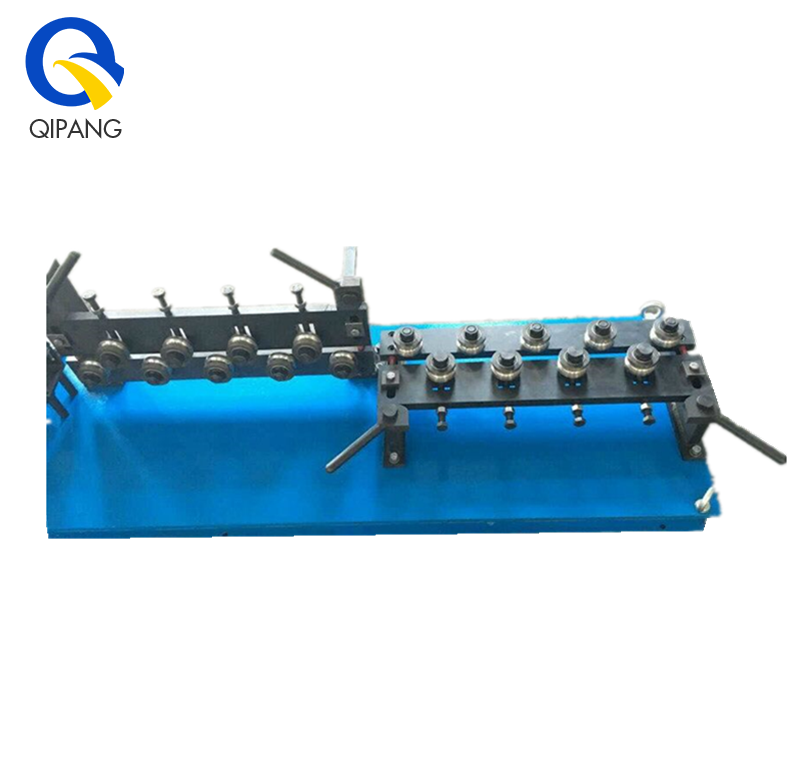

QIPANG OD50 double unit high quality metal coil wire straightening machine

1. CE&SGS certificationISO1990 Quality system certification

2.Fast spare parts distribution and sufficient inventory

3. 10 years of development,manufacturing, market experience

4. Flexible development and customization tools

5. Excellent consulting team covering the world

6. Whatsapp:13472630866 / Wechat:18916332415


Share:
  • QIPANG OD50 double unit high quality metal coil wire straightening machine
  • QIPANG OD50 double unit high quality metal coil wire straightening machine
  • QIPANG OD50 double unit high quality metal coil wire straightening machine
  • QIPANG OD50 double unit high quality metal coil wire straightening machine
  • Description

QIPANG OD50 double unit high quality metal coil wire straightening machine

Mainly used on drawing machines

1, Single and dual plane straightener models JZQ 4-7/14/14AV

2, Eccentric roller open/closing device (lever)

3,Quantity of roller in stock 7+7 ,From 5 ~ 19 rollers  per group (5+5,7+7,9+9,11+11,13+13,15+15,17+17,19+19)

4,Roller diameters 37mm (1.457")  ,,Customizable 23-120mm (0.905"-4.724409")

5,Adjustable rollers on the upper row

6,   Rollers available for light or heavy duty applications

7,Model AS/AD for wire R = 60 N/mm2 (8400 psi) max. with normal rollers (single or double bearing)

8,Rollers are standard "V" groove profiles but can be provided with "U" grooves 9,according to customer requirements

*Wire Guide included


Straightener Type


ModelTypeWire Diameter (Solid)Roller Diameter (mm/inch)Roller Qty  (pcs)structuregroove
JZQ 0.05-0.2/38AVV-7φ0.05-0.2mm7(0.276)38quick clamping V
JZQ 0.2-0.5/34AVV-12φ0.2-0.5mm12(0.472)34V
JZQ 0.5-0.8/26AVV-16φ0.5-0.8mm16(0.630)26V
JZQ 0.8-1.5/5/18AVV-23φ0.8-1.5mm23(0.906)5/18V
JZQ 1.5-3/5/18AVV-30φ1.5-3mm30(1.181)5/18V
JZQ 3-4/18AVV-32φ3-4mm32(1.260)18V
JZQ 4-7/14/18/22AVV-42φ4-7mm42(1.654)14/18/22unclampingV
JZQ 5-8/14/18/22AVV-54φ5-8mm54(2.126)14/18/22V
ModelTypeTube/Pipe Diameter (Hollow)Roller Diameter (mm)Roller Qty                  (pcs)structuregroove
JZQ 1-3/14/18 BU/RU-301-3mm3018/14quick clamping U/R
JZQ 4-10/14/18/22 BU/RU-424-10mm4214/18/22unclampingU/R
JZQ 10-20/14/18/22 BU/RU-5410-20mm5414/18/22unclampingU/R
I.  Different groove types can be customized.
II.  Quick clamping is straightener with a handle for easy opening and closing the rollers




Straightener adjustment diagram

6-25mm straightening  10mm copper pipe  Pipe straightening




Straightener series

6-25mm straightening  10mm copper pipe  Pipe straightening


Factory & Store


QIPANG JZQ 4-6/9 BV middle



Customer Make  QIPANG Wire Straightener

We can design and produce the wire straightener according to customer requirements.


1. Material ( steel,copper )

2. Diameter of steel wire or steel tube or copper tube

3. Operating speed ( m / min )

4. Single plane or double plane

5. If need qucik lever, if need guide roller, if need solid base


Equipment Reconstruction and Update

Just tell us the maker or brand of used wire straightener, and then we help you to select, optimize the suitable resulatiuons.


1,What's the diameter of your steel wire ? Minimum and maximum range,How to choose the right straightener according to their own material?

2,Does the raw material come in rolls, in bundles, Hollow roll or solid material?

3,Have you used it before? Now do you have any pictures you want to send to us?

4,If you are interested in our products, please contact me as soon as possible, I will offer you some discounts, you can contact me freely :Whatsapp:+8613672630866/Wechat:+8618916332415


About us

With more than 10 years of experience:

QIPANG has established an excellent reputation in the industry through the highest quality products designed and manufactured by outstanding engineering teams and providing our customers. After more than 10 years of continuous supply and maintenance of the highest quality machinery, tools, and accessories to the wire straightening industry, this excellent word of mouth continues today.

Hydraulic bending machine Forming Machine  2-6mm 2-7mmIron wire, stainless steel wire , bending machine for metal wire

Hydraulic bending machine Forming Machine  2-6mm 2-7mmIron wire, stainless steel wire , bending machine for metal wire

QIPANG PR70-V middle

Committed to customer satisfaction:

QIPANG is known worldwide for developing and selling a wide range of straightening tools and accessories. We consistently use the highest quality materials and equipment to build our products, which has always been our corporate philosophy.

Here, we are committed to making quality and service satisfaction to our customers around the world. Whether our customers need standard products or custom-made products, QIPANG has the following qualities:

1. 10 years of development,manufacturing, market experience

2. A wide range of tool components

3. highest quality requirements and guarantees

4. Flexible development and customization tools

5. Excellent consulting team covering the world

6. Fast spare parts distribution and sufficient inventory

7. Guaranteed risk-free warranty management

8. Solutions, from the very beginning.



In addition, QIPANG is located at Zhaofeng Road Subway Station, No. 11 Jiading Anting, Shanghai.

Since 2009, the metal products series machine has been provided.



After-sales service:

After the sale, the machine is guaranteed for one year under the premise of reasonable use of the customer. Maintain work at home and maintain response time of no more than 24 hours. Free maintenance during the warranty period, and the equipment maintenance service beyond the warranty period is subject to clear charges.
