QIPANG CNC Automatic steel wire straightener machine for cutQIPANG CNC Automatic steel wire straightener machine for cutQIPANG CNC Automatic steel wire straightener machine for cutQIPANG CNC Automatic steel wire straightener machine for cutQIPANG CNC Automatic steel wire straightener machine for cut

QIPANG CNC Automatic steel wire straightener machine for cut

1. We have CE&SGS certification ,ISO1990 Quality system certification ,so on...
2. Good quality and professional pre - sales, after - sales service.
3.13 years of development, manufacturing and marketing experience, the main customers are: North America (United States, Canada, Mexico), Europe (Italy, Britain, France, Poland, Netherlands), Southeast Asia, etc.
4. Flexible development and customization CEM COM.
5. Excellent consulting team covering the world.
6. Fast spare parts distribution and sufficient inventory.




Share:
  • QIPANG CNC Automatic steel wire straightener machine for cut
  • QIPANG CNC Automatic steel wire straightener machine for cut
  • QIPANG CNC Automatic steel wire straightener machine for cut
  • QIPANG CNC Automatic steel wire straightener machine for cut
  • QIPANG CNC Automatic steel wire straightener machine for cut
  • Description

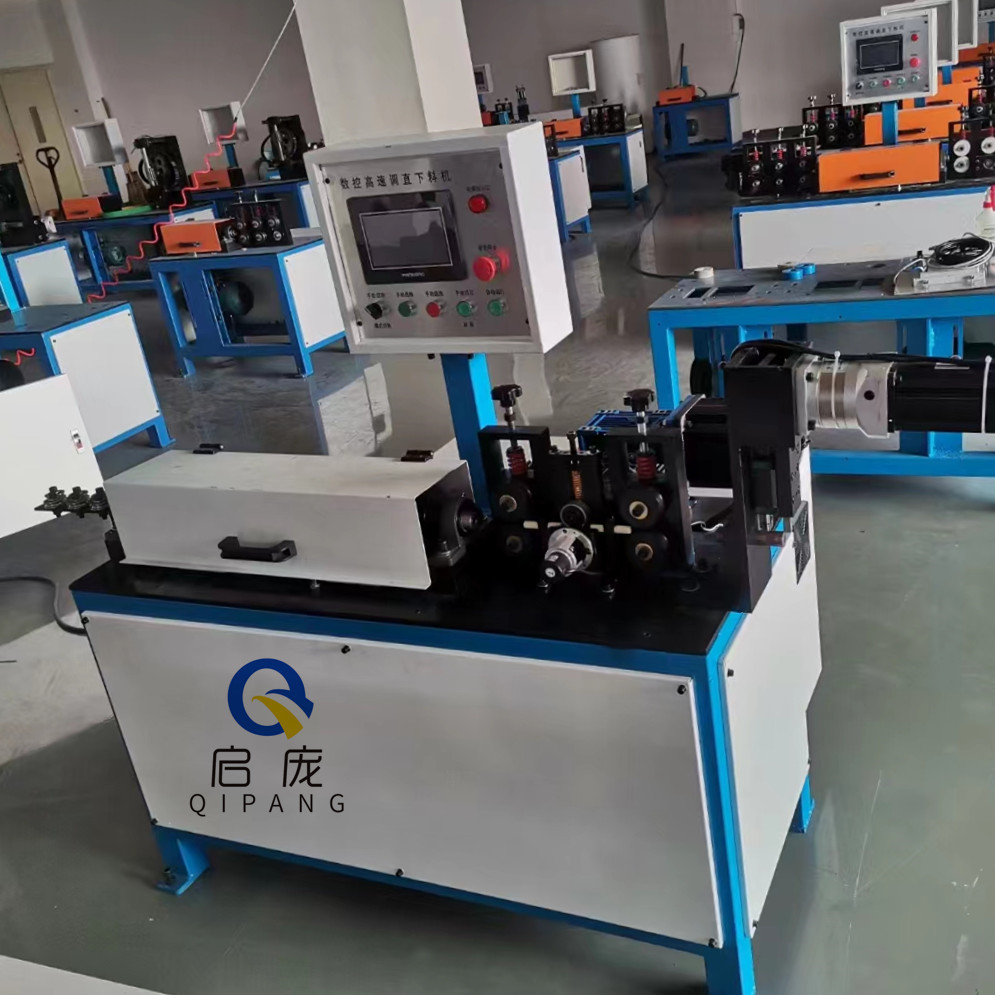

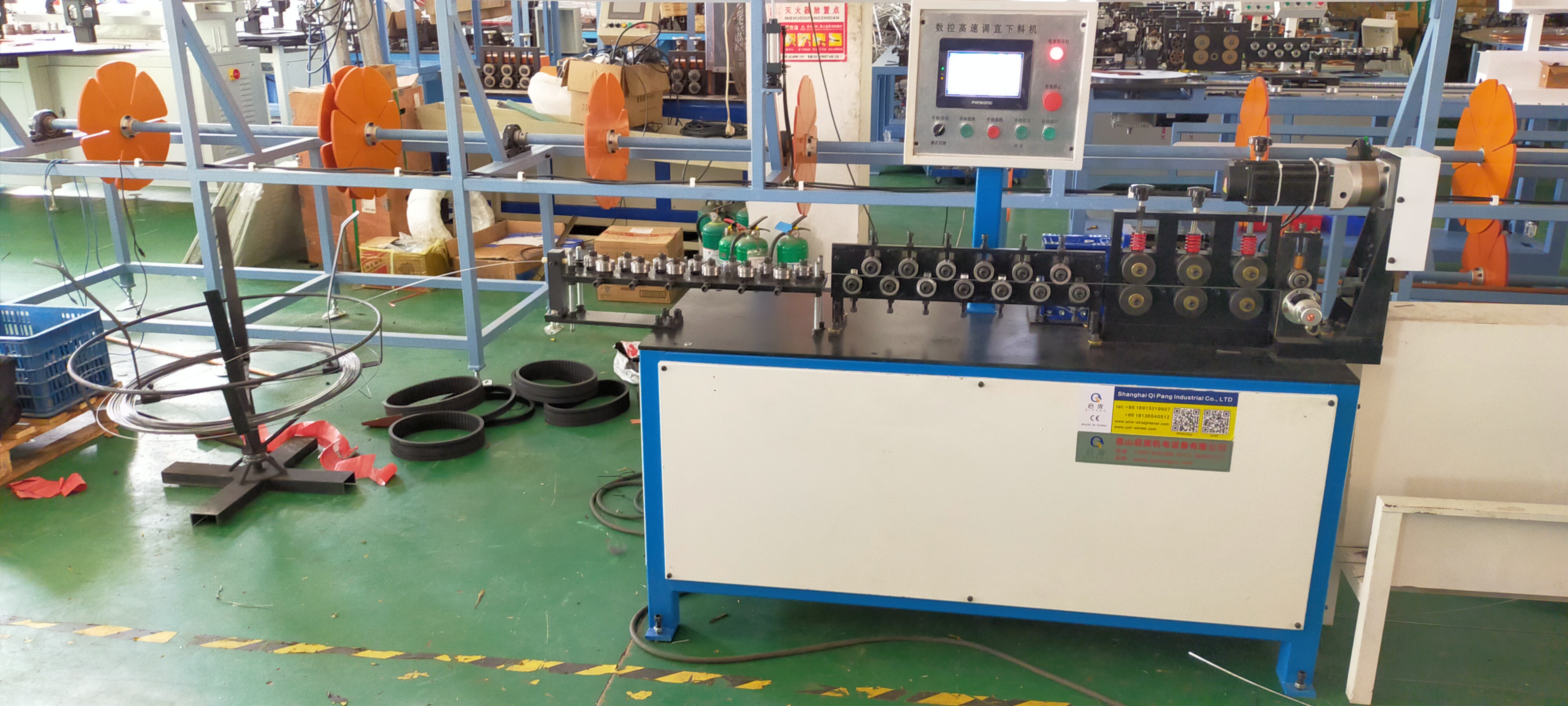

QIPANG CNC Automatic steel wire straightener machine for cut

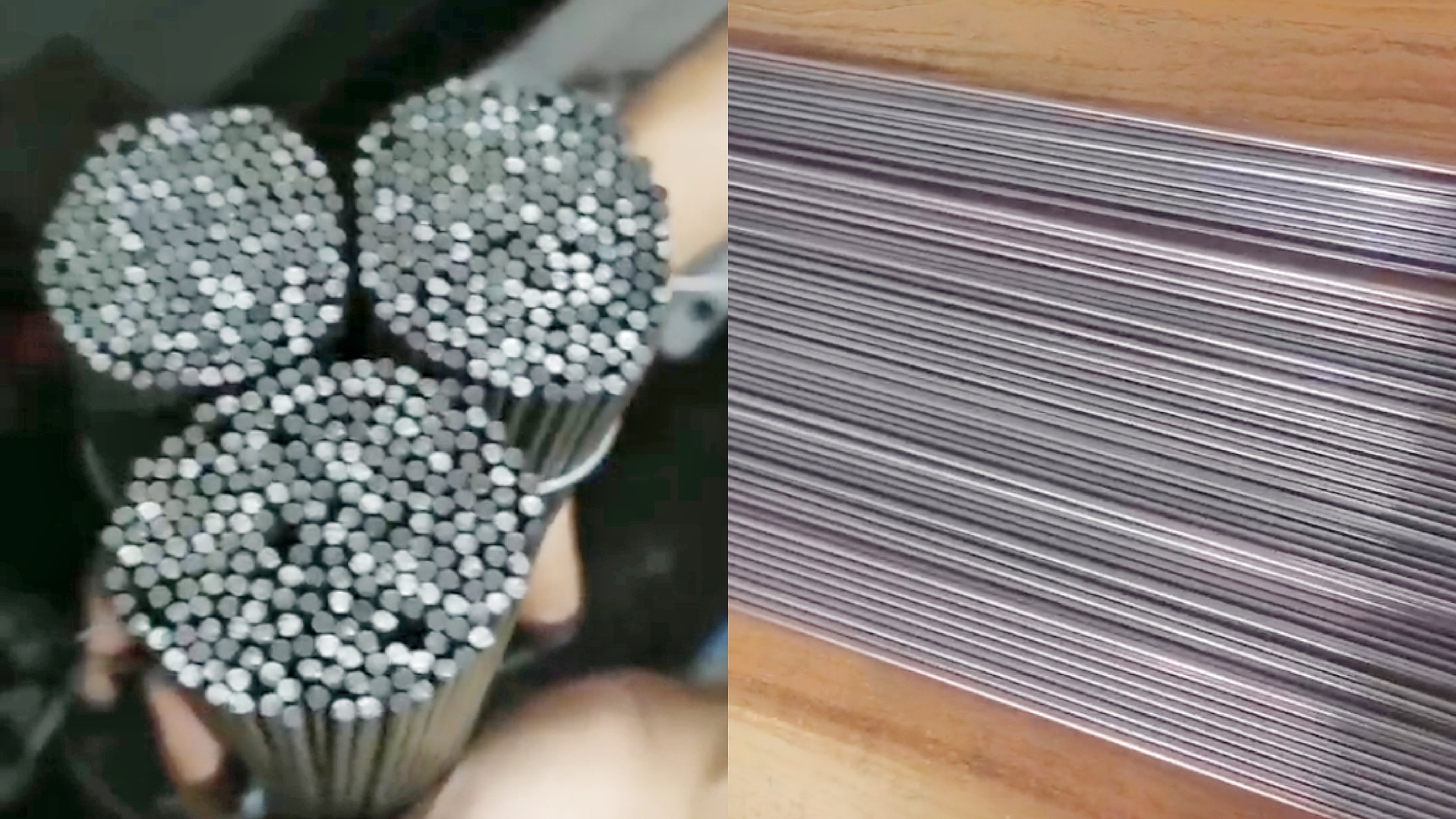

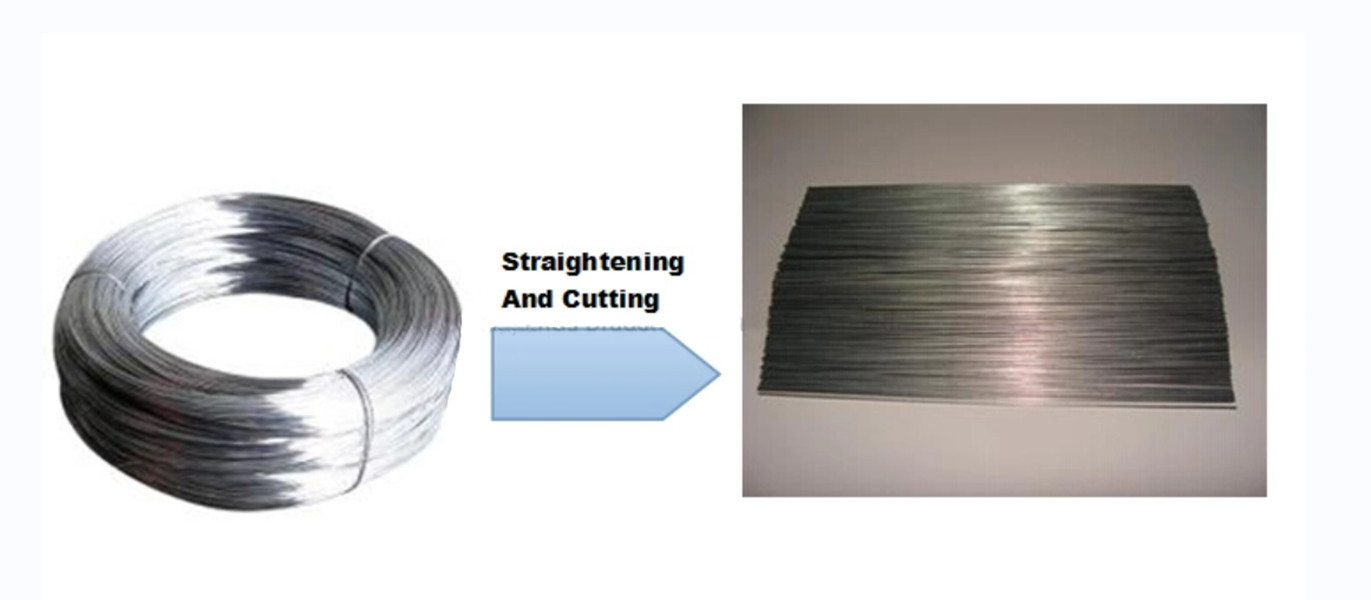

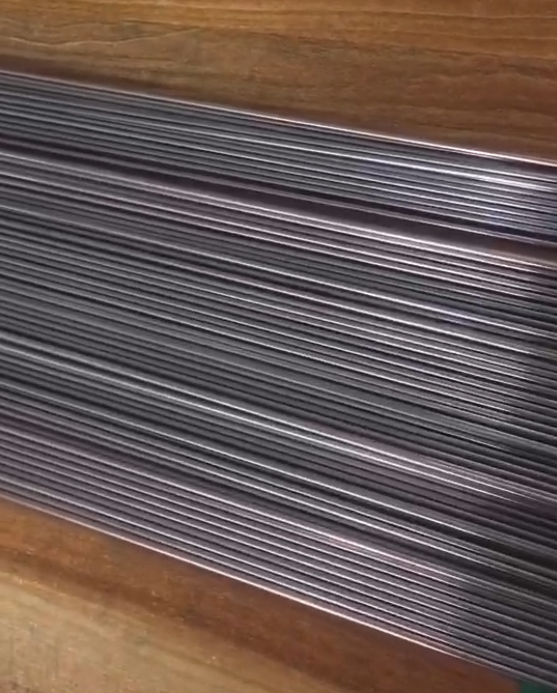

This device can be suitable for all kinds of metal wire straightening cutting, surface, no scratches, cutting length error of 0.2-0.5 mm, the cutting length range is 80mm to 6000mm. Human-machine incorporate touch screen control system, can save manpower for the customer. Company's main range of wire 1 mm to 5 mm can be customized, fastest of up to 150 meters per minute,available for copper, iron, aluminum, gold, silver, stainless steel, high carbon steel and plastic coated wire, metal wire.If you want faster speed, please contact customer service.If you are concerned about the straightening effect, we can provide free proofing.

Configuration parameters of high speed straightener,

1 two servo motors, 1.5 kw traction and 1:10 planetary reducer, cut off 1.5 kw,

2 cut off the PLC touch screen electronic CAM system,

3 servo motor brand, servo motor

4 fuselage length 1850mm wide 780mm total height 1300mm.It weighs about 498 kilograms.

5 the total weight of the automatic spreader is 90kg.

6. The control mode includes inverter analog control system,

7. Minimum diameter: 250mm; maximum diameter: 500mm;

8 the weight of the spreader is about 90kg"



Type and wire diameter:
QP-φ0.2-1mm
QP-φ1-6mm
QP-φ7-12mm

Cutting range:
10mm – 99999mm

Max cutting speed:
200pcs/min
400 pcs/min

Wire feeding speed:
20-60m/min
20-80m/min
20-60m/min

Length error:
±0.2mm
±0.2mm for uniform speed

Wire material:

Common carbon steel wire and stainless steel wire

Accessories:

Withdrawable wire rack, Movable receiving pocket, Recommended automatic wire rack for lines above 3.0

Feeding stand:
1000*300*150

Feeding motor:

2.0kw servo motor

Straightening motor

Custom adjustable speed motor 3KW/2880r

Cutting shear motor:

2.8KW Cut off servo motor

Rail module:

Nextron

Number of feeding rollers:

2 group (4 pairs rollers)

HMI:

7 inch touch screen

Number of straightening rollers:

8 pcs

Material of shear:

Cr12 Steel, partly made by Nextron
Electric box brand:
Relay—IDEC,
contactor--CHINT
switching power supply—DELTA,
 Motion Controller—Guangzhou shifu
Measurement(length*width*height)
1700*700*1350(mm)


automatic copper pipes tube pipe straightening and cutting machine copper tube straighter  coil steelaluminum copper tube straightener and cutter machineautomatic copper pipes tube pipe straightening and cutting machine copper tube straighter  coil steelaluminum copper tube straightener and cutter machineautomatic copper pipes tube pipe straightening and cutting machine copper tube straighter  coil steelaluminum copper tube straightener and cutter machineautomatic copper pipes tube pipe straightening and cutting machine copper tube straighter  coil steelaluminum copper tube straightener and cutter machineautomatic copper pipes tube pipe straightening and cutting machine copper tube straighter  coil steelaluminum copper tube straightener and cutter machineautomatic copper pipes tube pipe straightening and cutting machine copper tube straighter  coil steelaluminum copper tube straightener and cutter machineautomatic copper pipes tube pipe straightening and cutting machine copper tube straighter  coil steelaluminum copper tube straightener and cutter machine

Packing:

automatic copper pipes tube pipe straightening and cutting machine copper tube straighter  coil steelaluminum copper tube straightener and cutter machineautomatic copper pipes tube pipe straightening and cutting machine copper tube straighter  coil steelaluminum copper tube straightener and cutter machine

automatic copper pipes tube pipe straightening and cutting machine copper tube straighter  coil steelaluminum copper tube straightener and cutter machine


QIPANG CNC Automatic steel wire straightener machine for cut
