Roller-driven 3mm 4mm Capillary Tubes Automatic Straightening and Cutting Machines for air conditioning refrigeration equipment

Roller-driven 3mm 4mm Capillary Tubes Automatic Straightening and Cutting Machines for air conditioning refrigeration equipment

Shanghai Qipang mainly focuses on the production of : CNC straightening and cutting machines, electric straighteners, manual straighteners, and traction feeding systems.

Capillary Tubes Automatic Straightening and Cutting Machines are suitable for various pipe materials, such as copper pipes, aluminum pipes, stainless steel pipes, Bondi pipes, and iron pipes, and are applicable to both round and square pipes.

Automatic Straightening and Cutting Machines are suitable for pipe outer diameters of : Φ1.8-Φ4  (Φ1/16" -5/32").

The Capillary Tubes Automatic Straightening and Cutting Machines adopts a pneumatic PLC servo control system; the material is manually fed to the feeding rack, straightened by the horizontal and vertical straightening group, and the servo rotates four feeding wheels to automatically cut the material when it reaches the required length; the straightening method is straightening with 30 wheels in the horizontal and vertical directions; the feeding power group uses a servo motor to drive the rotating wheels to feed the material, and a rotary encoder counts the length.

The complete set Capillary Tubes Automatic Straightening and Cutting Machines includes:

1. Pay-off rack (multiple styles available)--Optional

2. CNC straightening and cutting machine (main unit)

3. Pneumatic tilting receiving rack (standard 1.2-meter length selectable)--Optional
Note: Unless otherwise stated, the quote usually only includes the main unit.

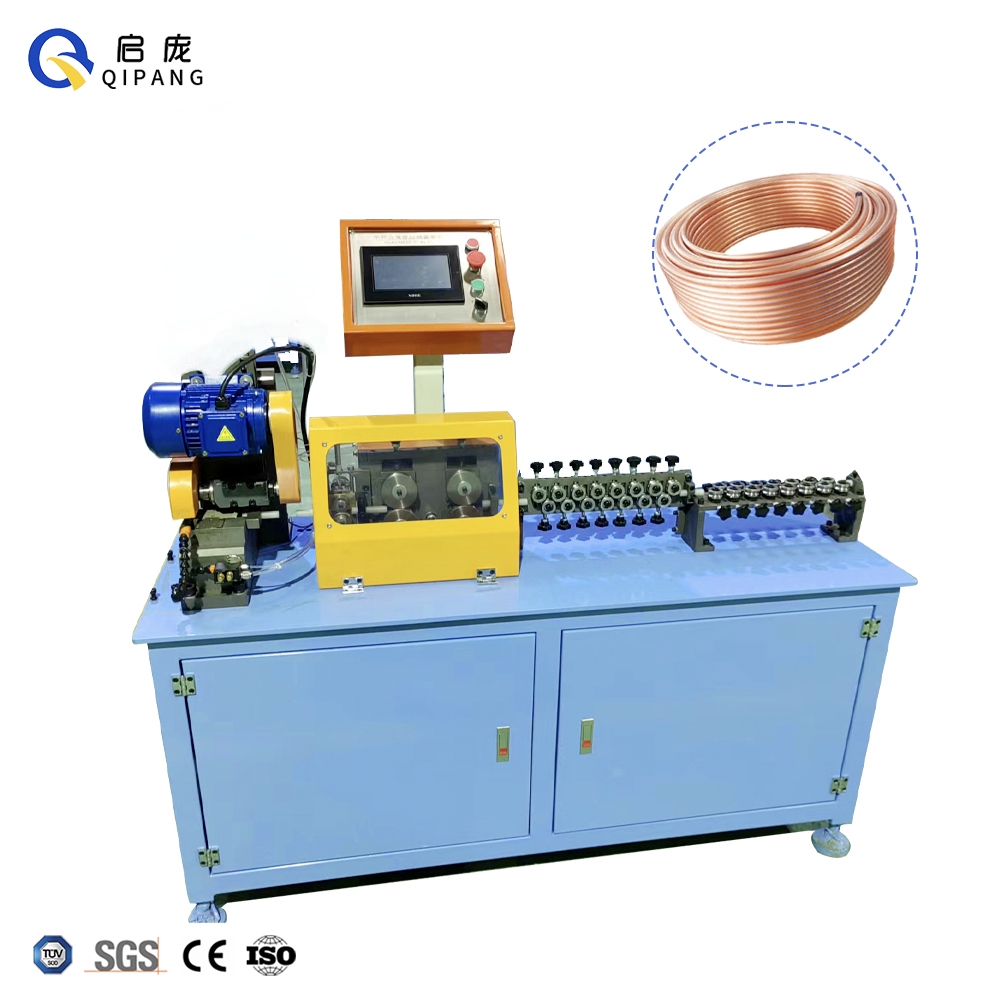

            Capillary Tubes Automatic Straightening and Cutting Machine Images：

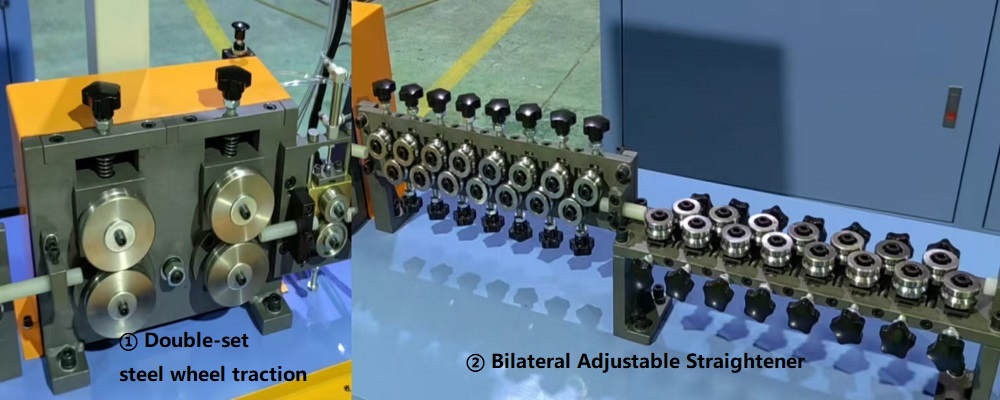

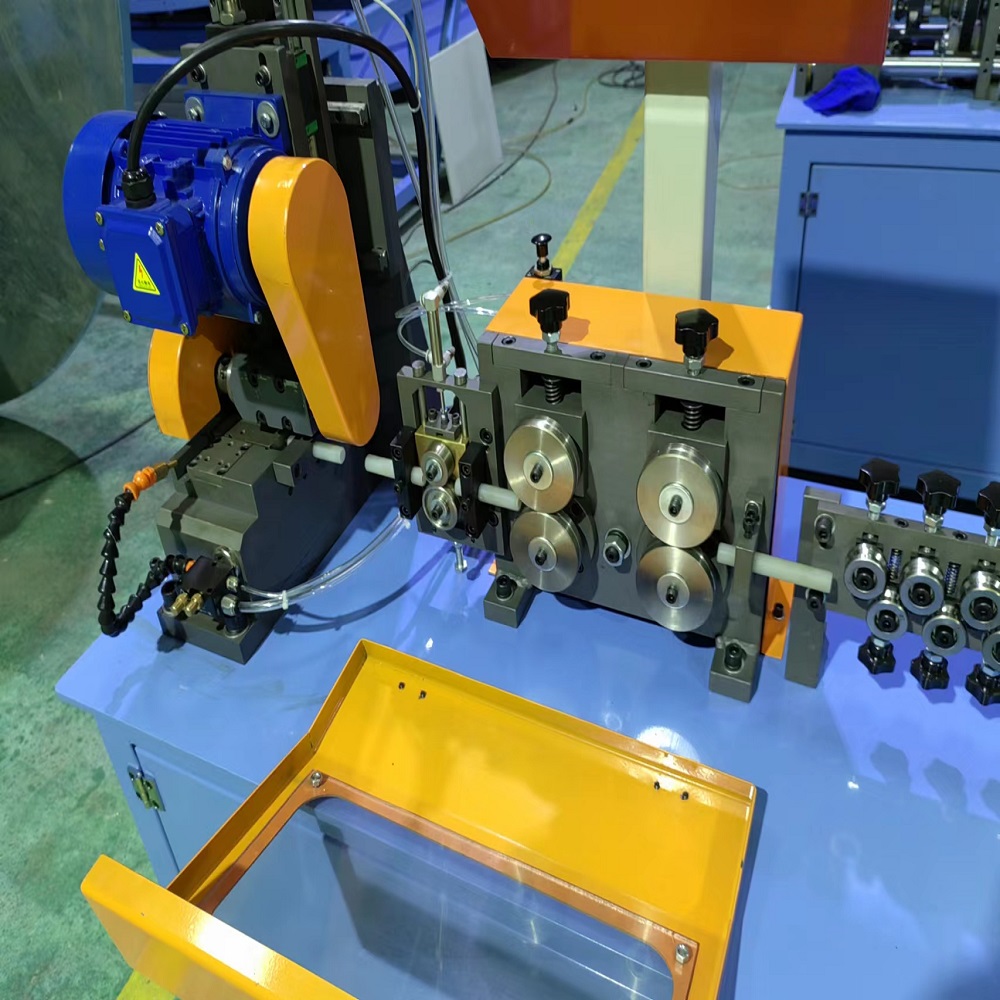

          Capillary Tubes Automatic Straightening and Cutting Detail Images:

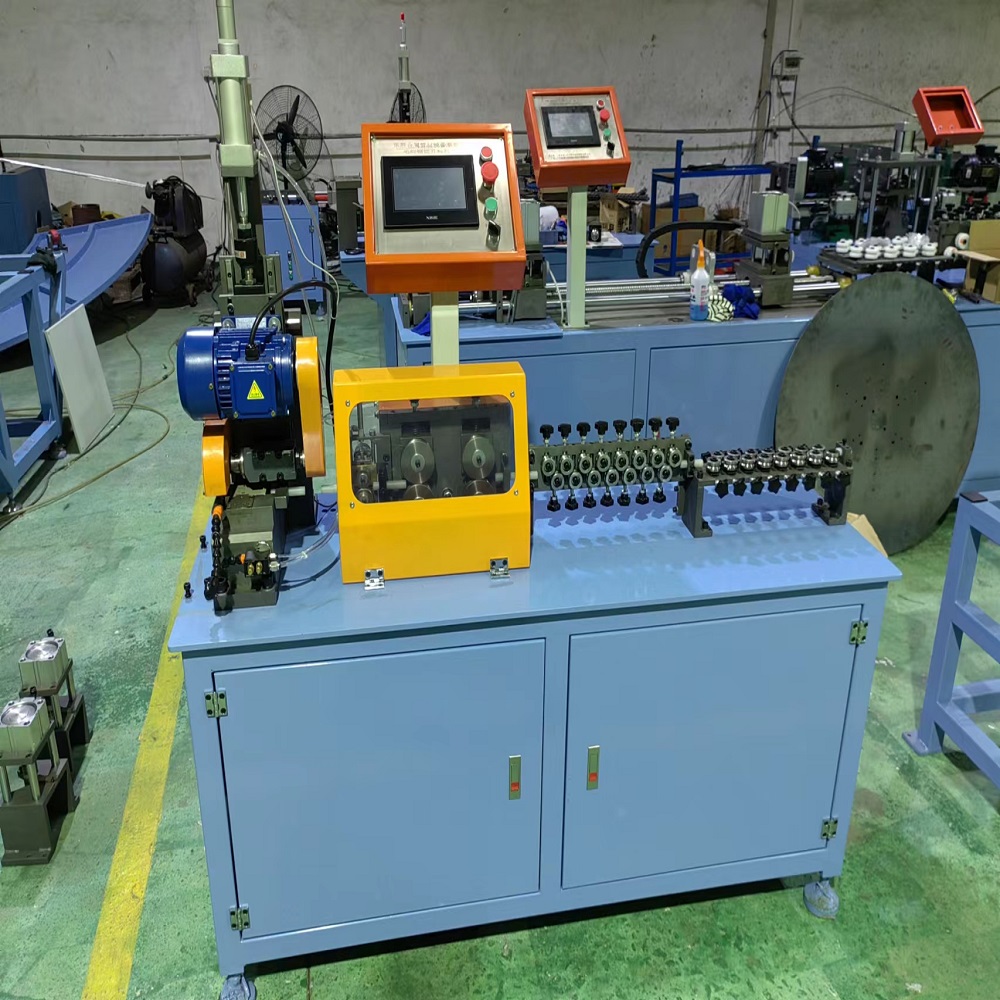

          Factory workshop photos：
