QIPANG 4-7 mm steel wire straightener supplier straightening mechanism straightener machineQIPANG 4-7 mm steel wire straightener supplier straightening mechanism straightener machineQIPANG 4-7 mm steel wire straightener supplier straightening mechanism straightener machineQIPANG 4-7 mm steel wire straightener supplier straightening mechanism straightener machine

QIPANG 4-7 mm steel wire straightener supplier straightening mechanism straightener machine

This straightener suits a wide variety of applications and is available in single, double or more planes with an easily added base plate.

This high quality and robust design is suited for material diameters from nearly 4mm to 7mm OD in up to different sizes.

This model is most commonly used in wire applications but also can be used for tubing, cable and other materials.

Share:
  • QIPANG 4-7 mm steel wire straightener supplier straightening mechanism straightener machine
  • QIPANG 4-7 mm steel wire straightener supplier straightening mechanism straightener machine
  • QIPANG 4-7 mm steel wire straightener supplier straightening mechanism straightener machine
  • QIPANG 4-7 mm steel wire straightener supplier straightening mechanism straightener machine
  • Description

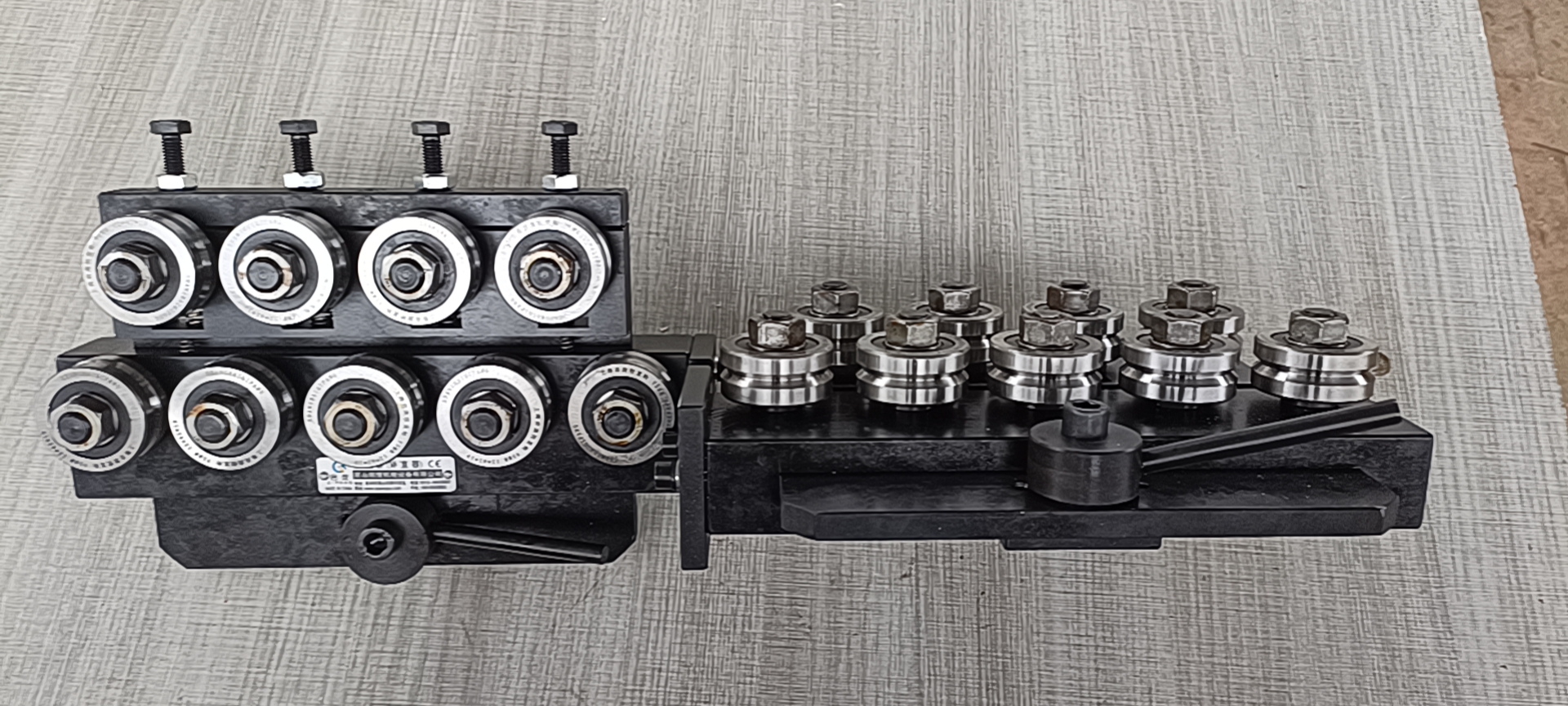

QIPANG 4-7 mm steel wire straightener supplier straightening mechanism straightener machine


Straightener machine

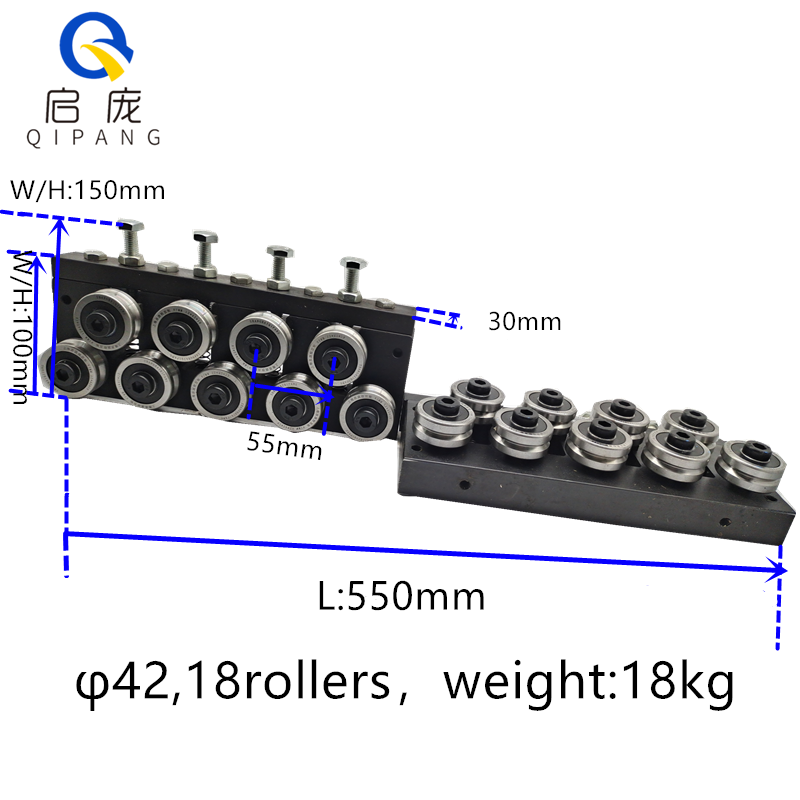

1, Single and dual plane straightener models JZQ 4-7/14/18 AV

3,From 5 ~ 7/9rollers per group (7/9) or (7+7 or 9+9),From 5 ~ 19 rollers  per group (5+5,7+7,9+9,11+11,13+13,15+15,17+17,19+19)

4,Roller diameters 42mm (1.654")

5,Adjustable rollers on the upper row

6,   Rollers available for light or heavy duty applications

7,Model AS/AD for wire R = 60 N/mm2 (8400 psi) max. with normal rollers (single or double bearing)

8,Rollers are standard "V" groove profiles but can be provided with "U" grooves 9,according to customer requirements

*Wire Guide included


Our straightening machine uses the highest quality roller bearings and V-grooves are standard, other profiles are available on customer request. We offer a number of roll type possibilities for specific applications to tailor to unique demands including sleeved rolls with outer rings in different materials like stainless steel, PET plastic and hardened steel.


QIPANG 4-7 mm steel wire straightener supplier straightening mechanism straightener machine

Straightener machine Type


ModelTypeWire Diameter (Solid)Roller Diameter (mm/inch)Roller Qty  (pcs)structuregroove
JZQ 0.05-0.2/38AVV-7φ0.05-0.2mm7(0.276)38quick clamping V
JZQ 0.2-0.5/34AVV-12φ0.2-0.5mm12(0.472)34V
JZQ 0.5-0.8/26AVV-16φ0.5-0.8mm16(0.630)26V
JZQ 0.8-1.5/5/18AVV-23φ0.8-1.5mm23(0.906)5/18V
JZQ 1.5-3/5/18AVV-30φ1.5-3mm30(1.181)5/18V
JZQ 3-4/18AVV-32φ3-4mm32(1.260)18V
JZQ 4-7/14/18/22AVV-42φ4-7mm42(1.654)14/18/22unclampingV
JZQ 5-8/14/18/22AVV-54φ5-8mm54(2.126)14/18/22V
ModelTypeTube/Pipe Diameter (Hollow)Roller Diameter (mm)Roller Qty                  (pcs)structuregroove
JZQ 1-3/14/18 BU/RU-301-3mm3018/14quick clamping U/R
JZQ 4-10/14/18/22 BU/RU-424-10mm4214/18/22unclampingU/R
JZQ 10-20/14/18/22 BU/RU-5410-20mm5414/18/22unclampingU/R
I.  Different groove types can be customized.
II.  Quick clamping is straightener with a handle for easy opening and closing the rollers

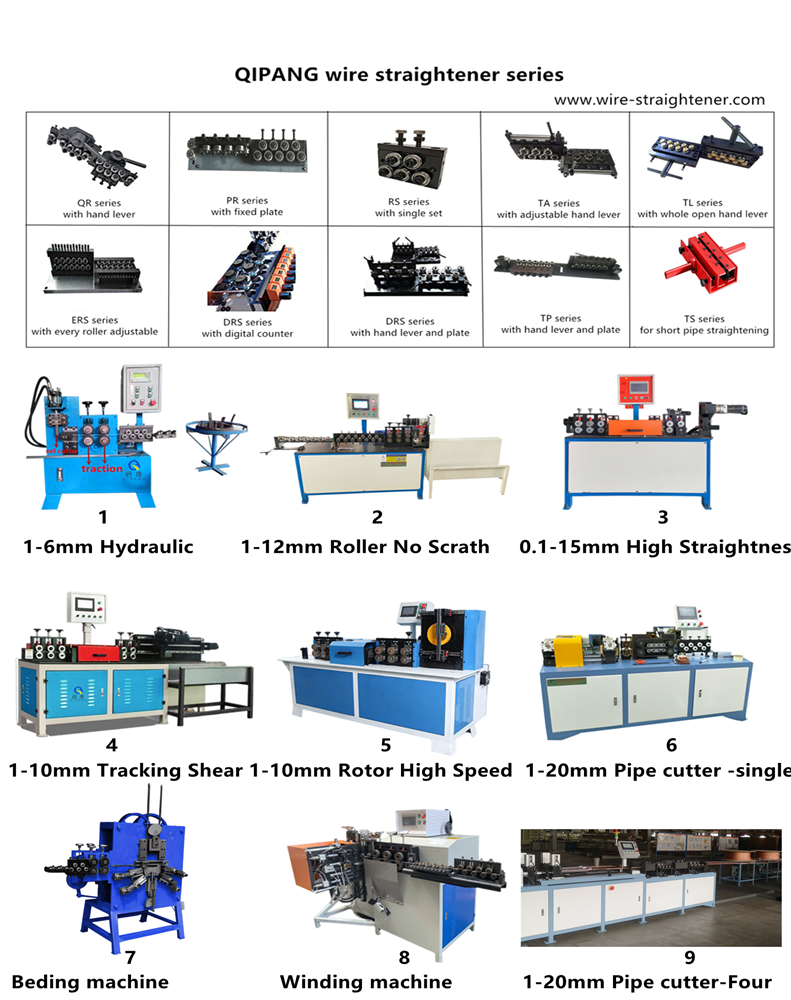

Straightener machine series


QIPANG 4-7 mm steel wire straightener supplier straightening mechanism straightener machine

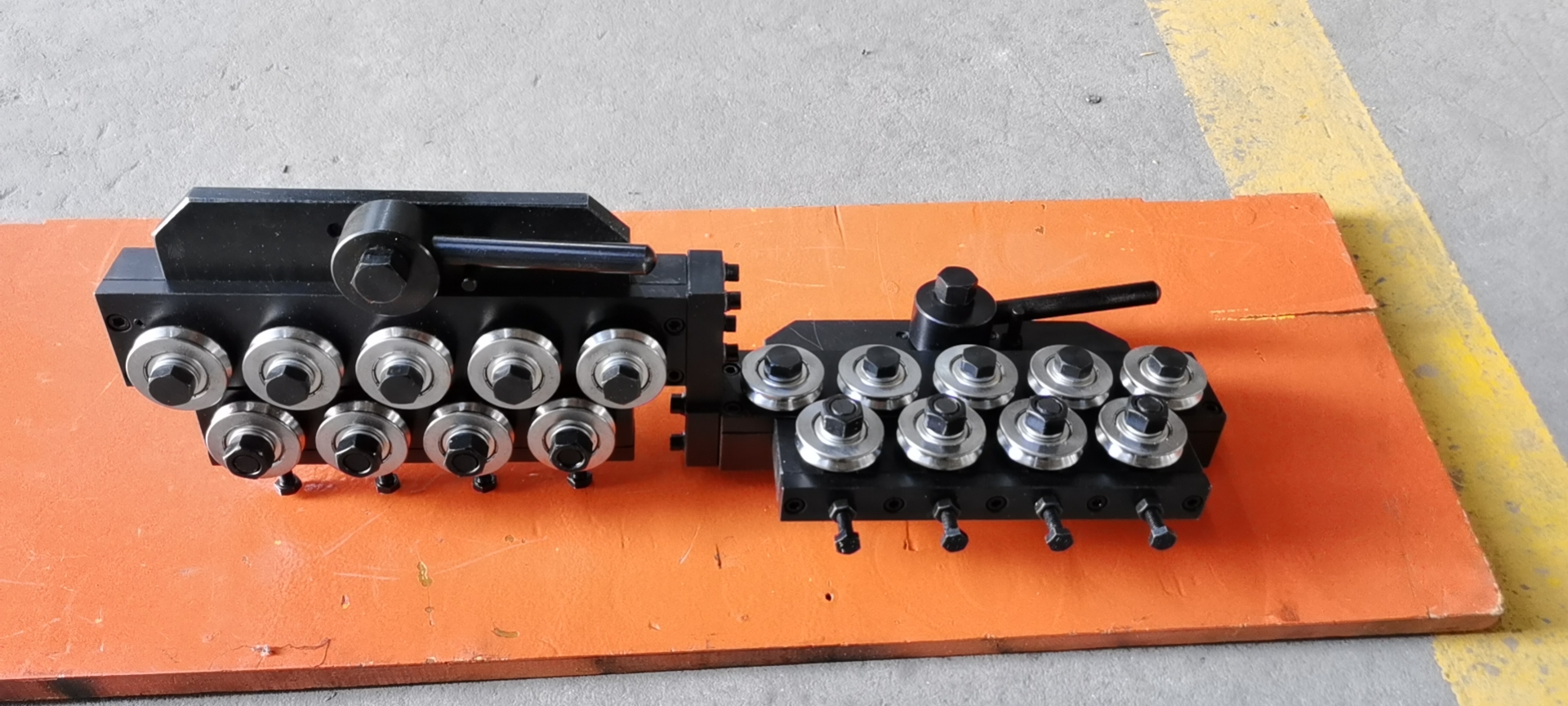

Product effect display


QIPANG JZQ 4-6/9 BV middle


Customer Make  QIPANG Wire Straightener

We can design and produce the wire straightener according to customer requirements.


1. Material ( steel,copper )

2. Diameter of steel wire or steel tube or copper tube

3. Operating speed ( m / min )

4. Single plane or double plane

5. If need qucik lever, if need guide roller, if need solid base


Equipment Reconstruction and Update

Just tell us the maker or brand of used wire straightener, and then we help you to select, optimize the suitable resulatiuons.


Before making an order, had better consult with us.


Hydraulic bending machine After-sales service

1.Maintenance period: one year

2.Training how to install the machine, training how to use the machine.

3.Engineers available to service machinery overseas.

4.Test the machine before shipment

5.Provide technical guidance relate to use the machine

6.Provide the spare parts at cost price after warranty period

7. Collect the feedback for the machine working


QIPANG 4-7 mm steel wire straightener supplier straightening mechanism straightener machine


QIPANG 4-7 mm steel wire straightener supplier straightening mechanism straightener machine



Read more:

https://www.wire-straightener.com/wire-straighteners/







FAQ:

Q:How about your after-sale service?
A:We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.

Q: What are your payment terms?
A:100%TT or prepaid 50% , balance 50% before shipping.


Q: Will you provide operation guidance for us?
A:We will send the instruction book with the machine and send you a video about how to operate the machine.

Q: How long is the warranty period?
A:12 months warranty, we will send you free spare parts by air within one week if there are any quality problems.



Q:What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q:How about your delivery time?
A: Generally, it will send this product within three or five days after receiving your payment. The specific delivery time dependson the items and the quantity of your order.
